MXPA11R-BHFSBW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine M15AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )RHD..MTM

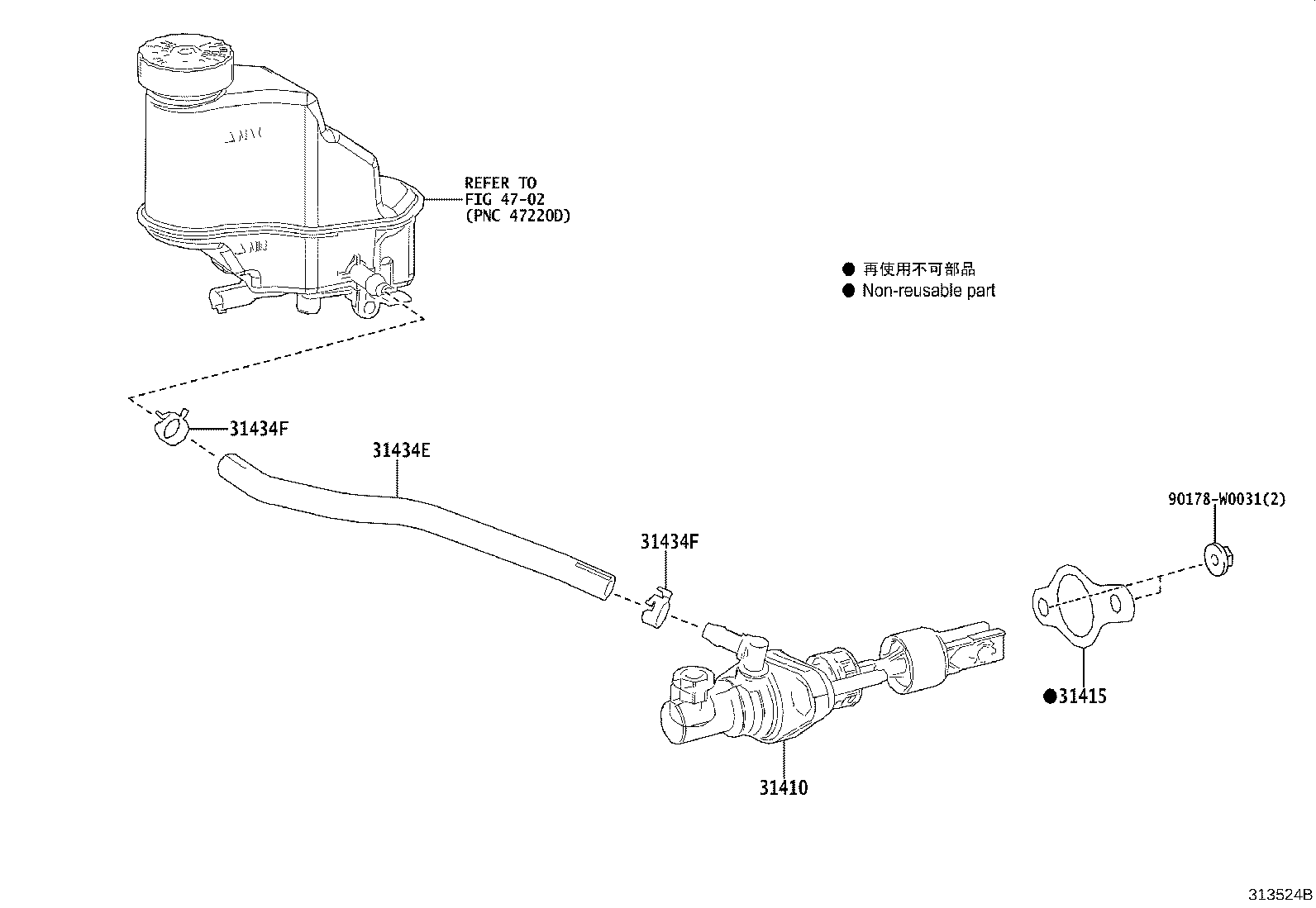

Click highlighted areas on diagram

diagram 31410 31415 31434E 31434F 31434F 4702 90178W0031
Part # Description Qty Price
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-K0020

KSP211..RHD..(N,R);MXPA11..RHD..6F..(G,N,S)

 1
31415 - GASKET, CLUTCH MASTER CYLINDER
31415-K0010

KSP211..(N,R)..FRP;MXPA11..6F..(G,N,S)

 1
31434E - HOSE, CLUTCH RESERVOIR, NO.1
31434-K0020

KSP211..RHD..(N,R);MXPA11..RHD..6F..(G,N,S)

 1
31434F - CLIP(FOR CLUTCH RESERVOIR HOSE NO.1)
96138-41501

KSP211..(N,R)..FRP;MXPA11..6F..(G,N,S)

 2
31434F - CLIP(FOR CLUTCH RESERVOIR HOSE NO.1)
96138-41501

KSP211..(N,R)..FRP;MXPA11..6F..(G,N,S)

 2
Common parts
90178-W0031
Linked diagrams
4702
