MXPA11R-BHFSBW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine M15AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )M15AFKS

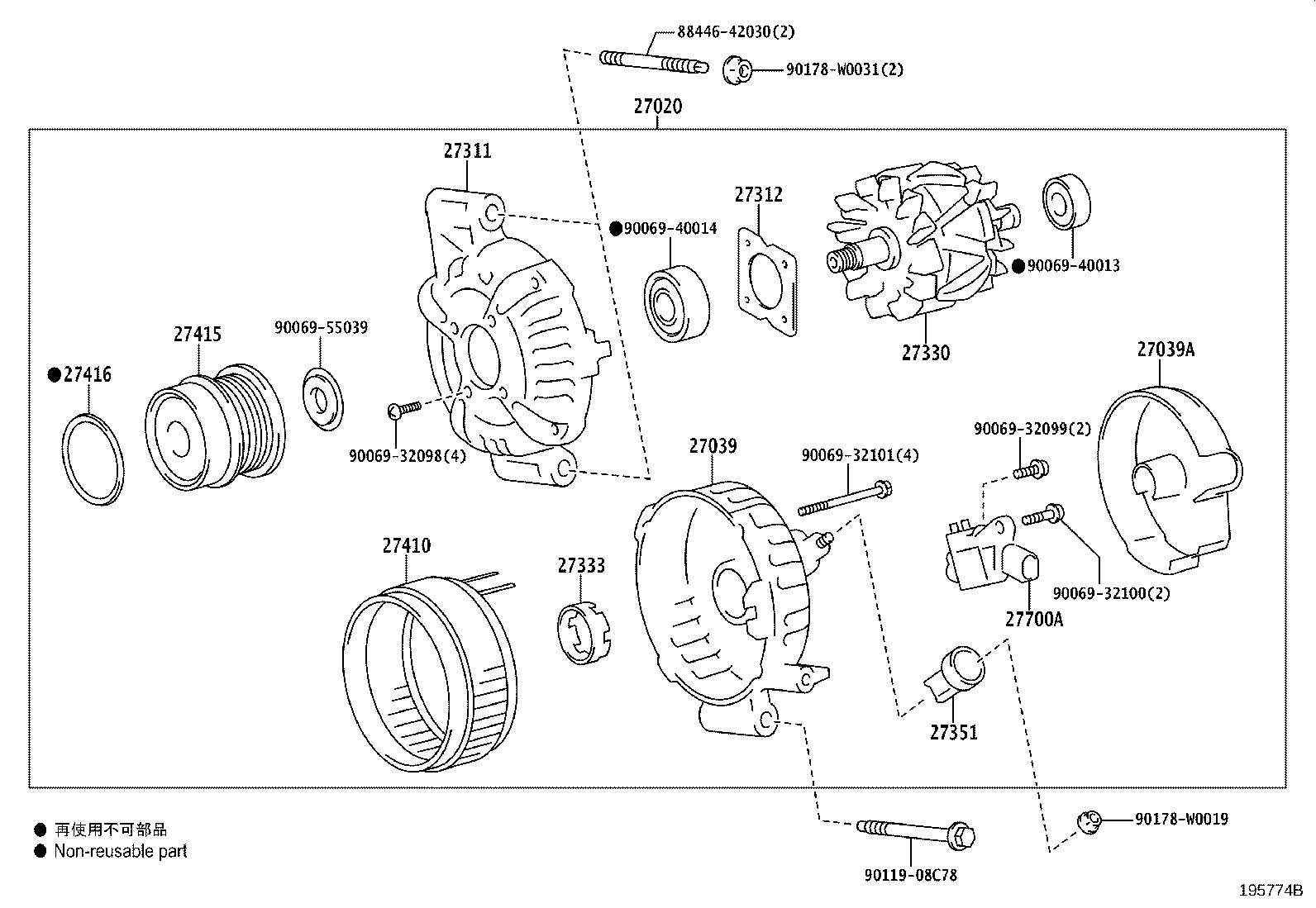

Click highlighted areas on diagram

12V 120A

diagram 27020 27039 27039A 27311 27312 27330 27333 27351 27410 27415 27416 27700A 8844642030 9006932098 9006932099 9006932100 9006932101 9006940013 9006940014 9006955039 9011908C78 90178W0019 90178W0031
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-K0030

M15AFKS..MXPA11..G,N,S

12V 120A

 1
27039 - COVER, ALTERNATOR REAR END
27039-K0030

M15AFKS..MXPA11..G,N,S

 1
27039A - COVER, ALTERNATOR REAR END, NO.2
27041-K0030

M15AFKS..MXPA11..G,N,S

 1
27311 - FRAME, ALTERNATOR DRIVE END
27311-K0030

M15AFKS..MXPA11..G,N,S

 1
27312 - PLATE, RETAINER
27312-K0030

M15AFKS..MXPA11..G,N,S

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-K0030

M15AFKS..MXPA11..G,N,S

 1
27333 - COLLAR, SPACE(FOR ALTERNATOR ROTOR)
27333-K0030

M15AFKS..MXPA11..G,N,S

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
90069-41003

M15AFKS..MXPA11..G,N,S

 1
27410 - STATOR ASSY, ALTERNATOR
27410-K0030

M15AFKS..MXPA11..G,N,S

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-F3010

M15AFKS..MXPA11..G,N,S

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0W050

M15AFKS..MXPA11..G,N,S

 1
27700A - REGULATOR ASSY, GENERATOR
27700-K0020

M15AFKS..MXPA11..G,N,S

 2
Common parts
88446-42030
90069-32098
90069-32099
90069-32100
90069-32101
90069-40013
90069-40014
90069-55039
90119-08C78
90178-W0019
90178-W0031
