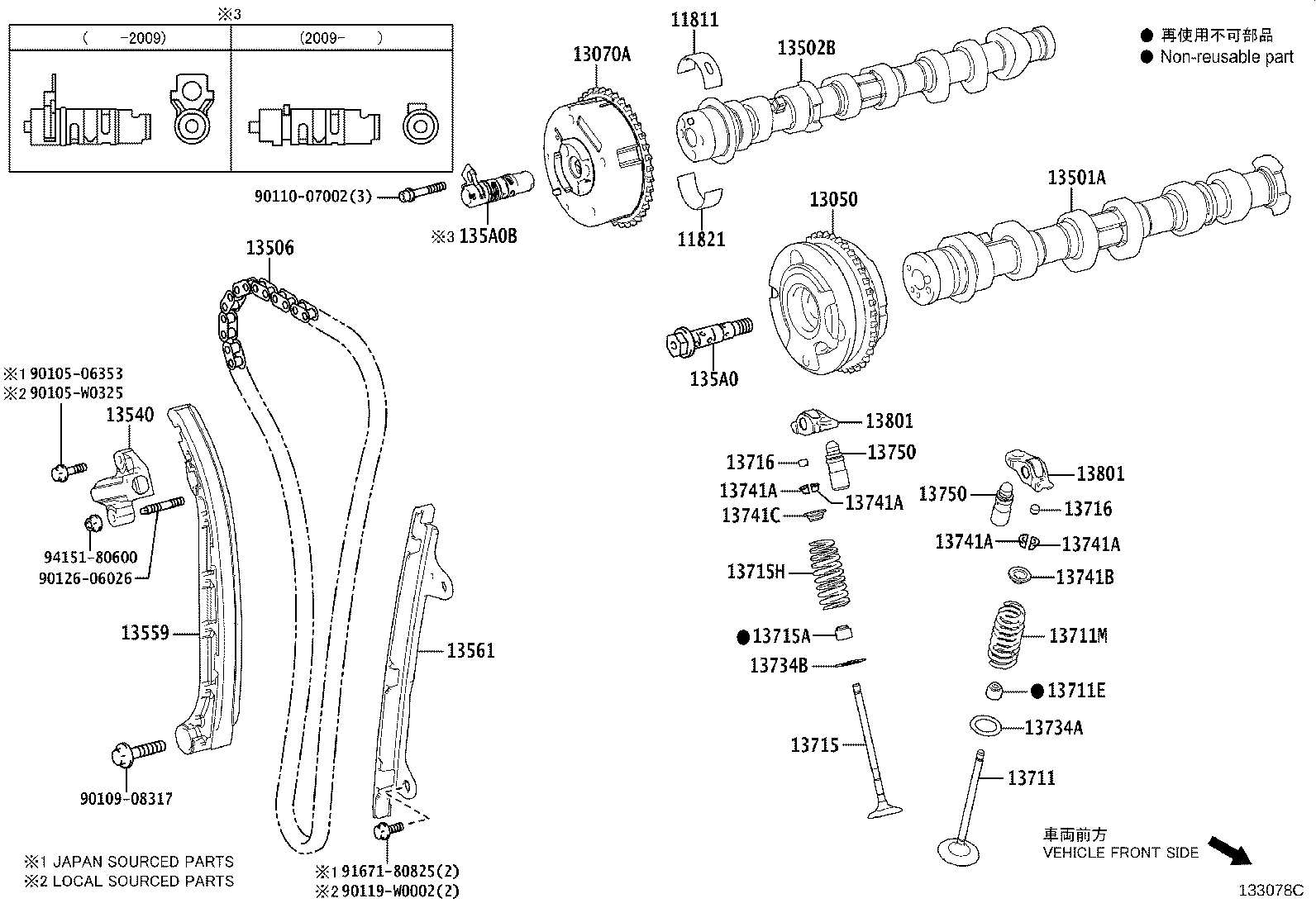

MXPA11R-BHFSBW (2020)
Toyota Yaris(Frp)
(2007- )M15AFKS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11811 - BEARING, CAMSHAFT, NO.1 | ||||
| 11811-F3050 |
M15AFKS..MXPA11 |
1 | ||
| 11821 - BEARING, CAMSHAFT, NO.2 | ||||
| 11821-F3050 |
M15AFKS..MXPA11 |
1 | ||
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-15010 |
M15AFKS..MXPA11 |
1 | ||
| 13070A - GEAR ASSY, CAMSHAFT TIMING EXHAUST | ||||
| 13070-25030 |
M15AFKS..MXPA11 REFER TO PNC 135A0B |
1 | ||
| 13070-25020 |
M15AFKS..MXPA11 REFER TO PNC 135A0B |
1 | ||
| 13501A - CAMSHAFT SUB-ASSY, INTAKE | ||||
| 13501-F3010 |
M15AFKS..MXPA11 |
1 | ||
| 13502B - CAMSHAFT SUB-ASSY, EXHAUST | ||||
| 13502-F3010 |
M15AFKS..MXPA11 |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-F2030 |
M15#..MXPA11,MXPH11 *613 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-F3020 |
M15#..MXPA11,MXPH11 *613 |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-F3010 |
M15#..MXPA11,MXPH11 *613 |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-F3020 |
M15#..MXPA11,MXPH11 *613 |
1 | ||
| 135A0 - BOLT ASSY, CAMSHAFT TIMING GEAR, CENTER(FOR INTAKE) | ||||
| 135A0-31020 |
M15AFKS..MXPA11 |
1 | ||
| 135A0B - VALVE ASSY, CAMSHAFT TIMING | ||||
| 135A0-15010 |
M15AFKS..MXPA11 |
1 | ||
| 135A0-70020 |
M15AFKS..MXPA11 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-F2050 |
M15AFKS..MXPA11 (L) |
6 | ||
| 13711-F2050 |
M15AFKS..MXPA11 |
6 | ||
| 13711-24040 |
M15AFKS..MXPA11 (J) |
6 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90080-31061 |
M15AFKS..MXPA11 |
6 | ||
| 13711M - SPRING, COMPRESSION(FOR INTAKE VALVE) | ||||
| 90501-32076 |
M15AFKS..MXPA11 |
6 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-F2040 |
M15AFKS..MXPA11 |
6 | ||
| 13715-F2040 |
M15AFKS..MXPA11 (L) |
6 | ||
| 13715-24040 |
M15AFKS..MXPA11 (J) |
6 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90080-31062 |
M15AFKS..MXPA11 |
6 | ||
| 13715H - SPRING, COMPRESSION(FOR EXHAUST VALVE) | ||||
| 90501-32076 |
M15AFKS..MXPA11 |
6 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-25010 |
M15AFKS..MXPA11 |
12 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-25010 |
M15AFKS..MXPA11 |
12 | ||
| 13734A - SEAT, INTAKE VALVE SPRING | ||||
| 13734-62020 |
M15AFKS..MXPA11 |
6 | ||
| 13734B - SEAT, EXHAUST VALVE SPRING | ||||
| 13734-62020 |
M15AFKS..MXPA11 |
6 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
M15AFKS..MXPA11 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
M15AFKS..MXPA11 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
M15AFKS..MXPA11 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
M15AFKS..MXPA11 |
24 | ||
| 13741B - RETAINER, INTAKE VALVE SPRING | ||||
| 13741-36010 |
M15AFKS..MXPA11 |
6 | ||
| 13741C - RETAINER, EXHAUST VALVE SPRING | ||||
| 13741-36010 |
M15AFKS..MXPA11 |
6 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-F2050 |
M15#..MXPA11,MXPH11 *613 |
12 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-F2050 |
M15#..MXPA11,MXPH11 *613 |
12 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-F2050 |
M15#..MXPA11,MXPH11 *613 |
12 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-F2050 |
M15#..MXPA11,MXPH11 *613 |
12 | ||
| Common parts | ||||
| 90105-06353 | ||||
| 90105-W0325 | ||||
| 90109-08317 | ||||
| 90110-07002 | ||||
| 90119-W0002 | ||||
| 90126-06026 | ||||
| 91671-80825 | ||||
| 94151-80600 | ||||
