MXPA11L-BHFSBW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine M15AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

Click highlighted areas on diagram

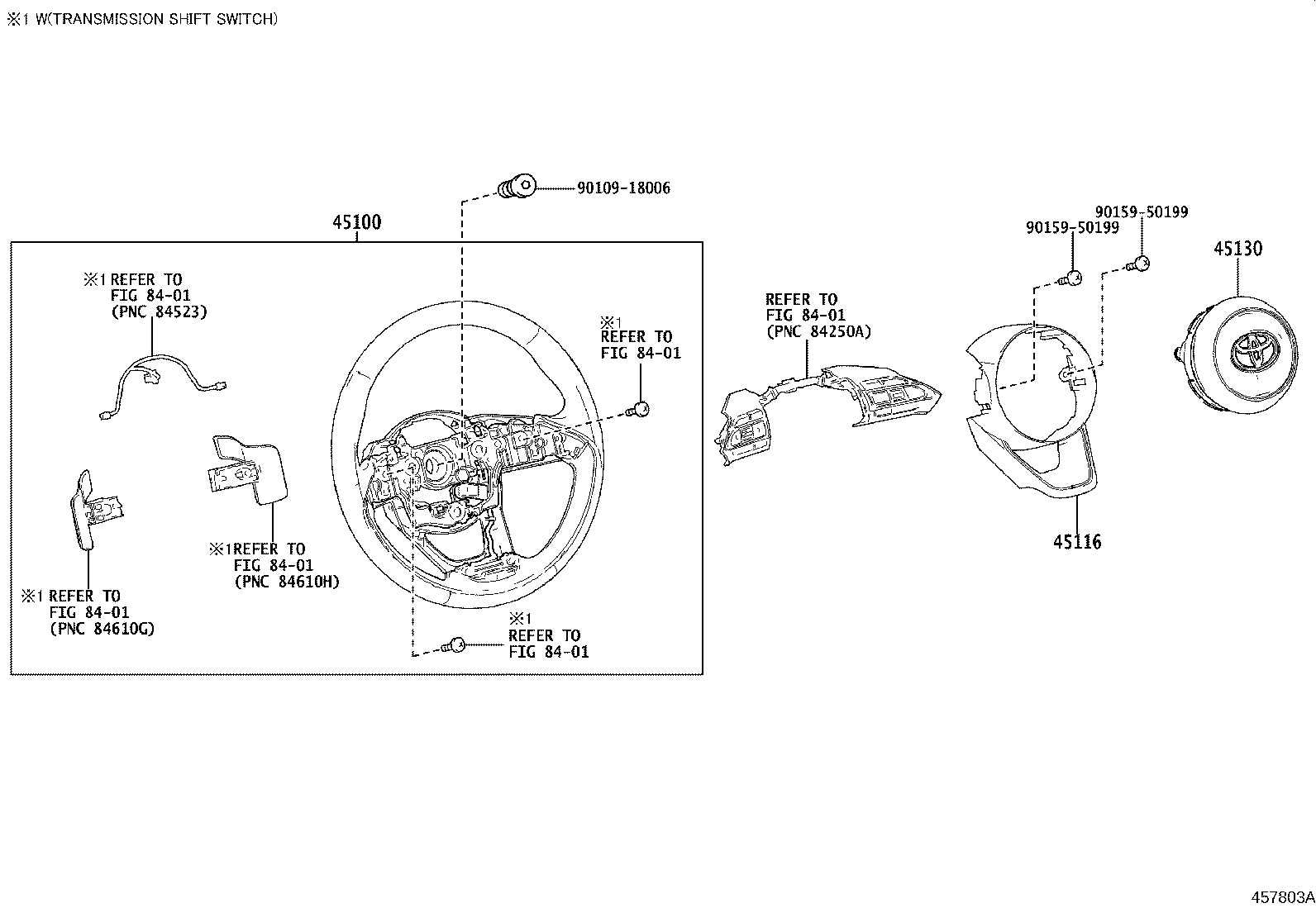

diagram 45100 45116 45130 8401 8401 8401 8401 8401 8401 9010918006 9015950199 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-K0100C0

MXPA11..LHD..6F..S;MXPH11..LHD..S..FRP

3-SPOKE,URETHANE,AZORES, MADEIRA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING WHEEL-URETHANE,BLACK,TRIM2#

 1
45100-K0100C0

MXPA11..LHD..6F..S;MXPH11..LHD..S..FRP

3-SPOKE,URETHANE,WITHOUT(DESTINATION PACKAGE(EUROPE))&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING WHEEL-URETHANE,BLACK,TRIM2#

 1
45100-K0100C0

MXPA11..LHD..6F..S;MXPH11..LHD..S..FRP

3-SPOKE,URETHANE,ISRAEL SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING WHEEL-URETHANE,BLACK,TRIM2#

 1
45100-K0100C0

MXPA11..LHD..6F..S;MXPH11..LHD..S..FRP

3-SPOKE,URETHANE,TURKEY SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING WHEEL-URETHANE,BLACK,TRIM2#

 1
45100-K0100C0

MXPA11..LHD..6F..S;MXPH11..LHD..S..FRP

3-SPOKE,URETHANE,CEUTA & MELILLA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING WHEEL-URETHANE,BLACK,TRIM2#

 1
45100-K0110C1

MXPA11..LHD..6F..S;MXPH11..LHD..S..FRP

3-SPOKE,LEATHER,WITHOUT(DESTINATION PACKAGE(EUROPE))&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING WHEEL-LEATHER,BLACK,TRIM2#

 1
45100-K0110C1

MXPA11..LHD..6F..S;MXPH11..LHD..S..FRP

3-SPOKE,LEATHER,ISRAEL SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING WHEEL-LEATHER,BLACK,TRIM2#

 1
45100-K0100C0

MXPA11..LHD..6F..S;MXPH11..LHD..S..FRP

3-SPOKE,URETHANE,UKRAINE SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING WHEEL-URETHANE,BLACK,TRIM2#

 1
45100-K0110C1

MXPA11..LHD..6F..S;MXPH11..LHD..S..FRP

3-SPOKE,LEATHER,CEUTA & MELILLA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING WHEEL-LEATHER,BLACK,TRIM2#

 1
45100-K0110C1

MXPA11..LHD..6F..S;MXPH11..LHD..S..FRP

3-SPOKE,LEATHER,UKRAINE SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING WHEEL-LEATHER,BLACK,TRIM2#

 1
45100-K0110C1

MXPA11..LHD..6F..S;MXPH11..LHD..S..FRP

3-SPOKE,LEATHER,TURKEY SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING WHEEL-LEATHER,BLACK,TRIM2#

 1
45100-K0110C1

MXPA11..LHD..6F..S;MXPH11..LHD..S..FRP

3-SPOKE,LEATHER,AZORES, MADEIRA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING WHEEL-LEATHER,BLACK,TRIM2#

 1
45100-K0140C1

MXPA11..6F..S;MXPH11..S..FRP

3-SPOKE,LEATHER,BLACK,TRIM2#

 1
45100-K0190C1

MXPA11..6F..S;MXPH11..S..FRP

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(HEATER & VIBRATION),BLACK,TRIM2#

 1
45100-K0130C0

MXPA11..LHD..6F..S;MXPH11..RHD..(G,S);MXPH11..LHD..S..FRP

3-SPOKE,URETHANE,STEERING WHEEL-URETHANE, WITH(VIBRATION),BLACK,TRIM2#

 1
Common parts
90109-18006
90159-50199
Linked diagrams
8401
