MXPA11L-BHFSBW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine M15AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )M15AFKS

Click highlighted areas on diagram

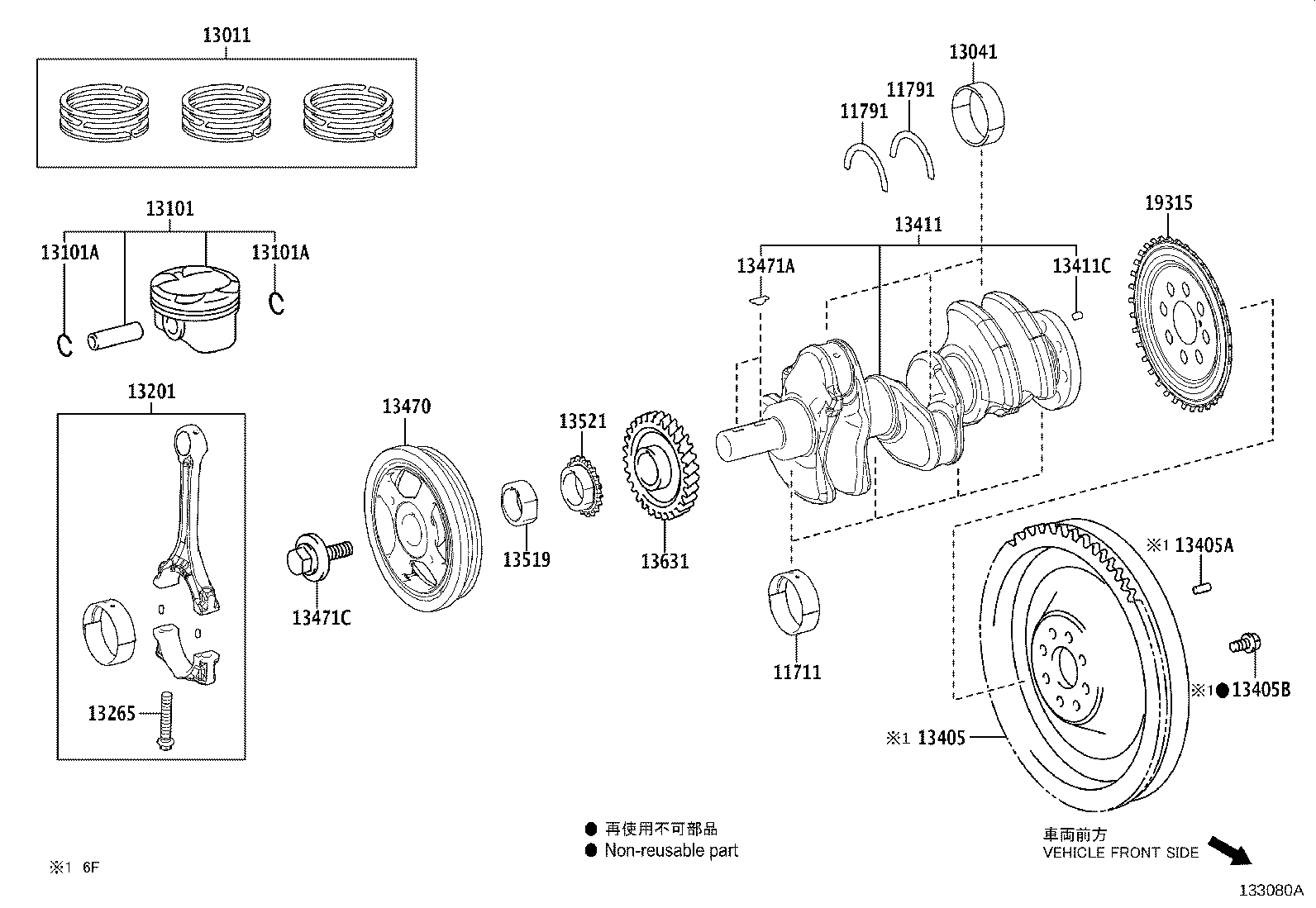

diagram 11711 11791 11791 13011 13041 13101 13101A 13101A 13201 13265 13405 13405A 13405B 13411 13411C 13470 13471A 13471C 13519 13521 13631 19315
Part # Description Qty Price
13101 - PISTON SUB-ASSY, W/PIN
13101-15060

M15AFKS..MXPA11..G,N,S

STD,*613

 3
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-19019

M15AFKS..MXPA11..G,N,S

 6
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-19019

M15AFKS..MXPA11..G,N,S

 6
13405 - FLYWHEEL SUB-ASSY
13405-F3020

M15AFKS..MXPA11..6F..(G,N,S)

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08120

M15AFKS..MXPA11..6F..(G,N,S)

L=18,OD=8

 3
13405B - BOLT, FLYWHEEL SETTING
90105-12322

M15AFKS..MXPA11..6F..(G,N,S)

 8
13411C - PIN, STRAIGHT(FOR CRANKSHAFT)
90250-06035

M15AFKS..MXPA11..G,N,S

 1
13470 - PULLEY ASSY, CRANKSHAFT
13470-15140

M15AFKS..MXPA11..G,N,S

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-04001

M15AFKS..MXPA11..G,N,S

 2
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-16020

M15AFKS..MXPA11..G,N,S

 1
13519 - GEAR, OIL PUMP DRIVE
13519-F3010

M15AFKS..MXPA11..G,N,S

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-F3010

M15AFKS..MXPA11..G,N,S

 1
13631 - GEAR, BALANCESHAFT DRIVE
13631-15010

M15AFKS..MXPA11..G,N,S

 1
19315 - PLATE, CRANK ANGLE SENSOR, NO.1
19315-24010

M15AFKS..MXPA11..G,N,S

 1
