MXPA11L-BHFNBW (2020)
Toyota Yaris(Frp)
(2007- )6F
EC6E

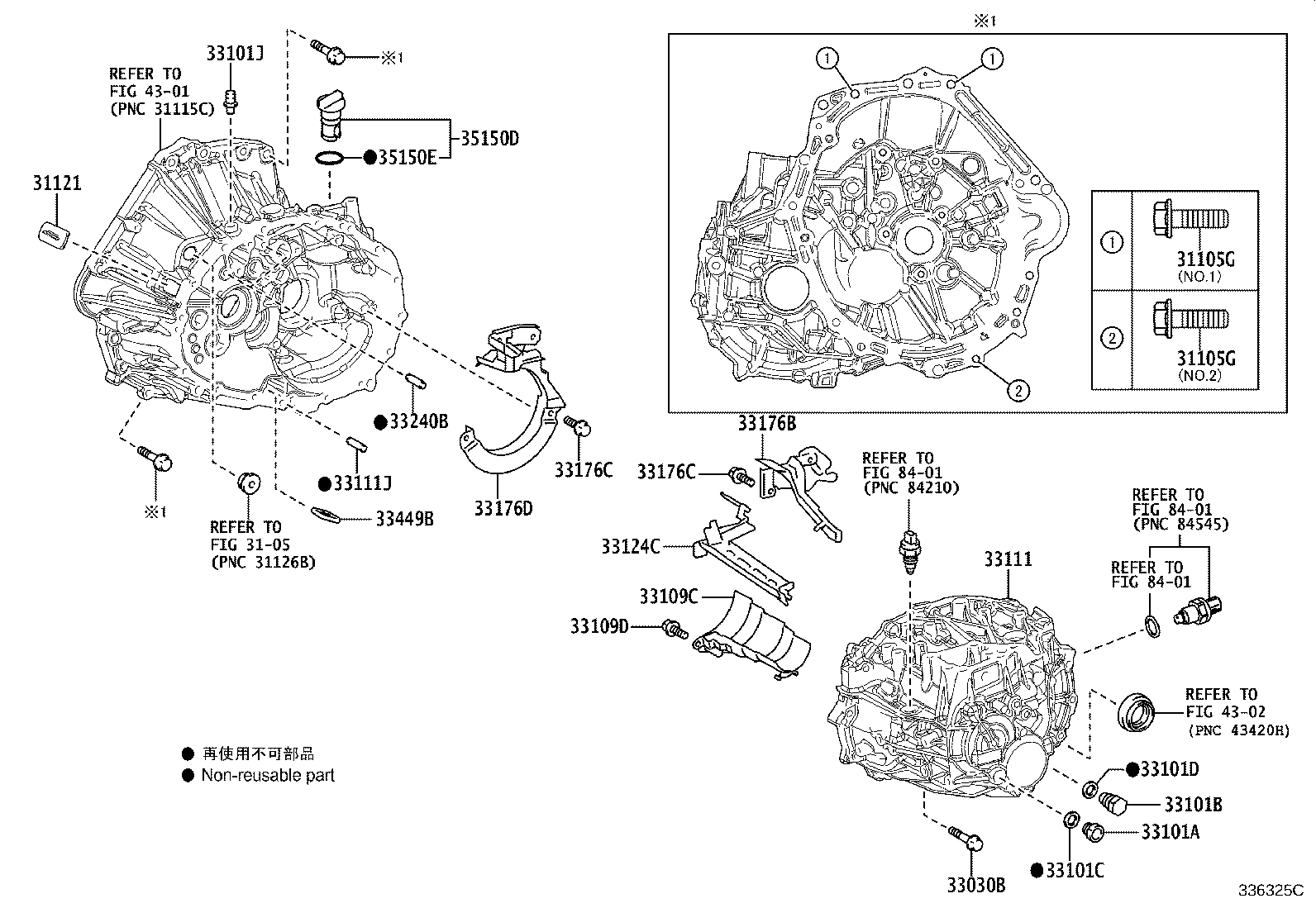

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-W0092 |
MXPA11..6F..(G,N,S) *8-1.25PX35-22,NO.2:REFER ILLUST. |
1 | ||
| 90105-10591 |
MXPA11..6F..(G,N,S) *10-1.25PX45-36,NO.1:REFER ILLUST. |
2 | ||
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-W0092 |
MXPA11..6F..(G,N,S) *8-1.25PX35-22,NO.2:REFER ILLUST. |
1 | ||
| 90105-10591 |
MXPA11..6F..(G,N,S) *10-1.25PX45-36,NO.1:REFER ILLUST. |
2 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-05010 |
MXPA11..6F..(G,N,S) |
1 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-W0209 |
MXPA11..6F..(G,N,S) *8-1.25PX40-22,(L) |
16 | ||
| 91551-10840 |
MXPA11..6F..(G,N,S) *8-1.25PX40-22,(J) |
16 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18033 |
KSP211..(N,R)..FRP;MXPA11..6F..(G,N,S) |
1 | ||
| 33101B - PLUG(FOR MANUAL TRANSMISSION DRAIN) | ||||
| 90341-18085 |
MXPA11..6F..(G,N,S) |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 12157-10010 |
MXPA11..6F..(G,N,S) |
1 | ||
| 33101D - GASKET(FOR MANUAL TRANSMISSION DRAIN PLUG) | ||||
| 12157-10010 |
MXPA11..6F..(G,N,S) |
1 | ||
| 33101J - PLUG, BREATHER | ||||
| 90930-03133 |
MXPA11..6F..(G,N,S) |
1 | ||
| 33109C - SEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL | ||||
| 33109-K0010 |
MXPA11..6F..(G,N,S) |
1 | ||
| 33109D - BOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR) | ||||
| 90105-W0035 |
MXPA11..6F..(G,N,S) (L) |
3 | ||
| 91551-80816 |
MXPA11..6F..(G,N,S) (J) |
3 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-K0010 |
MXPA11..6F..(G,N,S) |
1 | ||
| 33111-K0010 |
MXPA11..LHD..6F..(G,N,S) WITHOUT(DESTINATION PACKAGE(EUROPE))&REUNION SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 33111-K0010 |
MXPA11..LHD..6F..(G,N,S) WITHOUT(DESTINATION PACKAGE(EUROPE))&GUADELOUPE SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 33111-K0010 |
MXPA11..LHD..6F..(G,N,S) WITHOUT(DESTINATION PACKAGE(EUROPE))&MARTINIQUE SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 33111-K0010 |
MXPA11..LHD..6F..(G,N,S) TURKEY SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 33111-K0010 |
MXPA11..LHD..6F..(G,N,S) ISRAEL SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 33111-K0020 |
MXPA11..LHD..6F..(G,N,S) WITHOUT(DESTINATION PACKAGE(EUROPE))&NEW CALEDONIA, TAHITI SPEC&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 33111-K0020 |
MXPA11..LHD..6F..(G,N,S) WITHOUT(DESTINATION PACKAGE(EUROPE))&REUNION SPEC&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 33111-K0010 |
MXPA11..LHD..6F..(G,N,S) AZORES, MADEIRA SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 33111-K0010 |
MXPA11..LHD..6F..(G,N,S) CEUTA & MELILLA SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 33111-K0020 |
MXPA11..LHD..6F..(G,N,S) AZORES, MADEIRA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 33111-K0020 |
MXPA11..LHD..6F..(G,N,S) WITHOUT(DESTINATION PACKAGE(EUROPE))&MARTINIQUE SPEC&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 33111-K0020 |
MXPA11..LHD..6F..(G,N,S) ISRAEL SPEC&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 33111-K0020 |
MXPA11..LHD..6F..(G,N,S) TURKEY SPEC&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 33111-K0020 |
MXPA11..LHD..6F..(G,N,S) WITHOUT(DESTINATION PACKAGE(EUROPE))&GUADELOUPE SPEC&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 33111-K0020 |
MXPA11..LHD..6F..(G,N,S) CEUTA & MELILLA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 33111-K0020 |
MXPA11..LHD..6F..(G,N,S) UKRAINE SPEC&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
MXPA11..6F..(G,N,S) L=23,OD=8 |
3 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-K0010 |
MXPA11..6F..(G,N,S) |
1 | ||
| 33176B - SEPARATOR, TRANSMISSION OIL(MTM) | ||||
| 33176-0D020 |
MXPA11..6F..(G,N,S) |
1 | ||
| 33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR) | ||||
| 90105-W0035 |
MXPA11..6F..(G,N,S) (L) |
2 | ||
| 91551-80816 |
MXPA11..6F..(G,N,S) (J) |
2 | ||
| 33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR) | ||||
| 90105-W0035 |
MXPA11..6F..(G,N,S) (L) |
2 | ||
| 91551-80816 |
MXPA11..6F..(G,N,S) (J) |
2 | ||
| 33176D - SEPARATOR, TRANSMISSION OIL, NO.2(MTM) | ||||
| 33176-0D030 |
MXPA11..6F..(G,N,S) |
1 | ||
| 33240B - PIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET) | ||||
| 90250-08054 |
MXPA11..6F..(G,N,S) |
2 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-20010 |
MXPA11..6F..(G,N,S) |
1 | ||
| 35150D - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-44010 |
MXPA11..6F..(G,N,S) |
1 | ||
| 35150E - RING, O (FOR TRANSMISSION CASE PLUG) | ||||
| 90301-09173 |
MXPA11..6F..(G,N,S) |
1 | ||
| Linked diagrams | ||||
| 3105 | ||||
| 4301 | ||||
| 4302 | ||||
| 8401 | ||||
