KSP211R-BHMRKW (2020)
Toyota Yaris(Frp)
Production
Jul 2020
-
Sep 9999
Engine
1KRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )RHD
Click highlighted areas on diagram

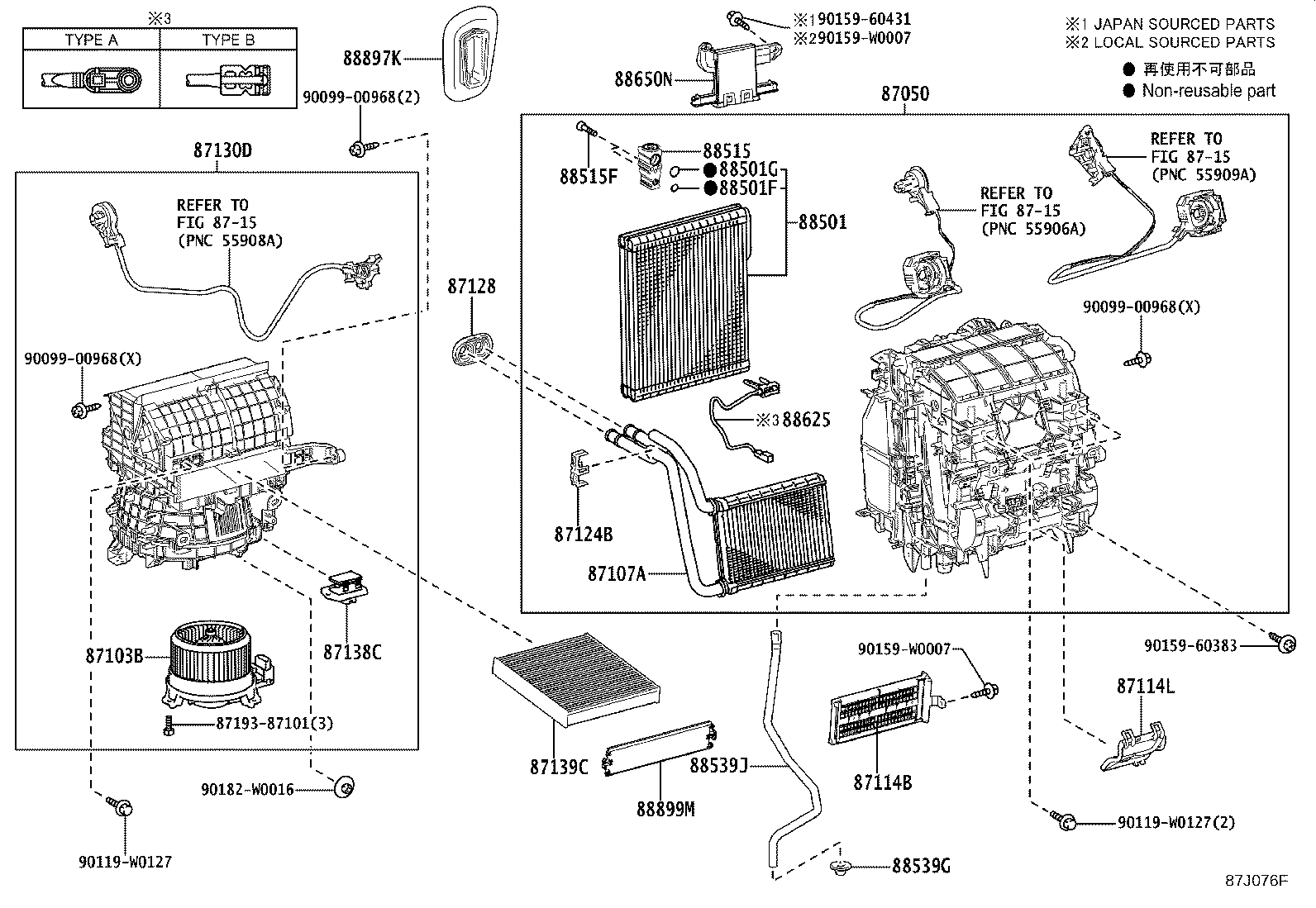

MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-K0240 |
KSP211,MXPA11..RHD..(N,R) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-K0040 |
KSP211,MXPA11..RHD..(N,R) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-K0010 |
KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S) |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-K0010 |
KSP211,MXPA11..RHD..(N,R) |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-K0010 |
KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S) |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-00968 | ||||
| 90119-W0127 | ||||
| 90159-60383 | ||||
| 90159-60431 | ||||
| 90159-W0007 | ||||
| 90182-W0016 | ||||
| Linked diagrams | ||||
| 8715 | ||||
(2007- )RHD
Click highlighted areas on diagram

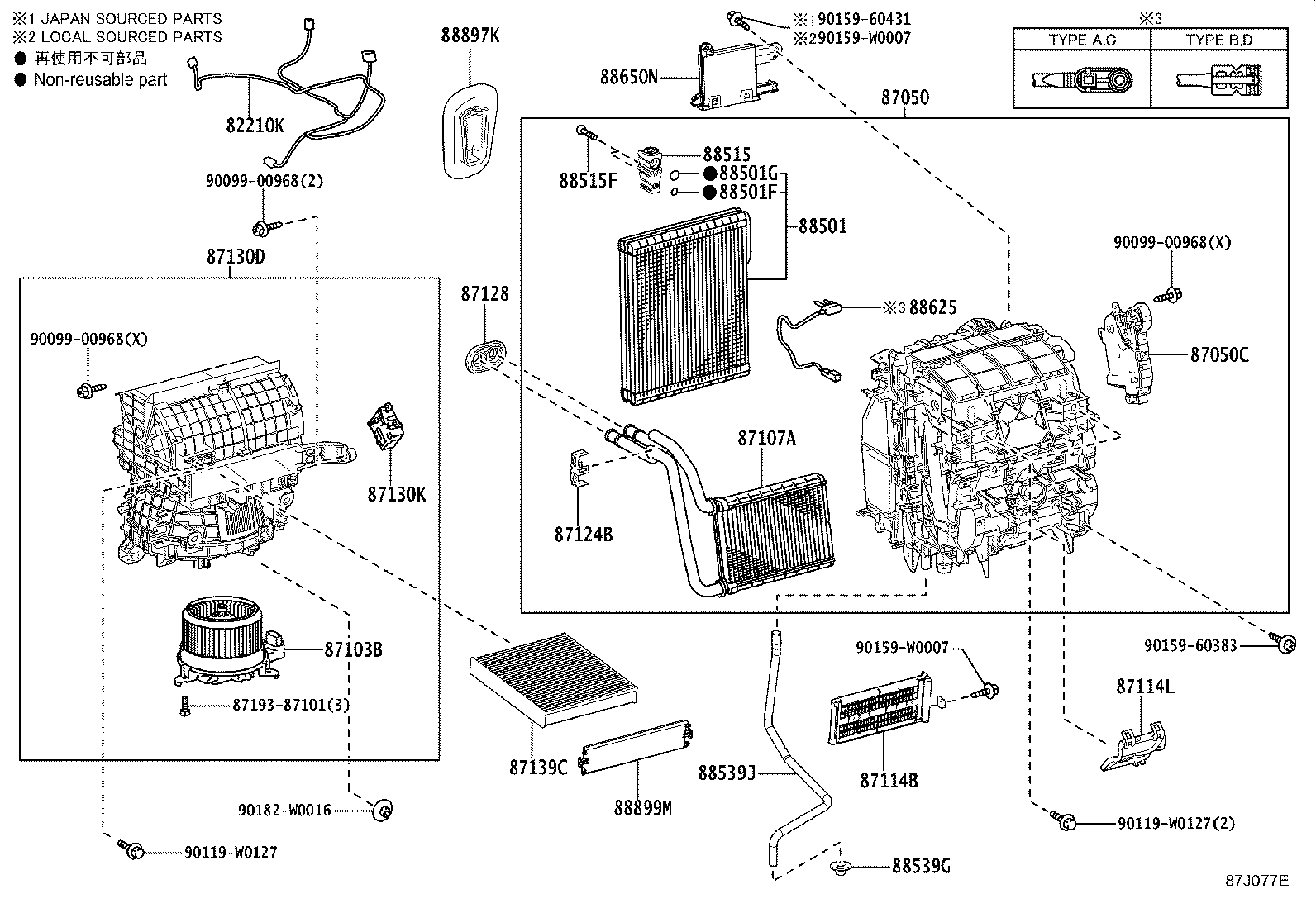

AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-K0240 |
KSP211,MXPA11..RHD..(N,R) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-K0040 |
KSP211,MXPA11..RHD..(N,R) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-K0010 |
KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S) |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-K0010 |
KSP211,MXPA11..RHD..(N,R) |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-K0010 |
KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S) |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-00968 | ||||
| 90119-W0127 | ||||
| 90159-60383 | ||||
| 90159-60431 | ||||
| 90159-W0007 | ||||
| 90182-W0016 | ||||
