KSP211R-BHMRKW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )RHD

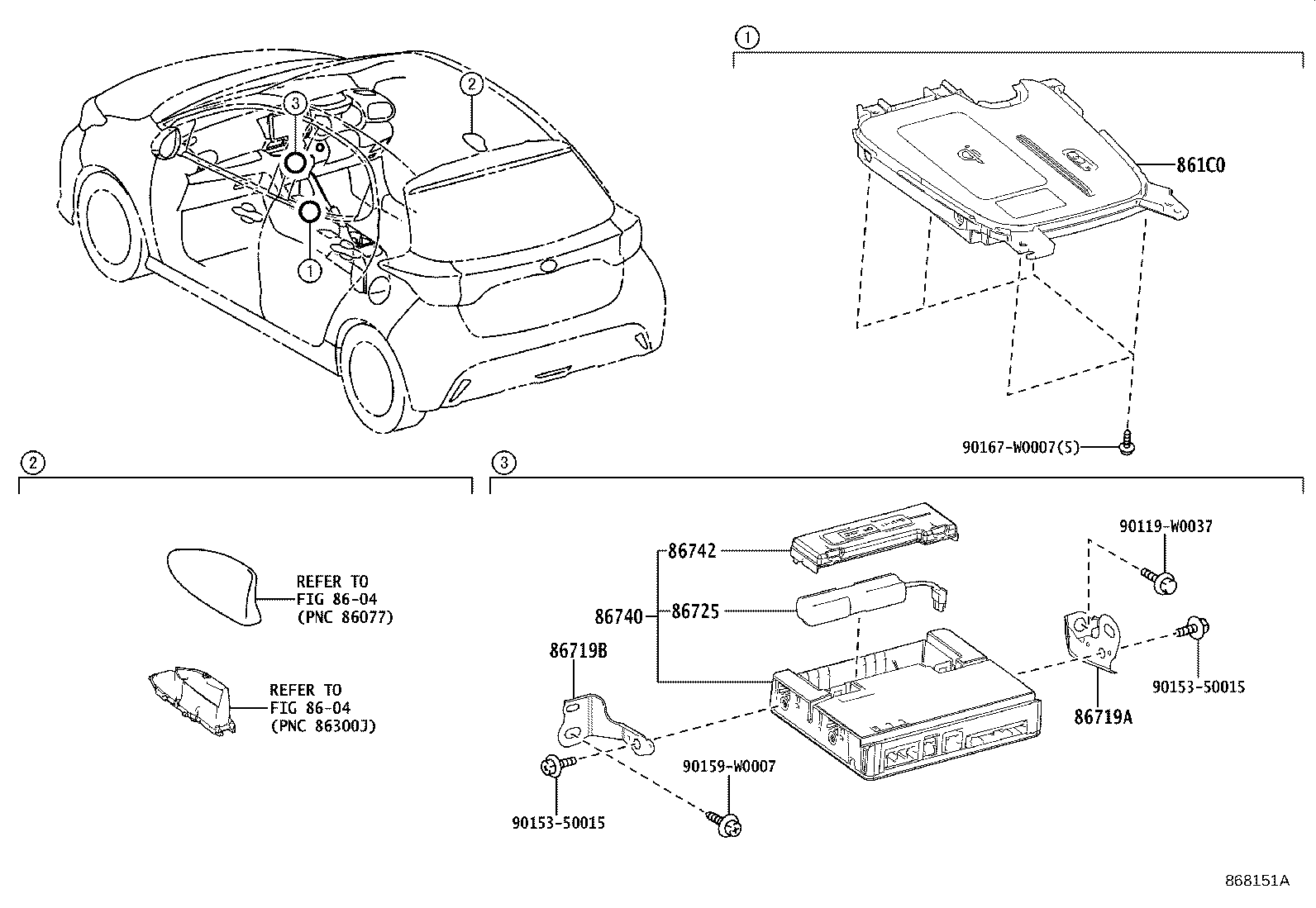

Click highlighted areas on diagram

7 OR 8 INCH DISPLAY

diagram 8604 8604 861C0 86719A 86719B 86725 86740 86742 90119W0037 9015350015 9015350015 90159W0007 90167W0007
Part # Description Qty Price
86719A - BRACKET, TELEPHONE NO.1
86719-K0010

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
86719B - BRACKET, TELEPHONE NO.2
86719-K0020

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
Common parts
90119-W0037
90153-50015
90159-W0007
90167-W0007
Linked diagrams
8604
