KSP211R-BHMRKW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )RHD

Click highlighted areas on diagram

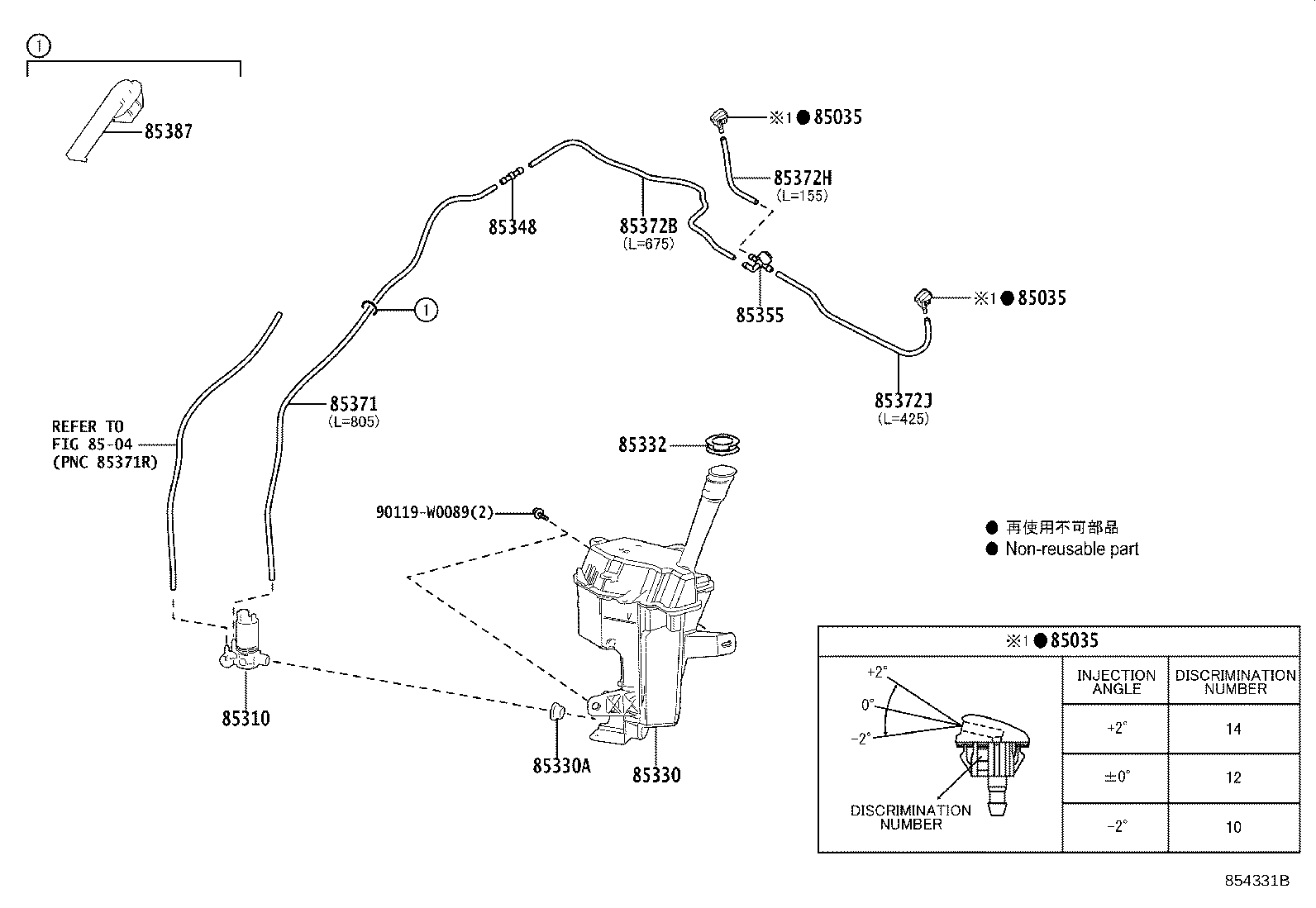

W(REAR WASHER)

diagram 85035 85035 85035 8504 85310 85330 85330A 85332 85348 85355 85371 85372B 85372H 85372J 85387 90119W0089
Part # Description Qty Price
Common parts
90119-W0089
Linked diagrams
8504

(2007- )RHD

Click highlighted areas on diagram

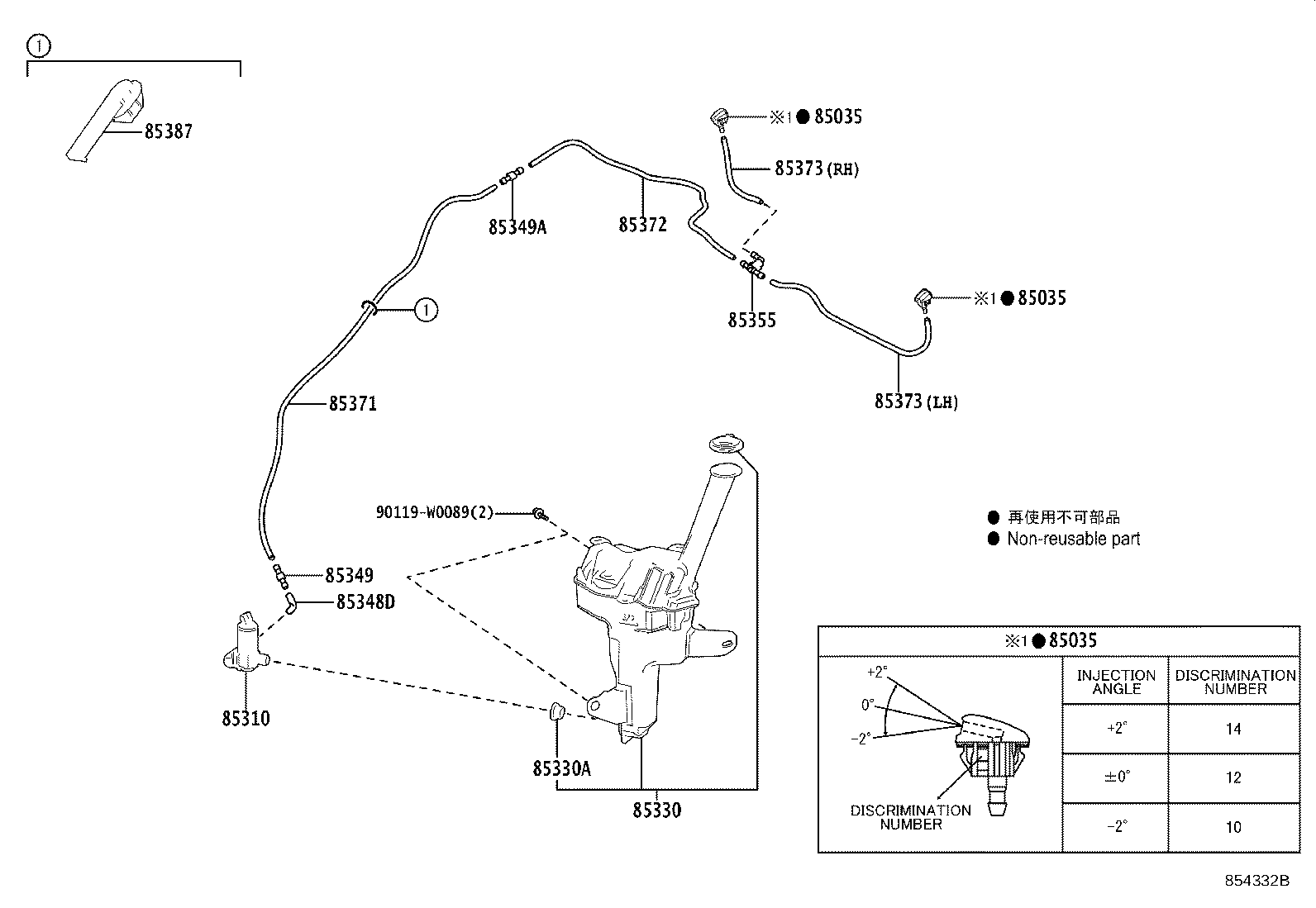

W/O(REAR WASHER)

diagram 85035 85035 85035 85310 85330 85330A 85348D 85349 85349A 85355 85371 85372 85373 85373 85387 90119W0089
Part # Description Qty Price
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

KSP211..RHD..(N,R);MXPH11..RHD..(G,N,R,S)

*H,L=670,LW PACKAGE

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

KSP211..RHD..(N,R);MXPH11..RHD..(G,N,R,S)

*H,L=150,LW PACKAGE,LH,RH

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

KSP211..RHD..(N,R);MXPH11..RHD..(G,N,R,S)

*H,L=150,LW PACKAGE,LH,RH

 1
Common parts
90119-W0089
