KSP211R-BHMRKW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )RHD

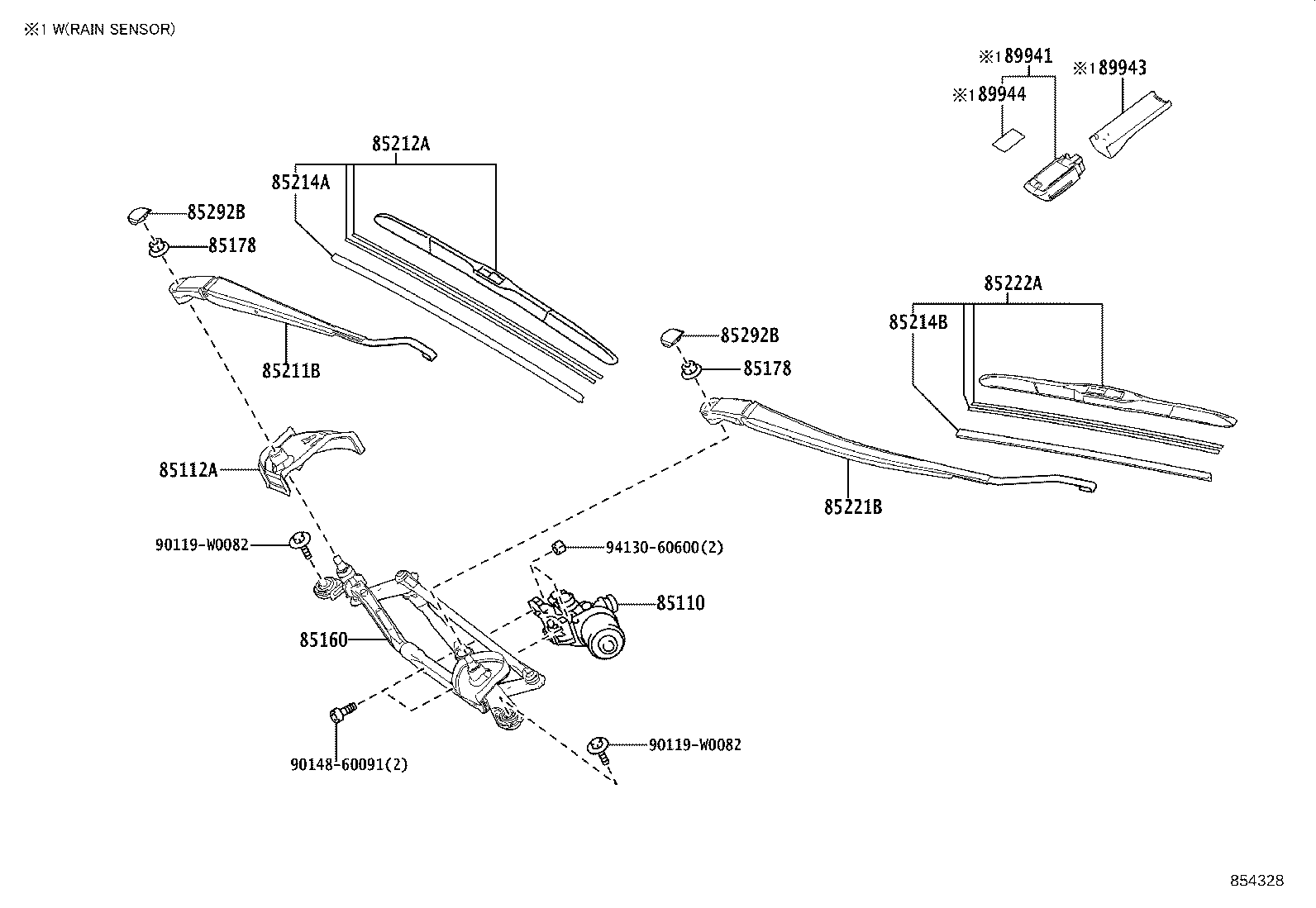

Click highlighted areas on diagram

diagram 85110 85112A 85160 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 89941 89943 89944 90119W0082 90119W0082 9014860091 9413060600
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-K0110

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
85112A - COVER, WINDSHIELD WIPER SHAFT, NO.1
85112-0D020

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-K0040

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
85211B - ARM, FRONT WIPER, RH
85211-K0030

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
85212A - BLADE, FR WIPER, RH
85212-K0030

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
85214A - RUBBER, WIPER, RH
85214-30380

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
85214B - RUBBER, WIPER, LH
85214-28090

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
85221B - ARM, FRONT WIPER, LH
85221-K0030

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
85222A - BLADE, FR WIPER, LH
85222-K0030

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
Common parts
90119-W0082
90148-60091
94130-60600
