KSP211R-BHMRKW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )KSP211

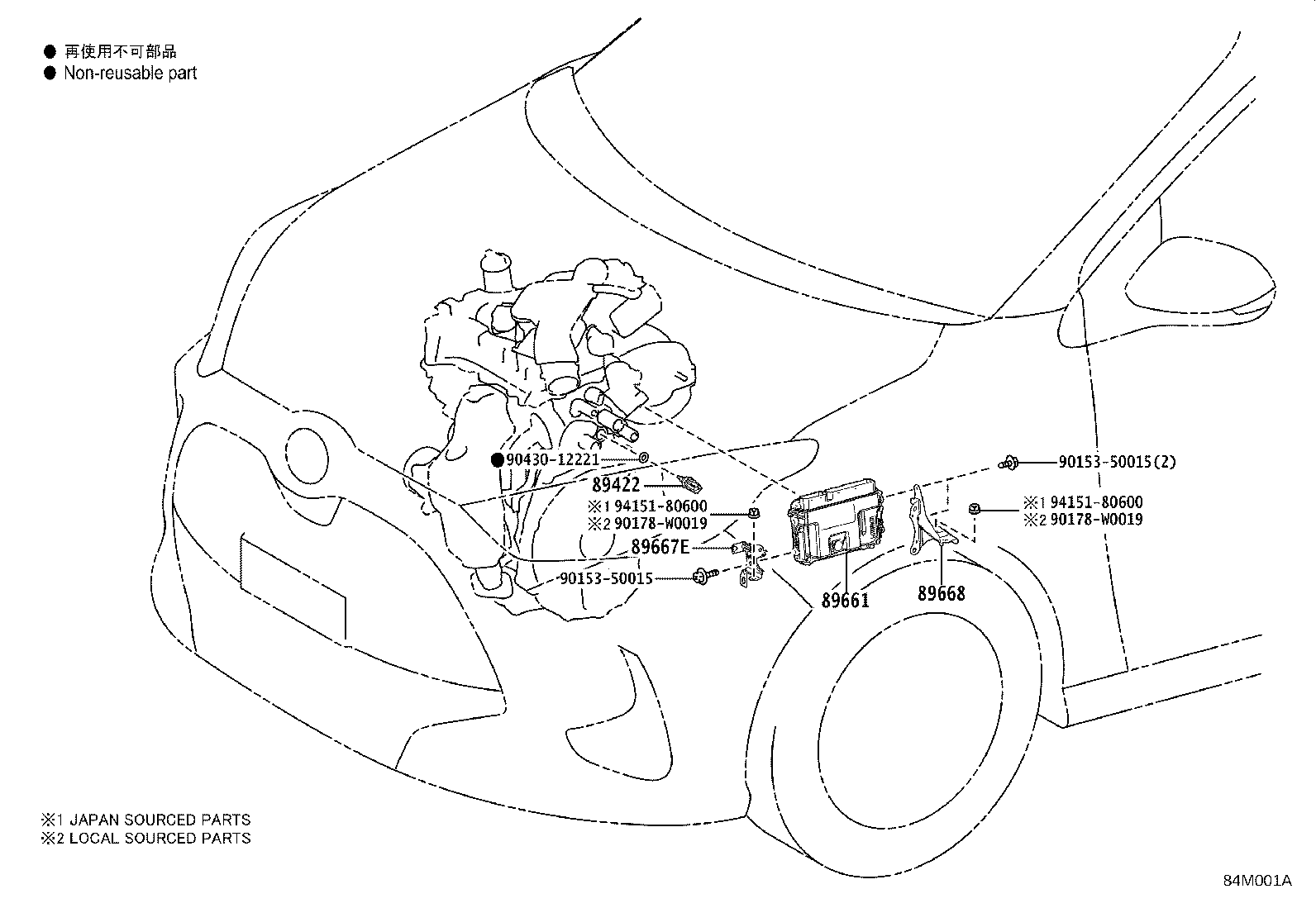

Click highlighted areas on diagram

diagram 89422 89661 89667E 89668 9015350015 9015350015 90178W0019 90178W0019 9043012221 9415180600 9415180600
Part # Description Qty Price
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

KSP211..N,R

 1
89661 - COMPUTER, ENGINE CONTROL
89661-K0010

KSP211..N,R

BOSCH,WITH(STOP & START SYSTEM),*614

 1
89661-K0020

KSP211..N,R

BOSCH,*614

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-K0010

MXPA11;KSP211..N,R

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0D290

KSP211..N,R

 1
Common parts
90153-50015
90178-W0019
90430-12221
94151-80600
