KSP211R-BHMRKW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

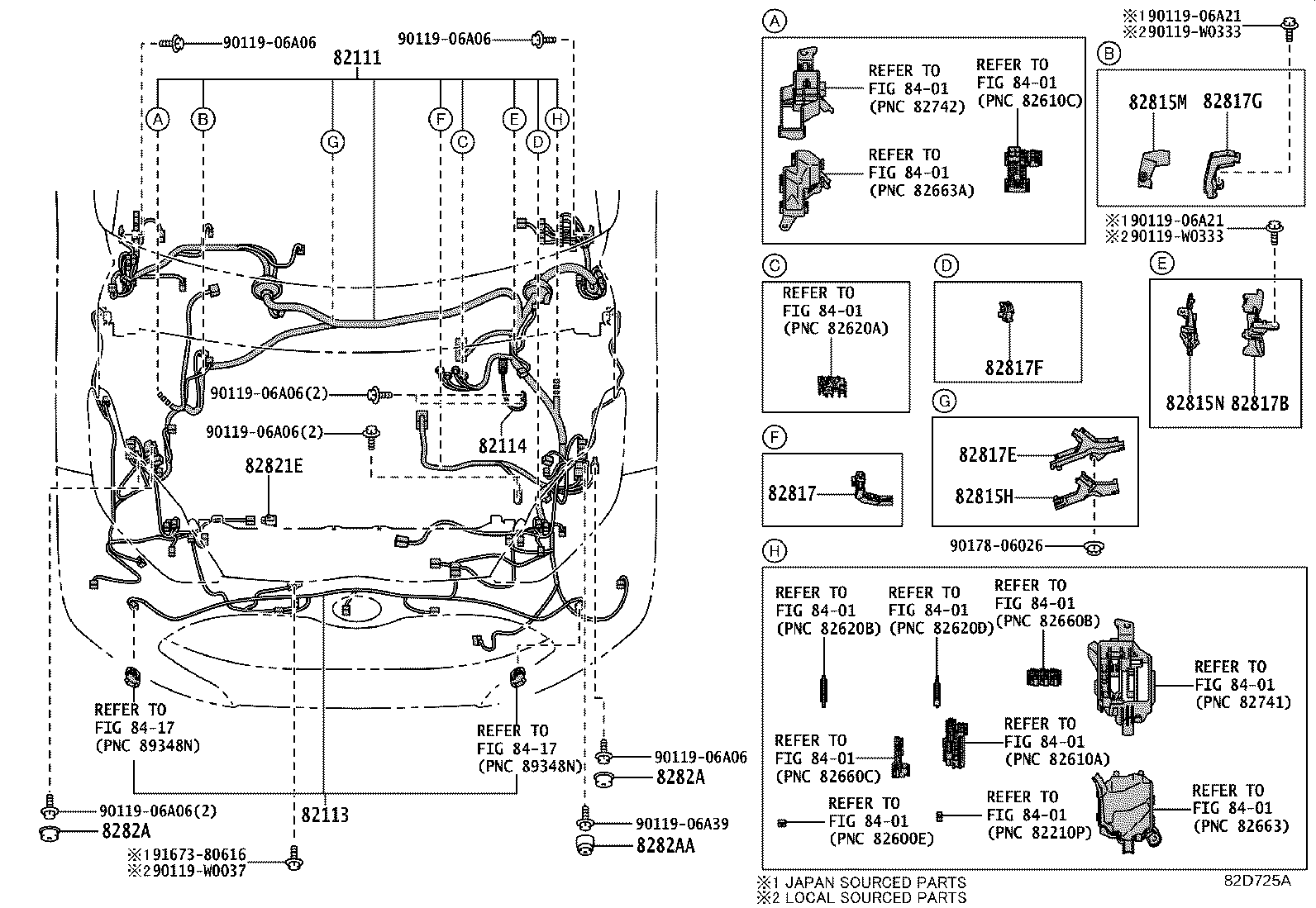

ILLUST NO. 1 OF10(2007- )KSP211,MXPA11..RHD

Click highlighted areas on diagram

ENGINE ROOM

diagram 82111 82113 82114 82815H 82815M 82815N 82817 82817B 82817E 82817F 82817G 82821E 8282A 8282A 8282AA 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8417 8417 9011906A06 9011906A06 9011906A06 9011906A06 9011906A06 9011906A06 9011906A21 9011906A21 9011906A39 90119W0037 90119W0333 90119W0333 9017806026 9167380616
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-K0490

KSP211..RHD..(N,R)

 1
82111-K0480

KSP211..RHD..(N,R)

WITH(STOP & START SYSTEM)

 1
82815H - COVER, WIRING HARNESS PROTECTOR NO.6
82815-52740

MXPA11..RHD..(G,N,S);KSP211,MXPH11..RHD..(N,R)

 1
82815M - COVER, WIRING HARNESS PROTECTOR, NO.10
82815-K0530

MXPA11..RHD..(G,N,S);KSP211,MXPH11..RHD..(N,R)

 1
82815N - COVER, WIRING HARNESS PROTECTOR, NO.11
82815-K0740

MXPA11..RHD..(G,N,S);KSP211,MXPH11..RHD..(N,R)

 1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-K0A50

MXPA11..RHD..(G,N,S);KSP211,MXPH11..RHD..(N,R)

 1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-52N70

MXPA11..RHD..(G,N,S);KSP211,MXPH11..RHD..(N,R)

 1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-K0750

MXPA11..RHD..(G,N,S);KSP211,MXPH11..RHD..(N,R)

 1
82821E - COVER, CONNECTOR
82821-0D080

MXPH11..RHD..R;MXPA11..LHD..(G,S);KSP211..RHD..(N,R);MXPA11..LHD..CVT..N;MXPA11..RHD..(G,N,S)

 1
82821-0D080

MXPA11..LHD..G;KSP211..RHD..(N,R);MXPA11..LHD..CVT..N;MXPA11..RHD..(G,N,S)

WITH(STOP & START SYSTEM)

 1
82821-0D080

MXPA11..LHD..G;KSP211..RHD..(N,R);MXPA11..LHD..CVT..N;MXPA11..RHD..(G,N,S)

WITH(STOP & START SYSTEM)&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)

 1
82821-0D080

MXPH11..RHD..R;MXPA11..LHD..(G,S);KSP211..RHD..(N,R);MXPA11..LHD..CVT..N;MXPA11..RHD..(G,N,S)

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)

 1
Common parts
90119-06A06
90119-06A21
90119-06A39
90119-W0037
90119-W0333
90178-06026
91673-80616
Linked diagrams
8401
8417

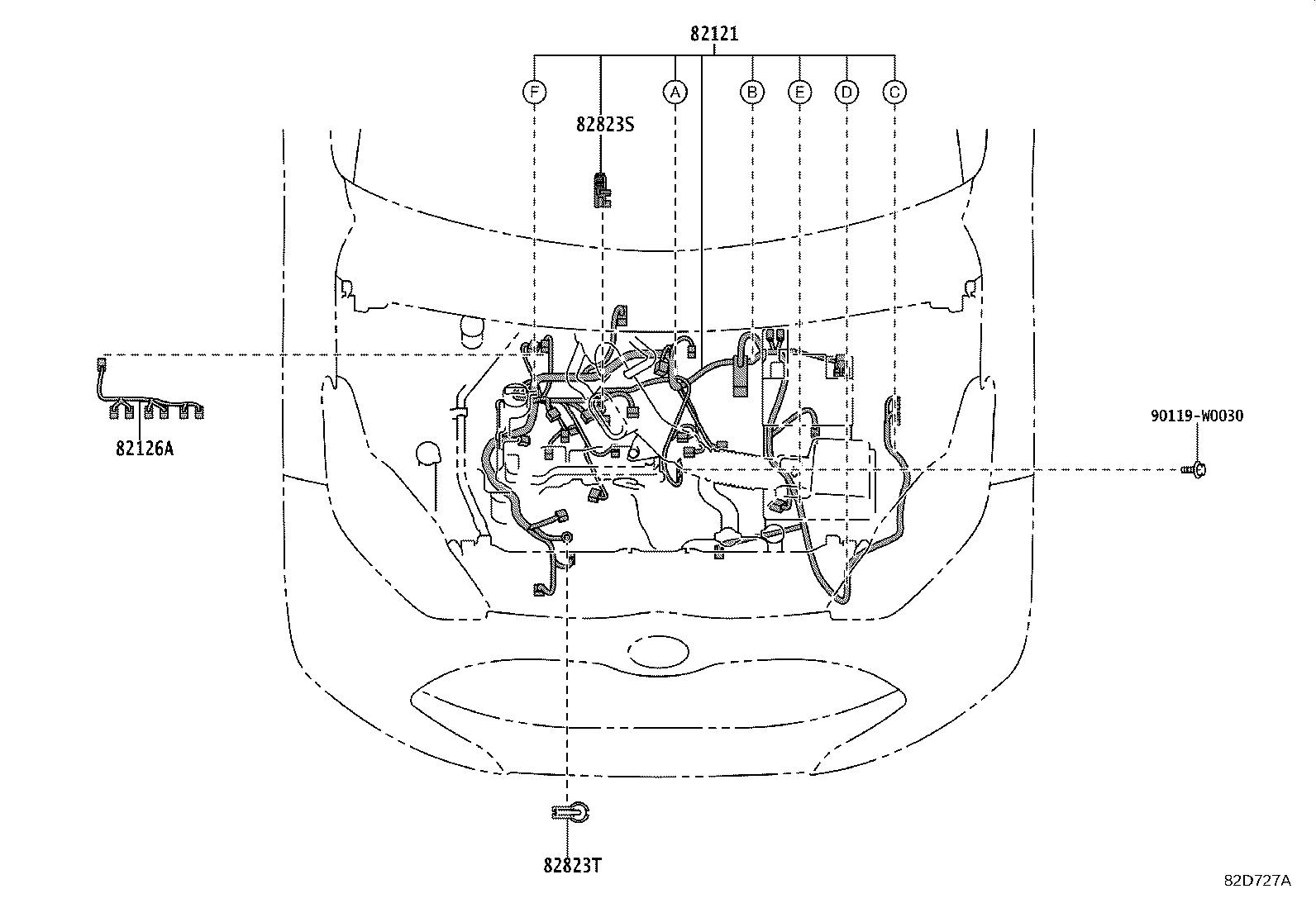

ILLUST NO. 2 OF10(2007- )KSP211

Click highlighted areas on diagram

ENGINE

diagram 82121 82126A 82823S 82823T 90119W0030
Part # Description Qty Price
Common parts
90119-W0030

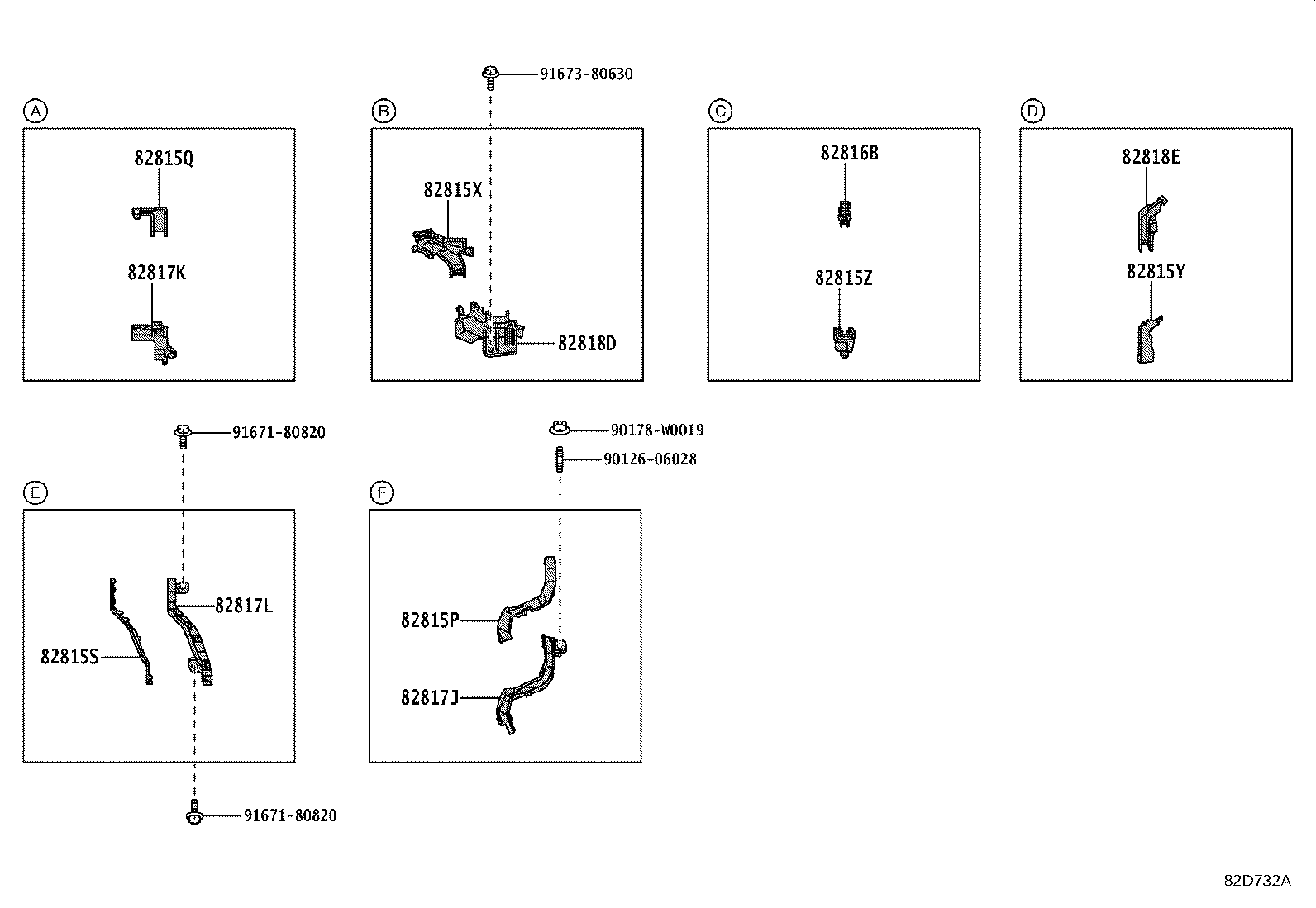

ILLUST NO. 3 OF10(2007- )KSP211

Click highlighted areas on diagram

ENGINE

diagram 82815P 82815Q 82815S 82815X 82815Y 82815Z 82816B 82817J 82817K 82817L 82818D 82818E 9012606028 90178W0019 9167180820 9167180820 9167380630
Part # Description Qty Price
Common parts
90126-06028
90178-W0019
91671-80820
91673-80630

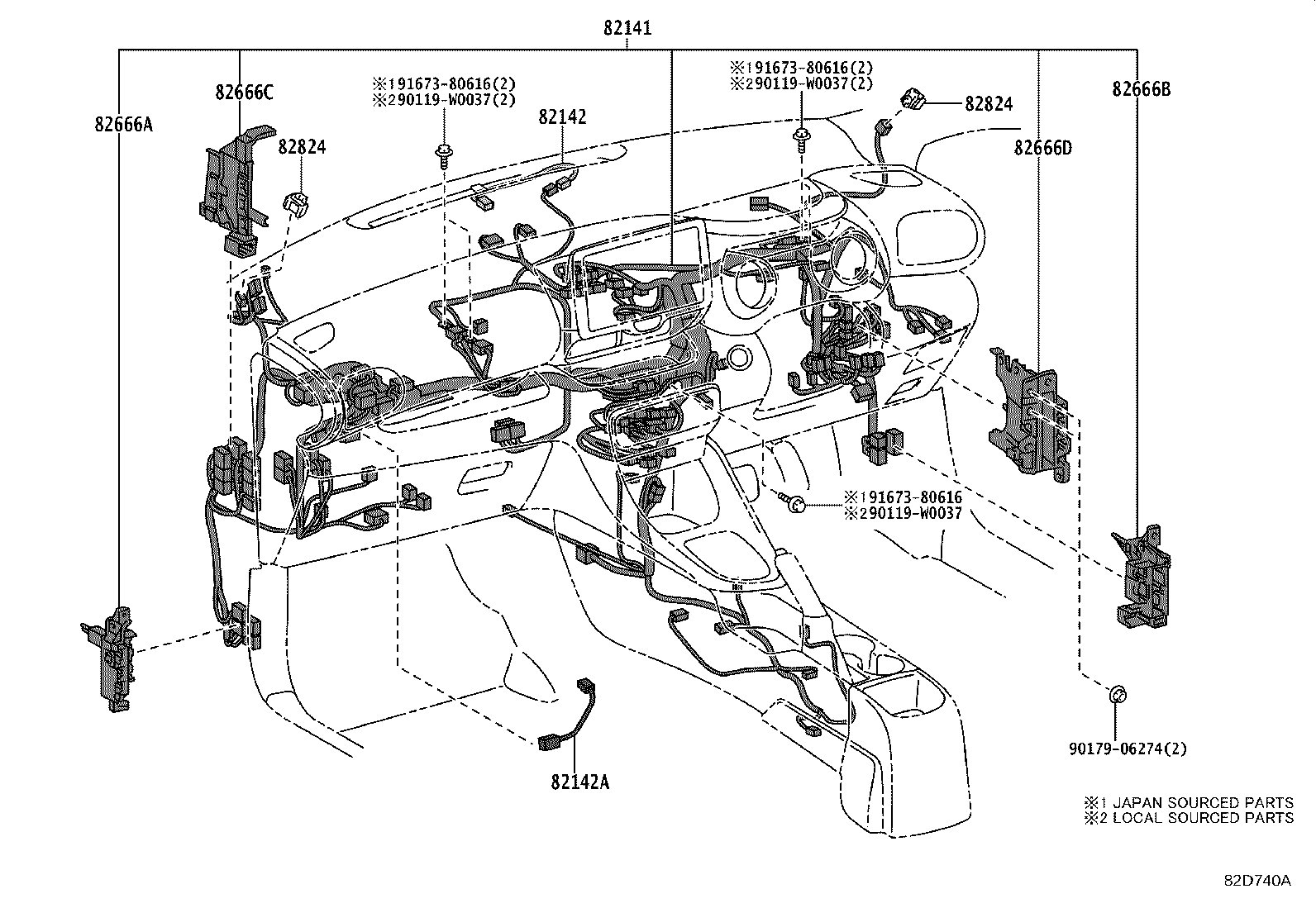

ILLUST NO. 4 OF10(2007- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 82141 82142 82142A 82666A 82666B 82666C 82666D 82824 82824 90119W0037 90119W0037 90119W0037 9017906274 9167380616 9167380616 9167380616
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-K0290

KSP211,MXPA11..RHD..MTM..(N,R)

MALTA SPEC&WITH(STOP & START SYSTEM)

 1
82141-K0320

KSP211,MXPA11..RHD..MTM..(N,R)

 1
82141-K0290

KSP211,MXPA11..RHD..MTM..(N,R)

WITH(STOP & START SYSTEM)

 1
82141-K0290

KSP211,MXPA11..RHD..MTM..(N,R)

IRELAND, CYPRUS SPEC&WITH(STOP & START SYSTEM)

 1
82666C - HOLDER, CONNECTOR NO.4
82666-K0120

KSP211..RHD..(N,R);MXPH11..RHD..(G,S);MXPA11..RHD..(G,N,S)

 1
82666D - HOLDER, CONNECTOR NO.5
82666-K0140

KSP211..RHD..(N,R);MXPH11..RHD..(G,S);MXPA11..RHD..(G,N,S)

 1
Common parts
90119-W0037
90179-06274
91673-80616

ILLUST NO. 5 OF10(2007- )

Click highlighted areas on diagram

DOOR

diagram 82151 82152 82153 82154 82184 82185
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-K0820

KSP211,MXPA11,MXPH11..RHD..(N,R)

 1
82151-K0710

KSP211,MXPA11,MXPH11..RHD..(N,R)

MALTA SPEC

 1
82151-K0710

KSP211,MXPA11,MXPH11..RHD..(N,R)

IRELAND, CYPRUS SPEC

 1
82152 - WIRE, FRONT DOOR, LH
82152-K0690

KSP211,MXPA11,MXPH11..RHD..(N,R)

MALTA SPEC

 1
82152-K0690

KSP211,MXPA11,MXPH11..RHD..(N,R)

IRELAND, CYPRUS SPEC

 1
82152-K0800

KSP211,MXPA11,MXPH11..RHD..(N,R)

 1
82153 - WIRE, REAR DOOR, NO.1
82153-K0060

KSP211,MXPH11..RHD..R

MALTA SPEC

 1
82153-K0060

KSP211,MXPH11..RHD..R

IRELAND, CYPRUS SPEC

 1
82153-K0080

KSP211,MXPH11..RHD..R

 1
82154 - WIRE, REAR DOOR, NO.2
82154-K0060

KSP211,MXPH11..RHD..R

IRELAND, CYPRUS SPEC

 1
82154-K0060

KSP211,MXPH11..RHD..R

MALTA SPEC

 1
82154-K0080

KSP211,MXPH11..RHD..R

 1
82184 - WIRE, BACK DOOR, NO.1
82184-K0050

MXPA11..G,N,S;KSP211..RHD..(N,R);KSP211..LHD..N..FRP;MXPH11..RHD..(G,N,R,S);MXPH11..LHD..(G,N,S)..FRP

 1
82184-K0130

MXPA11..N;MXPA11..LHD..(G,S);KSP211..LHD..N..FRP;KSP211,MXPH11..RHD..(N,R);MXPH11..LHD..(G,N,S)..FRP

AUDIO-7INCH *DA & WITH(DAB)

 1
82185 - WIRE, BACK DOOR, NO.2
82185-K0070

KSP211,MXPH11..RHD..R

 1
82185-K0200

KSP211,MXPH11..RHD..R

AUDIO-7INCH *DA & WITH(DAB)&BACK MONITOR-WITH

 1
82185-K0210

KSP211,MXPH11..RHD..R

AUDIO-7INCH *DA & WITH(DAB)

 1
82185-K0050

KSP211,MXPH11..RHD..R

BACK MONITOR-WITH

 1

ILLUST NO. 6 OF10(2007- )

Click highlighted areas on diagram

FLOOR & ROOF

diagram 8121 82161 82163 82171 82182 82345 82666E 82666F 82821M 8401 8401 8401 8401 8401 8601 890C0 890C0A 9011906A06 9011906A06 9011906A06 9011906A06 90119W0174 9017806012 9017806012 9167380620 91674A0616 91674A0616
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-K0A00

KSP211..RHD..(N,R)

 1
Common parts
90119-06A06
90119-W0174
90178-06012
91673-80620
91674-A0616
Linked diagrams
8121
8401
8601

ILLUST NO. 7 OF10(2007- )

Click highlighted areas on diagram

HIGH TENSION CABLE

diagram 821H1 82816F 82816G 82816H 82816J 82818G 82818H 82818J 82818K 82818L 90119W0037 90119W0174 9017806026 9017806026 9017806026 9167380620
Part # Description Qty Price
Common parts
90119-W0037
90119-W0174
90178-06026
91673-80620

ILLUST NO. 8 OF10(2007- )

Click highlighted areas on diagram

CLAMP & BRACKET

diagram 827111E350 827150DB80 827150DC00 827150DC50 827150DC60 827150DL50 827150DM00 827150H120 82715F4050 82715K0120 82715K0140 82715K0150 82715K0200 82715K0210 82715K0230 82715K0240 82715K0290 82715K0310 82715K0320 82715K0350 82715K0370 82715K0380 82715K0390 82715K0470 82715K0500 82715K0520 82715K0530 82715K0590 82715K0640 82715K0660 82715K0680 82715K0690 82715K0710 9011906A12 9011906A14 9011906A14 9011906A14 9011906A14 90119W0018 90119W0030 90119W0030 90119W0030 90119W0030 90119W0030 90119W0030 90119W0030 90119W0030 90119W0030 90119W0030 90119W0030 90119W0030 90119W0030 90119W0030 90119W0037 90119W0324 90119W0324 90119W0324 90119W0324 90119W0356 9017806026 90178W0019 90178W0031 9167180614 9167180616 9167180616 9167180616 9167180616 9167180616 9167180616 9167180616 9167180616 9167180616 9167180616 9167180816 9167180820 9167180820 9415180600
Part # Description Qty Price
Common parts
82711-1E350
82715-0DB80
82715-0DC00
82715-0DC50
82715-0DC60
82715-0DL50
82715-0DM00
82715-0H120
82715-F4050
82715-K0120
82715-K0140
82715-K0150
82715-K0200
82715-K0210
82715-K0230
82715-K0240
82715-K0290
82715-K0310
82715-K0320
82715-K0350
82715-K0370
82715-K0380
82715-K0390
82715-K0470
82715-K0500
82715-K0520
82715-K0530
82715-K0590
82715-K0640
82715-K0660
82715-K0680
82715-K0690
82715-K0710
90119-06A12
90119-06A14
90119-W0018
90119-W0030
90119-W0037
90119-W0324
90119-W0356
90178-06026
90178-W0019
90178-W0031
91671-80614
91671-80616
91671-80816
91671-80820
94151-80600

ILLUST NO. 9 OF10(2007- )

Click highlighted areas on diagram

CONNECTOR 1/2

diagram 8282460460 9098010619 9098010825 9098011016 9098011096 9098011156 9098011436 9098012382 9098012B01 9098012C12 9098012C12 9098012C13 9098012C13 9098012E29 9098012E81 9098012E99 9098012F30
Part # Description Qty Price
Common parts
82824-60460
90980-10619
90980-10825
90980-11016
90980-11096
90980-11156
90980-11436
90980-12382
90980-12B01
90980-12C12
90980-12C13
90980-12E29
90980-12E81
90980-12E99
90980-12F30

ILLUST NO.10 OF10(2007- )

Click highlighted areas on diagram

CONNECTOR 2/2

diagram 9098012380 9098012490 9098012490 9098012520 9098012699 9098012728 9098012790 9098012790 9098012A59 9098012C39
Part # Description Qty Price
Common parts
90980-12380
90980-12490
90980-12520
90980-12699
90980-12728
90980-12790
90980-12A59
90980-12C39
