KSP211R-BHMRKW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

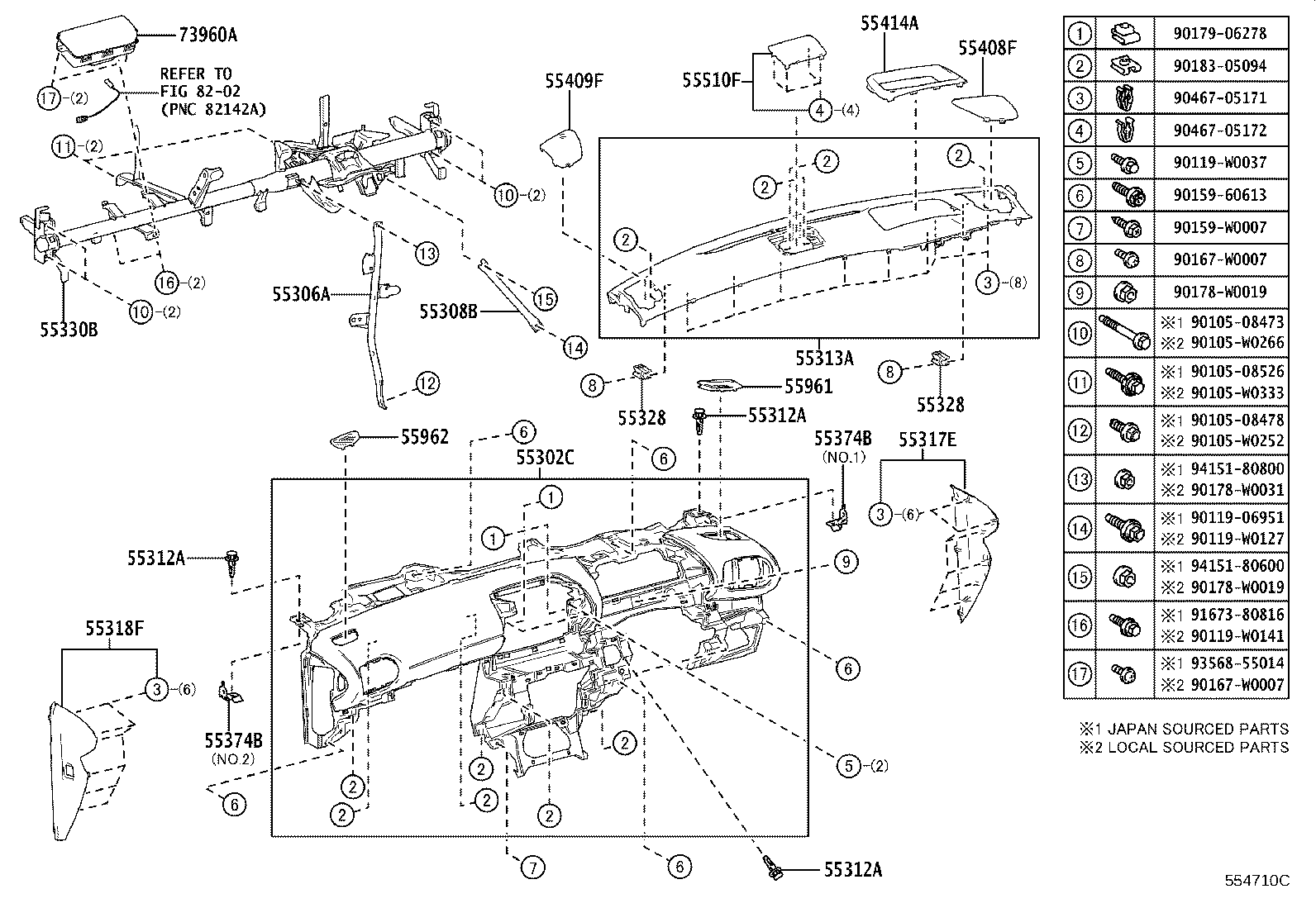

ILLUST NO. 1 OF 2(2007- )RHD

Click highlighted areas on diagram

diagram 55302C 55306A 55308B 55312A 55312A 55312A 55313A 55317E 55318F 55328 55328 55330B 55374B 55374B 55408F 55409F 55414A 55510F 55961 55962 73960A 8202 9010508473 9010508478 9010508526 90105W0252 90105W0266 90105W0333 9011906951 90119W0037 90119W0127 90119W0141 9015960613 90159W0007 90167W0007 90167W0007 90178W0019 90178W0019 90178W0031 9017906278 9018305094 9046705171 9046705172 9167380816 9356855014 9415180600 9415180800
Part # Description Qty Price
55302C - PANEL SUB-ASSY, INSTRUMENT
55302-K0040C0

KSP211,MXPH11..RHD..R

SOFT BLACK,TRIM2#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-K0040

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
55308-K0030

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
55313A - PANEL, INSTRUMENT MAIN
55313-K0050C0

KSP211,MXPA11,MXPH11..RHD..(R,S)

BLACK,TRIM2#

 1
55317E - PANEL, INSTRUMENT SIDE, NO.1
55317-K0020C0

KSP211,MXPA11,MXPH11..RHD..(R,S)

BLACK,TRIM2#

 1
55318F - PANEL, INSTRUMENT SIDE, NO.2
55318-K0020C0

KSP211,MXPA11,MXPH11..RHD..(R,S)

BLACK,TRIM2#

 1
55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL
55330-K0030

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
55510F - COVER ASSY, SPEAKER OPENING, NO.1
55510-K0010C0

KSP211,MXPA11,MXPH11..RHD..(R,S)

BLACK,TRIM2#

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-K0020C0

KSP211,MXPA11,MXPH11..RHD..(R,S)

BLACK,TRIM2#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-K0020C0

KSP211,MXPA11,MXPH11..RHD..(R,S)

BLACK,TRIM2#

 1
Common parts
90105-08473
90105-08478
90105-08526
90105-W0252
90105-W0266
90105-W0333
90119-06951
90119-W0037
90119-W0127
90119-W0141
90159-60613
90159-W0007
90167-W0007
90178-W0019
90178-W0031
90179-06278
90183-05094
90467-05171
90467-05172
91673-80816
93568-55014
94151-80600
94151-80800
Linked diagrams
8202

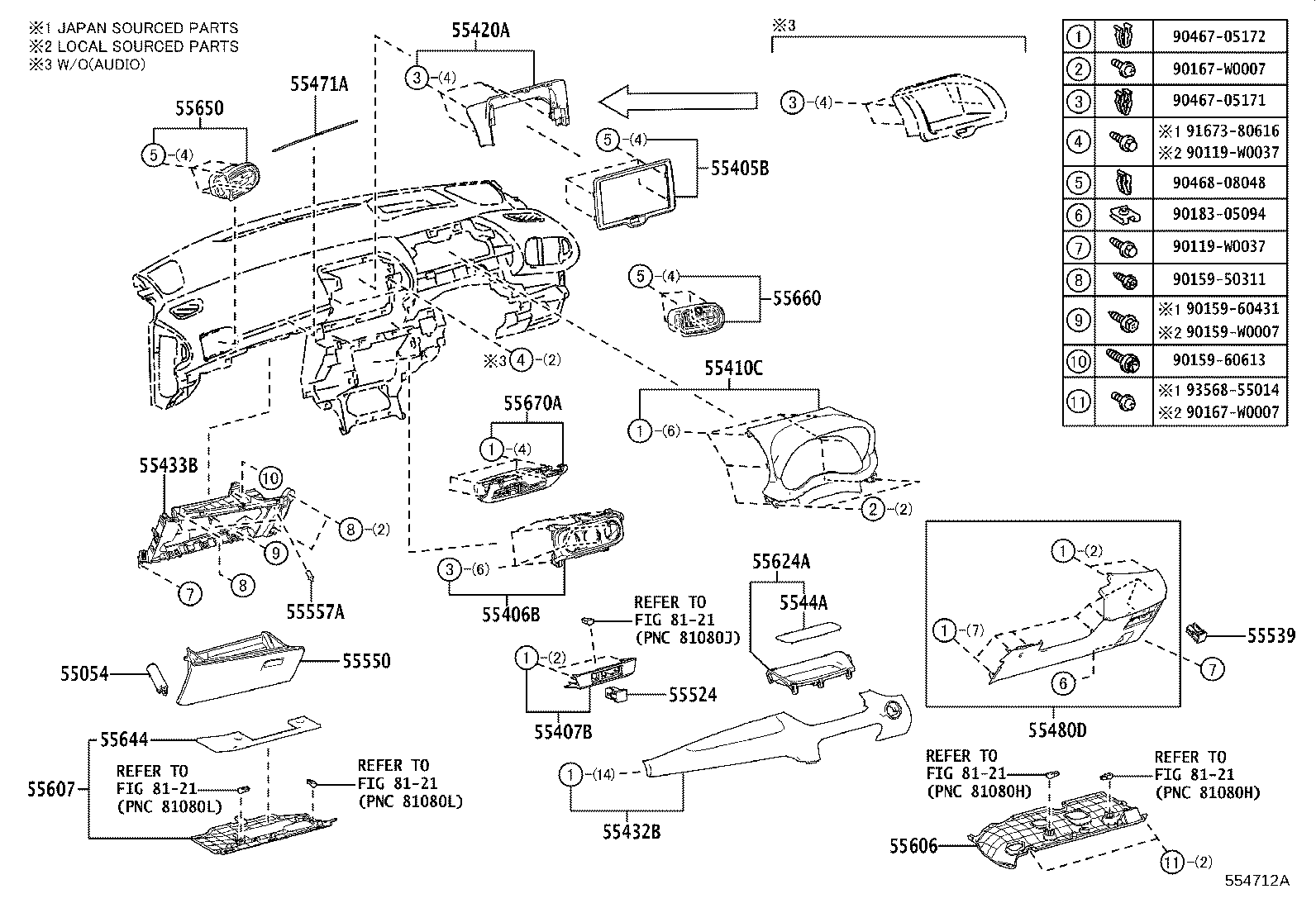

ILLUST NO. 2 OF 2(2007- )RHD

Click highlighted areas on diagram

diagram 55054 55405B 55406B 55407B 55410C 55420A 55432B 55433B 5544A 55471A 55480D 55524 55539 55550 55557A 55606 55607 55624A 55644 55650 55660 55670A 8121 8121 8121 8121 8121 90119W0037 90119W0037 9015950311 9015960431 9015960613 90159W0007 90167W0007 90167W0007 9018305094 9046705171 9046705172 9046808048 9167380616 9356855014
Part # Description Qty Price
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-K0030

MXPA11..G,N,S;KSP211..RHD..(N,R);KSP211..LHD..N..FRP;MXPH11..RHD..(G,N,R,S);MXPH11..LHD..(G,N,S)..FRP

 1
55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER
55406-K0020

KSP211,MXPA11..RHD..(N,R)

 1
55407B - BASE SUB-ASSY, SWITCH HOLE
55407-K0020

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55420-K0030

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55435-K0020C0

KSP211,MXPH11..RHD..R

BLACK,TRIM2#

 1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55433-K0050C0

KSP211..RHD..R;MXPA11,MXPH11..RHD..(G,R,S)

BLACK,TRIM2#

 1
5544A - MAT, INSUTRUMENT PANEL TRAY
5544A-K0010

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
55471A - ORNAMENT, INSTRUMENT CLUSTER FINISH PANEL
55471-K0070C1

KSP211,MXPH11..RHD..(N,S)

BLACK,TRIM20

 1
55471-K0070C1

KSP211..RHD..R;MXPH11..RHD..(G,R)

BLACK,TRIM2#

 1
55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR
55480-K0020C0

KSP211..RHD..R;MXPA11,MXPH11..RHD..(G,R,S)

BLACK,TRIM2#

 1
55524 - COVER, SWITCH BACE HOLE
55524-02010C0

KSP211..RHD..(N,R);KSP211..LHD..N..FRP;MXPH11..RHD..(G,N,R,S);MXPH11..LHD..(G,N,S)..FRP

LW PACKAGE,BLACK

 1
55550 - DOOR ASSY, GLOVE COMPARTMENT
55550-K0020C0

KSP211..RHD..R;MXPA11,MXPH11..RHD..(G,R,S)

BLACK,TRIM2#

 1
55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55606-K0020

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55607-K0020

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
55624A - TRAY, INSTRUMENT PANEL, CENTER
55445-K0020C0

KSP211,MXPA11,MXPH11..RHD..(R,S)

BLACK,TRIM2#

 1
55644 - PAD, INSTRUMENT PANEL UNDER SILENCER, NO.2
55644-K0010

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER
55670-K0050

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
Common parts
90119-W0037
90159-50311
90159-60431
90159-60613
90159-W0007
90167-W0007
90183-05094
90467-05171
90467-05172
90468-08048
91673-80616
93568-55014
Linked diagrams
8121
