KSP211R-BHMRKW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )RHD

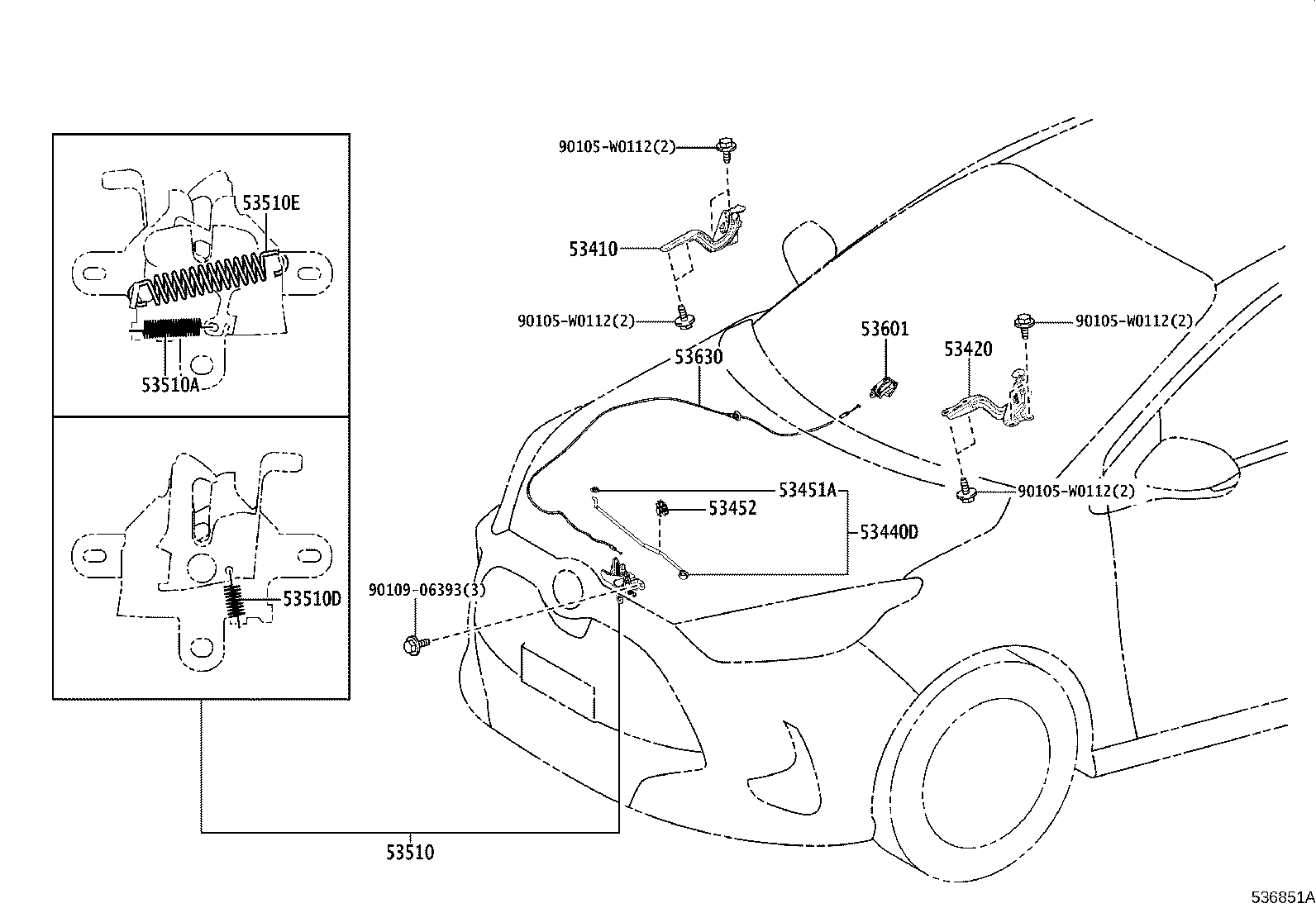

Click highlighted areas on diagram

diagram 53410 53420 53440D 53451A 53452 53510 53510A 53510D 53510E 53601 53630 90105W0112 90105W0112 90105W0112 90105W0112 9010906393
Part # Description Qty Price
53510 - LOCK ASSY, HOOD
53510-K0030

KSP211..RHD..(N,R);MXPA11..RHD..CVT..N;MXPA11..RHD..6F..(G,N,S)

WITH(STOP & START SYSTEM),MARK = R3

 1
53510-K0030

KSP211..RHD..(N,R);MXPA11..RHD..CVT..N;MXPA11..RHD..6F..(G,N,S)

WITH(STOP & START SYSTEM)&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM),MARK = R3

 1
53510-K0020

MXPA11..RHD..(G,N,S);KSP211,MXPH11..RHD..(N,R)

MARK = R2

 1
53510-K0030

MXPA11..RHD..(G,N,S);KSP211,MXPH11..RHD..(N,R)

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM),MARK = R3

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-K0010

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
Common parts
90105-W0112
90109-06393
