KSP211R-BHMRKW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )KSP211..RHD

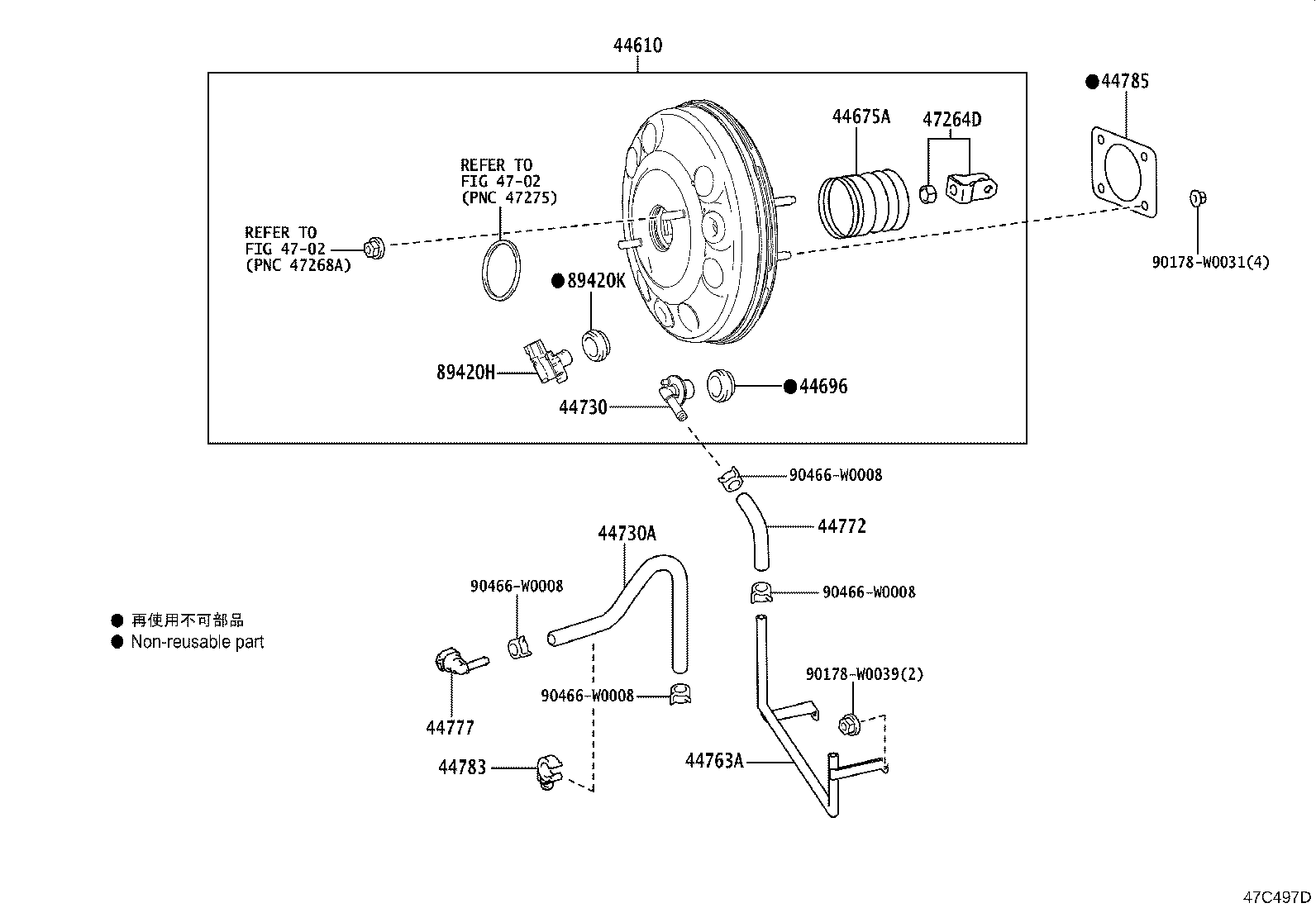

Click highlighted areas on diagram

diagram 44610 44675A 44696 44730 44730A 44763A 44772 44777 44783 44785 4702 4702 47264D 89420H 89420K 90178W0031 90178W0039 90466W0008 90466W0008 90466W0008 90466W0008
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-K9055

KSP211..RHD..(N,R)

 1
44730A - HOSE, VACUUM, NO.1
44774-K0020

KSP211..RHD..(N,R)

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-K0020

KSP211..RHD..(N,R)

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-K0020

KSP211..RHD..(N,R)

 1
Common parts
90178-W0031
90178-W0039
90466-W0008
Linked diagrams
4702
