KSP211R-BHMRKW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )KSP211,MXPA11..RHD

Click highlighted areas on diagram

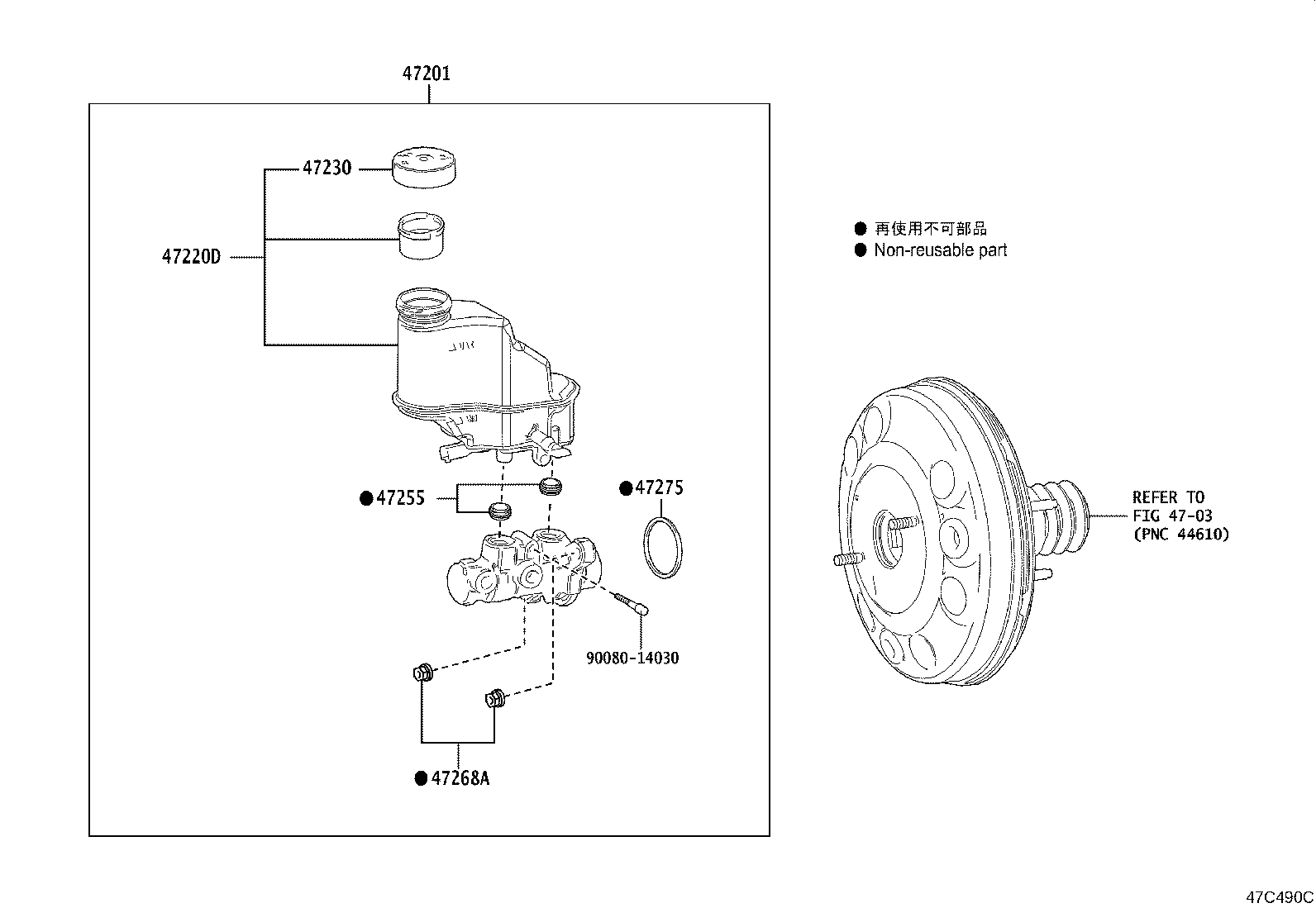

diagram 4703 47201 47220D 47230 47255 47268A 47275 9008014030
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-K9035

KSP211..RHD..(N,R);MXPA11..RHD..(G,N,S)

 1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-K0040

KSP211..RHD..(N,R);MXPA11..RHD..(G,N,S)

 1
Common parts
90080-14030
Linked diagrams
4703
