KSP211R-BHMRKW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )KSP211,MXPA11

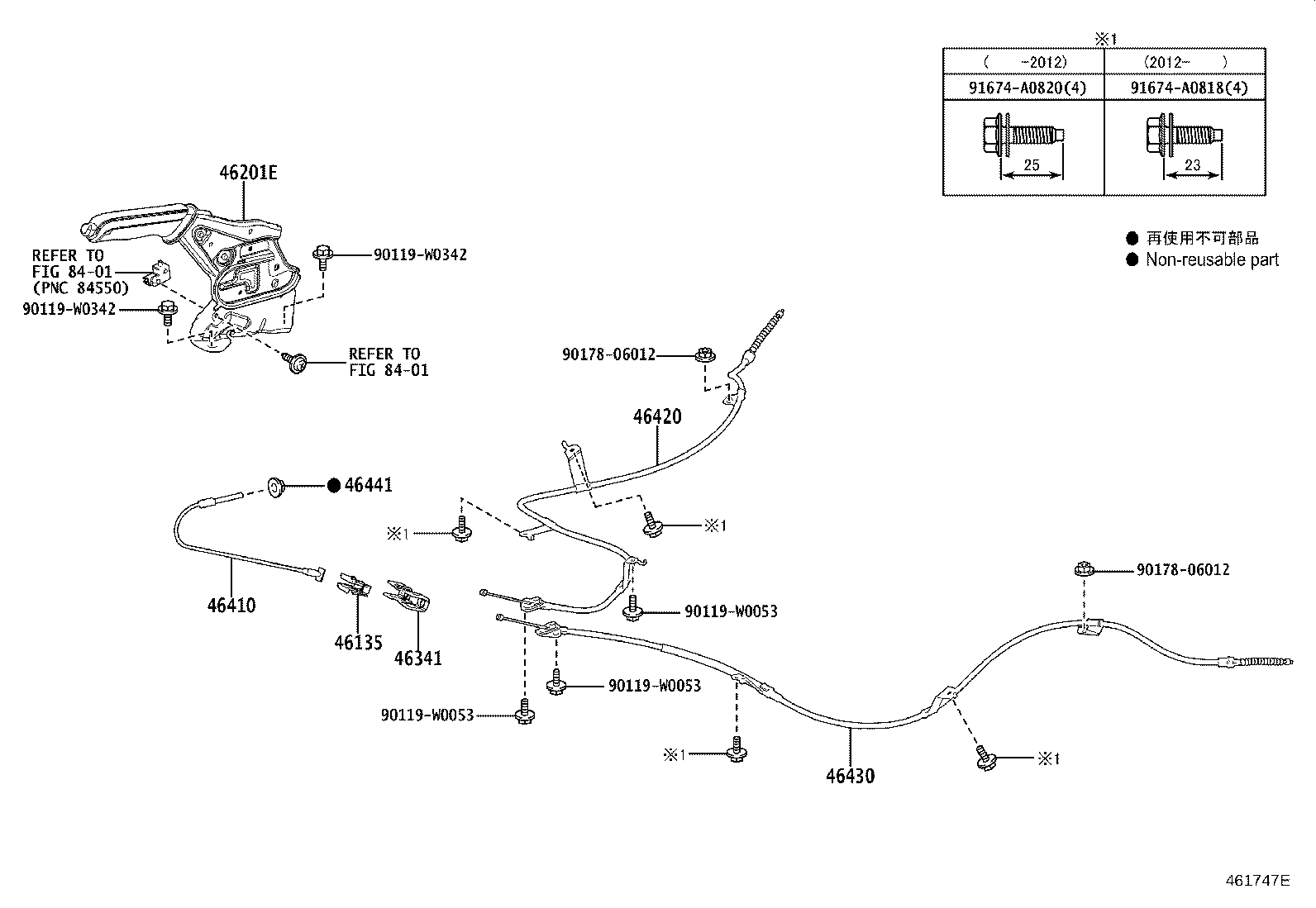

Click highlighted areas on diagram

diagram 46135 46201E 46341 46410 46420 46430 46441 8401 8401 90119W0053 90119W0053 90119W0053 90119W0342 90119W0342 9017806012 9017806012 91674A0818 91674A0820
Part # Description Qty Price
46135 - STOPPER, PARKING BRAKE CABLE END
46135-K0010

MXPA11;KSP211..N,R

 1
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-K0010C0

KSP211,MXPA11..R,S

BLACK,TRIM2#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-K0010

MXPA11;KSP211..N,R

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-K0010

MXPA11;KSP211..N,R

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-K0050

MXPA11;KSP211..N,R

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-K0050

MXPA11;KSP211..N,R

 1
46441 - NUT, WIRE ADJUSTING, NO.1
90177-06003

MXPA11;KSP211..N,R

 1
Common parts
90119-W0053
90119-W0342
90178-06012
91674-A0818
91674-A0820
Linked diagrams
8401
