KSP211R-BHMRKW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )RHD

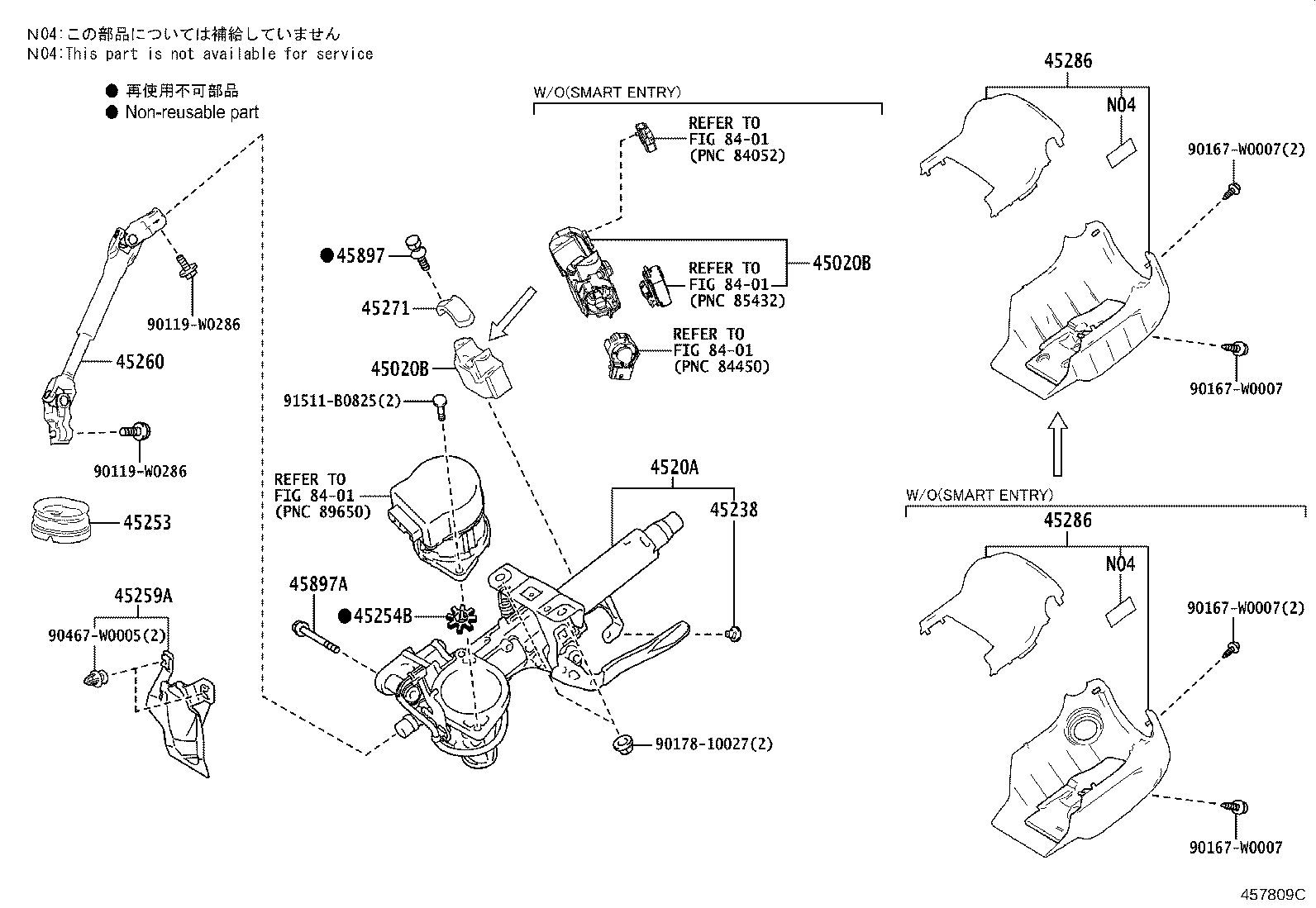

Click highlighted areas on diagram

diagram 45020B 45020B 4520A 45238 45253 45254B 45259A 45260 45271 45286 45286 45897 45897A 8401 8401 8401 8401 90119W0286 90119W0286 90167W0007 90167W0007 90167W0007 90167W0007 9017810027 90467W0005 91511B0825
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45280-02430

KSP211,MXPA11..RHD..MTM..(N,R)

IRELAND, CYPRUS SPEC

 1
45280-02550

KSP211,MXPA11..RHD..MTM..(N,R)

 1
45280-02430

KSP211,MXPA11..RHD..MTM..(N,R)

MALTA SPEC

 1
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45280-02430

KSP211,MXPA11..RHD..MTM..(N,R)

IRELAND, CYPRUS SPEC

 1
45280-02550

KSP211,MXPA11..RHD..MTM..(N,R)

 1
45280-02430

KSP211,MXPA11..RHD..MTM..(N,R)

MALTA SPEC

 1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-0D570

KSP211,MXPA11,MXPH11..RHD..(N,R)

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-K0020

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-K0020

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

KSP211,MXPA11,MXPH11..RHD..(N,R)

MALTA SPEC

 2
45897-12020

KSP211,MXPA11,MXPH11..RHD..(N,R)

IRELAND, CYPRUS SPEC

 2
45897-12050

KSP211,MXPA11,MXPH11..RHD..(N,R)

 2
Common parts
90119-W0286
90167-W0007
90178-10027
90467-W0005
91511-B0825
Linked diagrams
8401
