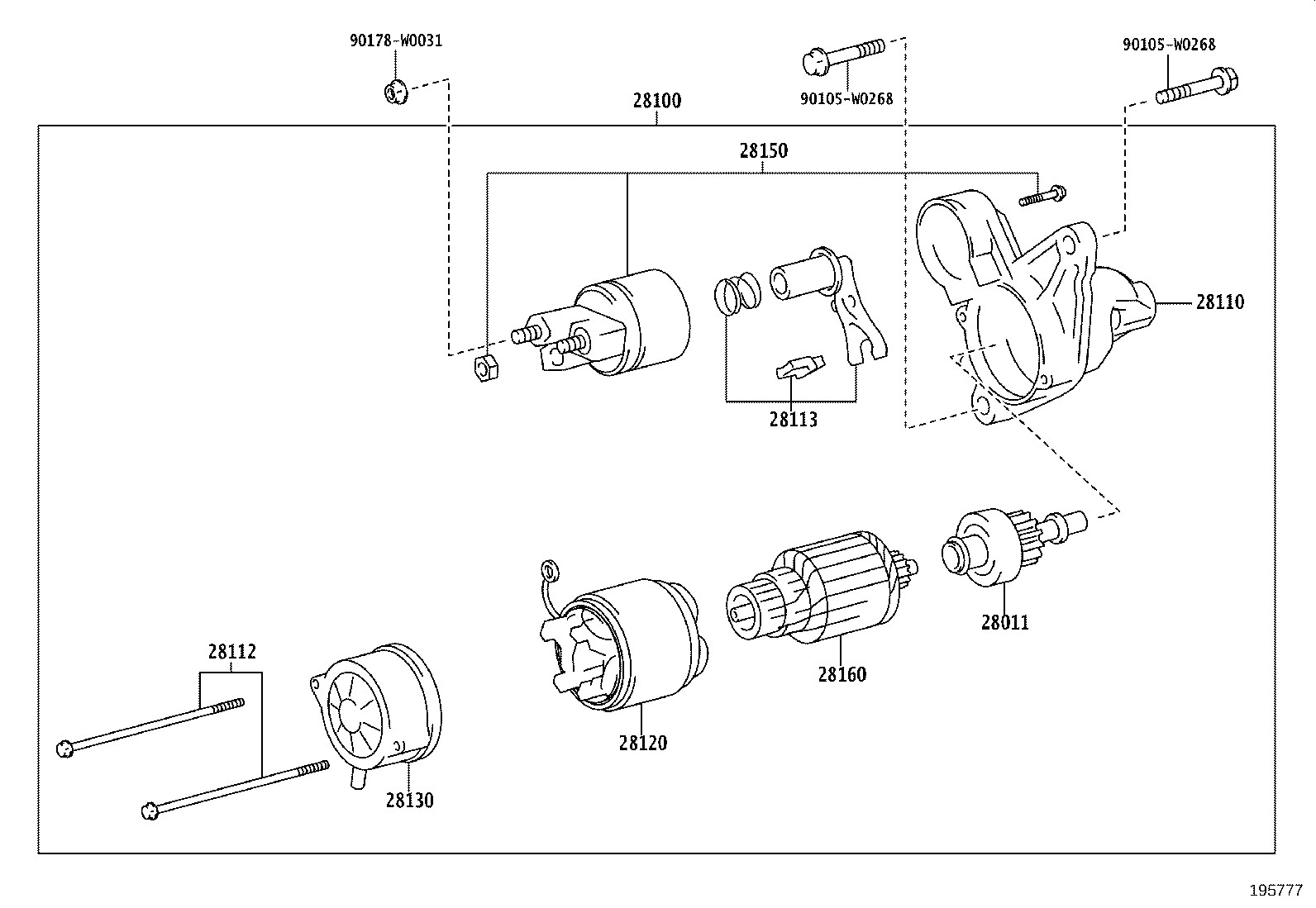

KSP211R-BHMRKW (2020)
Toyota Yaris(Frp)
(2007- )1KRFE
12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-0Q160 |
1KRFE..KSP211..N,R |
1 | ||
| 28011-0Q120 |
1KRFE..KSP211..N,R WITH(STOP & START SYSTEM) |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-0Q160 |
1KRFE..KSP211..N,R 12V 1.0KW |
1 | ||
| 28100-0Q150 |
1KRFE..KSP211..N,R 12V 1.0KW,WITH(STOP & START SYSTEM) |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-0Q160 |
1KRFE..KSP211..N,R |
1 | ||
| 28110-0Q120 |
1KRFE..KSP211..N,R WITH(STOP & START SYSTEM) |
1 | ||
| 28112 - BOLT, HOUSING SET | ||||
| 28112-0Q160 |
1KRFE..KSP211..N,R |
1 | ||
| 28112-0Q120 |
1KRFE..KSP211..N,R WITH(STOP & START SYSTEM) |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-0Q120 |
1KRFE..KSP211..N,R WITH(STOP & START SYSTEM) |
1 | ||
| 28113-0Q160 |
1KRFE..KSP211..N,R |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-0Q160 |
1KRFE..KSP211..N,R |
1 | ||
| 28120-0Q120 |
1KRFE..KSP211..N,R WITH(STOP & START SYSTEM) |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-0Q120 |
1KRFE..KSP211..N,R WITH(STOP & START SYSTEM) |
1 | ||
| 28130-0Q160 |
1KRFE..KSP211..N,R |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-0Q160 |
1KRFE..KSP211..N,R |
1 | ||
| 28150-0Q150 |
1KRFE..KSP211..N,R WITH(STOP & START SYSTEM) |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-0Q160 |
1KRFE..KSP211..N,R |
1 | ||
| 28160-0Q120 |
1KRFE..KSP211..N,R WITH(STOP & START SYSTEM) |
1 | ||
| Common parts | ||||
| 90105-W0268 | ||||
| 90178-W0031 | ||||
