KSP211R-BHMRKW (2020)
Toyota Yaris(Frp)
Production
Jul 2020
-
Sep 9999
Engine
1KRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )1KRFE

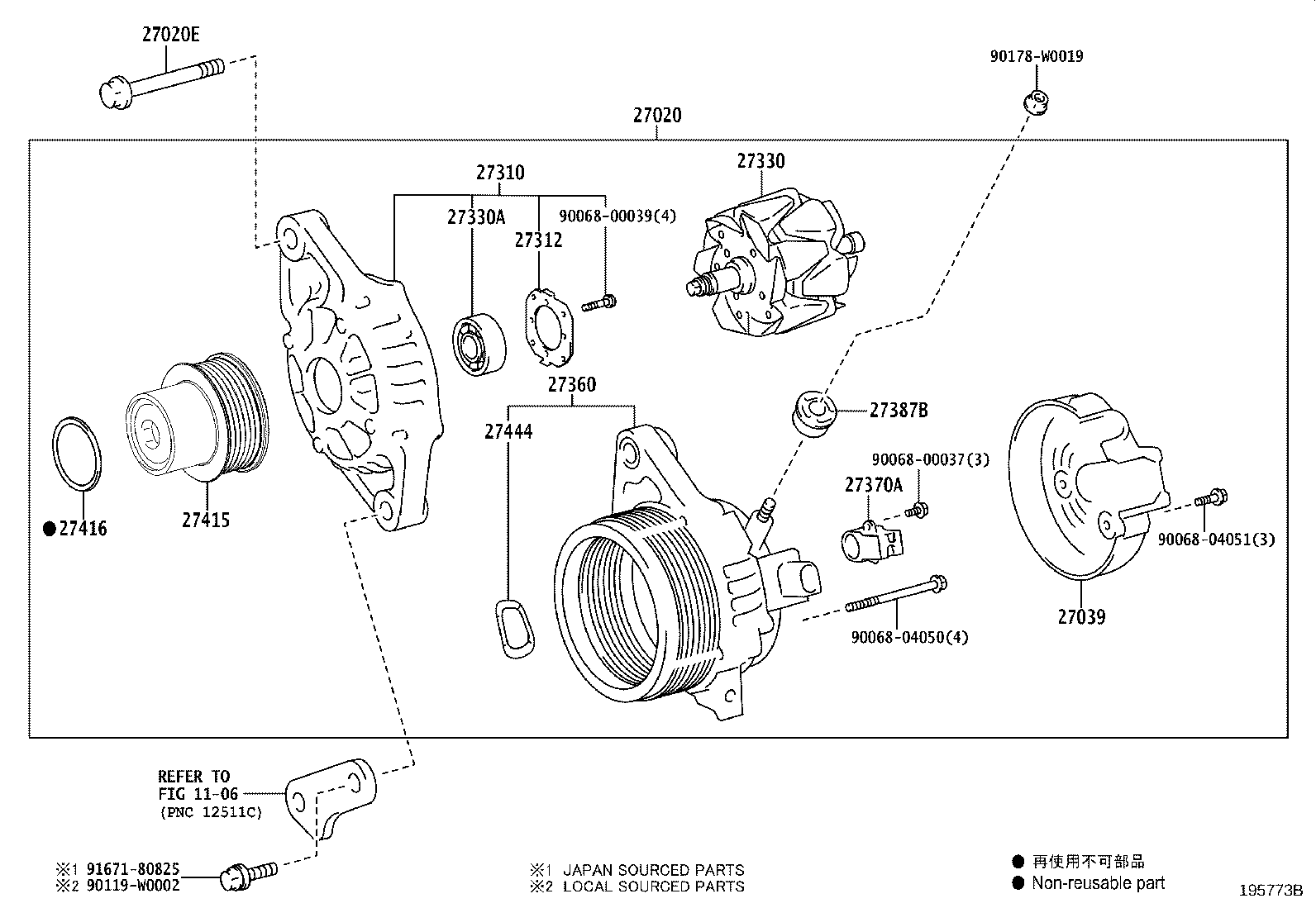

Click highlighted areas on diagram
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0Q170 |
1KRFE..KSP211..RHD..(N,R) 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91552-81075 |
1KRFE..KSP211..N,R (J) |
1 | ||
| 90105-W0113 |
1KRFE..KSP211..N,R (L) |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0Y150 |
1KRFE..KSP211..RHD..(N,R) |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0Q131 |
1KRFE..KSP211..RHD..(N,R) |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-0T300 |
1KRFE..KSP211..RHD..(N,R) |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0Y150 |
1KRFE..KSP211..RHD..(N,R) |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90068-10033 |
1KRFE..KSP211..RHD..(N,R) |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0Q150 |
1KRFE..KSP211..RHD..(N,R) |
1 | ||
| 27370A - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-0Y150 |
1KRFE..KSP211..RHD..(N,R) |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-0Y150 |
1KRFE..KSP211..RHD..(N,R) |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0W220 |
1KRFE..KSP211..RHD..(N,R) |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W020 |
1KRFE..KSP211..RHD..(N,R) |
1 | ||
| 27444 - PACKING, ALTERNATOR BEARING COVER | ||||
| 27444-0T300 |
1KRFE..KSP211..RHD..(N,R) |
1 | ||
| Common parts | ||||
| 90068-00037 | ||||
| 90068-00039 | ||||
| 90068-04050 | ||||
| 90068-04051 | ||||
| 90119-W0002 | ||||
| 90178-W0019 | ||||
| 91671-80825 | ||||
| Linked diagrams | ||||
| 1106 | ||||
