KSP211R-BHMGKW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )KSP211..RHD

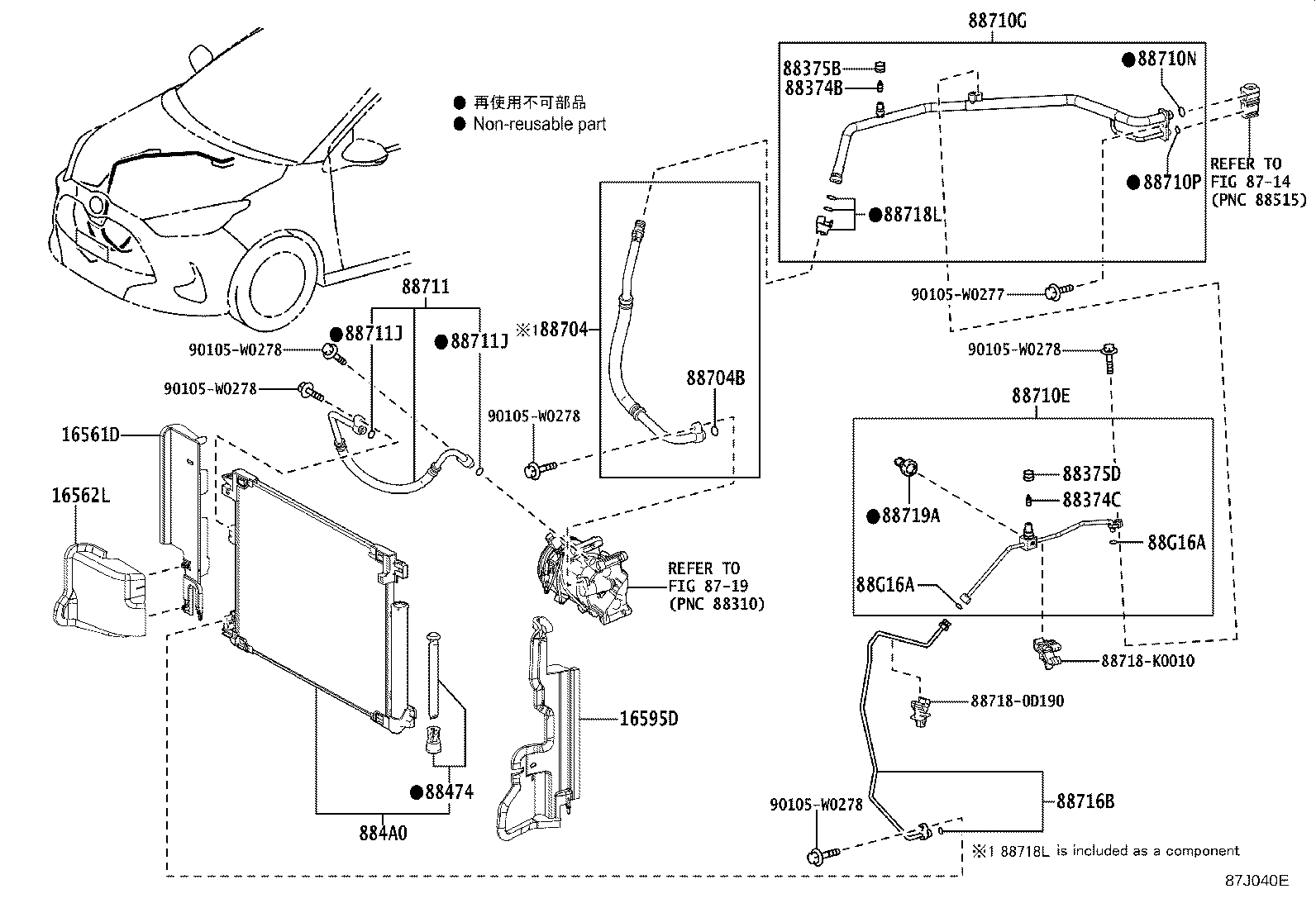

Click highlighted areas on diagram

diagram 16561D 16562L 16595D 8714 8719 88374B 88374C 88375B 88375D 88474 884A0 88704 88704B 88710E 88710G 88710N 88710P 88711 88711J 88711J 88716B 887180D190 88718K0010 88718L 88719A 88G16A 88G16A 90105W0277 90105W0278 90105W0278 90105W0278 90105W0278 90105W0278
Part # Description Qty Price
16561D - SEAL, RADIATOR TO SUPPORT, NO.1
16561-K0040

1KRFE..KSP211..G

 1
16562L - SEAL, RADIATOR TO SUPPORT, NO.2
16562-K0030

1KRFE..KSP211..G

 1
16595D - GUIDE, RADIATOR AIR, NO.1 LH
16595-K0020

1KRFE..KSP211..G

 1
88374B - VALVE, SERVICE, NO.1
88374-30010

KSP211..G

 1
88374C - VALVE, SERVICE, NO.2
88374-30020

KSP211..G

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30310

KSP211..G

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30320

KSP211..G

 1
88474 - DRYER, COOLER
88474-12010

KSP211..G

 1
884A0 - CONDENSER ASSY, COOLER
884A0-K0030

KSP211..G

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-K0010

KSP211..G

 1
88704B - RING, O(FOR SUCTION HOSE)
90099-14121

KSP211..G

ID=13.4,OD=18.2

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-K0130

KSP211..RHD..(N,R)

 1
88710-K0130

KSP211..RHD..G

 1
88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88710-K0010

KSP211..RHD..G

 1
88710-K0010

KSP211..RHD..(N,R)

 1
88710N - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE
90068-14038

KSP211..G

ID=13.4,OD=18.2

 1
88710P - RING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE
90068-14039

KSP211..G

ID=6.7,OD=10.3

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-K0010

KSP211..G

 1
88711J - RING, O, NO.1(FOR DISCHARGE HOSE)
90068-14009

KSP211..G

ID=10.8,OD=15.6

 2
88711J - RING, O, NO.1(FOR DISCHARGE HOSE)
90068-14009

KSP211..G

ID=10.8,OD=15.6

 2
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-K0020

KSP211..G

 1
88718L - CLAMP, PIPING
88718-52280

KSP211..G

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-11010

KSP211..G

 1
88G16A - RING, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE)
90068-14039

KSP211..G

ID=6.7,OD=10.3

 2
88G16A - RING, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE)
90068-14039

KSP211..G

ID=6.7,OD=10.3

 2
Common parts
88718-0D190
88718-K0010
90105-W0277
90105-W0278
Linked diagrams
8714
8719
