KSP211R-BHMGKW (2020)
Toyota Yaris(Frp)
Production
Jul 2020
-
Sep 9999
Engine
1KRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )RHD

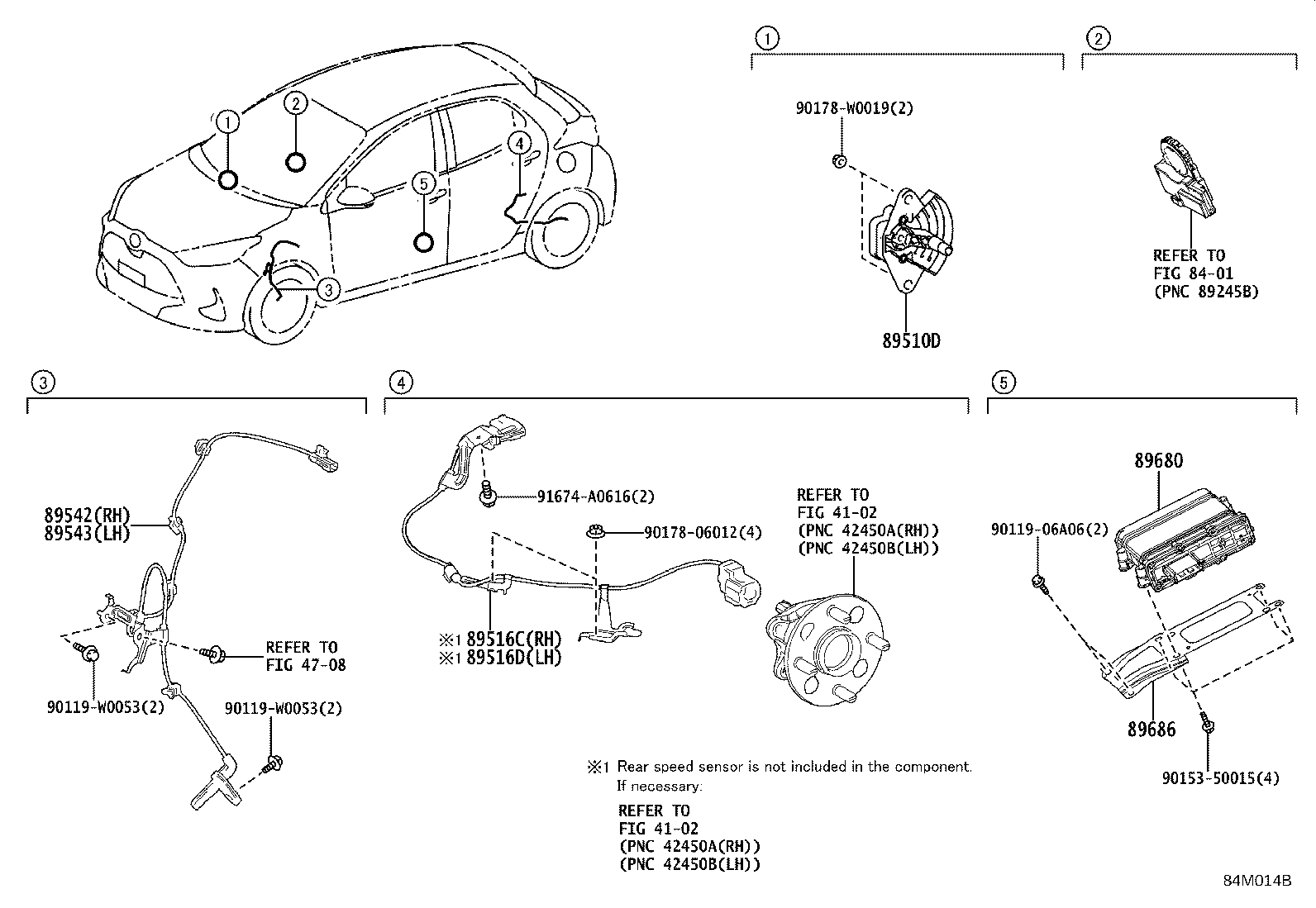

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89516C - WIRE, SKID CONTROL SENSOR, RH | ||||
| 89516-K0030 |
KSP211..G |
1 | ||
| 89516D - WIRE, SKID CONTROL SENSOR, LH | ||||
| 89516-K0040 |
KSP211..G |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-K0020 |
KSP211..G |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-K0020 |
KSP211..G |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-W0053 | ||||
| 90153-50015 | ||||
| 90178-06012 | ||||
| 90178-W0019 | ||||
| 91674-A0616 | ||||
| Linked diagrams | ||||
| 4102 | ||||
| 4708 | ||||
| 8401 | ||||
