KSP211R-BHMGKW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

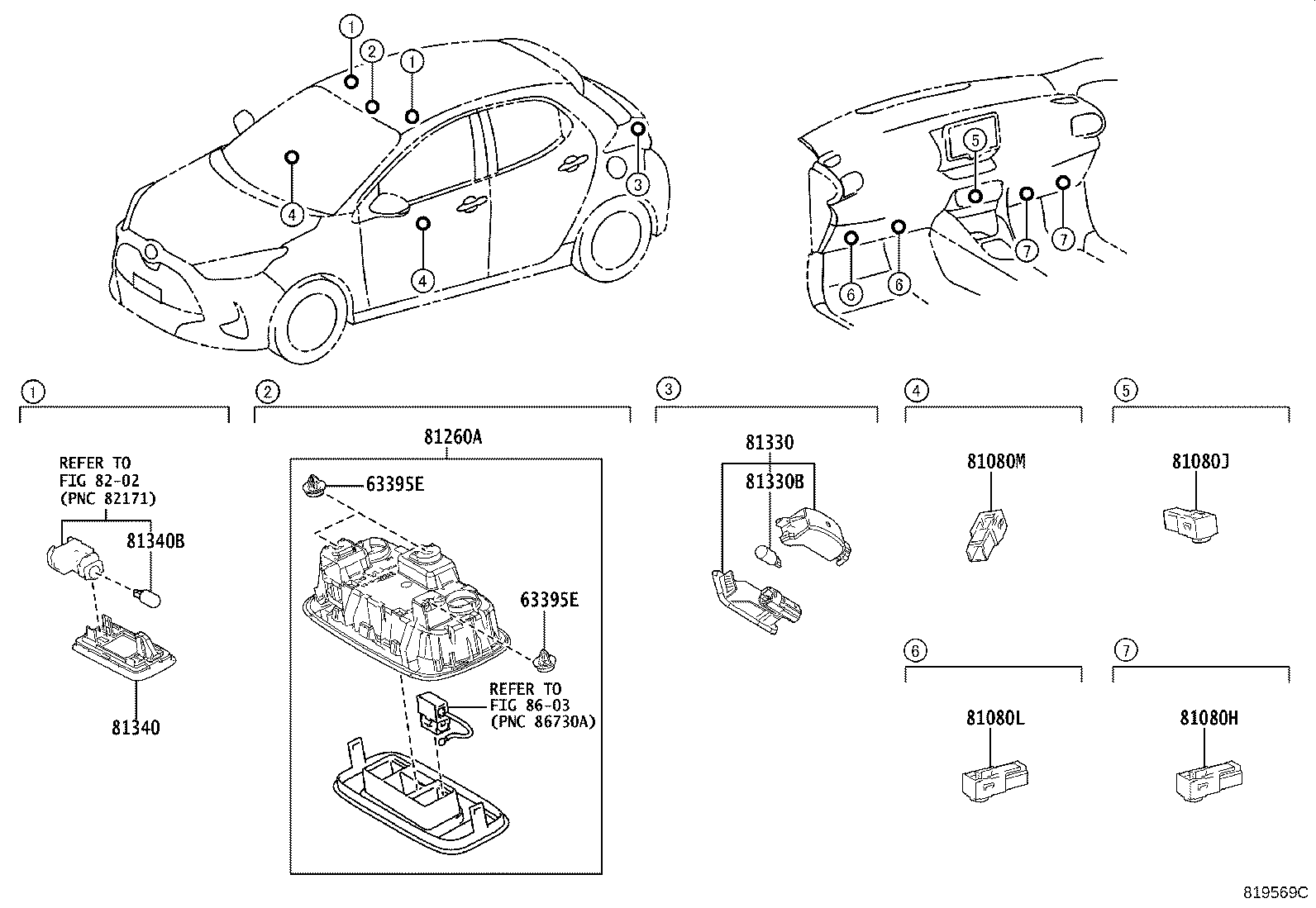

Click highlighted areas on diagram

diagram 63395E 63395E 81080H 81080J 81080L 81080M 81260A 81330 81330B 81340 81340B 8202 8603
Part # Description Qty Price
63395E - CLIP(FOR MAP LAMP)
90467-09240

KSP211..G

 3
63395E - CLIP(FOR MAP LAMP)
90467-09240

KSP211..G

 3
81080H - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080-33280

KSP211..G

ILLUMINATED ENTRY SYSTEM-WITH(MAP LAMP & DOOR)

 2
81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-33280

KSP211..G

ILLUMINATED ENTRY SYSTEM-WITH(MAP LAMP & DOOR)

 1
81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080-33280

KSP211..G

ILLUMINATED ENTRY SYSTEM-WITH(MAP LAMP & DOOR)

 2
81080M - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-33280

KSP211..G

ILLUMINATED ENTRY SYSTEM-WITH(MAP LAMP & DOOR)

 2
81260A - LAMP ASSY, MAP
81260-K0060B0

KSP211..RHD..G

LT.GRAY,TRIM1#,2#

 1
81260-K0060B0

KSP211,MXPH11..RHD..R

LT.GRAY,TRIM2#

 1
81260-K0060B0

KSP211,MXPA11,MXPH11..RHD..(N,S)

LT.GRAY,TRIM20

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-02060

KSP211..G

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-WB021

KSP211..G

12V 5W

 1
Linked diagrams
8202
8603
