KSP211R-BHMGKW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

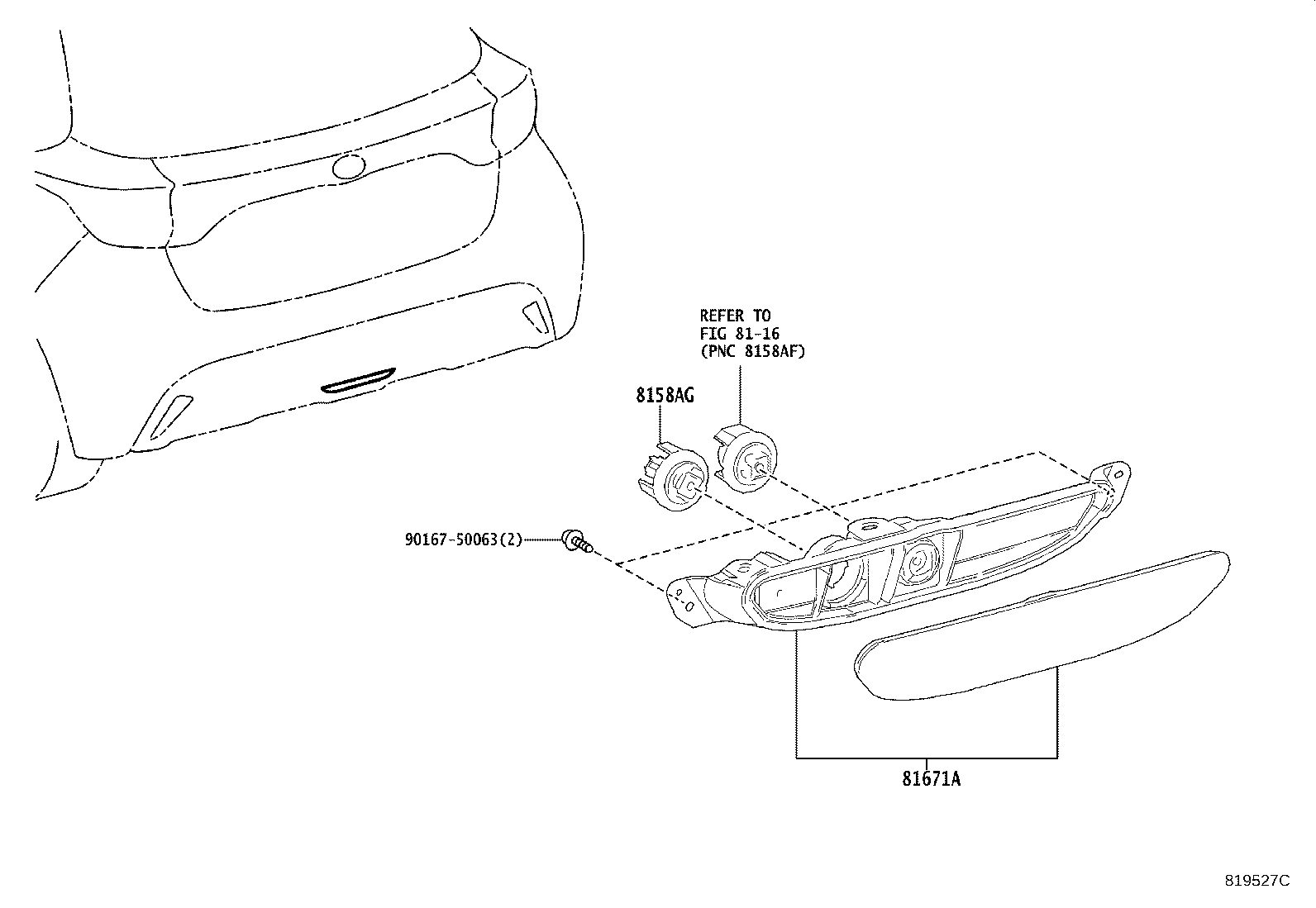

Click highlighted areas on diagram

diagram 8116 8158AG 81671A 9016750063
Part # Description Qty Price
8158AG - LED, BACK-UP LAMP
8158A-K0140

KSP211..N,R;MXPA11,MXPH11

 1
8158A-K0140

KSP211..G

 1
81671A - LENS & BODY, BACK-UP LAMP
81581-K0130

KSP211..N,R;MXPA11,MXPH11

 1
81581-K0130

KSP211..G

 1
Common parts
90167-50063
Linked diagrams
8116
