KSP211R-BHMGKW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )KSP211,MXPA11

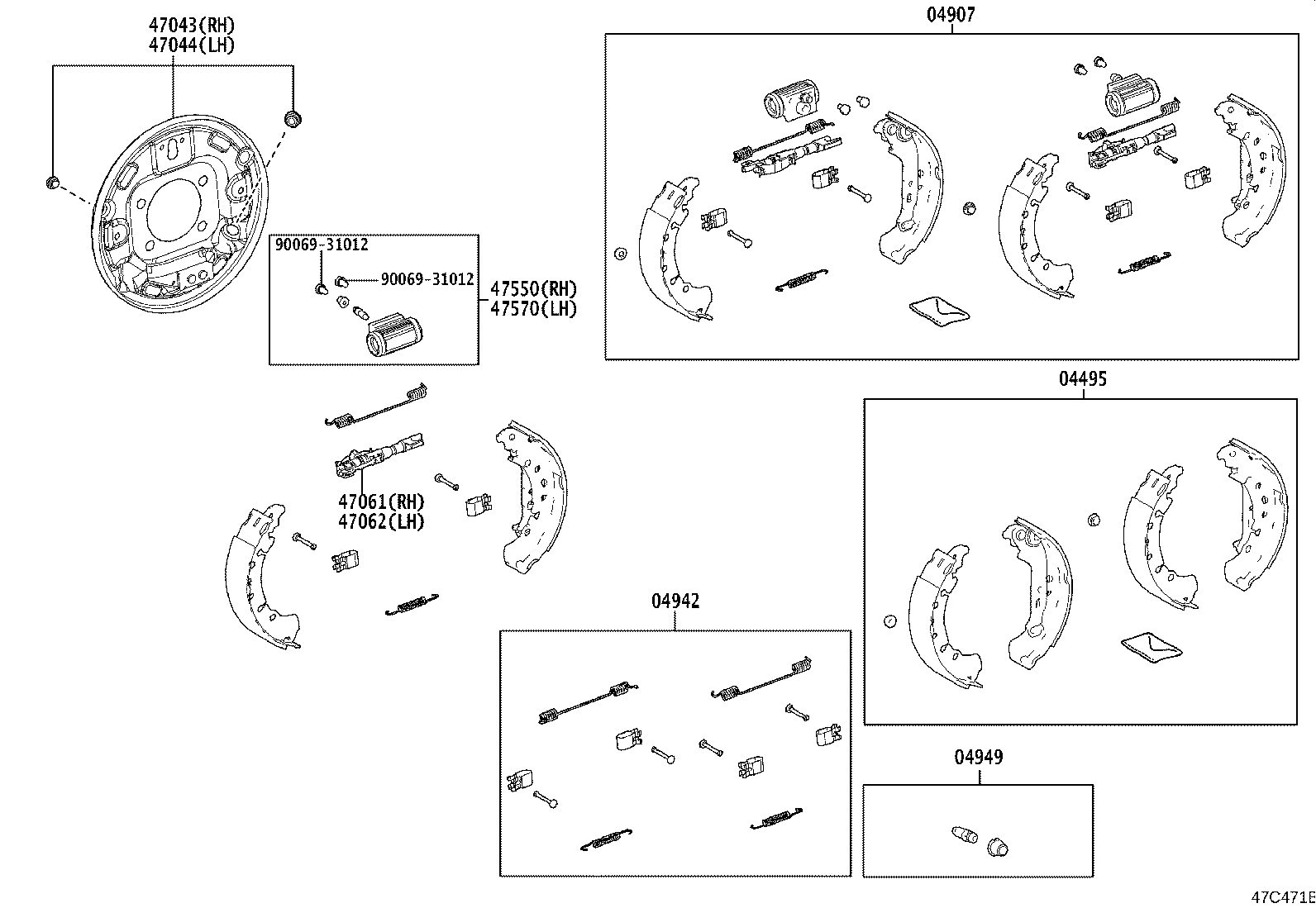

Click highlighted areas on diagram

diagram 04495 04907 04942 04949 47043 47044 47061 47062 47550 47570 9006931012 9006931012
Part # Description Qty Price
04495 - SHOE KIT, REAR BRAKE
04495-K0000

MXPA11;KSP211..N,R

MARK TMD D8273/2

 1
04495-K0000

KSP211..G

MARK TMD D8273/2

 1
04907 - FITTING KIT, REAR DRUM BRAKE
04907-K0000

KSP211..G

 1
04907-K0000

MXPA11;KSP211..N,R

 1
04942 - SPRING KIT, REAR BRAKE
04942-K0000

MXPA11;KSP211..N,R

 1
04942-K0000

KSP211..G

 1
04949 - PLUG KIT, REAR BRAKE
04949-09010

MXPA11;KSP211..N,R

 2
04949-09010

KSP211..G

 2
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-K9000

KSP211..G

 1
47043-K9000

MXPA11;KSP211..N,R

 1
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-K9000

MXPA11;KSP211..N,R

 1
47044-K9000

KSP211..G

 1
47061 - STRUT SET, PARKING BRAKE SHOE, RH
47061-0D040

KSP211..G

 1
47061-0D040

MXPA11;KSP211..N,R

 1
47062 - STRUT SET, PARKING BRAKE SHOE, LH
47061-0D040

KSP211..G

 1
47061-0D040

MXPA11;KSP211..N,R

 1
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-K9000

KSP211..G

 1
47550-K9000

MXPA11;KSP211..N,R

 1
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47550-K9000

MXPA11;KSP211..N,R

 1
47550-K9000

KSP211..G

 1
Common parts
90069-31012
