KSP211L-BHMGKW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

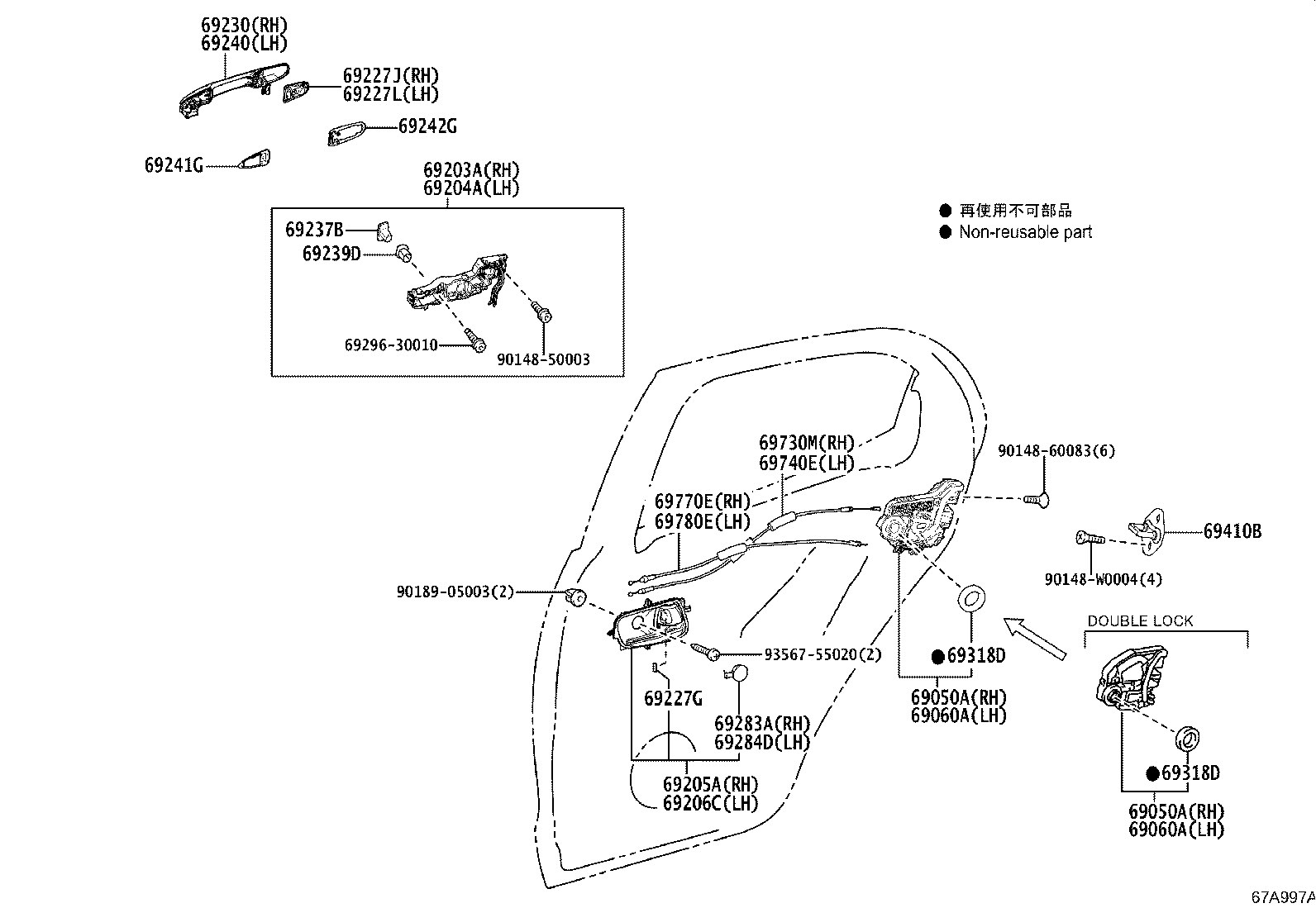

Click highlighted areas on diagram

diagram 69050A 69050A 69060A 69060A 69203A 69204A 69205A 69206C 69227G 69227J 69227L 69230 69237B 69239D 69240 69241G 69242G 69283A 69284D 6929630010 69318D 69318D 69410B 69730M 69740E 69770E 69780E 9014850003 9014860083 90148W0004 9018905003 9356755020
Part # Description Qty Price
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-K0030

KSP211..LHD..G

 1
69050-K0040

KSP211..LHD..G

WIRELESS DOOR LOCK-WITH

 1
69050-K0030

KSP211..LHD..G

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH

 1
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-K0030

KSP211..LHD..G

 1
69050-K0040

KSP211..LHD..G

WIRELESS DOOR LOCK-WITH

 1
69050-K0030

KSP211..LHD..G

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-K0030

KSP211..LHD..G

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH

 1
69060-K0040

KSP211..LHD..G

WIRELESS DOOR LOCK-WITH

 1
69060-K0030

KSP211..LHD..G

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-K0030

KSP211..LHD..G

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH

 1
69060-K0040

KSP211..LHD..G

WIRELESS DOOR LOCK-WITH

 1
69060-K0030

KSP211..LHD..G

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-K0020

KSP211..G

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-K0020

KSP211..G

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-K0050C1

KSP211..G

BLACK,TRIM1#,2#

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-K0050C1

KSP211..G

BLACK,TRIM1#,2#

 1
69227G - PLATE(FOR REAR DOOR LOCK INSIDE HANDLE)
74531-K0020

KSP211..G

 2
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-02390

KSP211..G

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69227-02390

KSP211..G

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-02934

KSP211..G

PAINT REQ.

 1
69237B - NUT, REAR DOOR HANDLE
69237-62010

KSP211..G

 2
69239D - BUSH, REAR DOOR HANDLE
69239-47010

KSP211..G

 2
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-02934

KSP211..G

PAINT REQ.

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-02250

KSP211..G

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-02240

KSP211..G

 2
69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69283-K0030C1

KSP211..G

BLACK,TRIM1#,2#

 1
69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69283-K0030C1

KSP211..G

BLACK,TRIM1#,2#

 1
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-47010

KSP211..G

 2
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-47010

KSP211..G

 2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-0D090

KSP211..G

 2
69730M - CABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER
69730-K0031

KSP211..LHD..G

 1
69740E - CABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER
69730-K0031

KSP211..LHD..G

 1
69770E - CABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK K
69770-K0031

KSP211..LHD..G

 1
69780E - CABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK K
69770-K0031

KSP211..LHD..G

 1
Common parts
69296-30010
90148-50003
90148-60083
90148-W0004
90189-05003
93567-55020
