KSP211L-BHMGKW (2020)
Toyota Yaris(Frp)
(2007- )1KRFE

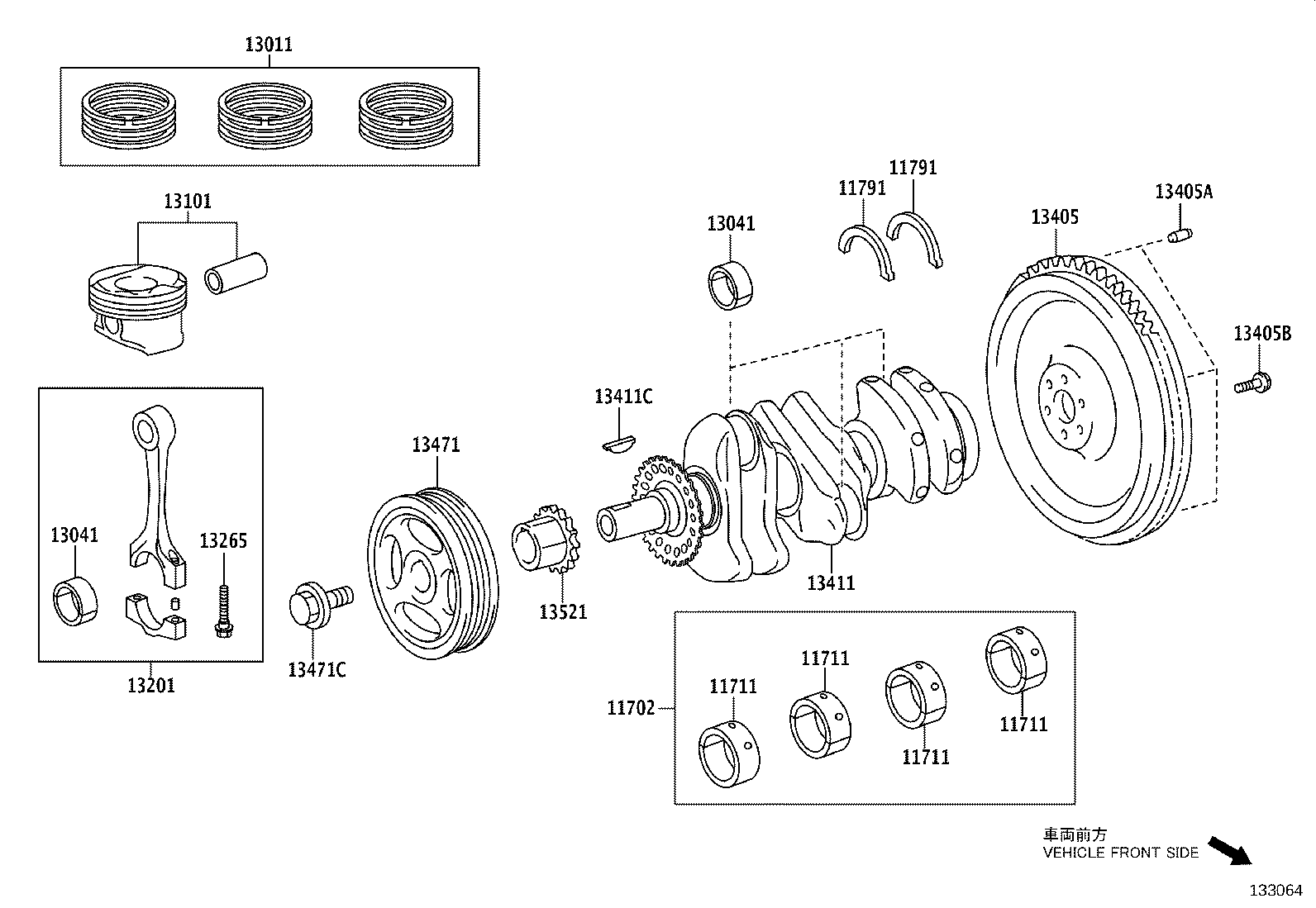

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-0Q030 |
1KRFE..KSP211..G U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0Q03002 |
1KRFE..KSP211..G MARK2 |
4 | ||
| 11701-0Q03005 |
1KRFE..KSP211..G MARK5 |
4 | ||
| 11701-0Q03003 |
1KRFE..KSP211..G MARK3 |
4 | ||
| 11701-0Q03004 |
1KRFE..KSP211..G MARK4 |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0Q03002 |
1KRFE..KSP211..G MARK2 |
4 | ||
| 11701-0Q03005 |
1KRFE..KSP211..G MARK5 |
4 | ||
| 11701-0Q03003 |
1KRFE..KSP211..G MARK3 |
4 | ||
| 11701-0Q03004 |
1KRFE..KSP211..G MARK4 |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0Q03002 |
1KRFE..KSP211..G MARK2 |
4 | ||
| 11701-0Q03005 |
1KRFE..KSP211..G MARK5 |
4 | ||
| 11701-0Q03003 |
1KRFE..KSP211..G MARK3 |
4 | ||
| 11701-0Q03004 |
1KRFE..KSP211..G MARK4 |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0Q03002 |
1KRFE..KSP211..G MARK2 |
4 | ||
| 11701-0Q03005 |
1KRFE..KSP211..G MARK5 |
4 | ||
| 11701-0Q03003 |
1KRFE..KSP211..G MARK3 |
4 | ||
| 11701-0Q03004 |
1KRFE..KSP211..G MARK4 |
4 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-0Q020 |
1KRFE..KSP211..G STD |
2 | ||
| 11792-0Q020 |
1KRFE..KSP211..G O/S 0.125 |
2 | ||
| 11793-0Q020 |
1KRFE..KSP211..G O/S 0.25 |
2 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-0Q020 |
1KRFE..KSP211..G STD |
2 | ||
| 11792-0Q020 |
1KRFE..KSP211..G O/S 0.125 |
2 | ||
| 11793-0Q020 |
1KRFE..KSP211..G O/S 0.25 |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-0Q050 |
1KRFE..KSP211..LHD..G STD,WITHOUT(DESTINATION PACKAGE(EUROPE))&EGYPT SPEC |
1 | ||
| 13011-0Q080 |
1KRFE..KSP211..G STD |
1 | ||
| 13011-0Q050 |
1KRFE..KSP211..LHD..G STD,WITHOUT(DESTINATION PACKAGE(EUROPE))&MOROCCO SPEC |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0Q02001 |
1KRFE..KSP211..G MARK1 |
3 | ||
| 13041-0Q02003 |
1KRFE..KSP211..G MARK3 |
3 | ||
| 13041-0Q02002 |
1KRFE..KSP211..G MARK2 |
3 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0Q02001 |
1KRFE..KSP211..G MARK1 |
3 | ||
| 13041-0Q02003 |
1KRFE..KSP211..G MARK3 |
3 | ||
| 13041-0Q02002 |
1KRFE..KSP211..G MARK2 |
3 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-40100 |
1KRFE..KSP211..G STD |
3 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-09D20 |
1KRFE..KSP211..G |
3 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-21020 |
1KRFE..KSP211..G |
6 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-0Q021 |
1KRFE..KSP211..G |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08120 |
1KRFE..KSP211..G L=18,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10463 |
1KRFE..KSP211..G |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-0Q020 |
1KRFE..KSP211..G WITH(STOP & START SYSTEM) |
1 | ||
| 13401-0Q030 |
1KRFE..KSP211..G |
1 | ||
| 13411C - PIN, STRAIGHT(FOR CRANKSHAFT) | ||||
| 90280-04001 |
1KRFE..KSP211..G |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-0Q012 |
1KRFE..KSP211..G |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-14106 |
1KRFE..KSP211..G |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-0Q020 |
1KRFE..KSP211..G |
1 | ||
