KSP211L-BHMGKW (2020)
Toyota Yaris(Frp)
(2007- )1KRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

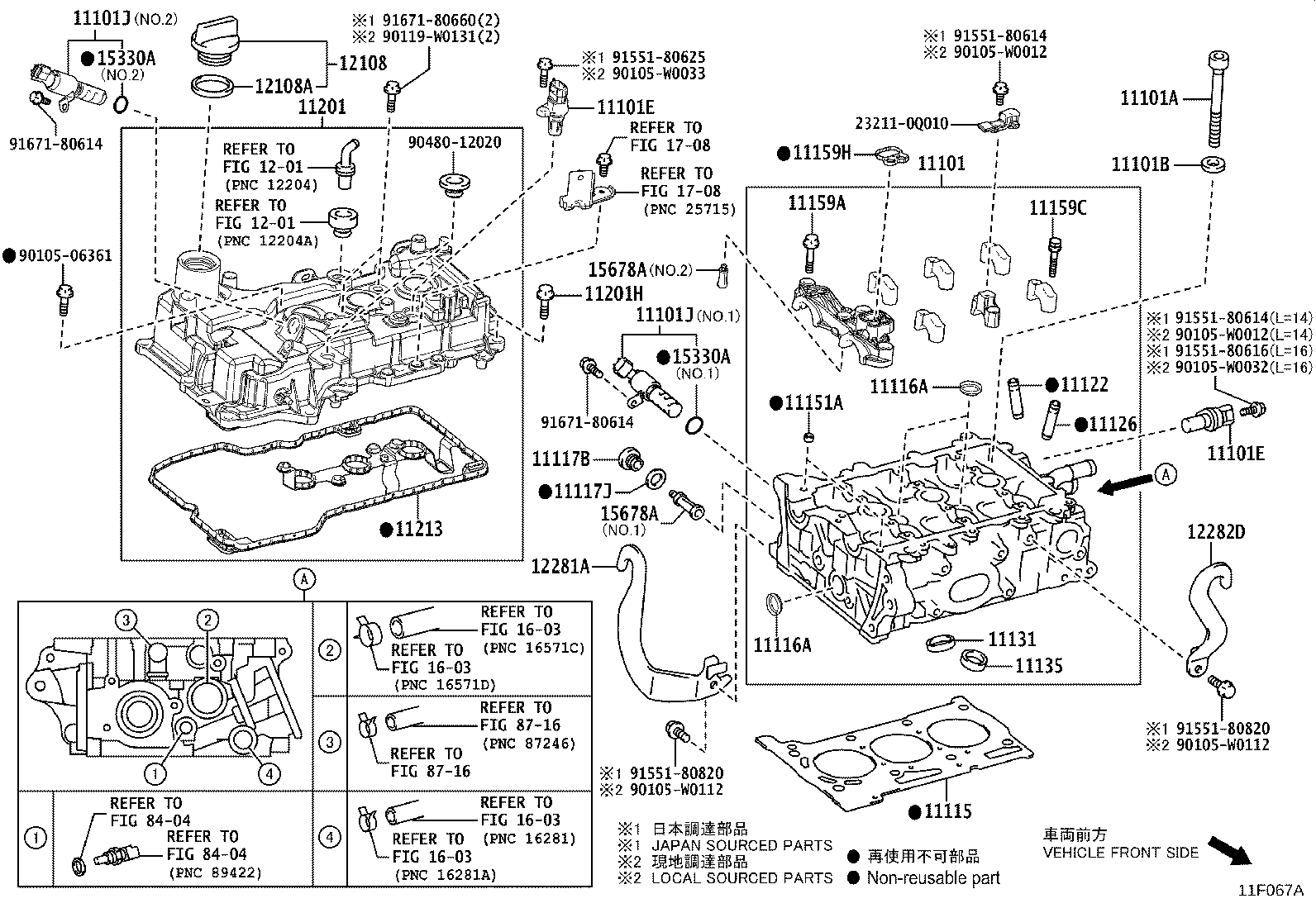

| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-0Q040 |
1KRFE..KSP211..G |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02186 |
1KRFE..KSP211..G |
8 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10136 |
1KRFE..KSP211..G |
8 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-W5003 |
1KRFE..KSP211..G |
2 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-W5003 |
1KRFE..KSP211..G |
2 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-0Q021 |
1KRFE..KSP211..G NO.1 |
1 | ||
| 15330-0Q030 |
1KRFE..KSP211..G NO.2 |
1 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-0Q021 |
1KRFE..KSP211..G NO.1 |
1 | ||
| 15330-0Q030 |
1KRFE..KSP211..G NO.2 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-40090 |
1KRFE..KSP211..G |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-62500 |
1KRFE..KSP211..G |
3 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-62500 |
1KRFE..KSP211..G |
3 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90341-14013 |
1KRFE..KSP211..G |
1 | ||
| 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-14009 |
1KRFE..KSP211..G |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-21010 |
1KRFE..KSP211..G STD |
6 | ||
| 11123-21010 |
1KRFE..KSP211..G O/S 0.05 |
6 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-21010 |
1KRFE..KSP211..G O/S 0.05 |
6 | ||
| 11122-21010 |
1KRFE..KSP211..G STD |
6 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-0Q030 |
1KRFE..KSP211..G STD |
6 | ||
| 11132-0Q030 |
1KRFE..KSP211..G O/S 0.03 |
6 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-0Q030 |
1KRFE..KSP211..G STD |
6 | ||
| 11136-0Q030 |
1KRFE..KSP211..G O/S 0.03 |
6 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-11005 |
1KRFE..KSP211..G L=11,OD=9 |
2 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 91551-80840 |
1KRFE..KSP211..G (J) |
3 | ||
| 90105-W0133 |
1KRFE..KSP211..G (L) |
3 | ||
| 11159C - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-W0221 |
1KRFE..KSP211..G (L) |
12 | ||
| 90109-06080 |
1KRFE..KSP211..G (J) |
12 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-47020 |
1KRFE..KSP211..G |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11210-0Q040 |
1KRFE..KSP211..G |
1 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 90109-06384 |
1KRFE..KSP211..G (J) |
14 | ||
| 90109-W0019 |
1KRFE..KSP211..G (L) |
14 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-0Q030 |
1KRFE..KSP211..G |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-38010 |
1KRFE..KSP211..G |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
1KRFE..KSP211..G |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-40032 |
1KRFE..KSP211..G |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-40010 |
1KRFE..KSP211..G |
1 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
1KRFE..KSP211..G NO.2 |
1 | ||
| 90068-14040 |
1KRFE..KSP211..G NO.1 |
1 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
1KRFE..KSP211..G NO.2 |
1 | ||
| 90068-14040 |
1KRFE..KSP211..G NO.1 |
1 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-21010 |
1KRFE..KSP211..G NO.1 |
1 | ||
| 15678-31020 |
1KRFE..KSP211..G NO.2 |
1 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-21010 |
1KRFE..KSP211..G NO.1 |
1 | ||
| 15678-31020 |
1KRFE..KSP211..G NO.2 |
1 | ||
| Common parts | ||||
| 23211-0Q010 | ||||
| 90105-06361 | ||||
| 90105-W0012 | ||||
| 90105-W0032 | ||||
| 90105-W0033 | ||||
| 90105-W0112 | ||||
| 90119-W0131 | ||||
| 90480-12020 | ||||
| 91551-80614 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 91551-80820 | ||||
| 91671-80614 | ||||
| 91671-80660 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 1708 | ||||
| 8404 | ||||
| 8716 | ||||
