ZGR21R-GWFEPW (2015)

Toyota Verso

Production Mar 2015 - Oct 2017
Engine 2ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0902- )ZGR2#

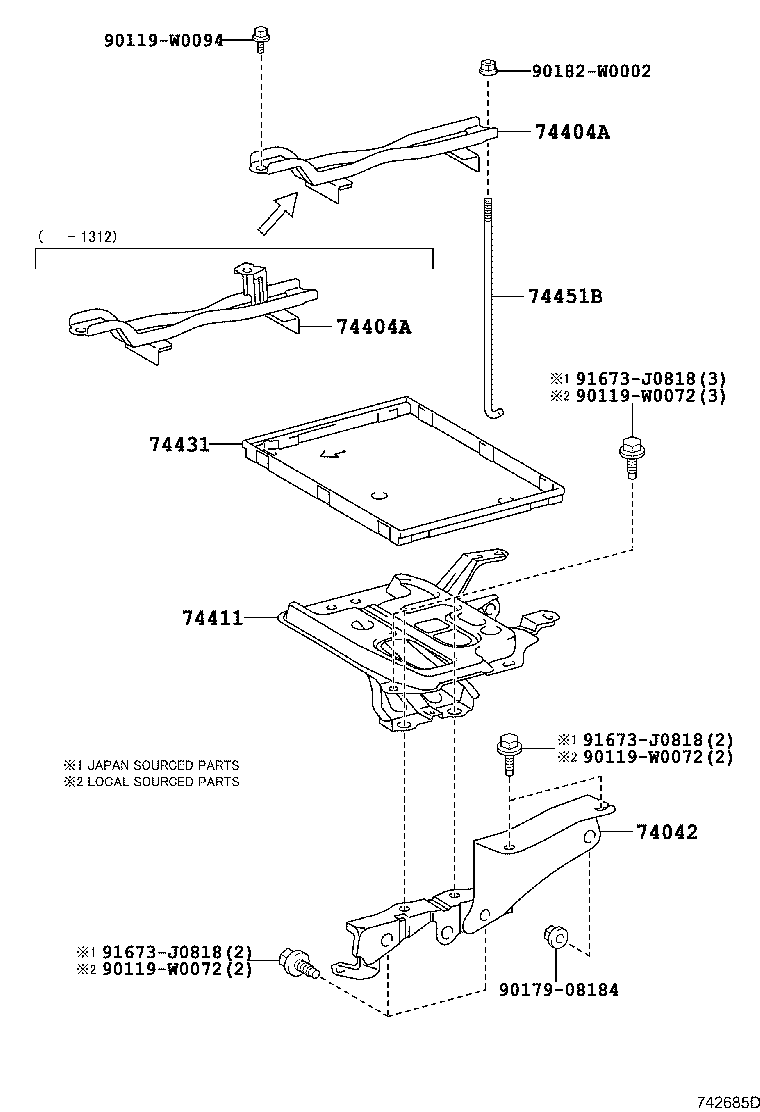

Click highlighted areas on diagram

diagram 74042 74404A 74404A 74411 74431 74451B 90119W0072 90119W0072 90119W0072 90119W0094 9017908184 90182W0002 91673J0818 91673J0818 91673J0818
Part # Description Qty Price
74042 - BRACKET SUB-ASSY, BATTERY
74401-05010

AUR2#,ZGR2#

 1
74401-05010

ZGR2#

 1
74404A - CLAMP SUB-ASSY, BATTERY
74404-02140

ZGR2#

 1
74404-02141

ZGR2#

 1
74404A - CLAMP SUB-ASSY, BATTERY
74404-02140

ZGR2#

 1
74404-02141

ZGR2#

 1
74411 - CARRIER, BATTERY
74410-05020

ZGR2#

 1
74410-05020

ZGR2#

 1
74431 - TRAY, BATTERY
74431-02160

ZGR2#

 1
74431-02160

ZGR2#

 1
74451B - BOLT, BATTERY CLAMP
74451-30110

AUR2#,ZGR2#

 1
74451-30110

WAR20,ZGR2#

 1
Common parts
90119-W0072
90119-W0094
90179-08184
90182-W0002
91673-J0818
