ZGR21R-GWFEPW (2015)

Toyota Verso

Production Mar 2015 - Oct 2017
Engine 2ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0902- )

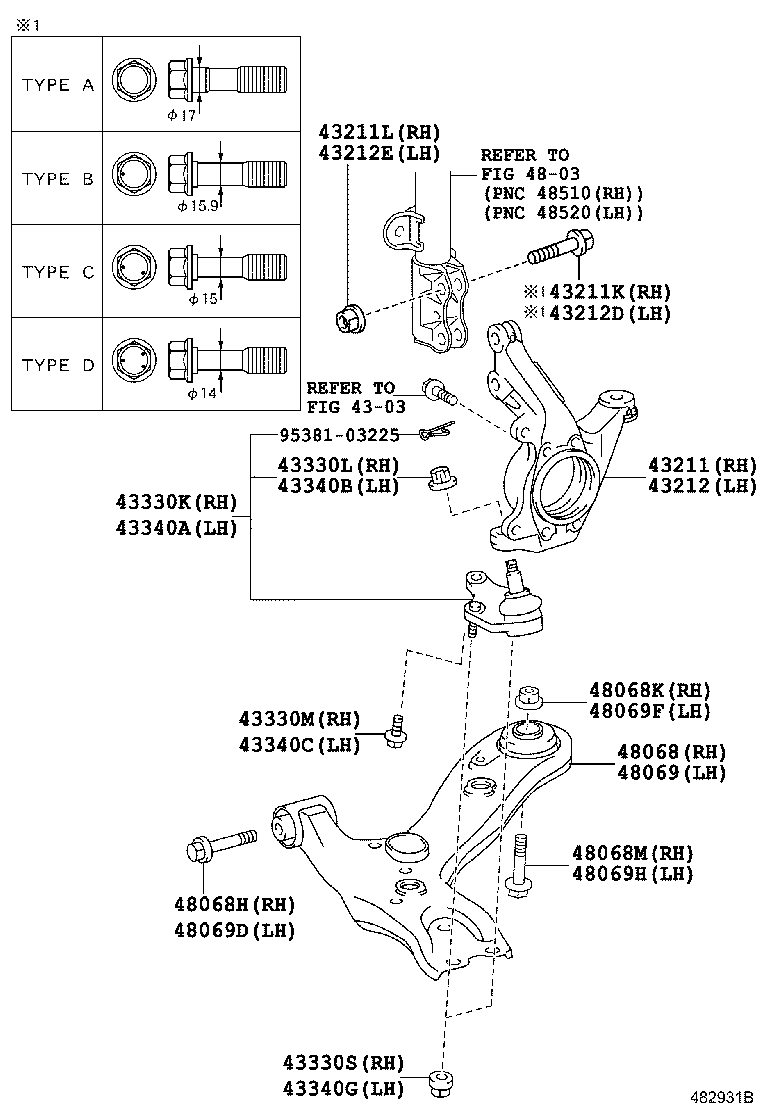

Click highlighted areas on diagram

diagram 4303 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43330M 43330S 43340A 43340B 43340C 43340G 4803 48068 48068H 48068K 48068M 48069 48069D 48069F 48069H 9538103225
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-0F020

WAR20,ZGR2#

 1
43211-0F020

AUR2#,ZGR2#

 1
43211-0F040

WAR20,ZGR2#

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17009

AUR2#,ZGR2#

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-17010

AUR2#,ZGR2#

OD=15,TYPE C:REFER ILLUST.

 1
90105-17011

AUR2#,ZGR2#

OD=14,TYPE D:REFER ILLUST.

 1
90105-W0070

AUR2#,ZGR2#

OD=17,TYPE A:REFER ILLUST.

 2
90105-17010

WAR20,ZGR2#

OD=15,TYPE C:REFER ILLUST.

 1
90105-W0070

WAR20,ZGR2#

OD=17,TYPE A:REFER ILLUST.

 2
90105-17009

WAR20,ZGR2#

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-17011

WAR20,ZGR2#

OD=14,TYPE D:REFER ILLUST.

 1
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-17002

AUR2#,ZGR2#

 2
90178-17002

WAR20,ZGR2#

 2
43212 - KNUCKLE, STEERING, LH
43212-0F020

WAR20,ZGR2#

 1
43212-0F020

AUR2#,ZGR2#

 1
43212-0F040

WAR20,ZGR2#

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17009

AUR2#,ZGR2#

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-17011

AUR2#,ZGR2#

OD=14,TYPE D:REFER ILLUST.

 1
90105-W0070

AUR2#,ZGR2#

OD=17,TYPE A:REFER ILLUST.

 2
90105-17010

AUR2#,ZGR2#

OD=15,TYPE C:REFER ILLUST.

 1
90105-17009

WAR20,ZGR2#

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-W0070

WAR20,ZGR2#

OD=17,TYPE A:REFER ILLUST.

 2
90105-17011

WAR20,ZGR2#

OD=14,TYPE D:REFER ILLUST.

 1
90105-17010

WAR20,ZGR2#

OD=15,TYPE C:REFER ILLUST.

 1
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-17002

WAR20,ZGR2#

 2
90178-17002

AUR2#,ZGR2#

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-09631

WAR20,ZGR2#

 1
43330-09630

WAR20,ZGR2#

 1
43330-09630

AUR2#,ZGR2#

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

WAR20,ZGR2#

 1
90171-14003

AUR2#,ZGR2#

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-W0077

AUR2#,ZGR2#

 1
90105-W0077

WAR20,ZGR2#

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90178-12019

AUR2#,ZGR2#

 2
90178-12019

WAR20,ZGR2#

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-09630

AUR2#,ZGR2#

 1
43330-09631

WAR20,ZGR2#

 1
43330-09630

WAR20,ZGR2#

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

WAR20,ZGR2#

 1
90171-14003

AUR2#,ZGR2#

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-W0077

AUR2#,ZGR2#

 1
90105-W0077

WAR20,ZGR2#

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90178-12019

AUR2#,ZGR2#

 2
90178-12019

WAR20,ZGR2#

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-0F030

AUR2#,ZGR2#

 1
48068-0F030

WAR20,ZGR2#

 1
48068-0F020

WAR20,ZGR2#

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90105-16090

WAR20,ZGR2#

 1
91554-L1690

AUR2#,ZGR2#

 1
48068K - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90178-16006

AUR2#,ZGR2#

 1
90178-16006

WAR20,ZGR2#

 1
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90105-16090

WAR20,ZGR2#

 1
91554-L1690

AUR2#,ZGR2#

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-0F020

WAR20,ZGR2#

 1
48069-0F030

WAR20,ZGR2#

 1
48069-0F030

AUR2#,ZGR2#

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
91554-L1690

AUR2#,ZGR2#

 1
90105-16090

WAR20,ZGR2#

 1
48069F - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90178-16006

AUR2#,ZGR2#

 1
90178-16006

WAR20,ZGR2#

 1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
91554-L1690

AUR2#,ZGR2#

 1
90105-16090

WAR20,ZGR2#

 1
Common parts
95381-03225
Linked diagrams
4303
4803
