ZGR21R-GWFEPW (2015)
Toyota Verso

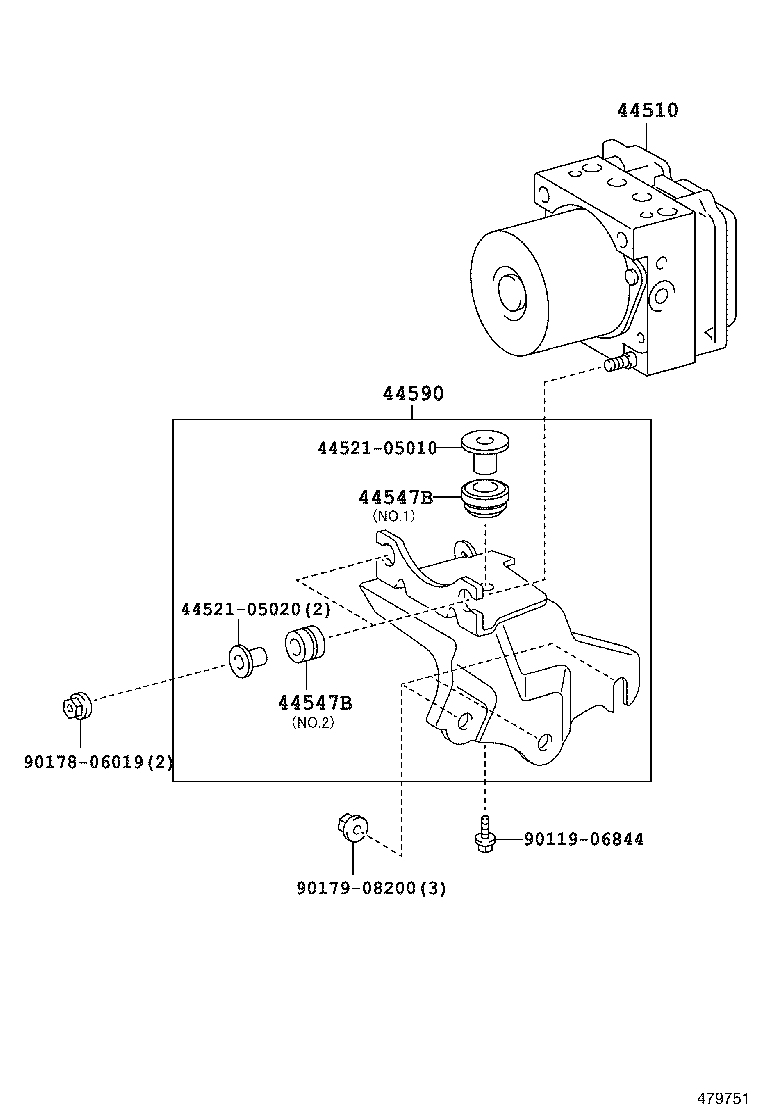

ILLUST NO. 2 OF 2(1503- )6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-0F040 |
AUR2#,ZGR2# |
1 | ||
| 44050-0F120 |
WAR20,ZGR2# |
1 | ||
| 44050-0F100 |
WAR20,ZGR2# |
1 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-12010 |
AUR2#,ZGR2# NO.1 |
1 | ||
| 44547-12010 |
WAR20,ZGR2# NO.1 |
1 | ||
| 44547-02030 |
AUR2#,ZGR2# NO.2 |
2 | ||
| 44547-02030 |
WAR20,ZGR2# NO.2 |
2 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-12010 |
AUR2#,ZGR2# NO.1 |
1 | ||
| 44547-12010 |
WAR20,ZGR2# NO.1 |
1 | ||
| 44547-02030 |
AUR2#,ZGR2# NO.2 |
2 | ||
| 44547-02030 |
WAR20,ZGR2# NO.2 |
2 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-0F020 |
AUR2#,ZGR2#..6F,6FC |
1 | ||
| 44590-02310 |
WAR20,ZGR2#..6F |
1 | ||
| Common parts | ||||
| 44521-05010 | ||||
| 44521-05020 | ||||
| 90119-06844 | ||||
| 90178-06019 | ||||
| 90179-08200 | ||||

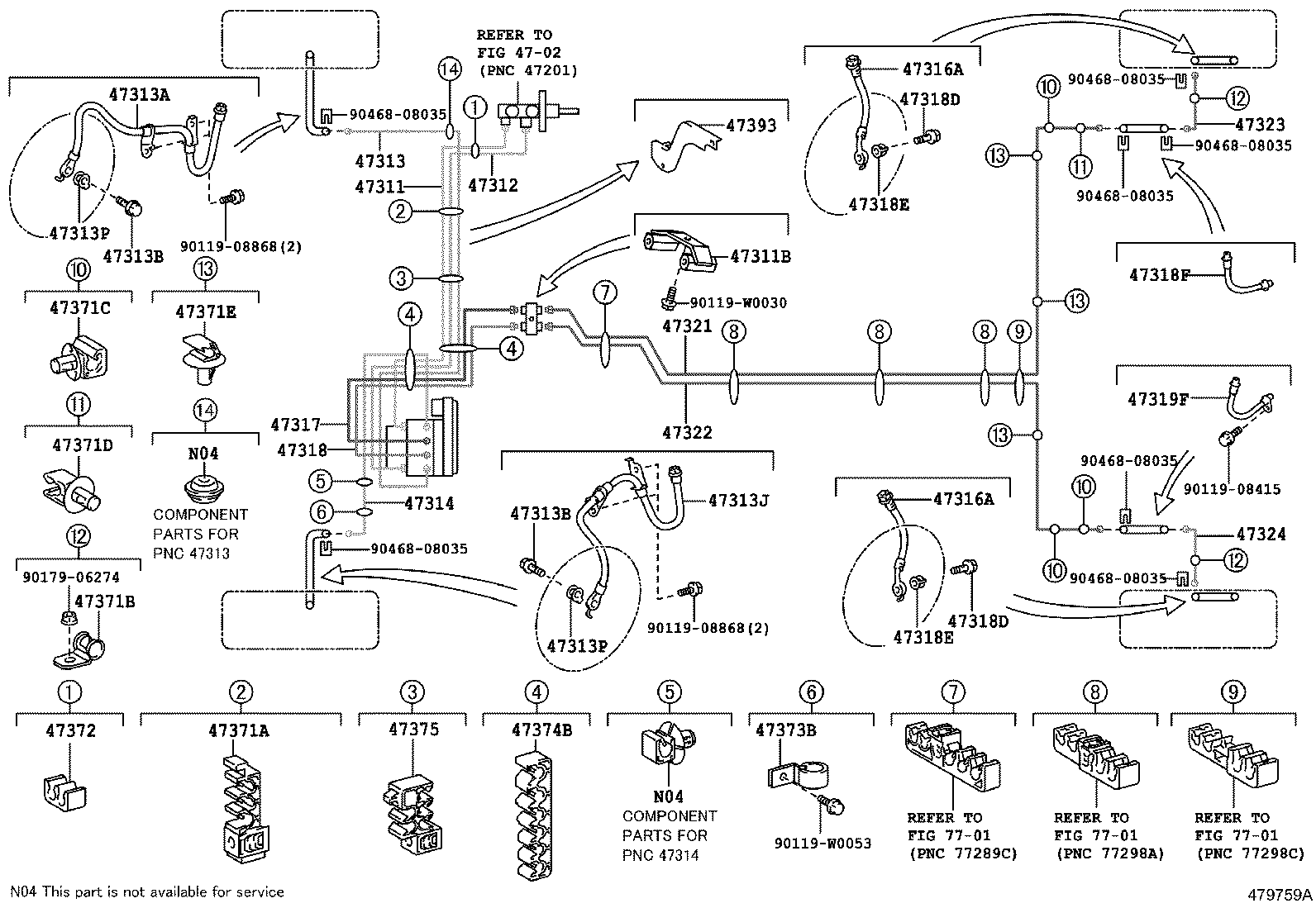

ILLUST NO. 1 OF 2(1503- )ZGR21..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0F110 |
AUR2#,ZGR2#..RHD..(6F,6FC) |
1 | ||
| 47311-0F170 |
WAR20,ZGR2#..RHD..6F |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10255 |
AUR2#,ZGR2# |
1 | ||
| 90412-10285 |
WAR20,ZGR2# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0F110 |
AUR2#,ZGR2#..RHD..(6F,6FC) |
1 | ||
| 47312-02B30 |
WAR20,ZGR2#..RHD..6F |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0F110 |
AUR2#,ZGR2#..RHD..(6F,6FC) |
1 | ||
| 47313-02C90 |
WAR20,ZGR2#..RHD..6F |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-W2012 |
AUR2#,ZGR2# |
1 | ||
| 90947-W2042 |
WAR20,ZGR2# |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AUR2#,ZGR2# |
2 | ||
| 90401-10058 |
WAR20,ZGR2# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AUR2#,ZGR2# |
2 | ||
| 90401-10058 |
WAR20,ZGR2# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-W2013 |
AUR2#,ZGR2# |
1 | ||
| 90947-W2043 |
WAR20,ZGR2# |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AUR2#,ZGR2# |
2 | ||
| 47389-50020 |
WAR20,ZGR2# |
2 | ||
| 47389-50020 |
WAR20,ZGR2# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AUR2#,ZGR2# |
2 | ||
| 47389-50020 |
WAR20,ZGR2# |
2 | ||
| 47389-50020 |
WAR20,ZGR2# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0F110 |
AUR2#,ZGR2#..RHD..(6F,6FC) |
1 | ||
| 47314-02C40 |
WAR20,ZGR2#..RHD..6F |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-W2016 |
AUR2#,ZGR2# |
2 | ||
| 90947-W2044 |
WAR20,ZGR2# |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-W2016 |
AUR2#,ZGR2# |
2 | ||
| 90947-W2044 |
WAR20,ZGR2# |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0F110 |
AUR2#,ZGR2#..RHD..(6F,6FC) |
1 | ||
| 47317-02B80 |
WAR20,ZGR2#..RHD..6F |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-0F110 |
AUR2#,ZGR2#..RHD..(6F,6FC) |
1 | ||
| 47318-02C00 |
WAR20,ZGR2#..RHD..6F |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
AUR2#,ZGR2# |
2 | ||
| 90401-10058 |
WAR20,ZGR2# |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
AUR2#,ZGR2# |
2 | ||
| 90401-10058 |
WAR20,ZGR2# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
WAR20,ZGR2# (J) |
2 | ||
| 47389-50020 |
AUR2#,ZGR2# |
2 | ||
| 47389-50020 |
WAR20,ZGR2# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
WAR20,ZGR2# (J) |
2 | ||
| 47389-50020 |
AUR2#,ZGR2# |
2 | ||
| 47389-50020 |
WAR20,ZGR2# |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-W2015 |
AUR2#,ZGR2# |
1 | ||
| 90947-W2045 |
WAR20,ZGR2# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-W2014 |
AUR2#,ZGR2# |
1 | ||
| 90947-W2046 |
WAR20,ZGR2# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0F030 |
AUR2#,ZGR2# |
1 | ||
| 47321-0F020 |
WAR20,ZGR2# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0F030 |
AUR2#,ZGR2# |
1 | ||
| 47322-0F020 |
WAR20,ZGR2# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-02080 |
AUR2#,ZGR2# |
1 | ||
| 47323-0F030 |
WAR20,ZGR2# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-0F030 |
WAR20,ZGR2# |
1 | ||
| 47324-02080 |
AUR2#,ZGR2# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12280 |
AUR2#,ZGR2#..RHD |
1 | ||
| 90949-01E24 |
WAR20,ZGR2#..RHD |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90461-10843 |
WAR20,ZGR2# |
2 | ||
| 90461-10837 |
AUR2#,ZGR2# |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01D17 |
AUR2#,ZGR2# |
3 | ||
| 90949-01D17 |
WAR20,ZGR2# |
3 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-01D29 |
AUR2#,ZGR2# |
1 | ||
| 90949-01D29 |
WAR20,ZGR2# |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01D46 |
AUR2#,ZGR2# |
3 | ||
| 90949-01D46 |
WAR20,ZGR2# |
3 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00884 |
AUR2#,ZGR2#..RHD |
1 | ||
| 90949-01E23 |
WAR20,ZGR2#..RHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90461-10781 |
AUR2#,ZGR2# |
1 | ||
| 90461-10781 |
WAR20,ZGR2# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00895 |
AUR2#,ZGR2#..RHD |
2 | ||
| 90949-01E22 |
WAR20,ZGR2#..RHD |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01D42 |
AUR2#,ZGR2#..RHD..(6F,6FC) |
1 | ||
| 90949-01E20 |
WAR20,ZGR2#..RHD |
1 | ||
| 47393 - INSULATOR, BRAKE TUBE HEAT | ||||
| 47393-12010 |
ZGR21..RHD |
1 | ||
| Common parts | ||||
| 90119-08415 | ||||
| 90119-08868 | ||||
| 90119-W0030 | ||||
| 90119-W0053 | ||||
| 90179-06274 | ||||
| 90468-08035 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
