ZGR21R-GWFEPW (2015)

Toyota Verso

Production Mar 2015 - Oct 2017
Engine 2ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0902- )RHD..E

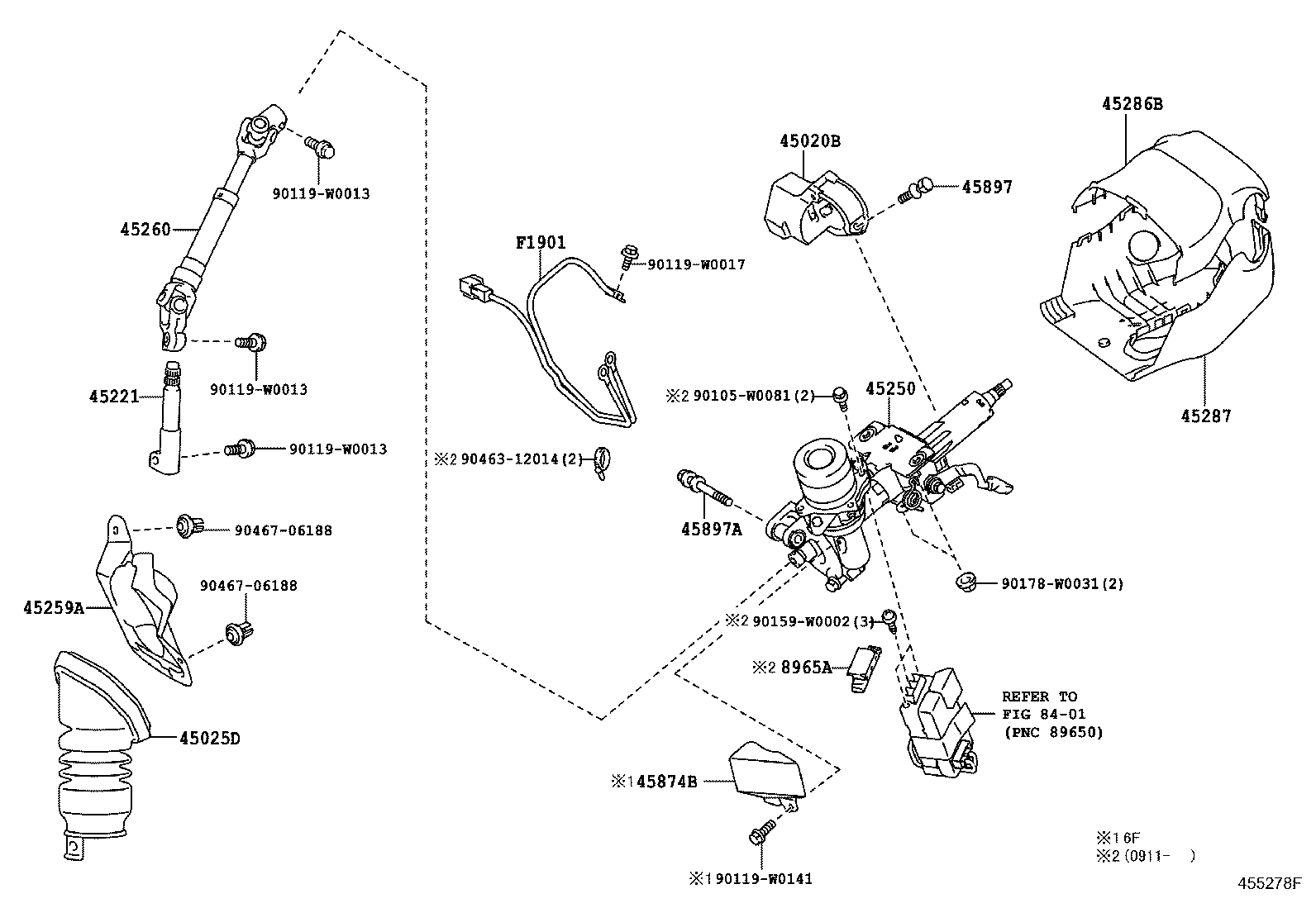

Click highlighted areas on diagram

W(SMART ENTRY)

diagram 45020B 45025D 45221 45250 45259A 45260 45286B 45287 45874B 45897 45897A 8401 8965A 90105W0081 90119W0013 90119W0013 90119W0013 90119W0017 90119W0141 90159W0002 90178W0031 9046312014 9046706188 9046706188 F1901
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-02280

AUR2#,ZGR2#..RHD..6F

 1
45020-0F030

AUR2#,ZGR2#..RHD..E

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
45020-0F030

WAR20,ZGR2#..RHD..E

WIRELESS DOOR LOCK-W(SMART ENTRY)

 1
45020-02281

WAR20,ZGR2#..RHD..6F

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-02080

AUR2#,ZGR2#..RHD

 1
45025-02080

WAR20,ZGR2#..RHD

 1
45221 - SHAFT, STEERING INTERMEDIATE
45221-0F010

AUR2#,ZGR2#

 1
45221-0F010

WAR20,ZGR2#

 1
45250 - COLUMN ASSY, STEERING
45250-0F130

AUR2#,ZGR2#..RHD..E

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
45250-0F131

WAR20,ZGR2#..RHD..E

WIRELESS DOOR LOCK-W(SMART ENTRY)

 1
45250-0F140

AUR2#,ZGR2#..RHD

 1
45250-0F141

WAR20,ZGR2#..RHD

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-02070

AUR2#,ZGR2#..RHD

 1
45259-02070

WAR20,ZGR2#..RHD

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-0F030

AUR2#,ZGR2#

 1
45260-0F030

WAR20,ZGR2#

 1
45286B - COVER, STEERING COLUMN, UPR
45286-0F020B0

AUR2#,ZGR2#..E

WIRELESS DOOR LOCK-WITH(SMART ENTRY),DK.GRAY,TRIM1#

 1
45286-0F030B0

WAR20,ZGR2#

DK.GRAY,TRIM1#

 1
45286-0F020B0

WAR20,ZGR2#..E

WIRELESS DOOR LOCK-W(SMART ENTRY),DK.GRAY,TRIM1#

 1
45286-0F030B0

AUR2#,ZGR2#

DK.GRAY,TRIM1#

 1
45286-0F021C0

WAR20,ZGR2#..E

WIRELESS DOOR LOCK-W(SMART ENTRY),EU BLACK,TRIM1#

 1
45286-0F031C0

WAR20,ZGR2#

EU BLACK,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-0F020B0

AUR2#,ZGR2#..E

WIRELESS DOOR LOCK-WITH(SMART ENTRY),DK.GRAY,TRIM1#

 1
45287-0F020B0

WAR20,ZGR2#..E

WIRELESS DOOR LOCK-W(SMART ENTRY),DK.GRAY,TRIM1#

 1
45287-0F021C0

WAR20,ZGR2#..E

WIRELESS DOOR LOCK-W(SMART ENTRY),EU BLACK,TRIM1#

 1
45287-0F030B0

AUR2#,ZGR2#

DK.GRAY,TRIM1#

 1
45287-0F030B0

WAR20,ZGR2#

DK.GRAY,TRIM1#

 1
45287-0F031C0

WAR20,ZGR2#

EU BLACK,TRIM1#

 1
45874B - PROTECTOR, STEERING COLUMN, NO.1
45874-0F010

WAR20,ZGR2#..RHD..6F

 1
45874-0F010

AUR2#,ZGR2#..RHD..6F

 1
45897 - BOLT, STEERING LOCK SET
45897-12050

AUR2#,ZGR2#..RHD

 1
45897-12020

AUR2#,ZGR2#..RHD..E

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
45897-12050

WAR20,ZGR2#

 1
45897A - BOLT, TILT STEERING PAWL SET
90119-10981

WAR20,ZGR2#

 1
90119-10981

WAR20,ZGR2#

(J)

 1
90119-W0215

WAR20,ZGR2#

(L)

 1
45897-20020

AUR2#,ZGR2#

 1
8965A - PROTECTOR, POWER STEERING COMPUTER
8965A-0F010

WAR20,ZGR2#

 1
F1901 - WIRE SUB-ASSY, COMPUTER
F1901-0F020

AUR2#,ZGR2#..RHD

 1
F1901-0F020

WAR20,ZGR2#..RHD

 1
Common parts
90105-W0081
90119-W0013
90119-W0017
90119-W0141
90159-W0002
90178-W0031
90463-12014
90467-06188
Linked diagrams
8401

(0902- )RHD

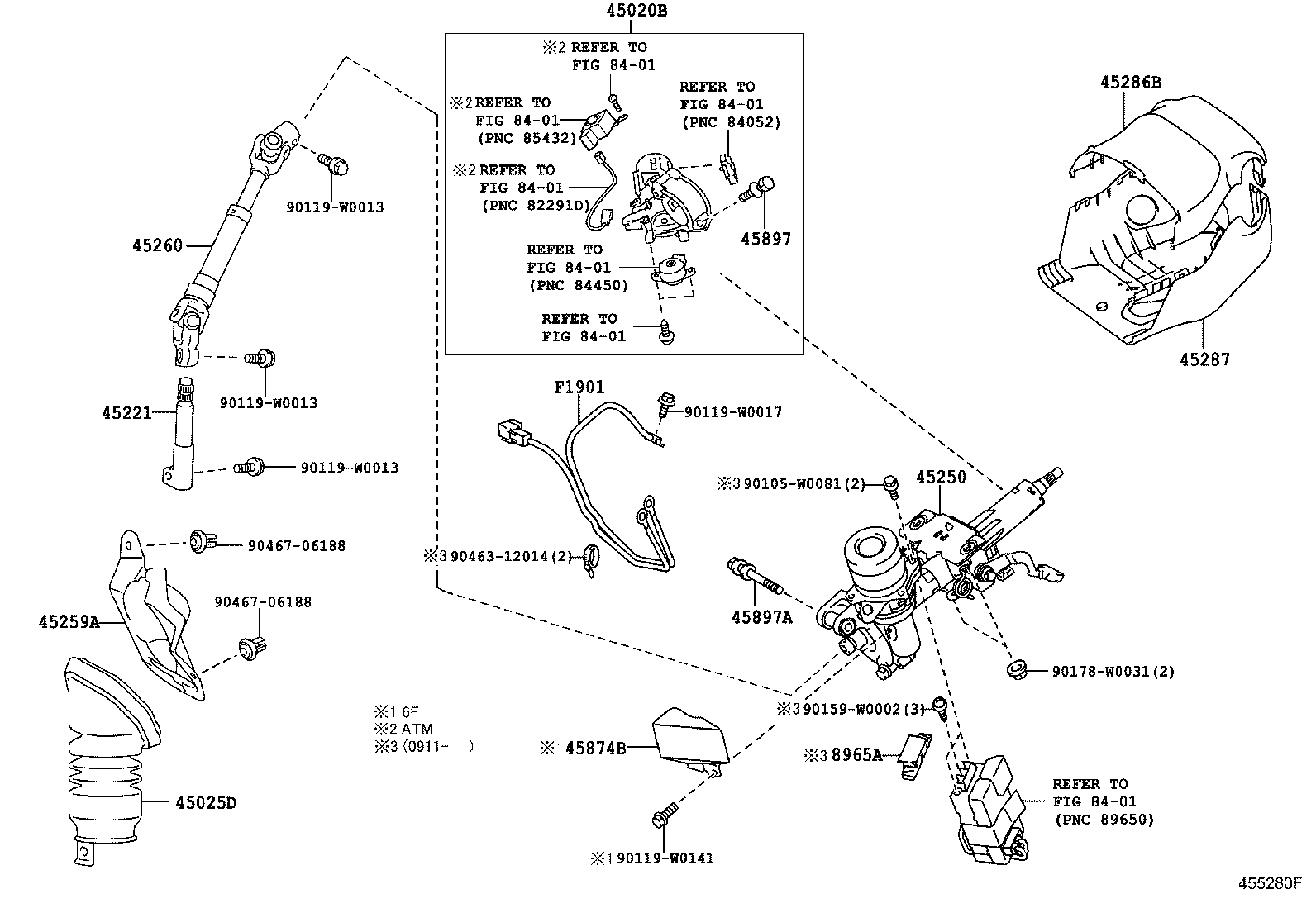

Click highlighted areas on diagram

diagram 45020B 45025D 45221 45250 45259A 45260 45286B 45287 45874B 45897 45897A 8401 8401 8401 8401 8401 8401 8401 8965A 90105W0081 90119W0013 90119W0013 90119W0013 90119W0017 90119W0141 90159W0002 90178W0031 9046312014 9046706188 9046706188 F1901
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-02280

AUR2#,ZGR2#..RHD..6F

 1
45020-0F030

AUR2#,ZGR2#..RHD..E

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
45020-0F030

WAR20,ZGR2#..RHD..E

WIRELESS DOOR LOCK-W(SMART ENTRY)

 1
45020-02281

WAR20,ZGR2#..RHD..6F

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-02080

AUR2#,ZGR2#..RHD

 1
45025-02080

WAR20,ZGR2#..RHD

 1
45221 - SHAFT, STEERING INTERMEDIATE
45221-0F010

AUR2#,ZGR2#

 1
45221-0F010

WAR20,ZGR2#

 1
45250 - COLUMN ASSY, STEERING
45250-0F130

AUR2#,ZGR2#..RHD..E

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
45250-0F131

WAR20,ZGR2#..RHD..E

WIRELESS DOOR LOCK-W(SMART ENTRY)

 1
45250-0F140

AUR2#,ZGR2#..RHD

 1
45250-0F141

WAR20,ZGR2#..RHD

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-02070

AUR2#,ZGR2#..RHD

 1
45259-02070

WAR20,ZGR2#..RHD

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-0F030

AUR2#,ZGR2#

 1
45260-0F030

WAR20,ZGR2#

 1
45286B - COVER, STEERING COLUMN, UPR
45286-0F020B0

AUR2#,ZGR2#..E

WIRELESS DOOR LOCK-WITH(SMART ENTRY),DK.GRAY,TRIM1#

 1
45286-0F030B0

WAR20,ZGR2#

DK.GRAY,TRIM1#

 1
45286-0F020B0

WAR20,ZGR2#..E

WIRELESS DOOR LOCK-W(SMART ENTRY),DK.GRAY,TRIM1#

 1
45286-0F030B0

AUR2#,ZGR2#

DK.GRAY,TRIM1#

 1
45286-0F021C0

WAR20,ZGR2#..E

WIRELESS DOOR LOCK-W(SMART ENTRY),EU BLACK,TRIM1#

 1
45286-0F031C0

WAR20,ZGR2#

EU BLACK,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-0F020B0

AUR2#,ZGR2#..E

WIRELESS DOOR LOCK-WITH(SMART ENTRY),DK.GRAY,TRIM1#

 1
45287-0F020B0

WAR20,ZGR2#..E

WIRELESS DOOR LOCK-W(SMART ENTRY),DK.GRAY,TRIM1#

 1
45287-0F021C0

WAR20,ZGR2#..E

WIRELESS DOOR LOCK-W(SMART ENTRY),EU BLACK,TRIM1#

 1
45287-0F030B0

AUR2#,ZGR2#

DK.GRAY,TRIM1#

 1
45287-0F030B0

WAR20,ZGR2#

DK.GRAY,TRIM1#

 1
45287-0F031C0

WAR20,ZGR2#

EU BLACK,TRIM1#

 1
45874B - PROTECTOR, STEERING COLUMN, NO.1
45874-0F010

WAR20,ZGR2#..RHD..6F

 1
45874-0F010

AUR2#,ZGR2#..RHD..6F

 1
45897 - BOLT, STEERING LOCK SET
45897-12050

AUR2#,ZGR2#..RHD

 1
45897-12020

AUR2#,ZGR2#..RHD..E

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
45897-12050

WAR20,ZGR2#

 1
45897A - BOLT, TILT STEERING PAWL SET
90119-10981

WAR20,ZGR2#

 1
90119-10981

WAR20,ZGR2#

(J)

 1
90119-W0215

WAR20,ZGR2#

(L)

 1
45897-20020

AUR2#,ZGR2#

 1
8965A - PROTECTOR, POWER STEERING COMPUTER
8965A-0F010

WAR20,ZGR2#

 1
F1901 - WIRE SUB-ASSY, COMPUTER
F1901-0F020

AUR2#,ZGR2#..RHD

 1
F1901-0F020

WAR20,ZGR2#..RHD

 1
Common parts
90105-W0081
90119-W0013
90119-W0017
90119-W0141
90159-W0002
90178-W0031
90463-12014
90467-06188
Linked diagrams
8401
