ZGR21R-GWFEPW (2015)

Toyota Verso

Production Mar 2015 - Oct 2017
Engine 2ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1503- )2ZRFAE..6F

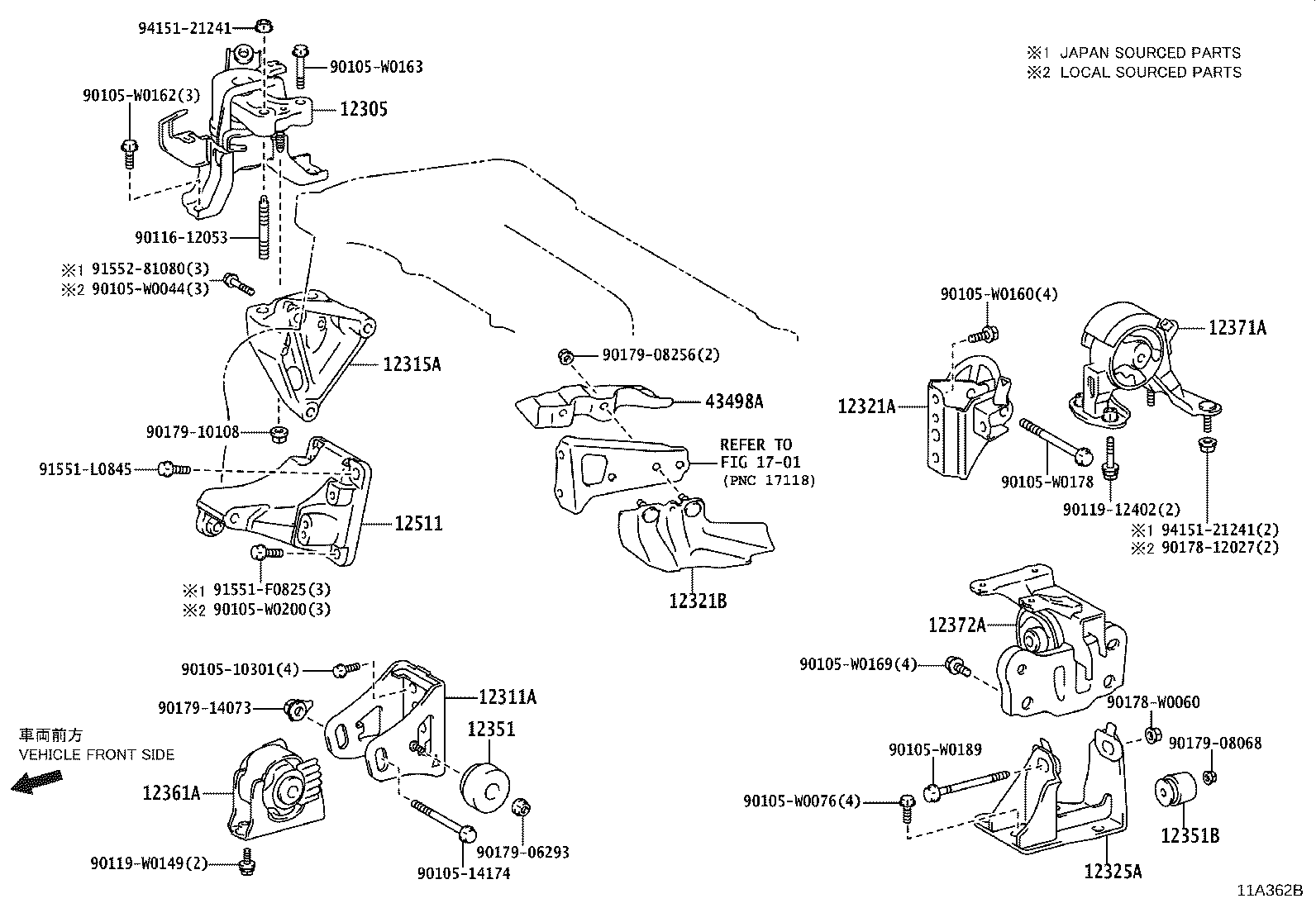

Click highlighted areas on diagram

diagram 12305 12311A 12315A 12321A 12321B 12325A 12351 12351B 12361A 12371A 12372A 12511 1701 43498A 9010510301 9010514174 90105W0044 90105W0076 90105W0160 90105W0162 90105W0163 90105W0169 90105W0178 90105W0189 90105W0200 9011612053 9011912402 90119W0149 9017812027 90178W0060 9017906293 9017908068 9017908256 9017910108 9017914073 91551F0825 91551L0845 9155281080 9415121241 9415121241
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0T270

1ZRFAE,2ZRFAE..ZGR2#

 1
12305-0T070

1ZRFAE,2ZRFAE..ZGR2#

 1
12305-0T150

1ZRFAE,2ZRFAE..ZGR2#

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0T120

1ZRFAE,2ZRFAE..ZGR2#

 1
12311-0T120

1ZRFAE,2ZRFAE..ZGR2#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-37030

1ZRFAE,2ZRFAE..ZGR2#

 1
12315-37030

1ZRFAE,2ZRFAE..ZGR2#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-0T130

1ZRFAE,2ZRFAE..ZGR2#..6F

 1
12321-0T130

1ZRFAE,2ZRFAE..ZGR2#..6F

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-20031

1ZRFAE,2ZRFAE..ZGR2#

 1
43409-12060

1ZRFAE,2ZRFAE..ZGR2#

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0T140

1ZRFAE,2ZRFAE..ZGR2#..6F

 1
12325-0T140

1ZRFAE,2ZRFAE..ZGR2#..6F

 1
12351 - DAMPER, ENGINE MOUNTING
12351-0T090

1ZRFAE,2ZRFAE..ZGR2#

 1
12351-0T090

1ZRFAE,2ZRFAE..ZGR2#

 1
12351B - DAMPER, ENGINE MOUNTING
12351-0R010

1ZRFAE,2ZRFAE..ZGR2#..6F

 1
12351-0R010

1ZRFAE,2ZRFAE..ZGR2#..6F

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-0T380

1ZRFAE,2ZRFAE..ZGR2#..6F

 1
12361-0T080

1ZRFAE,2ZRFAE..ZGR2#..6F

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-0T070

1ZRFAE,2ZRFAE..ZGR2#..6F

 1
12371-0T200

1ZRFAE,2ZRFAE..ZGR2#..6F

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0T130

1ZRFAE,2ZRFAE..ZGR2#..6F

 1
12372-0T270

1ZRFAE,2ZRFAE..ZGR2#..6F

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-0T020

1ZRFAE,2ZRFAE..ZGR2#

(L)

 1
12501-0T010

2ZRFAE..ZGR21

(L)

 1
12511-37010

1ZRFAE,2ZRFAE..ZGR2#

(J)

 1
12501-37020

2ZRFAE..ZGR21

(J)

 1
43498A - INSULATOR, DRIVE SHAFT HEAT, NO.1
43498-12051

ZGR21

 1
Common parts
90105-10301
90105-14174
90105-W0044
90105-W0076
90105-W0160
90105-W0162
90105-W0163
90105-W0169
90105-W0178
90105-W0189
90105-W0200
90116-12053
90119-12402
90119-W0149
90178-12027
90178-W0060
90179-06293
90179-08068
90179-08256
90179-10108
90179-14073
91551-F0825
91551-L0845
91552-81080
94151-21241
Linked diagrams
1701
