ZGR21R-GWFDPW (2010)

Toyota Verso

Production Jul 2010 - Nov 2012
Engine 2ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0902- )RHD

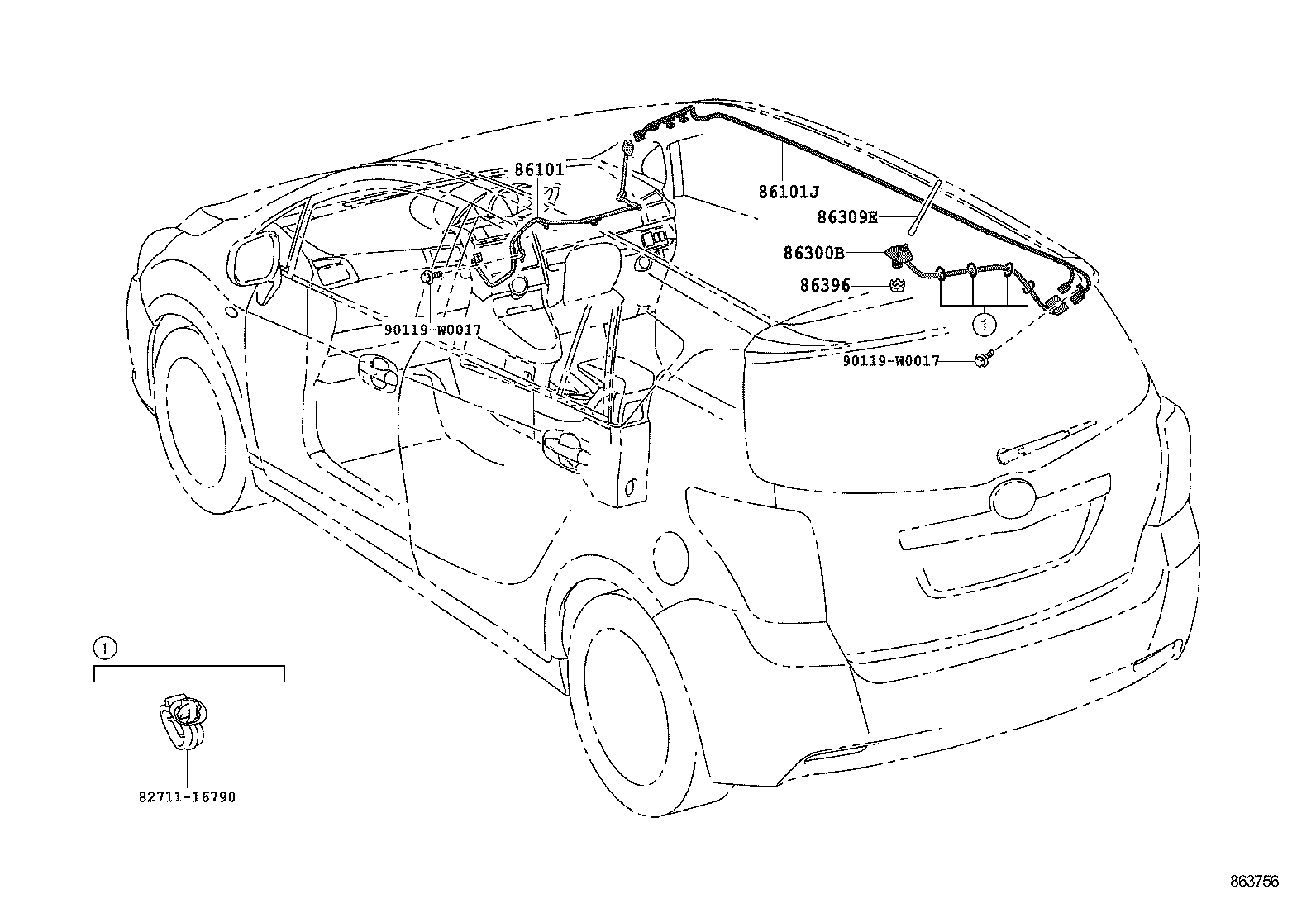

Click highlighted areas on diagram

diagram 8271116790 86101 86101J 86300B 86309E 86396 90119W0017 90119W0017
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-0F100

AUR20,ZGR2#..RHD..ENTRY

AUDIO-RADIO LESS 4SPEAKER

 1
86101-0F080

ZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY

 1
86101-0F100

AUR20,ZGR2#..RHD..6F..ENTRY

AUDIO-RADIO LESS 4SPEAKER

 1
86101-0F080

AUR2#,ZGR2#..RHD

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-0F060

AUR2#,ZGR2#

 1
86101-0F060

AUR2#,ZGR2#

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-0F030

ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY

 1
86300-0F030

AUR2#,ZGR2#

 1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-05050

ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY

 1
86309-05050

AUR2#,ZGR2#

 1
86396 - NUT, ANTENNA
86396-20040

ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY

 1
86396-30050

AUR2#,ZGR2#

 1
86396-30050

AUR2#,ZGR2#

 1
Common parts
82711-16790
90119-W0017
