ZGR21R-GWFDPW (2010)
Toyota Verso
ILLUST NO. 1 OF 7(0902- )ZGR2#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-05010 |
ZGR2# |
1 | ||
| 83530-05010 |
ZGR20;ZGR21..E;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
AUR2#,ZGR2#..6F |
1 | ||
| 84210-12040 |
ZGR2#..6F |
1 | ||
| 84210-52050 |
ZGR2#..6F |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-02280 |
ZGR2# |
1 | ||
| 89465-02280 |
ZGR20;ZGR21..E;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-12030 |
ZGR2# |
1 | ||
| 89467-12030 |
ZGR20;ZGR21..E;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-02020 |
ZGR20;ZGR21..E;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 89615-02020 |
ZGR2# |
1 | ||
| Common parts | ||||
| 82715-02500 | ||||
| 82715-02510 | ||||
| 82715-20C40 | ||||
| 82715-42710 | ||||
| 90105-W0086 | ||||
| 90105-W0140 | ||||
| 90119-W0019 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 91551-80835 | ||||
| 91651-40620 | ||||

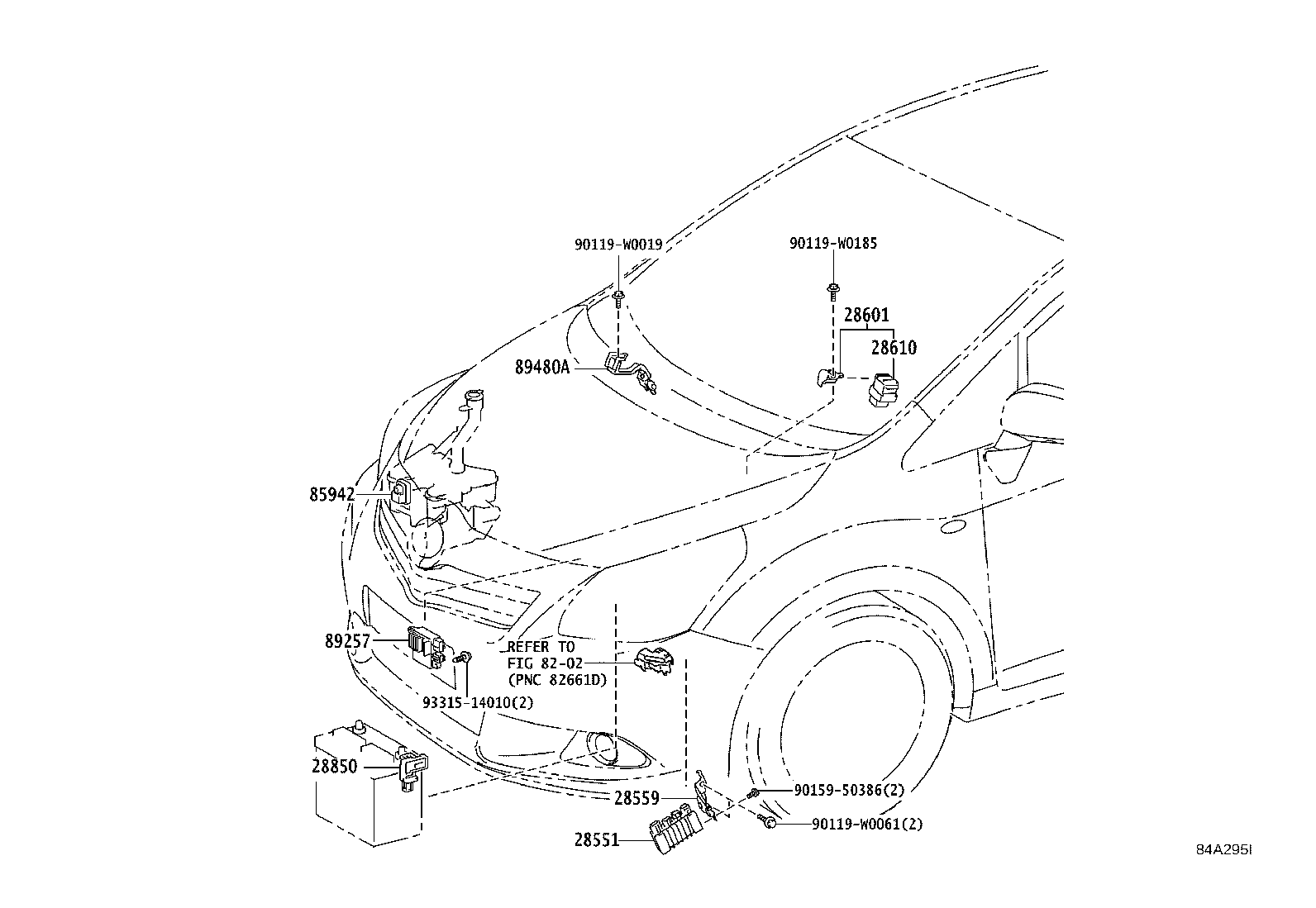

ILLUST NO. 2 OF 7(0902- )AUR2#,ZGR2#
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-21020 |
1ZRFAE,2ZRFAE..ZGR2# |
1 | ||
| 28850-21020 |
1ZRFAE,2ZRFAE..ZGR2# |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-20031 |
AUR2#,ZGR2# HEAD LAMP CLEANER-WITH |
1 | ||
| 85942-02060 |
AUR2#,ZGR2# HEAD LAMP CLEANER-WITH |
1 | ||
| 85942-20030 |
AUR2#,ZGR2# HEADLAMP CLEANER-WITH |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-12020 |
ZGR2#..RHD..6F CYPRUS SPEC |
1 | ||
| 89257-12010 |
ZGR2#..6F |
1 | ||
| 89257-12020 |
ZGR2#..RHD..6F SOUTH AFRICA SPEC |
1 | ||
| 89257-12020 |
ZGR2#..RHD..6F SOUTH AFRICA SPEC |
1 | ||
| 89257-12020 |
ZGR2#..RHD..6F CYPRUS SPEC |
1 | ||
| 89257-12010 |
ZGR2#..6F |
1 | ||
| Common parts | ||||
| 90119-W0019 | ||||
| 90119-W0061 | ||||
| 90119-W0185 | ||||
| 90159-50386 | ||||
| 93315-14010 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 5 OF 7(0902-1211)RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-02040 |
AUR2#,ZGR2# HEAD LAMP CLEANER-WITH |
1 | ||
| 84150-02040 |
AUR2#,ZGR2# HEADLAMP CLEANER-WITH |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52120 |
AUR2#,ZGR2#..E HEADLAMP-DISCHARGE |
1 | ||
| 84152-52120 |
AUR2#,ZGR2#..E HEADLAMP-DISCHARGE |
1 | ||
| 84152-52120 |
AUR2#,ZGR2# |
1 | ||
| 84152-52120 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-0F040 |
ZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY |
1 | ||
| 84332-0F040 |
AUR2#,ZGR2#..RHD |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0F010 |
AUR2#,ZGR2# |
1 | ||
| 84870-0F010 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-05020 |
AUR2#,ZGR2# |
1 | ||
| 84988-05020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-09090 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 85500-09060 |
AUR2#,ZGR2# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D020 |
AUR2#,ZGR2#..E |
1 | ||
| 85530-0D020 |
AUR2#,ZGR2#..E |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-52040 |
AUR2#,ZGR2#..E |
1 | ||
| 85535-52040 |
AUR2#,ZGR2#..E |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-02012 |
AUR2#,ZGR2#..E HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89611-02012 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89611-02011 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89611-02011 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89611-02013 |
AUR2#,ZGR2#..E HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
| 8417 | ||||

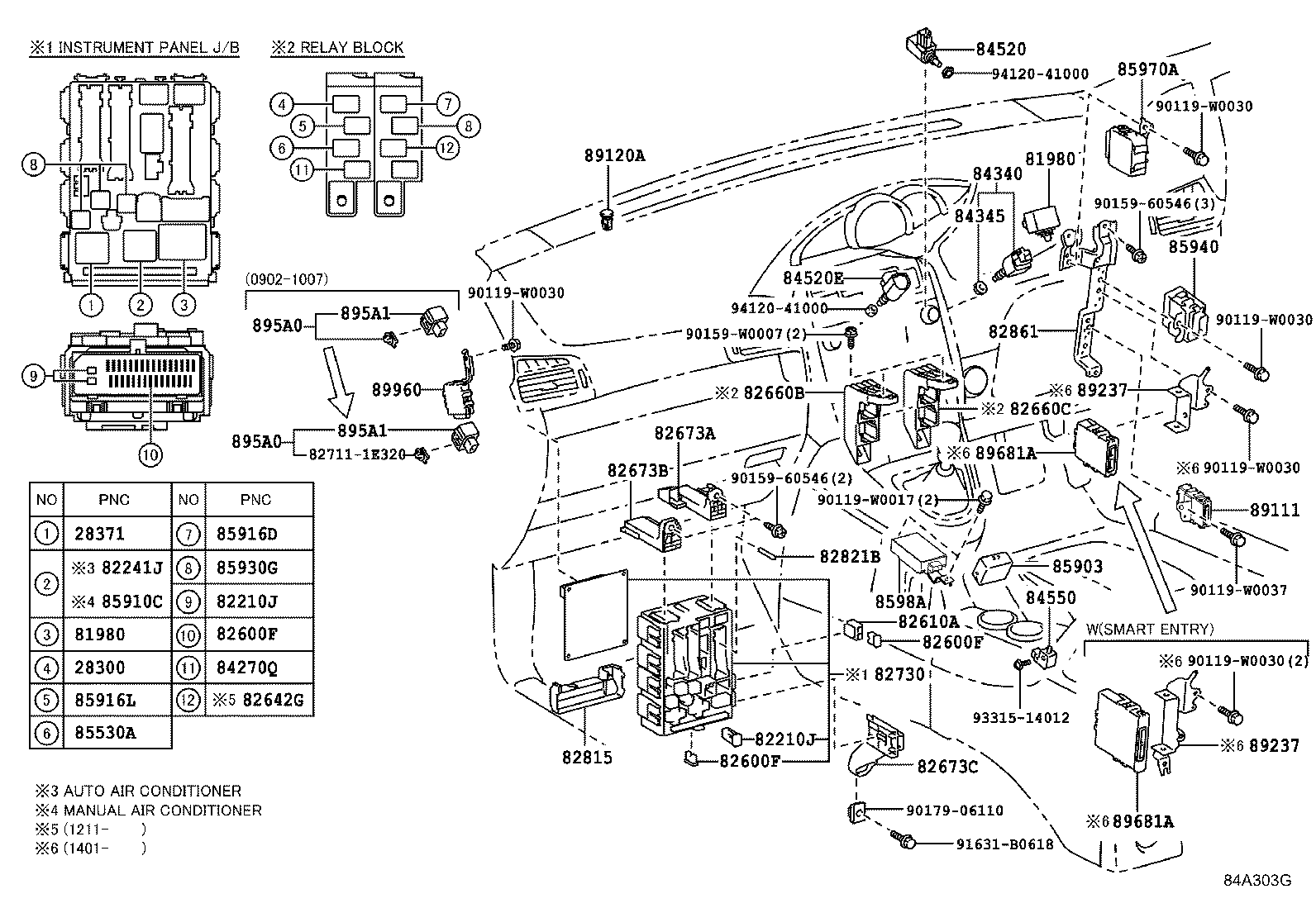

ILLUST NO. 4 OF 7(0902- )AUR2#,ZGR2#..RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1ADFTV,2ADFHV,1ZRFAE,2ZRFAE..AUR2#,ZGR2# |
1 | ||
| 28300-28010 |
2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY;1ADFTV,2ADFHV,1ZRFAE..AUR2#,ZGR20 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-W2001 |
2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY;1ADFTV,2ADFHV,1ZRFAE..AUR2#,ZGR20 |
1 | ||
| 90987-W2001 |
1ADFTV,2ADFHV,1ZRFAE,2ZRFAE..AUR2#,ZGR2# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-0D040 |
AUR2#,ZGR2# |
1 | ||
| 81980-0D040 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-0D040 |
AUR2#,ZGR2# |
1 | ||
| 81980-0D040 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
AUR2#,ZGR2# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E 30A,TERM.:FEMALE,PNK,HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAINSENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E 30A,TERM.:FEMALE,PNK,HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAINSENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
AUR2#,ZGR2# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
AUR2#,ZGR2# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E 30A,TERM.:FEMALE,PNK,HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAINSENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E 30A,TERM.:FEMALE,PNK,HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAINSENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
AUR2#,ZGR2# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241J - PIN, SHORT | ||||
| 82241-42010 |
AUR2#,ZGR2#..RHD..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82241-42010 |
AUR2#,ZGR21..05S..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIRCONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER)&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR21..05S..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIRCONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82241-42010 |
AUR2#,ZGR21..05S..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY&AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82241-42010 |
AUR2#,ZGR21..05S..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIRCONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER)&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR21..RHD..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR21..RHD..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82241-42010 |
AUR2#,ZGR21..RHD..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82241-42010 |
AUR2#,ZGR21..RHD..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-CSG SD-NAVIGATION(ULIS),6SPEAKER |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION 6SPEAKER BLUETOOTH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-CSG SD-NAVIGATION(ULIS),6SPEAKER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION 6SPEAKER BLUETOOTH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-CSG SD-NAVIGATION(ULIS),6SPEAKER |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-CSG SD-NAVIGATION(ULIS),6SPEAKER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION 6SPEAKER BLUETOOTH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-CSG SD-NAVIGATION(ULIS),6SPEAKER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION 6SPEAKER BLUETOOTH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-CSG SD-NAVIGATION(ULIS),6SPEAKER |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..RHD..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-CSG SD-NAVIGATION(ULIS),6SPEAKER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82050 |
AUR2#,ZGR2# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E 7.5A,MINI FUSE,BROWN,HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAINSENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E 7.5A,MINI FUSE,BROWN,HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAINSENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82054 |
AUR2#,ZGR2# 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82051 |
AUR2#,ZGR2# 10A,MINI FUSE,RED |
1 | ||
| 90080-82055 |
AUR2#,ZGR2# 25A,MINI FUSE |
1 | ||
| 90080-82052 |
AUR2#,ZGR2# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82053 |
AUR2#,ZGR2# 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82050 |
AUR2#,ZGR2# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E 7.5A,MINI FUSE,BROWN,HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAINSENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E 7.5A,MINI FUSE,BROWN,HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAINSENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82054 |
AUR2#,ZGR2# 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82051 |
AUR2#,ZGR2# 10A,MINI FUSE,RED |
1 | ||
| 90080-82055 |
AUR2#,ZGR2# 25A,MINI FUSE |
1 | ||
| 90080-82052 |
AUR2#,ZGR2# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82053 |
AUR2#,ZGR2# 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82050 |
AUR2#,ZGR2# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E 7.5A,MINI FUSE,BROWN,HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAINSENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E 7.5A,MINI FUSE,BROWN,HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAINSENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82054 |
AUR2#,ZGR2# 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82051 |
AUR2#,ZGR2# 10A,MINI FUSE,RED |
1 | ||
| 90080-82055 |
AUR2#,ZGR2# 25A,MINI FUSE |
1 | ||
| 90080-82052 |
AUR2#,ZGR2# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82053 |
AUR2#,ZGR2# 20A,MINI FUSE,YELLOW |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-52010 |
AUR2#,ZGR2# |
1 | ||
| 82610-52010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82610-52010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82610-52010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82610-52010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82610-52010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82610-52010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82610-52010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82610-52010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82610-52010 |
AUR2#,ZGR2# |
1 | ||
| 82610-52010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82610-52010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82610-52010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82610-52010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82755-12010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82755-12010 |
AUR2#,ZGR2# |
1 | ||
| 82755-12010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82755-12010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82755-12010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82755-12010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82755-12010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82755-12010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82755-12010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82755-12010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82755-12010 |
AUR2#,ZGR2# |
1 | ||
| 82755-12010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82755-12010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82755-12010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82755-12020 |
AUR2#,ZGR2# |
1 | ||
| 82755-12020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82755-12020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82755-12020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82755-12020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82755-12020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82755-12020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82755-12020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82755-12020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82755-12020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82755-12020 |
AUR2#,ZGR2# |
1 | ||
| 82755-12020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82755-12020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82755-12020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-12200 |
AUR2#,ZGR2#..RHD |
1 | ||
| 82673-12200 |
AUR2#,ZGR2#..RHD |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-12210 |
AUR2#,ZGR2#..RHD |
1 | ||
| 82673-12210 |
AUR2#,ZGR2#..RHD |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-12220 |
AUR2#,ZGR2#..RHD |
1 | ||
| 82673-12220 |
AUR2#,ZGR2#..RHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0F170 |
AUR2#,ZGR2#..RHD..6F..E POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82730-0F160 |
AUR2#,ZGR2#..RHD..6F..E POWER DOOR LOCK-WITH(FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82730-0F190 |
AUR2#,ZGR2#..RHD..6F POWER DOOR LOCK-WITH(DOUBLE LOCK) |
1 | ||
| 82730-0F180 |
AUR2#,ZGR2#..RHD..6F |
1 | ||
| 82730-0F170 |
AUR2#,ZGR2#..RHD..6F..E POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82730-0F191 |
AUR2#,ZGR2#..RHD..6F POWER DOOR LOCK-WITH(DOUBLE LOCK) |
1 | ||
| 82730-0F160 |
AUR2#,ZGR2#..RHD..6F..E POWER DOOR LOCK-WITH(FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82730-0F190 |
AUR2#,ZGR2#..RHD..6F POWER DOOR LOCK-WITH(DOUBLE LOCK) |
1 | ||
| 82730-0F181 |
AUR2#,ZGR2#..RHD..6F |
1 | ||
| 82730-0F161 |
AUR2#,ZGR2#..RHD..6F..E HIGH PACKAGE&POWER DOOR LOCK-WITH(FREE WHEEL) |
1 | ||
| 82730-0F171 |
AUR2#,ZGR2#..RHD..6F..E HIGH PACKAGE&POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL) |
1 | ||
| 82730-0F180 |
AUR2#,ZGR2#..RHD..6F |
1 | ||
| 82730-0F192 |
AUR2#,ZGR2#..RHD..6F POWER DOOR LOCK-WITH(DOUBLE LOCK) |
1 | ||
| 82730-0F182 |
AUR2#,ZGR2#..RHD..6F |
1 | ||
| 82730-0F172 |
AUR2#,ZGR2#..RHD..6F..E HIGH PACKAGE&POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL) |
1 | ||
| 82730-0F162 |
AUR2#,ZGR2#..RHD..6F..E HIGH PACKAGE&POWER DOOR LOCK-WITH(FREE WHEEL) |
1 | ||
| 82861 - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-12010 |
AUR2#,ZGR2#..RHD..E POWER DOOR LOCK-WITH(FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82861-12010 |
AUR2#,ZGR2#..RHD..E POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82861-12010 |
AUR2#,ZGR2#..RHD..E POWER DOOR LOCK-WITH(FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82861-12010 |
AUR2#,ZGR2#..RHD..E HIGH PACKAGE&POWER DOOR LOCK-WITH(FREE WHEEL) |
1 | ||
| 82861-12010 |
AUR2#,ZGR2#..RHD..E POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82861-12010 |
ZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY POWER DOOR LOCK-WITH(DOUBLE LOCK) |
1 | ||
| 82861-12010 |
AUR2#,ZGR2#..RHD POWER DOOR LOCK-WITH(DOUBLE LOCK) |
1 | ||
| 82861-12010 |
AUR2#,ZGR2#..RHD..E HIGH PACKAGE&POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69075 |
AUR2#,ZGR2# |
1 | ||
| 84340-69075 |
AUR2#,ZGR2# |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
AUR2#,ZGR2# |
1 | ||
| 84345-51010 |
AUR2#,ZGR2# |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
AUR2#,ZGR2#..6F |
1 | ||
| 84520-42010 |
AUR2#,ZGR2#..6F |
1 | ||
| 84520E - SWITCH ASSY, CLUTCH START, NO.2 | ||||
| 84520-42010 |
AUR2#,ZGR2#..6F |
1 | ||
| 84520-42010 |
AUR2#,ZGR2#..6F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
AUR2#,ZGR2#..RHD |
1 | ||
| 84550-16060 |
AUR2#,ZGR2#..RHD |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90080-87019 |
AUR2#,ZGR2# |
1 | ||
| 90080-87021 |
AUR2#,ZGR2# |
1 | ||
| 90080-87019 |
AUR2#,ZGR2# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90080-87031 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 90080-87031 |
ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-87031 |
AUR2#,ZGR2# |
1 | ||
| 90080-87031 |
ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90080-87019 |
AUR2#,ZGR2#..E |
1 | ||
| 90080-87019 |
AUR20,ZGR2#..ENTRY FRONT FOG LAMP-WITH |
1 | ||
| 90080-87021 |
AUR2#,ZGR2#..E |
1 | ||
| 90080-87019 |
AUR2#,ZGR2#..E |
1 | ||
| 90080-87021 |
AUR20,ZGR2#..ENTRY FRONT FOG LAMP-WITH |
1 | ||
| 90080-87019 |
AUR20,ZGR2#..ENTRY FRONT FOG LAMP-WITH |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90080-87019 |
AUR2#,ZGR2# |
1 | ||
| 90080-87021 |
AUR2#,ZGR2# |
1 | ||
| 90080-87019 |
AUR2#,ZGR2# |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90080-87019 |
AUR2#,ZGR2# |
1 | ||
| 90080-87019 |
AUR2#,ZGR2# |
1 | ||
| 90080-87021 |
AUR2#,ZGR2# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-0F020 |
AUR2#,ZGR2#..E HIGH PACKAGE&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 85940-0F020 |
AUR2#,ZGR2#..E HIGH PACKAGE&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 85940-0F020 |
AUR2#,ZGR21..E HIGH PLUS PACKAGE&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 85970A - RELAY ASSY, DOUBLE LOCK DOOR CONTROL | ||||
| 85970-12020 |
ZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY POWER DOOR LOCK-WITH(DOUBLE LOCK) |
1 | ||
| 85970-12020 |
AUR2#,ZGR2#..RHD..E POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL) |
1 | ||
| 85970-12020 |
AUR2#,ZGR2#..RHD POWER DOOR LOCK-WITH(DOUBLE LOCK) |
1 | ||
| 85970-12020 |
AUR2#,ZGR2#..RHD..E POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL) |
1 | ||
| 895A0 - RELAY ASSY, STOP LAMP CONTROL | ||||
| 895A0-28010 |
AUR2#,ZGR2# |
1 | ||
| 895A0-46020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 895A0 - RELAY ASSY, STOP LAMP CONTROL | ||||
| 895A0-28010 |
AUR2#,ZGR2# |
1 | ||
| 895A0-46020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 895A1 - RELAY, STOP LAMP CONTROL | ||||
| 895A1-68010 |
AUR2#,ZGR2# |
1 | ||
| 895A1-46020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 895A1 - RELAY, STOP LAMP CONTROL | ||||
| 895A1-68010 |
AUR2#,ZGR2# |
1 | ||
| 895A1-46020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 89681A - COMPUTER, POWER MANAGEMENT CONTROL | ||||
| 89690-0F030 |
AUR2#,ZGR2#..RHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89690-0F030 |
AUR2#,ZGR2#..RHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89690-0F040 |
AUR2#,ZGR2#..RHD |
1 | ||
| 89690-0F040 |
AUR2#,ZGR2#..RHD |
1 | ||
| 89690-0F070 |
AUR2#,ZGR2#..RHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89690-0F080 |
AUR2#,ZGR2#..RHD |
1 | ||
| 89681A - COMPUTER, POWER MANAGEMENT CONTROL | ||||
| 89690-0F030 |
AUR2#,ZGR2#..RHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89690-0F030 |
AUR2#,ZGR2#..RHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89690-0F040 |
AUR2#,ZGR2#..RHD |
1 | ||
| 89690-0F040 |
AUR2#,ZGR2#..RHD |
1 | ||
| 89690-0F070 |
AUR2#,ZGR2#..RHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89690-0F080 |
AUR2#,ZGR2#..RHD |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-64020 |
AUR2#,ZGR2#..05S..E 7SEATS PACKAGE&HEADLAMP-DISCHARGE |
1 | ||
| 89960-64030 |
AUR2#,ZGR2#..RHD..E HEADLAMP-DISCHARGE |
1 | ||
| 89960-64020 |
AUR2#,ZGR2#..E 7SEATS PACKAGE&HEADLAMP-DISCHARGE |
1 | ||
| 89960-64030 |
AUR2#,ZGR2#..05S..E HEADLAMP-DISCHARGE |
1 | ||
| Common parts | ||||
| 82711-1E320 | ||||
| 90119-W0017 | ||||
| 90119-W0030 | ||||
| 90119-W0037 | ||||
| 90159-60546 | ||||
| 90159-W0007 | ||||
| 90179-06110 | ||||
| 91631-B0618 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
ILLUST NO. 6 OF 7(0902-1601)
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
AUR2#,ZGR2#..E HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84052-71010 |
AUR2#,ZGR2# |
1 | ||
| 84052-71010 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84052-71010 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84052-71010 |
AUR2#,ZGR2# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-05190 |
AUR2#,ZGR2#..E INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 84140-05210 |
AUR20,ZGR2#..ENTRY |
1 | ||
| 84140-05210 |
AUR20,ZGR2#..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 84140-05190 |
AUR2#,ZGR2#..E INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 84140-05200 |
AUR20,ZGR2#..ENTRY FRONT FOG LAMP-WITH |
1 | ||
| 84140-05200 |
AUR20,ZGR2#..6F..ENTRY;ZGR21..LHD..CVT..ENTRY FRONT FOG LAMP-WITH |
1 | ||
| 84140-05200 |
AUR2#,ZGR2#..E |
1 | ||
| 84140-05200 |
AUR2#,ZGR2#..E |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-0F120 |
AUR2#,ZGR2#..6F..E |
1 | ||
| 84250-05020 |
AUR2#,ZGR2#..6F..E |
1 | ||
| 84250-05040 |
AUR20,ZGR2#..6F..ENTRY |
1 | ||
| 84250-0F050 |
AUR2#,ZGR2#..6F..E CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER) |
1 | ||
| 84250-0F140 |
AUR2#,ZGR2#..6F..E CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER) |
1 | ||
| 84250-0F120 |
AUR2#,ZGR2#..6F..E EMV & NAVIGATION SYSTEM-EXTENSION BOX (HI) |
1 | ||
| 84250-0F160 |
AUR2#,ZGR2#..6F..E AUDIO-CSG SD-NAVIGATION(ULIS),6SPEAKER |
1 | ||
| 84250-0F180 |
AUR2#,ZGR2#..6F..E CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&AUDIO-CSG SD-NAVIGATION(ULIS),6SPEAKER |
1 | ||
| 84250-0F100 |
AUR20,ZGR2#..6F..ENTRY |
1 | ||
| 84250-0F180 |
AUR2#,ZGR2#..6F..E CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER) |
1 | ||
| 84250-0F160 |
AUR2#,ZGR2#..6F..E |
1 | ||
| 84250-0F140 |
AUR2#,ZGR2#..6F..E CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&EMV & NAVIGATION SYSTEM-EXTENSION BOX (HI) |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-05030 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 84307-05020 |
AUR2#,ZGR2# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
AUR2#,ZGR2# |
1 | ||
| 84450-12200 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84450-12200 |
AUR2#,ZGR2#..E HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84450-12200 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84450-12200 |
AUR2#,ZGR2# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-05210 |
AUR2#,ZGR2# |
1 | ||
| 84652-05190 |
AUR2#,ZGR21..E HIGH PLUS PACKAGE |
1 | ||
| 84652-05210 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 84652-05190 |
AUR2#,ZGR2#..E HIGH PACKAGE |
1 | ||
| 84652-05190 |
AUR2#,ZGR2#..E HIGH PACKAGE |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-0F041 |
AUR2#,ZGR2#..RHD |
1 | ||
| 89650-0F040 |
AUR2#,ZGR2#..RHD |
1 | ||
| 89650-0F040 |
AUR2#,ZGR2#..RHD |
1 | ||
| 8965AA - PROTECTOR, POWER STEERING COMPUTER | ||||
| 8965A-0F020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 8965A-0F020 |
AUR2#,ZGR2# |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||
| 93319-14012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 7 OF 7(0902- )
DOOR,ROOF,FLOOR&BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0F020 |
ZGR2# |
1 | ||
| 83320-0F020 |
ZGR20;ZGR21..E;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 84170A - SWITCH ASSY, ROOM LAMP NO.1 | ||||
| 84170-0F010 |
AUR20,ZGR2#..RHD..ENTRY ANTI-THEFT SYSTEM-WITH(ALARM & *IM) & WITHOUT(*IS & *GBS) |
1 | ||
| 84170-0F020 |
AUR2#,ZGR2#..RHD..E ANTI-THEFT SYSTEM-WITH(ALARM & *IM) & WITHOUT(*IS & *GBS) |
1 | ||
| 84170-0F030 |
AUR20,ZGR2#..RHD..ENTRY |
1 | ||
| 84170-0F040 |
AUR2#,ZGR2#..RHD..E |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
2 | ||
| 84231-0D030 |
AUR2#,ZGR2# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
2 | ||
| 84231-0D030 |
AUR2#,ZGR2# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0D030 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
2 | ||
| 84231-0D030 |
AUR2#,ZGR2# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0D030 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
2 | ||
| 84231-0D030 |
AUR2#,ZGR2# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-05070 |
AUR2#,ZGR2# |
1 | ||
| 84810-05070 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-05070 |
AUR2#,ZGR2# |
1 | ||
| 84810-05070 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-05070 |
AUR2#,ZGR2#..E |
2 | ||
| 84810-05070 |
AUR2#,ZGR2#..E |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-05070 |
AUR2#,ZGR2#..E |
2 | ||
| 84810-05070 |
AUR2#,ZGR2#..E |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-05030 |
AUR20,ZGR2#..RHD..ENTRY |
1 | ||
| 84040-05030 |
AUR20,ZGR2#..RHD..6F..ENTRY |
1 | ||
| 84040-05040 |
AUR2#,ZGR2#..RHD..E |
1 | ||
| 84040-05040 |
AUR2#,ZGR2#..RHD..E |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-05030 |
AUR20,ZGR2#..RHD..ENTRY |
1 | ||
| 84040-05030 |
AUR20,ZGR2#..RHD..6F..ENTRY |
1 | ||
| 84040-05040 |
AUR2#,ZGR2#..RHD..E |
1 | ||
| 84040-05040 |
AUR2#,ZGR2#..RHD..E |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28040 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84840-28030 |
AUR2#,ZGR2# |
1 | ||
| 84840-28040 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84840-28030 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 84840-28040 |
AUR2#,ZGR2#..E HIGH PACKAGE |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-0D020 |
AUR2#,ZGR2# |
1 | ||
| 85530-0D020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 85535F - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-52040 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 85535-52040 |
AUR2#,ZGR2# |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 3 OF 7(0902- )AUR2#,ZGR2#
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
AUR2#,ZGR2# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E 30A,TERM.:FEMALE,PNK,HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAINSENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E 30A,TERM.:FEMALE,PNK,HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAINSENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
AUR2#,ZGR2# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82050 |
AUR2#,ZGR2# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E 7.5A,MINI FUSE,BROWN,HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAINSENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E 7.5A,MINI FUSE,BROWN,HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAINSENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82054 |
AUR2#,ZGR2# 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82051 |
AUR2#,ZGR2# 10A,MINI FUSE,RED |
1 | ||
| 90080-82055 |
AUR2#,ZGR2# 25A,MINI FUSE |
1 | ||
| 90080-82052 |
AUR2#,ZGR2# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82053 |
AUR2#,ZGR2# 20A,MINI FUSE,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
AUR2#,ZGR2# |
1 | ||
| 82616-58010 |
AUR2#,ZGR2# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-20190 |
ZGR2# |
1 | ||
| 82620-20190 |
ZGR2# |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-02010 |
AUR2#,ZGR2# |
1 | ||
| 82631-02010 |
AUR2#,ZGR2# |
1 | ||
| 82630C - HOLDER ASSY, FUSE | ||||
| 82631-02020 |
AUR2#,ZGR2# |
1 | ||
| 82631-02020 |
AUR2#,ZGR2# |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-02030 |
AUR2#,ZGR2# |
1 | ||
| 82631-02030 |
AUR2#,ZGR2# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
AUR2#,ZGR2# |
1 | ||
| 82641-47020 |
AUR2#,ZGR2# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-05140 |
ZGR2#..6F..E CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82662-05140 |
ZGR2#..E CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82662-05130 |
ZGR2# |
1 | ||
| 82662-05140 |
ZGR2#..6F..E CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82662-05140 |
ZGR2#..E CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82662-05130 |
ZGR20;ZGR21..E;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 82662-05140 |
ZGR2#..E HIGH PACKAGE&CRUISE CONTROL-WITH&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82662-05140 |
ZGR2#..6F..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-02050 |
AUR2#,ZGR2# |
1 | ||
| 82663-02050 |
AUR2#,ZGR2# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-02050 |
AUR2#,ZGR2# |
1 | ||
| 82741-02050 |
AUR2#,ZGR2# |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-02450 |
AUR2#,ZGR2# |
1 | ||
| 82817-02450 |
AUR2#,ZGR2# |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
AUR2#,ZGR2# |
1 | ||
| 82824-20140 |
AUR2#,ZGR2# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87030 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 90080-87030 |
AUR2#,ZGR2# |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87031 |
AUR2#,ZGR2# |
1 | ||
| 90080-87031 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87019 |
AUR2#,ZGR2# |
1 | ||
| 90080-87021 |
AUR2#,ZGR2# |
1 | ||
| 90080-87019 |
AUR2#,ZGR2# |
1 | ||
| Common parts | ||||
| 82715-02A30 | ||||
| 82715-02A40 | ||||
| 90119-W0030 | ||||
| 90178-W0019 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8405 | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
