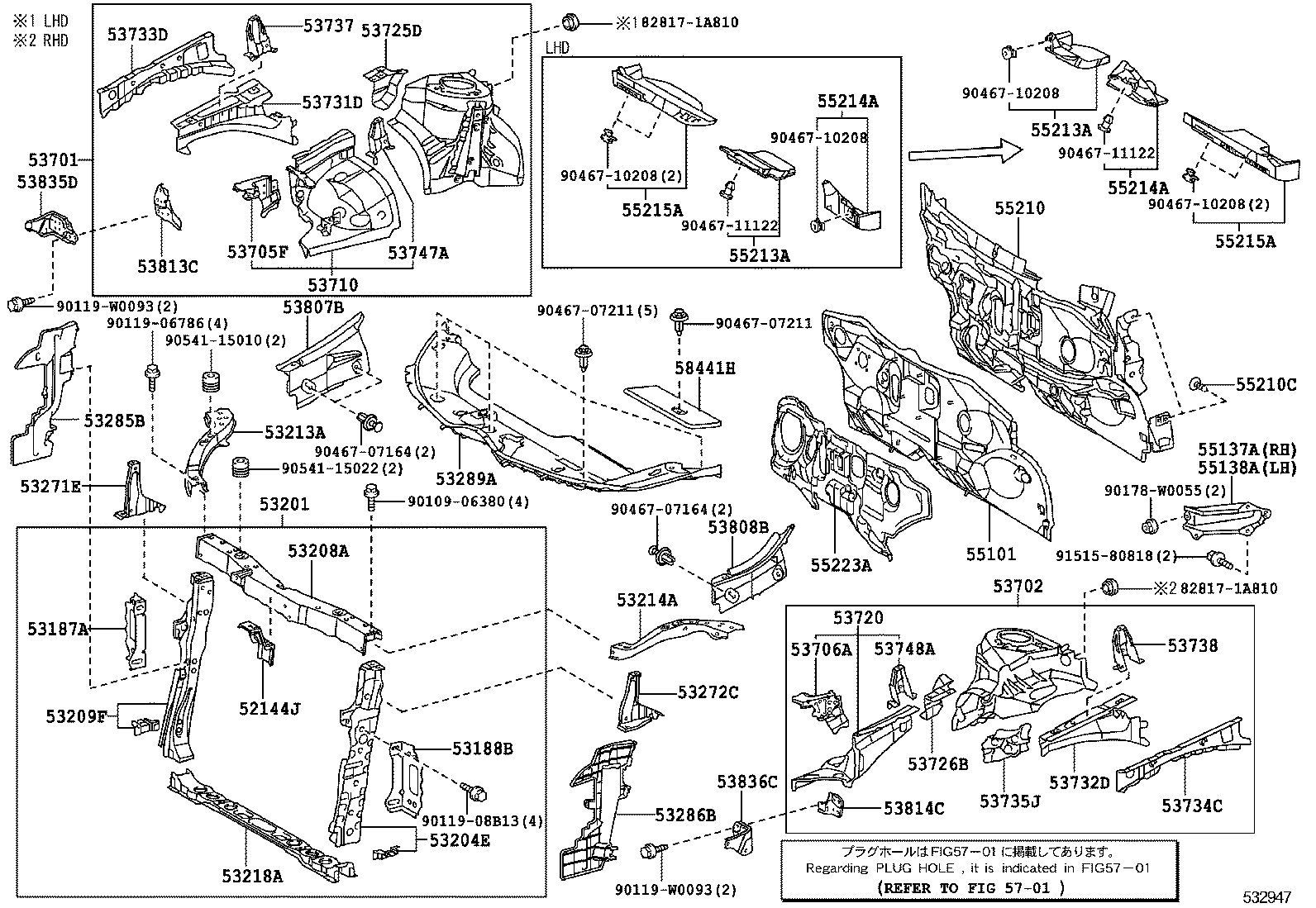

ZGR21R-GWFDPW (2010)
Toyota Verso
(0902-1211)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52144J - STAY, FRONT BUMPER, CENTER | ||||
| 52085-0F010 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 52085-0F010 |
AUR2#,ZGR2# |
1 | ||
| 53187A - STAY, RADIATOR SUPPORT, RH | ||||
| 53187-02010 |
AUR2#,ZGR2# |
1 | ||
| 53187-02010 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53188B - STAY, RADIATOR SUPPORT, LH | ||||
| 53188-02010 |
AUR2#,ZGR2# |
1 | ||
| 53188-02010 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-0F912 |
AUR2#,ZGR2# |
1 | ||
| 53201-0F912 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53204E - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, LH | ||||
| 53204-02010 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53204-02010 |
AUR2#,ZGR2# |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-02140 |
AUR2#,ZGR2# |
1 | ||
| 53208-02140 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53209F - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, RH | ||||
| 53209-02040 |
AUR2#,ZGR2# |
1 | ||
| 53209-02040 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53202-0F030 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53202-0F030 |
AUR2#,ZGR2# |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-0F020 |
AUR2#,ZGR2# |
1 | ||
| 53214-0F020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53218A - SUPPORT, RADIATOR, LOWER | ||||
| 53218-02901 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53218-02901 |
AUR2#,ZGR2# |
1 | ||
| 53271E - BRACKET, HEADLAMP MOUNTING, RH | ||||
| 53271-0F010 |
AUR2#,ZGR2# |
1 | ||
| 53271-0F010 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53272C - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53272-0F030 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53272-0F030 |
AUR2#,ZGR2# |
1 | ||
| 53285B - SEAL, RADIATOR SIDE AIR, NO.1 | ||||
| 53285-0F050 |
AUR2#,ZGR2# |
1 | ||
| 53285-0F050 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53286B - SEAL, RADIATOR SIDE AIR, NO.2 | ||||
| 53286-0F050 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53286-0F050 |
AUR2#,ZGR2# |
1 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-0F030 |
AUR2#,ZGR2# |
1 | ||
| 53289-0F030 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-0F030 |
AUR2#,ZGR2# |
1 | ||
| 53701-0F030 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-0F020 |
AUR2#,ZGR2# |
1 | ||
| 53702-0F020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53705F - BRACE SUB-ASSY, FENDER APRON, RH | ||||
| 53705-0F030 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53705-0F030 |
AUR2#,ZGR2# |
1 | ||
| 53706A - BRACE SUB-ASSY, FENDER APRON, LH | ||||
| 53706-0F020 |
AUR2#,ZGR2# |
1 | ||
| 53706-0F020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53710 - APRON ASSY, W/FRONT SIDE MEMBER, RH | ||||
| 53710-0F900 |
AUR2#,ZGR2# |
1 | ||
| 53710-0F900 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53720 - APRON ASSY, W/FRONT SIDE MEMBER, LH | ||||
| 53720-0F900 |
AUR2#,ZGR2# |
1 | ||
| 53720-0F900 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53725D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH | ||||
| 53725-02010 |
AUR2#,ZGR2# |
1 | ||
| 53725-02010 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53726B - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH | ||||
| 53726-02010 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53726-02010 |
AUR2#,ZGR2# |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-02020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53731-02020 |
AUR2#,ZGR2# |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-02020 |
AUR2#,ZGR2# |
1 | ||
| 53732-02020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-02010 |
AUR2#,ZGR2# (L) |
1 | ||
| 53733-12070 |
AUR2#,ZGR2# (J) |
1 | ||
| 53733-12070 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY (J) |
1 | ||
| 53733-02010 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY (L) |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-12070 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY (J) |
1 | ||
| 53734-02010 |
AUR2#,ZGR2# (L) |
1 | ||
| 53734-02010 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY (L) |
1 | ||
| 53734-12070 |
AUR2#,ZGR2# (J) |
1 | ||
| 53735J - PATCH, FRONT FENDER APRON, NO.5 | ||||
| 53735-02010 |
AUR2#,ZGR2# |
1 | ||
| 53735-02010 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-0F030 |
AUR2#,ZGR2# |
1 | ||
| 53737-0F030 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-0F020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53738-0F020 |
AUR2#,ZGR2# |
1 | ||
| 53747A - EXTENSION, APRON FENDER SIDE, RH | ||||
| 53747-0F020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53747-0F020 |
AUR2#,ZGR2# |
1 | ||
| 53748A - EXTENSION, APRON FENDER SIDE, LH | ||||
| 53748-0F020 |
AUR2#,ZGR2# |
1 | ||
| 53748-0F020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53807B - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH | ||||
| 53807-0F010 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53807-0F010 |
AUR2#,ZGR2# |
1 | ||
| 53808B - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH | ||||
| 53808-0F010 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53808-0F010 |
AUR2#,ZGR2# |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-05020 |
AUR2#,ZGR2# |
1 | ||
| 53813-05020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-05020 |
AUR2#,ZGR2# |
1 | ||
| 53814-05020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53835D - BRACKET, FRONT SIDE PANEL, RH | ||||
| 53835-0F010 |
AUR2#,ZGR2# |
1 | ||
| 53835-0F010 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 53836C - BRACKET, FRONT SIDE PANEL, LH | ||||
| 53836-0F010 |
AUR2#,ZGR2# |
1 | ||
| 53836-0F010 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-02680 |
AUR2#,ZGR2#..RHD..6F |
1 | ||
| 55101-02680 |
AUR2#,ZGR2#..RHD..6F |
1 | ||
| 55137A - BRACE, DASH TO FRAME, RH | ||||
| 55137-02010 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 55137-02010 |
AUR2#,ZGR2# |
1 | ||
| 55138A - BRACE, DASH TO FRAME, LH | ||||
| 55138-02010 |
AUR2#,ZGR2# |
1 | ||
| 55138-02010 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-0F040 |
ZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY |
1 | ||
| 55210-0F040 |
AUR2#,ZGR2#..RHD |
1 | ||
| 55210C - CLIP | ||||
| 90467-08186C0 |
AUR2#,ZGR2# BLACK |
4 | ||
| 90467-08186C0 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY BLACK |
4 | ||
| 55213A - PAD, DASH PANEL SILENCER | ||||
| 55213-0F040 |
AUR2#,ZGR2#..RHD |
1 | ||
| 55213-0F040 |
ZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY |
1 | ||
| 55213A - PAD, DASH PANEL SILENCER | ||||
| 55213-0F040 |
AUR2#,ZGR2#..RHD |
1 | ||
| 55213-0F040 |
ZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY |
1 | ||
| 55214A - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-0F020 |
ZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY |
1 | ||
| 55214-0F020 |
AUR2#,ZGR2#..RHD |
1 | ||
| 55214A - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-0F020 |
ZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY |
1 | ||
| 55214-0F020 |
AUR2#,ZGR2#..RHD |
1 | ||
| 55215A - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-02020 |
AUR2#,ZGR2#..RHD |
1 | ||
| 55215-02020 |
ZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY |
1 | ||
| 55215A - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-02020 |
AUR2#,ZGR2#..RHD |
1 | ||
| 55215-02020 |
ZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-02160 |
ZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY |
1 | ||
| 55223-02160 |
AUR2#,ZGR2#..RHD |
1 | ||
| 58441H - COVER, BATTERY SERVICE HOLE | ||||
| 58441-02010 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 58441-02010 |
AUR2#,ZGR2# |
1 | ||
| Common parts | ||||
| 82817-1A810 | ||||
| 90109-06380 | ||||
| 90119-06786 | ||||
| 90119-08B13 | ||||
| 90119-W0093 | ||||
| 90178-W0055 | ||||
| 90467-07164 | ||||
| 90467-07211 | ||||
| 90467-10208 | ||||
| 90467-11122 | ||||
| 90541-15010 | ||||
| 90541-15022 | ||||
| 91515-80818 | ||||
| Linked diagrams | ||||
| 5701 | ||||
