ZGR21R-GWFDPW (2010)

Toyota Verso

Production Jul 2010 - Nov 2012
Engine 2ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0902- )

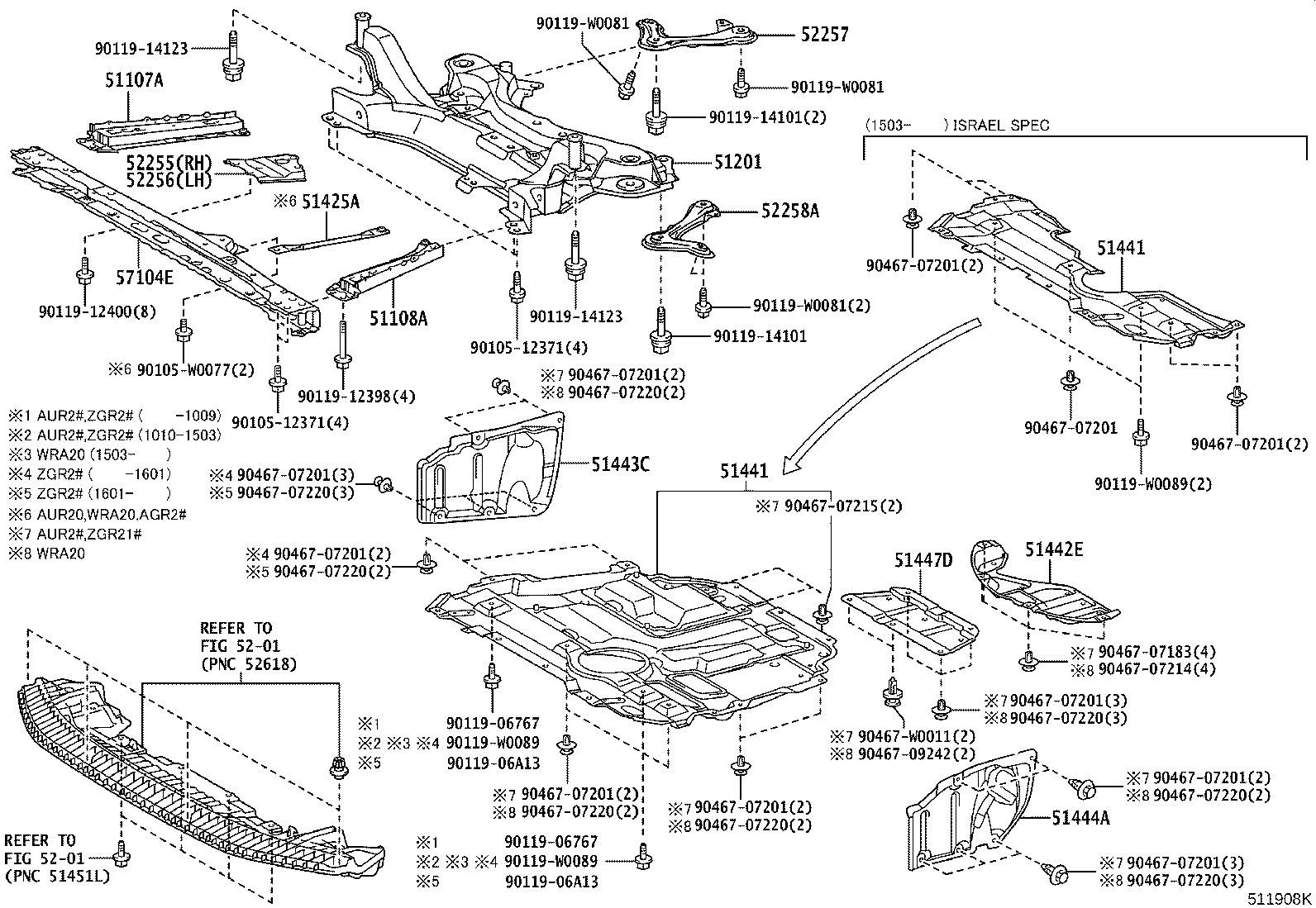

Click highlighted areas on diagram

diagram 51107A 51108A 51201 51425A 51441 51441 51442E 51443C 51444A 51447D 5201 5201 52255 52256 52257 52258A 57104E 9010512371 9010512371 90105W0077 9011906767 9011906767 9011906A13 9011906A13 9011912398 9011912400 9011914101 9011914101 9011914123 9011914123 90119W0081 90119W0081 90119W0081 90119W0089 90119W0089 90119W0089 9046707183 9046707201 9046707201 9046707201 9046707201 9046707201 9046707201 9046707201 9046707201 9046707201 9046707201 9046707201 9046707214 9046707215 9046707220 9046707220 9046707220 9046707220 9046707220 9046707220 9046707220 9046707220 9046709242 90467W0011
Part # Description Qty Price
51107A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH
51107-05020

AUR2#,ZGR2#

 1
51107-05020

AUR2#,ZGR2#

 1
51108A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH
51108-05010

AUR2#,ZGR2#

 1
51108-05010

ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-02101

AUR2#,ZGR2#

 1
51201-02101

ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY

 1
51425A - REINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER
51425-02010

ZGR21..E;AUR20,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY

 1
51425-02010

AUR20,ZGR2#

 1
51441 - COVER, ENGINE UNDER, NO.1
51410-02170

ZGR2#

 1
51410-02170

ZGR20;ZGR21..E;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY

 1
51441 - COVER, ENGINE UNDER, NO.1
51410-02170

ZGR2#

 1
51410-02170

ZGR20;ZGR21..E;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY

 1
51442E - COVER, ENGINE UNDER, NO.2
51442-02230

AUR2#,ZGR2#

 1
51442-02230

ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY

 1
51443C - COVER, ENGINE UNDER, REAR RH
51443-02050

AUR2#,ZGR2#

 1
51443-02050

ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY

 1
51444A - COVER, ENGINE UNDER, REAR LH
51444-02041

AUR2#,ZGR2#

 1
51444-02041

ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY

 1
51447D - COVER, ENGINE UNDER, NO.4 CENTER
51447-02010

ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY

 1
51447-02010

AUR2#,ZGR2#

 1
52255 - BRACE, FRONT SUSPENSION MEMBER, FRONT RH
52255-02010

AUR2#,ZGR2#

 1
52255-02010

ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY

 1
52256 - BRACE, FRONT SUSPENSION MEMBER, FRONT LH
52256-02010

ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY

 1
52256-02010

AUR2#,ZGR2#

 1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-02031

AUR2#,ZGR2#

 1
52257-02031

ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY

 1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-02031

AUR2#,ZGR2#

 1
52258-02031

ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY

 1
57104E - MEMBER SUB-ASSY, FRONT CROSS
57104-02160

ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY

 1
57104-02160

AUR2#,ZGR2#

 1
Common parts
90105-12371
90105-W0077
90119-06767
90119-06A13
90119-12398
90119-12400
90119-14101
90119-14123
90119-W0081
90119-W0089
90467-07183
90467-07201
90467-07214
90467-07215
90467-07220
90467-09242
90467-W0011
Linked diagrams
5201
