ZGR21R-GWFDPW (2010)
Toyota Verso

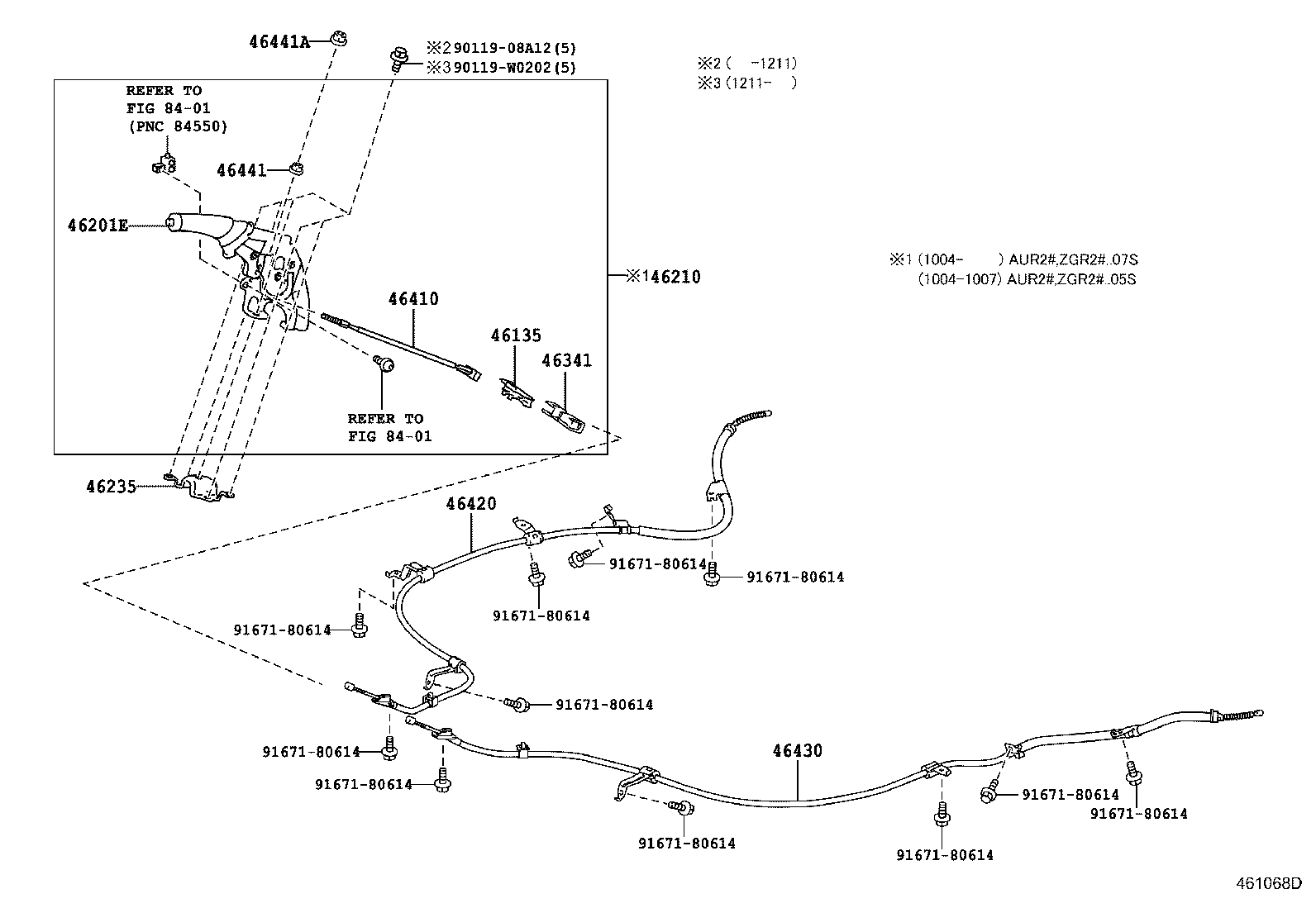

ILLUST NO. 1 OF 2(0902- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46135 - STOPPER, PARKING BRAKE CABLE END | ||||
| 46135-0F020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 46135-0F020 |
AUR2#,ZGR2# |
1 | ||
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-0F060B0 |
ZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY DK.GRAY,TRIM1# |
1 | ||
| 46201-0F020B0 |
AUR2#,ZGR2#..RHD DK.GRAY,TRIM1# |
1 | ||
| 46235 - BRACKET, PARKING BRAKE LEVER SUPPORT | ||||
| 46235-0F020 |
AUR2#,ZGR2# |
1 | ||
| 46235-0F020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-0F020 |
AUR2#,ZGR2# |
1 | ||
| 46341-0F020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-0F020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 46410-0F020 |
AUR2#,ZGR2# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-0F020 |
AUR2#,ZGR2# |
1 | ||
| 46420-0F020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-0F020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 46430-0F020 |
AUR2#,ZGR2# |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 90179-06171 |
AUR2#,ZGR2# |
1 | ||
| 90179-06171 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90179-06299 |
AUR2#,ZGR2# |
1 | ||
| 90179-06299 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| Common parts | ||||
| 90119-08A12 | ||||
| 90119-W0202 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

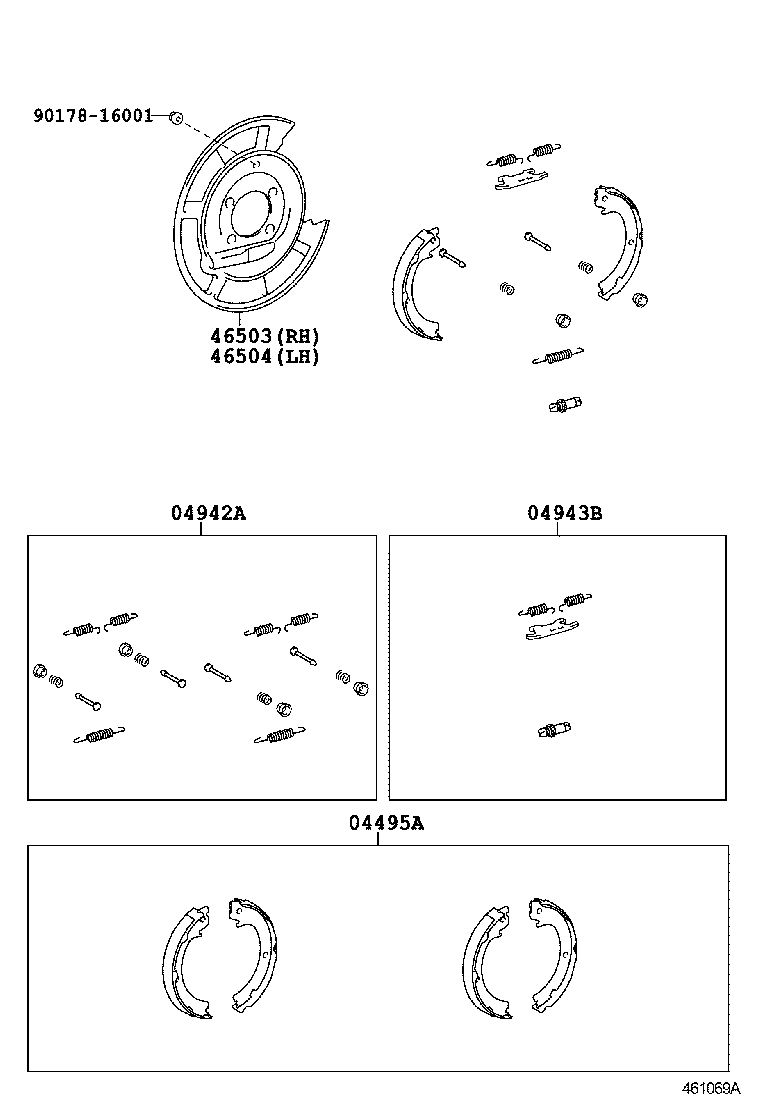

ILLUST NO. 2 OF 2(0902- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495A - SHOE KIT, PARKING BRAKE | ||||
| 04495-0F020 |
AUR2#,ZGR2# |
1 | ||
| 04495-0F030 |
AUR2#,ZGR2# |
1 | ||
| 04495-0F020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 04942A - SPRING KIT, PARKING BRAKE | ||||
| 04942-0F020 |
AUR2#,ZGR2# |
1 | ||
| 04942-0F020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 04943B - ADJUSTER KIT, PARKING BRAKE | ||||
| 04943-0F020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 04943-0F020 |
AUR2#,ZGR2# |
1 | ||
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-0F040 |
AUR2#,ZGR2# |
1 | ||
| 46503-0F040 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-0F040 |
AUR2#,ZGR2# |
1 | ||
| 46504-0F040 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| Common parts | ||||
| 90178-16001 | ||||
