ZGR21R-GWFDPW (2010)

Toyota Verso

Production Jul 2010 - Nov 2012
Engine 2ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0902- )ZGR2#..6F

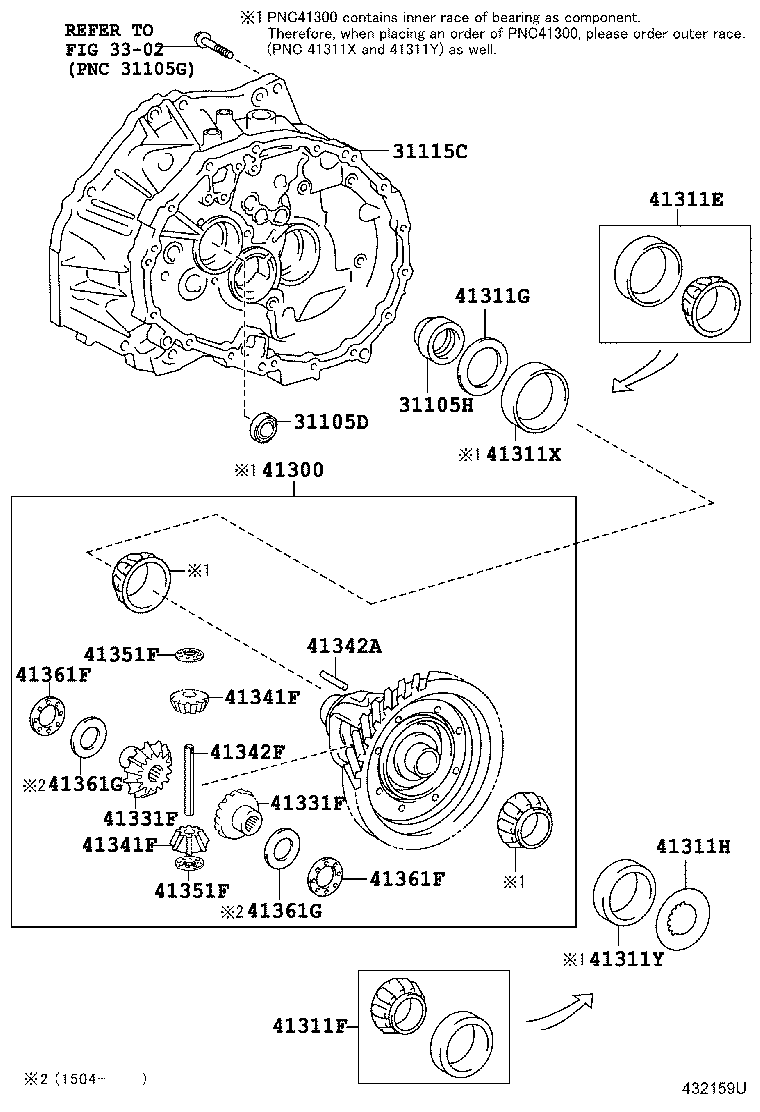

Click highlighted areas on diagram

EC61, EC62

diagram 31105D 31105H 31115C 3302 41300 41311E 41311F 41311G 41311H 41311X 41311Y 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 41361G 41361G
Part # Description Qty Price
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25030

ZGR2#..6F

 1
90311-25030

ZGR2#..6F

 1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-35062

ZGR2#..6F

 1
90311-35062

ZGR2#..6F

 1
90311-35065

ZGR2#..6F

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-05030

ZGR2#..6F

*202

 1
31115-20110

ZGR2#..6F

*201

 1
31115-05030

ZGR2#..6F

*202

 1
31115-20110

ZGR2#..6F

*201

 1
41300 - CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR
41300-12030

ZGR2#..6F

*201

 1
41300-12030

ZGR2#..6F

*201

 1
41300-02050

ZGR2#..6F

*202

 1
41300-02050

ZGR2#..6F

*202

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-40129

ZGR2#..6F

*201

 1
90080-36143

ZGR2#..6F

*202

 1
90080-36143

ZGR2#..6F

*202

 1
90366-40129

ZGR2#..6F

*201

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-42009

ZGR2#..6F

*201

 1
90366-42009

ZGR2#..6F

*201

 1
90366-W0013

ZGR21..6F

(L)

 1
90366-W0013

ZGR2#..6F

*202

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90560-41003

ZGR2#..6F

T=2.1

 1
90560-41003

ZGR2#..6F

T=2.1

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90564-44009

ZGR2#..6F

T=2.125, MARK 1

 1
90564-44008

ZGR2#..6F

T=2.100, MARK 0

 1
90564-44011

ZGR2#..6F

T=2.175, MARK 3

 1
90564-44014

ZGR2#..6F

T=2.250, MARK 6

 1
90564-44013

ZGR2#..6F

T=2.225, MARK 5

 1
90564-44017

ZGR2#..6F

T=2.325, MARK 9

 1
90564-44023

ZGR2#..6F

T=2.475, MARK F

 1
90564-44012

ZGR2#..6F

T=2.200, MARK 4

 1
90564-44016

ZGR2#..6F

T=2.300, MARK 8

 1
90564-44010

ZGR2#..6F

T=2.150, MARK 2

 1
90564-44019

ZGR2#..6F

T=2.375, MARK B

 1
90564-44018

ZGR2#..6F

T=2.350, MARK A

 1
90564-44020

ZGR2#..6F

T=2.400, MARK C

 1
90564-44021

ZGR2#..6F

T=2.425, MARK D

 1
90564-44025

ZGR2#..6F

T=2.525, MARK H

 1
90564-44030

ZGR2#..6F

T=2.650, MARK N

 1
90564-44029

ZGR2#..6F

T=2.625, MARK M

 1
90564-44026

ZGR2#..6F

T=2.550, MARK J

 1
90564-44032

ZGR2#..6F

T=2.700, MARK Q

 1
90564-44022

ZGR2#..6F

T=2.450, MARK E

 1
90564-44028

ZGR2#..6F

T=2.600, MARK L

 1
90564-44027

ZGR2#..6F

T=2.575, MARK K

 1
90564-44031

ZGR2#..6F

T=2.675, MARK P

 1
90564-44024

ZGR2#..6F

T=2.500, MARK G

 1
90564-44037

ZGR2#..6F

T=2.825, MARK V

 1
90564-44015

ZGR2#..6F

T=2.275, MARK 7

 1
90564-44036

ZGR2#..6F

T=2.800, MARK U

 1
90564-44033

ZGR2#..6F

T=2.725, MARK R

 1
90564-44034

ZGR2#..6F

T=2.750, MARK S

 1
90564-44035

ZGR2#..6F

T=2.775, MARK T

 1
90564-44038

ZGR2#..6F

T=2.850, MARK W

 1
90564-44039

ZGR2#..6F

T=2.100, MARK 10

 1
90564-44042

ZGR2#..6F

T=2.175, MARK 13

 1
90564-44044

ZGR2#..6F

T=2.225, MARK 15

 1
90564-44053

ZGR2#..6F

T=2.450, MARK 24

 1
90564-44040

ZGR2#..6F

T=2.125, MARK 11

 1
90564-44049

ZGR2#..6F

T=2.350, MARK 20

 1
90564-44048

ZGR2#..6F

T=2.325, MARK 19

 1
90564-44054

ZGR2#..6F

T=2.475, MARK 25

 1
90564-44043

ZGR2#..6F

T=2.200, MARK 14

 1
90564-44047

ZGR2#..6F

T=2.300, MARK 18

 1
90564-44041

ZGR2#..6F

T=2.150, MARK 12

 1
90564-44055

ZGR2#..6F

T=2.500, MARK 26

 1
90564-44045

ZGR2#..6F

T=2.250, MARK 16

 1
90564-44050

ZGR2#..6F

T=2.375, MARK 21

 1
90564-44052

ZGR2#..6F

T=2.425, MARK 23

 1
90564-44057

ZGR2#..6F

T=2.550, MARK 28

 1
90564-44051

ZGR2#..6F

T=2.400, MARK 22

 1
90564-44056

ZGR2#..6F

T=2.525, MARK 27

 1
90564-44062

ZGR2#..6F

T=2.675, MARK 33

 1
90564-44046

ZGR2#..6F

T=2.275, MARK 17

 1
90564-44063

ZGR2#..6F

T=2.700, MARK 34

 1
90564-44064

ZGR2#..6F

T=2.725, MARK 35

 1
90564-44059

ZGR2#..6F

T=2.600, MARK 30

 1
90564-44066

ZGR2#..6F

T=2.775, MARK 37

 1
90564-44068

ZGR2#..6F

T=2.825, MARK 39

 1
90564-44060

ZGR2#..6F

T=2.625, MARK 31

 1
90564-44061

ZGR2#..6F

T=2.650, MARK 32

 1
90564-44067

ZGR2#..6F

T=2.800, MARK 38

 1
90564-44069

ZGR2#..6F

T=2.850, MARK 40

 1
90564-44065

ZGR2#..6F

T=2.750, MARK 36

 1
90564-44058

ZGR2#..6F

T=2.575, MARK 29

 1
41311X - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRON
90366-40130

ZGR2#..6F

*201

 1
90366-W0014

ZGR2#..6F

*202

 1
90080-36144

ZGR2#..6F

*202

 1
90366-40130

ZGR2#..6F

*201

 1
41311Y - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR
90366-W0014

ZGR2#..6F

*202

 1
90080-36144

ZGR2#..6F

*202

 1
90366-42010

ZGR2#..6F

*201

 1
90366-42010

ZGR2#..6F

*201

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-20130

ZGR2#..6F

*201

 2
41331-05030

ZGR2#..6F

*202

 2
41331-05030

ZGR2#..6F

*202

 2
41331-20130

ZGR2#..6F

*201

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-20130

ZGR2#..6F

*201

 2
41331-05030

ZGR2#..6F

*202

 2
41331-05030

ZGR2#..6F

*202

 2
41331-20130

ZGR2#..6F

*201

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-05030

ZGR2#..6F

*202

 2
41341-05030

ZGR2#..6F

*202

 2
41341-20050

ZGR2#..6F

*201

 2
41341-20050

ZGR2#..6F

*201

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-05030

ZGR2#..6F

*202

 2
41341-05030

ZGR2#..6F

*202

 2
41341-20050

ZGR2#..6F

*201

 2
41341-20050

ZGR2#..6F

*201

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

AUR2#,ZGR2#..6F,6FC

 1
90250-06058

AUR2#,ZGR2#..6F,6FC

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-32020

ZGR2#..6F

 1
41342-32020

ZGR2#..6F

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

ZGR2#..6F

 2
41351-32010

ZGR2#..6F

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

ZGR2#..6F

 2
41351-32010

ZGR2#..6F

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22150

ZGR2#..6F

T=1.05,MARK 15

 2
41361-22140

ZGR2#..6F

T=0.95,MARK 14

 2
41361-22030

ZGR2#..6F

T=1.10,MARK 03

 2
41361-22040

ZGR2#..6F

T=1.20,MARK 04

 2
41361-22020

ZGR2#..6F

T=1.00,MARK 02

 2
41361-22160

ZGR2#..6F

T=1.15,MARK 16

 2
41361-22020

ZGR2#..6F

T=1.00,MARK 02

 2
41361-22150

ZGR2#..6F

T=1.05,MARK 15

 2
41361-22030

ZGR2#..6F

T=1.10,MARK 03

 2
41361-22140

ZGR2#..6F

T=0.95,MARK 14

 2
41361-22040

ZGR2#..6F

T=1.20,MARK 04

 2
41361-22160

ZGR2#..6F

T=1.15,MARK 16

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22150

ZGR2#..6F

T=1.05,MARK 15

 2
41361-22140

ZGR2#..6F

T=0.95,MARK 14

 2
41361-22030

ZGR2#..6F

T=1.10,MARK 03

 2
41361-22040

ZGR2#..6F

T=1.20,MARK 04

 2
41361-22020

ZGR2#..6F

T=1.00,MARK 02

 2
41361-22160

ZGR2#..6F

T=1.15,MARK 16

 2
41361-22020

ZGR2#..6F

T=1.00,MARK 02

 2
41361-22150

ZGR2#..6F

T=1.05,MARK 15

 2
41361-22030

ZGR2#..6F

T=1.10,MARK 03

 2
41361-22140

ZGR2#..6F

T=0.95,MARK 14

 2
41361-22040

ZGR2#..6F

T=1.20,MARK 04

 2
41361-22160

ZGR2#..6F

T=1.15,MARK 16

 2
