ZGR21R-GWFDPW (2010)

Toyota Verso

Production Jul 2010 - Nov 2012
Engine 2ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0902- )1ZRFAE,2ZRFAE

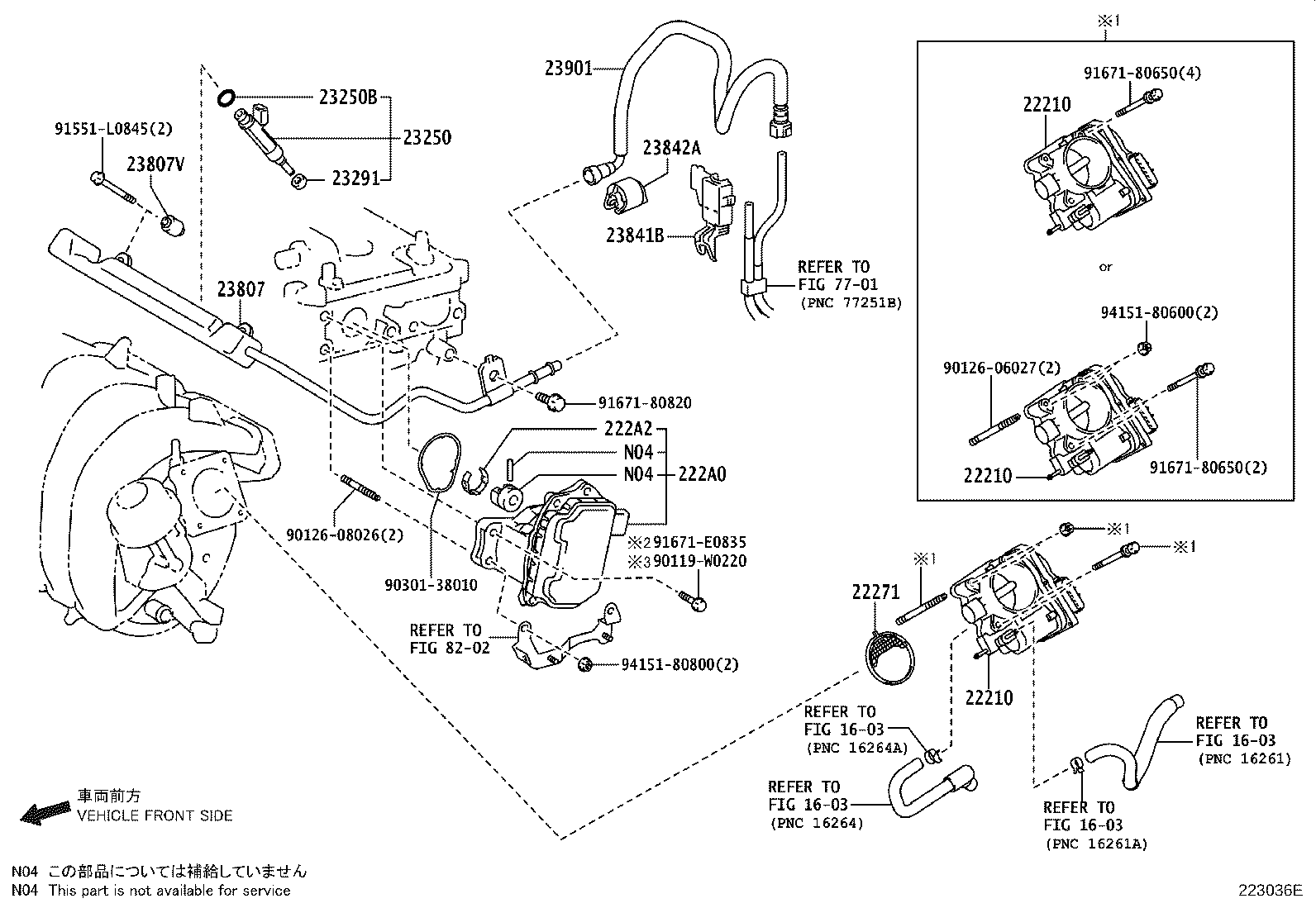

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 22210 22210 22210 22271 222A0 222A2 23250 23250B 23291 23807 23807V 23841B 23842A 23901 7701 8202 90119W0220 9012606027 9012608026 9030138010 91551L0845 9167180650 9167180650 9167180820 91671E0835 9415180600 9415180800
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22030-0T050

1ZRFAE,2ZRFAE..ZGR2#

(L)

 1
22030-37050

1ZRFAE,2ZRFAE..ZGR2#

(J)

 1
22030-0T050

1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY

(L)

 1
22030-37050

1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY

(J)

 1
22210 - BODY ASSY, THROTTLE
22030-0T050

1ZRFAE,2ZRFAE..ZGR2#

(L)

 1
22030-37050

1ZRFAE,2ZRFAE..ZGR2#

(J)

 1
22030-0T050

1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY

(L)

 1
22030-37050

1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY

(J)

 1
22210 - BODY ASSY, THROTTLE
22030-0T050

1ZRFAE,2ZRFAE..ZGR2#

(L)

 1
22030-37050

1ZRFAE,2ZRFAE..ZGR2#

(J)

 1
22030-0T050

1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY

(L)

 1
22030-37050

1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY

(J)

 1
22271 - GASKET, THROTTLE BODY
22271-75031

1ZRFAE,2ZRFAE..ZGR2#

(J)

 1
22271-0T020

1ZRFAE,2ZRFAE..ZGR2#

(L)

 1
22271-75031

2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY

(J)

 2
22271-0T020

1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY

(L)

 1
222A0 - CONTROLLER ASSY, CONTINUOUSLY VARIABLE VALVE LIFT
222A0-37013

1ZRFAE,2ZRFAE..ZGR2#

 1
222A0-37018

1ZRFAE,2ZRFAE..ZGR2#

 1
222A0-37015

1ZRFAE,2ZRFAE..ZGR2#

 1
222A0-37014

1ZRFAE,2ZRFAE..ZGR2#

 1
222A0-37017

1ZRFAE,2ZRFAE..ZGR2#

 1
222A0-37016

1ZRFAE,2ZRFAE..ZGR2#

 1
222A2 - CLIP, VALVE LIFT CONTROL ACTUATOR CONNECTOR
222A2-37010

1ZRFAE,2ZRFAE..ZGR2#

 1
222A2-37010

1ZRFAE,2ZRFAE..ZGR2#

 1
23250 - INJECTOR ASSY, FUEL
23209-09130

1ZRFAE,2ZRFAE..ZGR2#

(L)

 4
23209-39145

1ZRFAE,2ZRFAE..ZGR2#

(J)

 4
23209-39145

1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY

(J)

 4
23209-09130

1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY

(L)

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY

 4
90301-07037

1ZRFAE,2ZRFAE..ZGR2#

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-23010

1ZRFAE,2ZRFAE..ZGR2#

 4
23291-23010

1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-37051

1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY

 1
23814-37050

1ZRFAE,2ZRFAE..ZGR2#

 1
23814-37050

1ZRFAE,2ZRFAE..ZGR2#

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-37010

1ZRFAE,2ZRFAE..ZGR2#

 2
23891-37010

1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-21040

1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY

 1
23841-21040

1ZRFAE,2ZRFAE..ZGR2#

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-28010

1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY

 1
23842-28010

1ZRFAE,2ZRFAE..ZGR2#

 1
23901 - TUBE SUB-ASSY, FUEL
23901-0D090

1ZRFAE,2ZRFAE..ZGR2#

 1
23901-0D090

1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY

 1
Common parts
90119-W0220
90126-06027
90126-08026
90301-38010
91551-L0845
91671-80650
91671-80820
91671-E0835
94151-80600
94151-80800
Linked diagrams
1603
7701
8202
