ZGR21R-GRFDPW (2009)
Toyota Verso

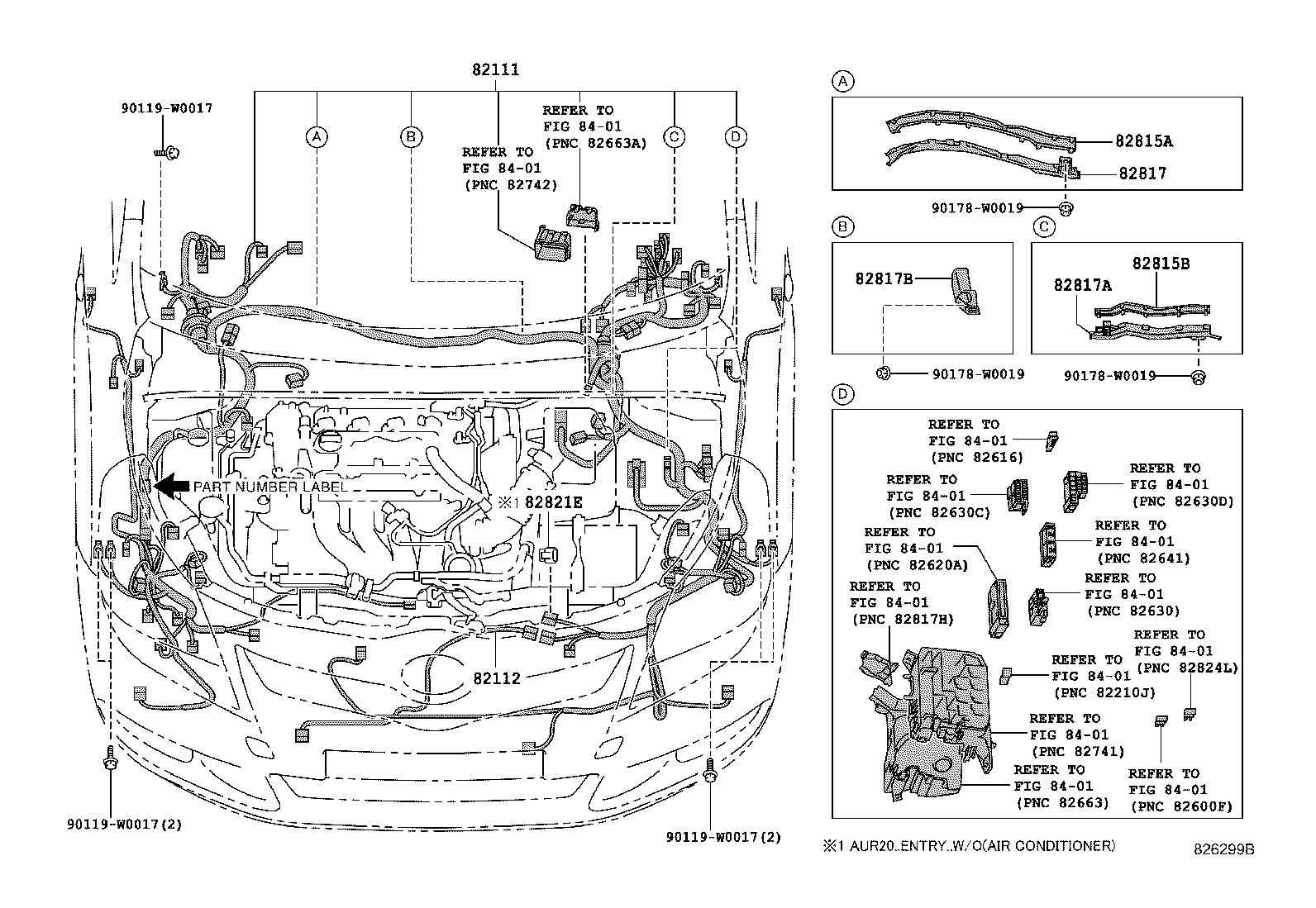

ILLUST NO. 1 OF10(0902-1007)RHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0FA80 |
ZGR2#..RHD..6F..E CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82111-0FA60 |
ZGR2#..RHD..6F |
1 | ||
| 82111-0FA80 |
ZGR2#..RHD..6F..E CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82111-0FA60 |
ZGR2#..RHD..6F PART NUMBER LABEL=82111-0FA60 |
1 | ||
| 82111-0FA80 |
ZGR2#..RHD..6F..E PART NUMBER LABEL=82111-0FA80 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12150 |
AUR2#,ZGR2#..RHD |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12160 |
AUR2#,ZGR2#..RHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12B10 |
AUR2#,ZGR2#..RHD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12B20 |
AUR2#,ZGR2#..RHD |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-12J30 |
AUR2#,ZGR2#..RHD |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90178-W0019 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF10(0902- )ZGR2#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0F210 |
ZGR2#..6F |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-02420 |
ZGR2# |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-02090 |
ZGR2# |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-02320 |
ZGR2#..6F |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-12280 |
AUR2#,ZGR2# |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-02250 |
ZGR2# |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-02260 |
ZGR2# |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-02270 |
ZGR2# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-02760 |
ZGR2# |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-02770 |
ZGR2# |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-02780 |
ZGR2# |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-12J10 |
ZGR2# |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12560 |
AUR2#,ZGR2# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
AUR2#,ZGR2# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-34100 |
AUR2#,ZGR2# |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12110 |
ZGR2# |
1 | ||
| Common parts | ||||
| 90119-06995 | ||||
| 90119-W0017 | ||||
| 90119-W0030 | ||||
| 90119-W0059 | ||||
| 90178-W0019 | ||||
| 91671-80816 | ||||
ILLUST NO. 3 OF10(0902- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-0FX20 |
AUR2#,ZGR2#..RHD..6F..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82141-0FW80 |
AUR2#,ZGR2#..RHD..6F |
1 | ||
| 82141-0FX30 |
AUR2#,ZGR2#..RHD..6F..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82141-0FX10 |
AUR2#,ZGR2#..RHD..6F..E AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82141-0FX00 |
AUR2#,ZGR2#..RHD..6F..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82141-0FX40 |
AUR2#,ZGR2#..RHD..6F..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82141-0FW90 |
AUR2#,ZGR2#..RHD..6F..E AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82141-0FW90 |
AUR2#,ZGR2#..RHD..6F..E AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82141-0FX10 |
AUR2#,ZGR2#..RHD..6F..E AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82141-0FX50 |
AUR2#,ZGR2#..RHD..6F..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82141-0FX30 |
AUR2#,ZGR2#..RHD..6F..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82141-0FX50 |
AUR2#,ZGR2#..RHD..6F..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82141-0FY50 |
AUR2#,ZGR21..07S..6F..E HIGH PLUS PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82141-0FY60 |
AUR2#,ZGR2#..RHD..6F..E HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-DVD NAVIGATION & 6SPEAKER& BLUETOOTH |
1 | ||
| 82141-0FY50 |
AUR2#,ZGR2#..RHD..6F..E HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82141-0FY50 |
AUR2#,ZGR2#..RHD..6F..E HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82141-0FY50 |
AUR2#,ZGR21..07S..6F..E HIGH PLUS PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82141-0FY60 |
AUR2#,ZGR21..07S..6F..E HIGH PLUS PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82141-0FY60 |
AUR2#,ZGR21..07S..6F..E HIGH PLUS PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82141-0FY60 |
AUR2#,ZGR2#..RHD..6F..E HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER& BLUETOOTH |
1 | ||
| 82141-0FW90 |
AUR2#,ZGR2#..RHD..6F..E PART NUMBER LABEL=82141-0FW90 OR 82141-0FR40 |
1 | ||
| 82141-0FX00 |
AUR2#,ZGR2#..RHD..6F..E PART NUMBER LABEL=82141-0FX00 OR 82141-0FR50 |
1 | ||
| 82141-0FW80 |
AUR2#,ZGR2#..RHD..6F PART NUMBER LABEL=82141-0FW80 OR 82141-0FR30 |
1 | ||
| 82141-0FX10 |
AUR2#,ZGR2#..RHD..6F..E PART NUMBER LABEL=82141-0FX10 OR 82141-0FR60 |
1 | ||
| 82141-0FX40 |
AUR2#,ZGR2#..RHD..6F..E PART NUMBER LABEL=82141-0FX40 OR 82141-0FR90 |
1 | ||
| 82141-0FX20 |
AUR2#,ZGR2#..RHD..6F..E PART NUMBER LABEL=82141-0FX20 OR 82141-0FR70 |
1 | ||
| 82141-0FX50 |
AUR2#,ZGR2#..RHD..6F..E PART NUMBER LABEL=82141-0FX50 OR 82141-0FS00 |
1 | ||
| 82141-0FY50 |
AUR2#,ZGR2#..RHD..6F..E PART NUMBER LABEL=82141-0FY50 OR 82141-0FU50 |
1 | ||
| 82141-0FX30 |
AUR2#,ZGR2#..RHD..6F..E PART NUMBER LABEL=82141-0FX30 OR 82141-0FR80 |
1 | ||
| 82141-0FY60 |
AUR2#,ZGR21..07S..6F..E PART NUMBER LABEL=82141-0FY60 OR 82141-0FT90 |
1 | ||
| 82141-0FY50 |
AUR2#,ZGR21..07S..6F..E PART NUMBER LABEL=82141-0FY50 OR 82141-0FU50 |
1 | ||
| 82141-0FY60 |
AUR2#,ZGR2#..RHD..6F..E PART NUMBER LABEL=82141-0FY60 OR 82141-0FT90 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-0F060 |
AUR2#,ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-02110 |
AUR2#,ZGR2# |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-02200 |
AUR2#,ZGR2# |
1 | ||
| 82666-02200 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82666-02200 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82666-02200 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82666-02200 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82666-02200 |
AUR2#,ZGR2#..07S..(6F,6FC)..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER &BLUETOOTH |
1 | ||
| 82666-02200 |
AUR2#,ZGR2#..RHD..07S..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82666-02200 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82666-02200 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82666-02200 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82666-02200 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82666-02200 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82666-02200 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82666-02200 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82666-02200 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-02210 |
AUR2#,ZGR2# |
2 | ||
| 82666-02210 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
2 | ||
| 82666-02210 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
2 | ||
| 82666-02210 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
2 | ||
| 82666-02210 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
2 | ||
| 82666-02210 |
AUR2#,ZGR2#..RHD..07S..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
2 | ||
| 82666-02210 |
AUR2#,ZGR2#..07S..(6F,6FC)..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER &BLUETOOTH |
2 | ||
| 82666-02210 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
2 | ||
| 82666-02210 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
2 | ||
| 82666-02210 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
2 | ||
| 82666-02210 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
2 | ||
| 82666-02210 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
2 | ||
| 82666-02210 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
2 | ||
| 82666-02210 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
2 | ||
| 82666-02210 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-02210 |
AUR2#,ZGR2# |
2 | ||
| 82666-02210 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
2 | ||
| 82666-02210 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
2 | ||
| 82666-02210 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
2 | ||
| 82666-02210 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
2 | ||
| 82666-02210 |
AUR2#,ZGR2#..RHD..07S..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
2 | ||
| 82666-02210 |
AUR2#,ZGR2#..07S..(6F,6FC)..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER &BLUETOOTH |
2 | ||
| 82666-02210 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
2 | ||
| 82666-02210 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
2 | ||
| 82666-02210 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
2 | ||
| 82666-02210 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
2 | ||
| 82666-02210 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
2 | ||
| 82666-02210 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
2 | ||
| 82666-02210 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
2 | ||
| 82666-02210 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-12390 |
AUR2#,ZGR2#..RHD |
1 | ||
| 82666-12390 |
AUR2#,ZGR2#..07S..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82666-12390 |
AUR2#,ZGR2#..07S..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82666-12390 |
AUR2#,ZGR2#..RHD..07S..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82666-12390 |
AUR2#,ZGR2#..RHD..07S..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82666-12390 |
AUR2#,ZGR2#..RHD..07S..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82666-12390 |
AUR2#,ZGR2#..07S..(6F,6FC)..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER &BLUETOOTH |
1 | ||
| 82666-12390 |
AUR2#,ZGR2#..RHD..07S..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82666-12390 |
AUR2#,ZGR2#..RHD..07S..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82666-12390 |
AUR2#,ZGR2#..RHD..07S..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82666-12390 |
AUR2#,ZGR2#..RHD..07S..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82666-12390 |
AUR2#,ZGR2#..RHD..07S..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82666-12390 |
AUR2#,ZGR2#..RHD..07S..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82666-12390 |
AUR2#,ZGR2#..RHD..07S..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82666-12390 |
AUR2#,ZGR2#..RHD..07S..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-64010 |
AUR2#,ZGR2# |
1 | ||
| 82671-64010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82671-64010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82671-64010 |
AUR2#,ZGR2#..07S..(6F,6FC)..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER &BLUETOOTH |
1 | ||
| 82671-64010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82671-64010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82671-64010 |
AUR2#,ZGR2#..RHD..07S..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82671-64010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82671-64010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82671-64010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82671-64010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82671-64010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82671-64010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82671-64010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82671-64010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-64020 |
AUR2#,ZGR2# |
1 | ||
| 82671-64020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82671-64020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82671-64020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82671-64020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82671-64020 |
AUR2#,ZGR2#..07S..(6F,6FC)..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER &BLUETOOTH |
1 | ||
| 82671-64020 |
AUR2#,ZGR2#..RHD..07S..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82671-64020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82671-64020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82671-64020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82671-64020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82671-64020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82671-64020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82671-64020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82671-64020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673 - BRACKET, JUNCTION BLOCK | ||||
| 82673-0F010 |
AUR2#,ZGR2# |
1 | ||
| 82673-0F010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82673-0F010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-0F010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82673-0F010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-0F010 |
AUR2#,ZGR2#..RHD..07S..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-0F010 |
AUR2#,ZGR2#..07S..(6F,6FC)..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER &BLUETOOTH |
1 | ||
| 82673-0F010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-0F010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82673-0F010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82673-0F010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-0F010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82673-0F010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-0F010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82673-0F010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673G - BRACKET, JUNCTION BLOCK | ||||
| 82673-12160 |
AUR2#,ZGR2#..07S..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12160 |
AUR2#,ZGR2#..RHD..07S..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12160 |
AUR2#,ZGR2#..07S..(6F,6FC)..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER &BLUETOOTH |
1 | ||
| 82673-12160 |
AUR2#,ZGR2#..RHD..07S..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82673-12160 |
AUR2#,ZGR2#..RHD |
1 | ||
| 82673-12160 |
AUR2#,ZGR2#..RHD..07S..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12160 |
AUR2#,ZGR2#..RHD..07S..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82673-12160 |
AUR2#,ZGR2#..RHD..07S..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12160 |
AUR2#,ZGR2#..RHD..07S..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82673-12160 |
AUR2#,ZGR2#..RHD..07S..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12160 |
AUR2#,ZGR2#..07S..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82673-12160 |
AUR2#,ZGR2#..RHD..07S..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82673-12160 |
AUR2#,ZGR2#..RHD..07S..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12160 |
AUR2#,ZGR2#..RHD..07S..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12160 |
AUR2#,ZGR2#..RHD..07S..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-12D20 |
AUR2#,ZGR2#..RHD |
1 | ||
| 82817-12D20 |
AUR2#,ZGR2#..07S..(6F,6FC)..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER &BLUETOOTH |
1 | ||
| 82817-12D20 |
AUR2#,ZGR2#..RHD..07S..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82817-12D20 |
AUR2#,ZGR2#..07S..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82817-12D20 |
AUR2#,ZGR2#..RHD..07S..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82817-12D20 |
AUR2#,ZGR2#..07S..(6F,6FC)..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82817-12D20 |
AUR2#,ZGR2#..RHD..07S..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82817-12D20 |
AUR2#,ZGR2#..RHD..07S..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82817-12D20 |
AUR2#,ZGR2#..RHD..07S..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82817-12D20 |
AUR2#,ZGR2#..RHD..07S..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82817-12D20 |
AUR2#,ZGR2#..RHD..07S..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82817-12D20 |
AUR2#,ZGR2#..RHD..07S..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82817-12D20 |
AUR2#,ZGR2#..RHD..07S..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82817-12D20 |
AUR2#,ZGR2#..RHD..07S..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82817-12D20 |
AUR2#,ZGR2#..RHD..07S..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90159-60546 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF10(0902- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0F120 |
AUR2#,ZGR2#..RHD..E HIGH PACKAGE&POWER DOOR LOCK-WITH(FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82151-0F110 |
AUR2#,ZGR2#..RHD |
1 | ||
| 82151-0F120 |
AUR2#,ZGR21..RHD..E HIGH PLUS PACKAGE&POWER DOOR LOCK-WITH(FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82151-0F130 |
AUR2#,ZGR2#..RHD..E POWER DOOR LOCK-WITH(FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82151-0F160 |
AUR2#,ZGR2#..RHD..E POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82151-0F150 |
AUR2#,ZGR2#..RHD..E HIGH PACKAGE&POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82151-0F150 |
AUR2#,ZGR21..RHD..E HIGH PLUS PACKAGE&POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82151-0F140 |
AUR2#,ZGR2#..RHD POWER DOOR LOCK-WITH(DOUBLE LOCK) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0F130 |
AUR2#,ZGR2#..RHD POWER DOOR LOCK-WITH(DOUBLE LOCK) |
1 | ||
| 82152-0F140 |
AUR2#,ZGR21..RHD..E HIGH PLUS PACKAGE&POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82152-0F110 |
AUR2#,ZGR2#..RHD..E HIGH PACKAGE&POWER DOOR LOCK-WITH(FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82152-0F120 |
AUR2#,ZGR2#..RHD..E POWER DOOR LOCK-WITH(FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82152-0F110 |
AUR2#,ZGR21..RHD..E HIGH PLUS PACKAGE&POWER DOOR LOCK-WITH(FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82152-0F140 |
AUR2#,ZGR2#..RHD..E HIGH PACKAGE&POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82152-0F150 |
AUR2#,ZGR2#..RHD..E POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82152-0F100 |
AUR2#,ZGR2#..RHD |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-0F080 |
AUR2#,ZGR2#..RHD..E POWER DOOR LOCK-WITH(DOUBLE LOCK) |
1 | ||
| 82153-0F060 |
AUR20,ZGR2#..ENTRY |
1 | ||
| 82153-0F080 |
AUR2#,ZGR2#..RHD..E POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL) |
1 | ||
| 82153-0F070 |
AUR20,ZGR2#..RHD..ENTRY POWER DOOR LOCK-WITH(DOUBLE LOCK) |
1 | ||
| 82153-0F050 |
AUR2#,ZGR2#..E |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-0F080 |
AUR2#,ZGR2#..RHD..E POWER DOOR LOCK-WITH(DOUBLE LOCK) |
1 | ||
| 82154-0F070 |
AUR20,ZGR2#..RHD..ENTRY POWER DOOR LOCK-WITH(DOUBLE LOCK) |
1 | ||
| 82154-0F060 |
AUR20,ZGR2#..ENTRY |
1 | ||
| 82154-0F050 |
AUR2#,ZGR2#..E |
1 | ||
| 82154-0F080 |
AUR2#,ZGR2#..RHD..E POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-0F040 |
AUR2#,ZGR2#..RHD ANTI-THEFT SYSTEM-WITH(ALARM & *IM) & WITHOUT(*IS & *GBS) |
1 | ||
| 82184-0F050 |
AUR2#,ZGR2#..RHD |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-0F020 |
AUR2#,ZGR2#..RHD ANTI-THEFT SYSTEM-WITH(ALARM & *IM) & WITHOUT(*IS & *GBS) |
1 | ||
| 82185-0F030 |
AUR2#,ZGR2#..RHD |
1 | ||
| 82185-0F040 |
AUR2#,ZGR2#..RHD..E ANTI-THEFT SYSTEM-WITH(ALARM & *IM) & WITHOUT(*IS & *GBS)&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82185-0F040 |
AUR2#,ZGR2#..RHD..E ANTI-THEFT SYSTEM-WITH(ALARM & *IM) & WITHOUT(*IS & *GBS)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY |
1 | ||
| 82185-0F050 |
AUR2#,ZGR2#..RHD..E AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82185-0F050 |
AUR2#,ZGR2#..RHD..E AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82185-0F040 |
AUR2#,ZGR2#..RHD..E ANTI-THEFT SYSTEM-WITH(ALARM & *IM) & WITHOUT(*IS & *GBS)&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82185-0F050 |
AUR2#,ZGR2#..RHD..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-02250 |
AUR2#,ZGR2# |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||

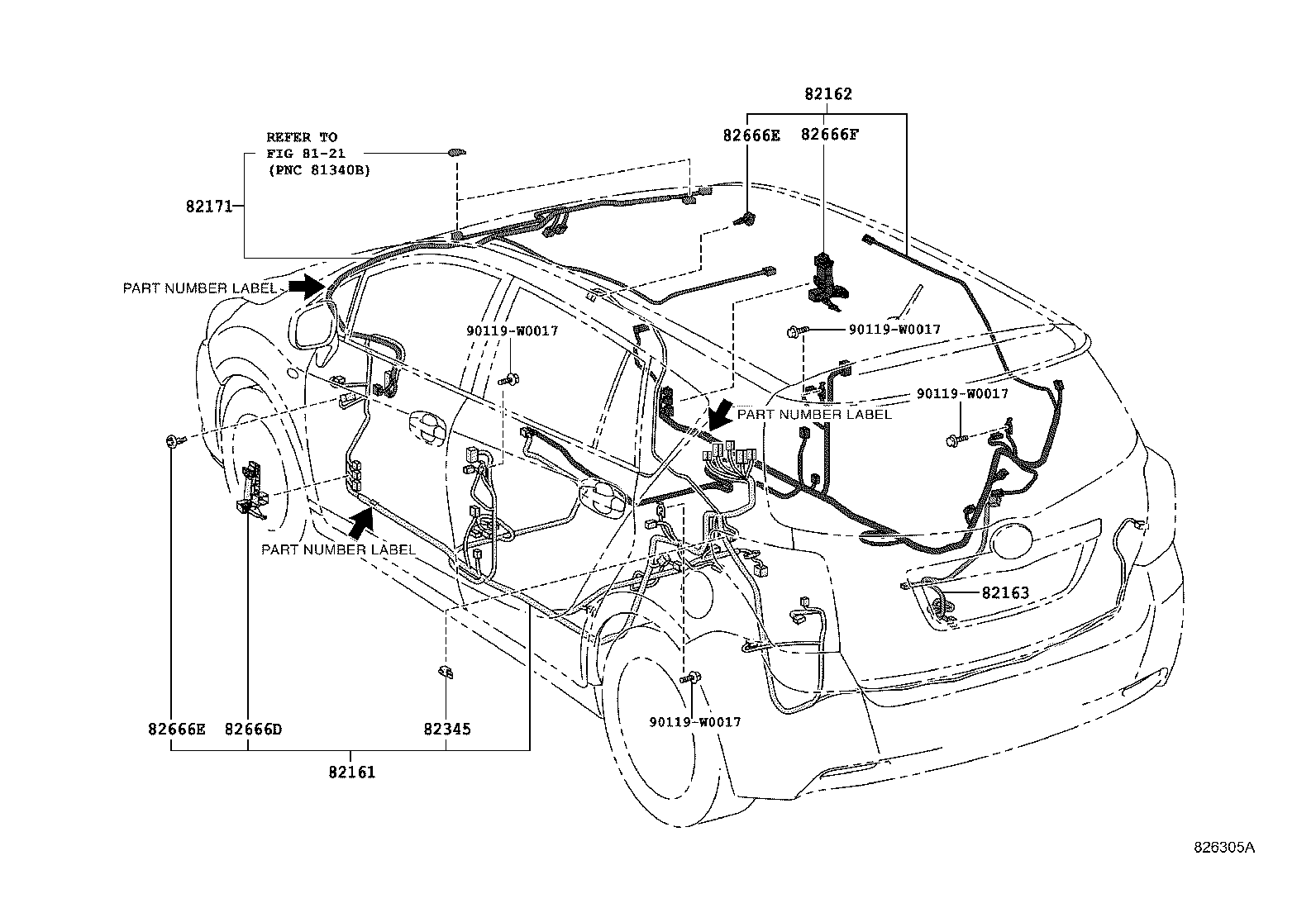

ILLUST NO. 5 OF10(0902-1007)
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-0F270 |
AUR2#,ZGR2#..RHD..07S |
1 | ||
| 82161-0F260 |
AUR20,ZGR2#..RHD..07S..ENTRY SRS AIR BAG-WITH(*DRP & SIDE & KNEE) & W/O(CURTAIN) |
1 | ||
| 82161-0F280 |
AUR2#,ZGR2#..RHD..07S..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82161-0F270 |
AUR2#,ZGR2#..RHD..07S PART NUMBER LABEL=82161-0F270 |
1 | ||
| 82161-0F280 |
AUR2#,ZGR2#..RHD..07S..E PART NUMBER LABEL=82161-0F280 |
1 | ||
| 82161-0F260 |
AUR20,ZGR2#..RHD..07S..ENTRY PART NUMBER LABEL=82161-0F260 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-0F240 |
AUR20,ZGR2#..RHD..ENTRY SRS AIR BAG-WITH(*DRP & SIDE & KNEE) & W/O(CURTAIN) |
1 | ||
| 82162-0F260 |
AUR2#,ZGR2#..RHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82162-0F250 |
AUR2#,ZGR2#..RHD |
1 | ||
| 82162-0F260 |
AUR2#,ZGR2#..RHD..E PART NUMBER LABEL=82162-0F260 |
1 | ||
| 82162-0F250 |
AUR2#,ZGR2#..RHD PART NUMBER LABEL=82162-0F250 |
1 | ||
| 82162-0F240 |
AUR20,ZGR2#..RHD..ENTRY PART NUMBER LABEL=82162-0F240 |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-0F030 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&HEADLAMP-DISCHARGE |
1 | ||
| 82163-0F040 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0F190 |
AUR2#,ZGR2#..RHD |
1 | ||
| 82171-0F240 |
AUR2#,ZGR21..RHD..E HIGH PLUS PACKAGE&MOON ROOF-WITH(PANORAMIC ROOF)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82171-0F180 |
AUR2#,ZGR21..RHD..E HIGH PLUS PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY |
1 | ||
| 82171-0F240 |
AUR2#,ZGR2#..RHD..E HIGH PACKAGE&MOON ROOF-WITH(PANORAMIC ROOF)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82171-0F220 |
AUR2#,ZGR21..RHD..E HIGH PLUS PACKAGE&MOON ROOF-WITH(PANORAMIC ROOF)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY |
1 | ||
| 82171-0F200 |
AUR2#,ZGR21..RHD..E HIGH PLUS PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82171-0F220 |
AUR2#,ZGR2#..RHD..E HIGH PACKAGE&MOON ROOF-WITH(PANORAMIC ROOF)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY |
1 | ||
| 82171-0F200 |
AUR2#,ZGR2#..RHD..E HIGH PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82171-0F230 |
AUR2#,ZGR2#..RHD..E MOON ROOF-WITH(PANORAMIC ROOF) |
1 | ||
| 82171-0F180 |
AUR2#,ZGR2#..RHD..E HIGH PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY |
1 | ||
| 82171-0F180 |
AUR2#,ZGR2#..RHD..E PART NUMBER LABEL=82171-0F180 |
1 | ||
| 82171-0F230 |
AUR2#,ZGR2#..RHD..E PART NUMBER LABEL=82171-0F230 |
1 | ||
| 82171-0F240 |
AUR2#,ZGR21..RHD..E PART NUMBER LABEL=82171-0F240 |
1 | ||
| 82171-0F220 |
AUR2#,ZGR21..RHD..E PART NUMBER LABEL=82171-0F220 |
1 | ||
| 82171-0F200 |
AUR2#,ZGR21..RHD..E PART NUMBER LABEL=82171-0F200 |
1 | ||
| 82171-0F180 |
AUR2#,ZGR21..RHD..E PART NUMBER LABEL=82171-0F180 |
1 | ||
| 82171-0F240 |
AUR2#,ZGR2#..RHD..E PART NUMBER LABEL=82171-0F240 |
1 | ||
| 82171-0F200 |
AUR2#,ZGR2#..RHD..E PART NUMBER LABEL=82171-0F200 |
1 | ||
| 82171-0F190 |
AUR2#,ZGR2#..RHD PART NUMBER LABEL=82171-0F190 |
1 | ||
| 82171-0F220 |
AUR2#,ZGR2#..RHD..E PART NUMBER LABEL=82171-0F220 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
AUR2#,ZGR2# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-02240 |
AUR2#,ZGR2# |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-20280 |
AUR2#,ZGR2# |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-20280 |
AUR2#,ZGR2# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-02220 |
AUR2#,ZGR2# |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 6 OF10(0902- )ZGR2#
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16790 | ||||
| 82711-1E350 | ||||
| 82711-35470 | ||||
| 82715-02540 | ||||
| 82715-02750 | ||||
| 82715-05340 | ||||
| 82715-05350 | ||||
| 82715-12890 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12B20 | ||||
| 82715-12B50 | ||||
| 82715-12G00 | ||||
| 82715-12L40 | ||||
| 82715-28L90 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-6A460 | ||||
| 82729-20150 | ||||
| 861A2-0F030 | ||||
| 90105-W0175 | ||||
| 90119-W0003 | ||||
| 90119-W0030 | ||||
| 90119-W0037 | ||||
| 90119-W0059 | ||||
| 90178-W0019 | ||||
| 91621-B0816 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
ILLUST NO. 7 OF10(0902- )ZGR2#
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-W7003 |
ZGR2# |
1 | ||
| Common parts | ||||
| 82711-1A750 | ||||
| 90119-W0017 | ||||
| 90119-W0061 | ||||
ILLUST NO. 8 OF10(0902- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90080-98001 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-10942 | ||||
| 90980-10957 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11020 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11255 | ||||
| 90980-11349 | ||||
| 90980-11659 | ||||
| 90980-12490 | ||||
| 90980-12634 | ||||
| 90980-12790 | ||||
| 90980-WA052 | ||||
ILLUST NO.10 OF10(0902- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52330 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11909 | ||||
| 90980-12183 | ||||
| 90980-12200 | ||||
| 90980-12221 | ||||
| 90980-12460 | ||||
| 90980-12495 | ||||
| 90980-12551 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12559 | ||||
| 90980-12790 | ||||
ILLUST NO. 9 OF10(0902- )
CONNECTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-11070 | ||||
| 90980-11246 | ||||
| 90980-12225 | ||||
| 90980-12352 | ||||
| 90980-12391 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
