ZGR21L-GWXEPW (2010)
Toyota Verso
ILLUST NO. 1 OF 7(0902- )ZGR2#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-05010 |
ZGR2# |
1 | ||
| 83530-05010 |
ZGR20;ZGR21..E;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
ZGR21..CVT |
1 | ||
| 84540-52070 |
ZGR21..CVT |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-02280 |
ZGR2# |
1 | ||
| 89465-02280 |
ZGR20;ZGR21..E;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-12030 |
ZGR2# |
1 | ||
| 89467-12030 |
ZGR20;ZGR21..E;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-02020 |
ZGR20;ZGR21..E;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 89615-02020 |
ZGR2# |
1 | ||
| Common parts | ||||
| 82715-02500 | ||||
| 82715-02510 | ||||
| 82715-20C40 | ||||
| 82715-42710 | ||||
| 90105-W0086 | ||||
| 90105-W0140 | ||||
| 90119-W0019 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 91551-80835 | ||||
| 91651-40620 | ||||
ILLUST NO. 2 OF 7(0902- )AUR2#,ZGR2#
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-21020 |
1ZRFAE,2ZRFAE..ZGR2# |
1 | ||
| 28850-21020 |
1ZRFAE,2ZRFAE..ZGR2# |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-20031 |
AUR2#,ZGR2# HEAD LAMP CLEANER-WITH |
1 | ||
| 85942-02060 |
AUR2#,ZGR2# HEAD LAMP CLEANER-WITH |
1 | ||
| 85942-20030 |
AUR2#,ZGR2# HEADLAMP CLEANER-WITH |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-12020 |
ZGR21..CVT |
1 | ||
| 89257-12020 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY |
1 | ||
| Common parts | ||||
| 90119-W0019 | ||||
| 90119-W0061 | ||||
| 90119-W0185 | ||||
| 90159-50386 | ||||
| 93315-14010 | ||||
| Linked diagrams | ||||
| 8202 | ||||

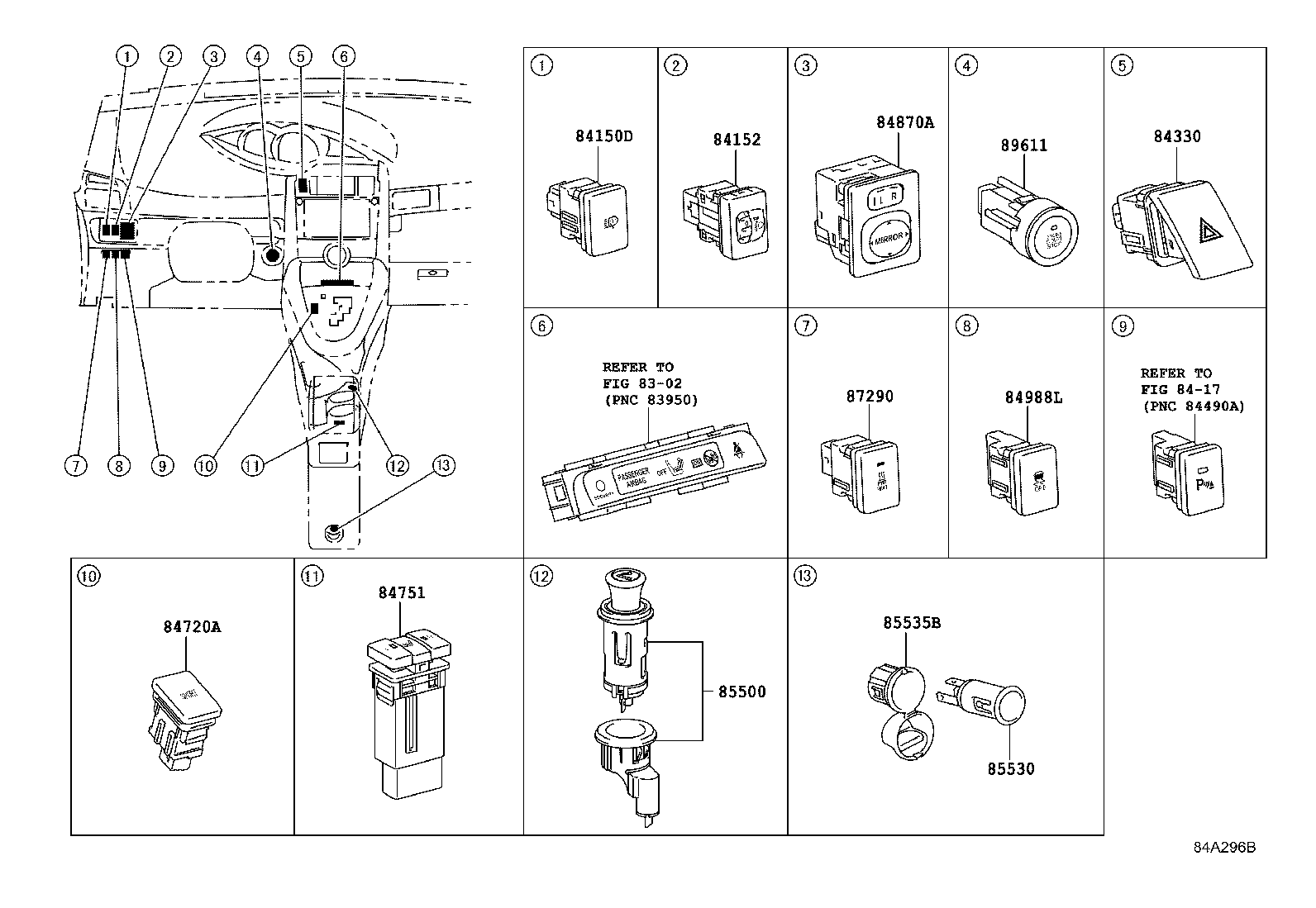

ILLUST NO. 5 OF 7(0902-1211)LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-02040 |
AUR2#,ZGR2# HEAD LAMP CLEANER-WITH |
1 | ||
| 84150-02040 |
AUR2#,ZGR2# HEADLAMP CLEANER-WITH |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52120 |
AUR2#,ZGR2#..E HEADLAMP-DISCHARGE |
1 | ||
| 84152-52120 |
AUR2#,ZGR2#..E HEADLAMP-DISCHARGE |
1 | ||
| 84152-52120 |
AUR2#,ZGR2# |
1 | ||
| 84152-52120 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-0F030 |
AUR2#,ZGR2#..LHD |
1 | ||
| 84332-0F030 |
AUR2#,ZGR2#..LHD |
1 | ||
| 84720A - SWITCH ASSY, PATTERN SELECT, NO.1 | ||||
| 84720-05020 |
AUR21,ZGR21..ATM,CVT |
1 | ||
| 84720-05020 |
ZGR21..LHD..CVT..ENTRY;AUR21,ZGR21..(ATM,CVT)..E |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-0F020 |
AUR2#,ZGR2#..LHD SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 84751-0F020 |
AUR2#,ZGR2#..LHD SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0F010 |
AUR2#,ZGR2# |
1 | ||
| 84870-0F010 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-05020 |
AUR2#,ZGR2# |
1 | ||
| 84988-05020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-09090 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 85500-09060 |
AUR2#,ZGR2# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D020 |
AUR2#,ZGR2#..E |
1 | ||
| 85530-0D020 |
AUR2#,ZGR2#..E |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-52040 |
AUR2#,ZGR2#..E |
1 | ||
| 85535-52040 |
AUR2#,ZGR2#..E |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-02012 |
AUR2#,ZGR2#..E HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89611-02012 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89611-02011 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89611-02011 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89611-02013 |
AUR2#,ZGR2#..E HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
| 8417 | ||||
ILLUST NO. 4 OF 7(0902- )AUR2#,ZGR2#..LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1ADFTV,2ADFHV,1ZRFAE,2ZRFAE..AUR2#,ZGR2# |
1 | ||
| 28300-28010 |
2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY;1ADFTV,2ADFHV,1ZRFAE..AUR2#,ZGR20 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-W2001 |
2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY;1ADFTV,2ADFHV,1ZRFAE..AUR2#,ZGR20 |
1 | ||
| 90987-W2001 |
1ADFTV,2ADFHV,1ZRFAE,2ZRFAE..AUR2#,ZGR2# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-0D040 |
AUR2#,ZGR2# |
1 | ||
| 81980-0D040 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
AUR2#,ZGR2# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90982-08295 |
AUR2#,ZGR2#..LHD..05S..E 30A,TERM.:FEMALE,PNK,HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT &RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
AUR2#,ZGR2#..LHD..E 30A,TERM.:FEMALE,PNK,HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
AUR2#,ZGR2# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
AUR2#,ZGR2# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90982-08295 |
AUR2#,ZGR2#..LHD..05S..E 30A,TERM.:FEMALE,PNK,HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT &RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
AUR2#,ZGR2#..LHD..E 30A,TERM.:FEMALE,PNK,HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
AUR2#,ZGR2# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241J - PIN, SHORT | ||||
| 82241-42010 |
AUR2#,ZGR2#..LHD..05S..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER)&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..LHD..05S..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..LHD..05S..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER)&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..LHD..05S..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY&AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..LHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..LHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY&AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..LHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER)&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..LHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER)&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR21..05S..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIRCONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER)&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR21..05S..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIRCONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82241-42010 |
AUR2#,ZGR21..05S..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY&AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82241-42010 |
AUR2#,ZGR21..05S..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIRCONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER)&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR21..LHD..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER)&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR21..LHD..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82241-42010 |
AUR2#,ZGR21..LHD..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER)&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR21..LHD..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY&AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..LHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..LHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER)&AUDIO-HDD NAVIGATION 6SPEAKER BLUETOOTH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..LHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER)&AUDIO-CSG SD-NAVIGATION(ULIS),6SPEAKER |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..LHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..LHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER)&AUDIO-CSG SD-NAVIGATION(ULIS),6SPEAKER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..LHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER)&AUDIO-HDD NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..LHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY&AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..LHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY&AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION 6SPEAKER BLUETOOTH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-CSG SD-NAVIGATION(ULIS),6SPEAKER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION 6SPEAKER BLUETOOTH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION 6SPEAKER BLUETOOTH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-CSG SD-NAVIGATION(ULIS),6SPEAKER |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..LHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&SEAT HEATER-WITH(DRIVER & PASSENGER)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82241-42010 |
AUR2#,ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-CSG SD-NAVIGATION(ULIS),6SPEAKER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82050 |
AUR2#,ZGR2# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
AUR2#,ZGR2#..LHD..E 7.5A,MINI FUSE,BROWN,HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
AUR2#,ZGR2#..LHD..05S..E 7.5A,MINI FUSE,BROWN,HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT &RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82054 |
AUR2#,ZGR2# 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82051 |
AUR2#,ZGR2# 10A,MINI FUSE,RED |
1 | ||
| 90080-82055 |
AUR2#,ZGR2# 25A,MINI FUSE |
1 | ||
| 90080-82052 |
AUR2#,ZGR2# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82053 |
AUR2#,ZGR2# 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82050 |
AUR2#,ZGR2# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
AUR2#,ZGR2#..LHD..E 7.5A,MINI FUSE,BROWN,HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
AUR2#,ZGR2#..LHD..05S..E 7.5A,MINI FUSE,BROWN,HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT &RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82054 |
AUR2#,ZGR2# 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82051 |
AUR2#,ZGR2# 10A,MINI FUSE,RED |
1 | ||
| 90080-82055 |
AUR2#,ZGR2# 25A,MINI FUSE |
1 | ||
| 90080-82052 |
AUR2#,ZGR2# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82053 |
AUR2#,ZGR2# 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82050 |
AUR2#,ZGR2# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
AUR2#,ZGR2#..LHD..E 7.5A,MINI FUSE,BROWN,HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
AUR2#,ZGR2#..LHD..05S..E 7.5A,MINI FUSE,BROWN,HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT &RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82054 |
AUR2#,ZGR2# 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82051 |
AUR2#,ZGR2# 10A,MINI FUSE,RED |
1 | ||
| 90080-82055 |
AUR2#,ZGR2# 25A,MINI FUSE |
1 | ||
| 90080-82052 |
AUR2#,ZGR2# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82053 |
AUR2#,ZGR2# 20A,MINI FUSE,YELLOW |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-52010 |
AUR2#,ZGR2# |
1 | ||
| 82610-52010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82610-52010 |
AUR2#,ZGR2#..LHD..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82610-52010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82610-52010 |
AUR2#,ZGR2#..LHD..05S..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82610-52010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82610-52010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82610-52010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82610-52010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82610-52010 |
AUR2#,ZGR2# |
1 | ||
| 82610-52010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82610-52010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82610-52010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82610-52010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82642G - RELAY, PANEL | ||||
| 90080-87019 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90080-87019 |
AUR2#,ZGR2#..LHD DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90080-87021 |
AUR2#,ZGR2#..LHD..E HIGH PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90080-87019 |
AUR2#,ZGR2#..LHD DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90080-87019 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90080-87021 |
AUR2#,ZGR2#..LHD DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82755-12010 |
AUR2#,ZGR2# |
1 | ||
| 82755-12010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82755-12010 |
AUR2#,ZGR2#..LHD..05S..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82755-12010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82755-12010 |
AUR2#,ZGR2#..LHD..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82755-12010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82755-12010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82755-12010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82755-12010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82755-12010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82755-12010 |
AUR2#,ZGR2# |
1 | ||
| 82755-12010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82755-12010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82755-12010 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82755-12020 |
AUR2#,ZGR2# |
1 | ||
| 82755-12020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82755-12020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82755-12020 |
AUR2#,ZGR2#..LHD..05S..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82755-12020 |
AUR2#,ZGR2#..LHD..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82755-12020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82755-12020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82755-12020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82755-12020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82755-12020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82755-12020 |
AUR2#,ZGR2# |
1 | ||
| 82755-12020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82755-12020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82755-12020 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-12170 |
AUR2#,ZGR2#..LHD |
1 | ||
| 82673-12170 |
AUR2#,ZGR2#..LHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12170 |
AUR2#,ZGR2#..LHD..05S..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82673-12170 |
AUR2#,ZGR2#..LHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82673-12170 |
AUR2#,ZGR2#..LHD..05S..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12170 |
AUR2#,ZGR2#..LHD..05S..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12170 |
AUR2#,ZGR2#..LHD..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12170 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12170 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12170 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82673-12170 |
AUR2#,ZGR2#..LHD..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82673-12170 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82673-12170 |
AUR2#,ZGR2#..LHD..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12170 |
AUR2#,ZGR2#..LHD..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12170 |
AUR2#,ZGR2#..LHD |
1 | ||
| 82673-12170 |
AUR2#,ZGR2#..LHD..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-12180 |
AUR2#,ZGR2#..LHD |
1 | ||
| 82673-12180 |
AUR2#,ZGR2#..LHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12180 |
AUR2#,ZGR2#..LHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82673-12180 |
AUR2#,ZGR2#..LHD..05S..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12180 |
AUR2#,ZGR2#..LHD..05S..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82673-12180 |
AUR2#,ZGR2#..LHD..05S..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12180 |
AUR2#,ZGR2#..LHD..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12180 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12180 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82673-12180 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82673-12180 |
AUR2#,ZGR2#..LHD..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82673-12180 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12180 |
AUR2#,ZGR2#..LHD..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12180 |
AUR2#,ZGR2#..LHD..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82673-12180 |
AUR2#,ZGR2#..LHD..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12180 |
AUR2#,ZGR2#..LHD |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-12190 |
AUR2#,ZGR2#..LHD |
1 | ||
| 82673-12190 |
AUR2#,ZGR2#..LHD..05S..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82673-12190 |
AUR2#,ZGR2#..LHD..05S..E HIGH PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12190 |
AUR2#,ZGR2#..LHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82673-12190 |
AUR2#,ZGR2#..LHD..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12190 |
AUR2#,ZGR2#..LHD..05S..E HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12190 |
AUR2#,ZGR2#..LHD..E HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12190 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82673-12190 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82673-12190 |
AUR2#,ZGR2#..LHD..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12190 |
AUR2#,ZGR2#..LHD..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82673-12190 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12190 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12190 |
AUR2#,ZGR2#..LHD..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82673-12190 |
AUR2#,ZGR2#..LHD..E INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82673-12190 |
AUR2#,ZGR2#..LHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0F120 |
AUR21,ZGR21..LHD..(ATM,CVT)..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82730-0F140 |
AUR21,ZGR21..LHD..(ATM,CVT) |
1 | ||
| 82730-0F130 |
AUR21,ZGR21..LHD..(ATM,CVT)..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0F140 |
AUR21,ZGR21..LHD..(ATM,CVT) |
1 | ||
| 82730-0F130 |
AUR21,ZGR21..LHD..(ATM,CVT)..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0F150 |
AUR21,ZGR21..LHD..(ATM,CVT) DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0F120 |
AUR21,ZGR21..LHD..(ATM,CVT)..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82730-0F150 |
AUR21,ZGR21..LHD..(ATM,CVT) DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0F151 |
AUR21,ZGR21..LHD..(ATM,CVT) DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0F131 |
AUR21,ZGR21..LHD..(ATM,CVT)..E HIGH PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0F141 |
AUR21,ZGR21..LHD..(ATM,CVT) |
1 | ||
| 82730-0F121 |
AUR21,ZGR21..LHD..(ATM,CVT)..E HIGH PACKAGE |
1 | ||
| 82824Z - PIN, SHORT | ||||
| 82675-44010 |
AUR21,ZGR2#..LHD |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..05S..E CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DAYTIME RUNNING LIGHT SYSTEM-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-DVDNAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..05S..E CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..05S..E CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DAYTIME RUNNING LIGHT SYSTEM-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDDNAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..05S..E CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..05S..E CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..05S..E CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..05S..E CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&DAYTIME RUNNING LIGHT SYSTEM-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..05S..E CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DAYTIME RUNNING LIGHT SYSTEM-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..05S..E CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&DAYTIME RUNNING LIGHT SYSTEM-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..05S..E CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&DAYTIME RUNNING LIGHT SYSTEM-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..05S..E CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..05S..E CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..E CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DAYTIME RUNNING LIGHT SYSTEM-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..E CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..E CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..E CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DAYTIME RUNNING LIGHT SYSTEM-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..E CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DAYTIME RUNNING LIGHT SYSTEM-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..E CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..E CRUISE CONTROL-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..E CRUISE CONTROL-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..E CRUISE CONTROL-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..E CRUISE CONTROL-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..E CRUISE CONTROL-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..E CRUISE CONTROL-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DAYTIME RUNNING LIGHT SYSTEM-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DAYTIME RUNNING LIGHT SYSTEM-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY)&DAYTIME RUNNING LIGHT SYSTEM-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..E DAYTIME RUNNING LIGHT SYSTEM-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..E DAYTIME RUNNING LIGHT SYSTEM-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..E DAYTIME RUNNING LIGHT SYSTEM-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..E DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82675-44010 |
ZGR21..05S..E;ZGR21..LHD..CVT;AUR21,ZGR20..LHD DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-WITH(HEATER) |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD..E DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82675-44010 |
AUR21,ZGR2#..LHD |
1 | ||
| 82861 - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-12022 |
AUR2#,ZGR2#..LHD |
1 | ||
| 82861-12021 |
AUR2#,ZGR2#..LHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69075 |
AUR2#,ZGR2# |
1 | ||
| 84340-69075 |
AUR2#,ZGR2# |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
AUR2#,ZGR2# |
1 | ||
| 84345-51010 |
AUR2#,ZGR2# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
AUR2#,ZGR2#..LHD |
1 | ||
| 84550-33010 |
AUR2#,ZGR2#..LHD |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90080-87019 |
AUR2#,ZGR2# |
1 | ||
| 90080-87021 |
AUR2#,ZGR2# |
1 | ||
| 90080-87019 |
AUR2#,ZGR2# |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-52010 |
AUR21,ZGR21..ATM,CVT |
1 | ||
| 85903-52020 |
AUR21,ZGR21..(ATM,CVT)..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 85903-52010 |
AUR21,ZGR21..ATM,CVT |
1 | ||
| 85903-52020 |
AUR21,ZGR21..(ATM,CVT)..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90080-87031 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 90080-87031 |
ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-87031 |
AUR2#,ZGR2# |
1 | ||
| 90080-87031 |
ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90080-87019 |
AUR2#,ZGR2#..E |
1 | ||
| 90080-87021 |
AUR2#,ZGR2#..E |
1 | ||
| 90080-87019 |
AUR2#,ZGR2#..E |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90080-87019 |
AUR2#,ZGR2# |
1 | ||
| 90080-87021 |
AUR2#,ZGR2# |
1 | ||
| 90080-87019 |
AUR2#,ZGR2# |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90080-87019 |
AUR2#,ZGR2# |
1 | ||
| 90080-87019 |
AUR2#,ZGR2# |
1 | ||
| 90080-87021 |
AUR2#,ZGR2# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-0F020 |
AUR2#,ZGR2#..E HIGH PACKAGE&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 85940-0F020 |
AUR2#,ZGR2#..E HIGH PACKAGE&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 85940-0F020 |
AUR2#,ZGR21..E HIGH PLUS PACKAGE&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-0F020 |
AUR2#,ZGR2#..E HIGH PACKAGE&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 85940-0F020 |
AUR2#,ZGR2#..E HIGH PACKAGE&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 85940-0F020 |
AUR2#,ZGR21..E HIGH PLUS PACKAGE&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 895A0 - RELAY ASSY, STOP LAMP CONTROL | ||||
| 895A0-28010 |
AUR2#,ZGR2# |
1 | ||
| 895A0-46020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 895A0 - RELAY ASSY, STOP LAMP CONTROL | ||||
| 895A0-28010 |
AUR2#,ZGR2# |
1 | ||
| 895A0-46020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 895A1 - RELAY, STOP LAMP CONTROL | ||||
| 895A1-68010 |
AUR2#,ZGR2# |
1 | ||
| 895A1-46020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 895A1 - RELAY, STOP LAMP CONTROL | ||||
| 895A1-68010 |
AUR2#,ZGR2# |
1 | ||
| 895A1-46020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 89681A - COMPUTER, POWER MANAGEMENT CONTROL | ||||
| 89690-0F020 |
AUR2#,ZGR2#..LHD |
1 | ||
| 89690-0F010 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89690-0F010 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89690-0F020 |
AUR2#,ZGR2#..LHD |
1 | ||
| 89690-0F050 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89690-0F060 |
AUR2#,ZGR2#..LHD |
1 | ||
| 89681A - COMPUTER, POWER MANAGEMENT CONTROL | ||||
| 89690-0F020 |
AUR2#,ZGR2#..LHD |
1 | ||
| 89690-0F010 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89690-0F010 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89690-0F020 |
AUR2#,ZGR2#..LHD |
1 | ||
| 89690-0F050 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89690-0F060 |
AUR2#,ZGR2#..LHD |
1 | ||
| 89681A - COMPUTER, POWER MANAGEMENT CONTROL | ||||
| 89690-0F020 |
AUR2#,ZGR2#..LHD |
1 | ||
| 89690-0F010 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89690-0F010 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89690-0F020 |
AUR2#,ZGR2#..LHD |
1 | ||
| 89690-0F050 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89690-0F060 |
AUR2#,ZGR2#..LHD |
1 | ||
| 89681A - COMPUTER, POWER MANAGEMENT CONTROL | ||||
| 89690-0F020 |
AUR2#,ZGR2#..LHD |
1 | ||
| 89690-0F010 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89690-0F010 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89690-0F020 |
AUR2#,ZGR2#..LHD |
1 | ||
| 89690-0F050 |
AUR2#,ZGR2#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89690-0F060 |
AUR2#,ZGR2#..LHD |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-64020 |
AUR2#,ZGR2#..05S..E 7SEATS PACKAGE&HEADLAMP-DISCHARGE |
1 | ||
| 89960-64030 |
AUR2#,ZGR2#..LHD..E HEADLAMP-DISCHARGE |
1 | ||
| 89960-64020 |
AUR2#,ZGR2#..E 7SEATS PACKAGE&HEADLAMP-DISCHARGE |
1 | ||
| 89960-64030 |
AUR2#,ZGR2#..05S..E HEADLAMP-DISCHARGE |
1 | ||
| Common parts | ||||
| 82711-1E320 | ||||
| 90119-W0017 | ||||
| 90119-W0030 | ||||
| 90119-W0037 | ||||
| 90119-W0156 | ||||
| 90159-60546 | ||||
| 90159-W0007 | ||||
| 90179-06110 | ||||
| 90179-06274 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8407 | ||||
| 8420 | ||||
ILLUST NO. 6 OF 7(0902-1601)
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82291D - WIRE, TO SOLENOID | ||||
| 82291-12080 |
AUR21,ZGR21..(ATM,CVT)..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82291-12080 |
AUR21,ZGR21..(ATM,CVT)..E HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82291-12080 |
AUR21,ZGR21..(ATM,CVT)..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82291-12080 |
AUR21,ZGR21..ATM,CVT |
1 | ||
| 82291-12080 |
AUR21,ZGR21..ATM,CVT |
1 | ||
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
AUR2#,ZGR2#..E HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84052-71010 |
AUR2#,ZGR2# |
1 | ||
| 84052-71010 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84052-71010 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84052-71010 |
AUR2#,ZGR2# |
1 | ||
| 84113A - BRACKET, SWITCH, NO.1 | ||||
| 84113-0F020 |
AUR21,ZGR21..ATM,CVT |
1 | ||
| 84113-0F020 |
AUR21,ZGR21..ATM,CVT |
1 | ||
| 84113B - BRACKET, SWITCH, NO.2 | ||||
| 84113-0F010 |
AUR21,ZGR21..ATM,CVT |
1 | ||
| 84113-0F010 |
AUR21,ZGR21..ATM,CVT |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-05190 |
AUR2#,ZGR2#..E INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 84140-05190 |
AUR2#,ZGR2#..E INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 84140-05200 |
AUR2#,ZGR2#..E |
1 | ||
| 84140-05200 |
AUR2#,ZGR2#..E |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-0F130 |
AUR21,ZGR21..(ATM,CVT)..E |
1 | ||
| 84250-05030 |
AUR21,ZGR21..(ATM,CVT)..E |
1 | ||
| 84250-0F130 |
AUR21,ZGR21..(ATM,CVT)..E EMV & NAVIGATION SYSTEM-EXTENSION BOX (HI) |
1 | ||
| 84250-0F170 |
AUR21,ZGR21..(ATM,CVT)..E AUDIO-CSG SD-NAVIGATION(ULIS),6SPEAKER |
1 | ||
| 84250-0F170 |
AUR21,ZGR21..(ATM,CVT)..E |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-05030 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 84307-05020 |
AUR2#,ZGR2# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
AUR2#,ZGR2# |
1 | ||
| 84450-12200 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84450-12200 |
AUR2#,ZGR2#..E HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84450-12200 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84450-12200 |
AUR2#,ZGR2# |
1 | ||
| 84523 - WIRE, SWITCH NO.1 | ||||
| 84523-0F010 |
AUR21,ZGR21..ATM,CVT |
1 | ||
| 84523-0F010 |
AUR21,ZGR21..ATM,CVT |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-0F010 |
AUR21,ZGR21..ATM,CVT LH |
1 | ||
| 84610-0F020 |
AUR21,ZGR21..ATM,CVT RH |
1 | ||
| 84610-0F010 |
AUR21,ZGR21..ATM,CVT LH |
1 | ||
| 84610-0F020 |
AUR21,ZGR21..ATM,CVT RH |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-0F010 |
AUR21,ZGR21..ATM,CVT LH |
1 | ||
| 84610-0F020 |
AUR21,ZGR21..ATM,CVT RH |
1 | ||
| 84610-0F010 |
AUR21,ZGR21..ATM,CVT LH |
1 | ||
| 84610-0F020 |
AUR21,ZGR21..ATM,CVT RH |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-05210 |
AUR2#,ZGR2# |
1 | ||
| 84652-05190 |
AUR2#,ZGR21..E HIGH PLUS PACKAGE |
1 | ||
| 84652-05210 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 84652-05190 |
AUR2#,ZGR2#..E HIGH PACKAGE |
1 | ||
| 84652-05190 |
AUR2#,ZGR2#..E HIGH PACKAGE |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-71010 |
AUR21,ZGR21..ATM,CVT |
1 | ||
| 85432-71010 |
AUR21,ZGR21..(ATM,CVT)..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 85432-71010 |
AUR21,ZGR21..(ATM,CVT)..E HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 85432-71010 |
AUR21,ZGR21..(ATM,CVT)..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 85432-71010 |
AUR21,ZGR21..ATM,CVT |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-0F030 |
AUR2#,ZGR2#..LHD |
1 | ||
| 89650-0F030 |
AUR2#,ZGR2#..LHD |
1 | ||
| 89650-0F031 |
AUR2#,ZGR2#..LHD |
1 | ||
| 8965AA - PROTECTOR, POWER STEERING COMPUTER | ||||
| 8965A-0F020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 8965A-0F020 |
AUR2#,ZGR2# |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||
| 93319-14012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 7 OF 7(0902- )
DOOR,ROOF,FLOOR&BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0F020 |
ZGR2# |
1 | ||
| 83320-0F020 |
ZGR20;ZGR21..E;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 84170A - SWITCH ASSY, ROOM LAMP NO.1 | ||||
| 84170-0F020 |
AUR2#,ZGR2#..LHD..E |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
2 | ||
| 84231-0D030 |
AUR2#,ZGR2# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
2 | ||
| 84231-0D030 |
AUR2#,ZGR2# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0D030 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
2 | ||
| 84231-0D030 |
AUR2#,ZGR2# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0D030 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
2 | ||
| 84231-0D030 |
AUR2#,ZGR2# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-05070 |
AUR2#,ZGR2# |
1 | ||
| 84810-05070 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-05070 |
AUR2#,ZGR2# |
1 | ||
| 84810-05070 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-05070 |
AUR2#,ZGR2#..E |
2 | ||
| 84810-05070 |
AUR2#,ZGR2#..E |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-05070 |
AUR2#,ZGR2#..E |
2 | ||
| 84810-05070 |
AUR2#,ZGR2#..E |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-05020 |
AUR2#,ZGR2#..LHD..E |
1 | ||
| 84040-05020 |
AUR2#,ZGR2#..LHD..E |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-05020 |
AUR2#,ZGR2#..LHD..E |
1 | ||
| 84040-05020 |
AUR2#,ZGR2#..LHD..E |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28040 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84840-28030 |
AUR2#,ZGR2# |
1 | ||
| 84840-28040 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84840-28030 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 84840-28040 |
AUR2#,ZGR2#..E HIGH PACKAGE |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-0D020 |
AUR2#,ZGR2# |
1 | ||
| 85530-0D020 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 85535F - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-52040 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 85535-52040 |
AUR2#,ZGR2# |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 3 OF 7(0902- )AUR2#,ZGR2#
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
AUR2#,ZGR2# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90982-08295 |
AUR2#,ZGR2#..LHD..05S..E 30A,TERM.:FEMALE,PNK,HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT &RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
AUR2#,ZGR2#..LHD..E 30A,TERM.:FEMALE,PNK,HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
AUR2#,ZGR2# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90982-08295 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 30A,TERM.:FEMALE,PNK,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82050 |
AUR2#,ZGR2# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,HIGH PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
AUR2#,ZGR2#..LHD..E 7.5A,MINI FUSE,BROWN,HIGH PLUS PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
AUR2#,ZGR2#..LHD..05S..E 7.5A,MINI FUSE,BROWN,HIGH PLUS PACKAGE&CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT &RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AIR CONDITIONER-AUTO AIR CONDITIONER&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82050 |
ZGR20..07S..E;ZGR20..LHD..E;AUR2#,ZGR21..E 7.5A,MINI FUSE,BROWN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH |
1 | ||
| 90080-82054 |
AUR2#,ZGR2# 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82051 |
AUR2#,ZGR2# 10A,MINI FUSE,RED |
1 | ||
| 90080-82055 |
AUR2#,ZGR2# 25A,MINI FUSE |
1 | ||
| 90080-82052 |
AUR2#,ZGR2# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82053 |
AUR2#,ZGR2# 20A,MINI FUSE,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
AUR2#,ZGR2# |
1 | ||
| 82616-58010 |
AUR2#,ZGR2# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-20190 |
ZGR2# |
1 | ||
| 82620-20190 |
ZGR2# |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-02010 |
AUR2#,ZGR2# |
1 | ||
| 82631-02010 |
AUR2#,ZGR2# |
1 | ||
| 82630C - HOLDER ASSY, FUSE | ||||
| 82631-02020 |
AUR2#,ZGR2# |
1 | ||
| 82631-02020 |
AUR2#,ZGR2# |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-02030 |
AUR2#,ZGR2# |
1 | ||
| 82631-02030 |
AUR2#,ZGR2# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
AUR2#,ZGR2# |
1 | ||
| 82641-47020 |
AUR2#,ZGR2# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-05140 |
ZGR2#..E CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82662-05130 |
ZGR2# |
1 | ||
| 82662-05140 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82662-05140 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82662-05140 |
ZGR2#..E CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82662-05130 |
ZGR20;ZGR21..E;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 82662-05140 |
ZGR2#..LHD..E COLD AREA SPEC&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH |
1 | ||
| 82662-05140 |
ZGR2#..LHD..E HIGH PACKAGE&COLD AREA SPEC&CRUISE CONTROL-WITH&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82662-05140 |
ZGR2#..E HIGH PACKAGE&CRUISE CONTROL-WITH&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82662-05140 |
ZGR2#..LHD..E COLD AREA SPEC&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-12280 |
ZGR2#..LHD COLD AREA SPEC |
1 | ||
| 82662-12280 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82662-12280 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82662-12280 |
ZGR2#..LHD..E COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82662-12280 |
ZGR2#..LHD..E HIGH PACKAGE&COLD AREA SPEC&CRUISE CONTROL-WITH&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82662-12280 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82662-12280 |
ZGR2#..LHD..E COLD AREA SPEC&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH |
1 | ||
| 82662-12280 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82662-12280 |
ZGR2#..LHD COLD AREA SPEC |
1 | ||
| 82662-12280 |
ZGR2#..LHD..E COLD AREA SPEC&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-12280 |
ZGR2#..LHD COLD AREA SPEC |
1 | ||
| 82662-12280 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82662-12280 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82662-12280 |
ZGR2#..LHD..E COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82662-12280 |
ZGR2#..LHD..E HIGH PACKAGE&COLD AREA SPEC&CRUISE CONTROL-WITH&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82662-12280 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82662-12280 |
ZGR2#..LHD..E COLD AREA SPEC&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH |
1 | ||
| 82662-12280 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82662-12280 |
ZGR2#..LHD COLD AREA SPEC |
1 | ||
| 82662-12280 |
ZGR2#..LHD..E COLD AREA SPEC&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-02050 |
AUR2#,ZGR2# |
1 | ||
| 82663-02050 |
AUR2#,ZGR2# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12070 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82663-12070 |
ZGR2#..LHD COLD AREA SPEC |
1 | ||
| 82663-12070 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82663-12070 |
ZGR2#..LHD..E COLD AREA SPEC&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82663-12070 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82663-12070 |
ZGR2#..LHD..E COLD AREA SPEC&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH |
1 | ||
| 82663-12070 |
ZGR2#..LHD COLD AREA SPEC |
1 | ||
| 82663-12070 |
ZGR2#..LHD..E HIGH PACKAGE&COLD AREA SPEC&CRUISE CONTROL-WITH&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82663-12070 |
ZGR2#..LHD..E COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82663-12070 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12070 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82663-12070 |
ZGR2#..LHD COLD AREA SPEC |
1 | ||
| 82663-12070 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82663-12070 |
ZGR2#..LHD..E COLD AREA SPEC&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82663-12070 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82663-12070 |
ZGR2#..LHD..E COLD AREA SPEC&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH |
1 | ||
| 82663-12070 |
ZGR2#..LHD COLD AREA SPEC |
1 | ||
| 82663-12070 |
ZGR2#..LHD..E HIGH PACKAGE&COLD AREA SPEC&CRUISE CONTROL-WITH&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82663-12070 |
ZGR2#..LHD..E COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82663-12070 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-02050 |
AUR2#,ZGR2# |
1 | ||
| 82741-02050 |
AUR2#,ZGR2# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-12080 |
ZGR2#..LHD COLD AREA SPEC |
1 | ||
| 82741-12080 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82741-12080 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82741-12080 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82741-12080 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82741-12080 |
ZGR2#..LHD COLD AREA SPEC |
1 | ||
| 82741-12080 |
ZGR2#..LHD..E COLD AREA SPEC&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH |
1 | ||
| 82741-12080 |
ZGR2#..LHD..E COLD AREA SPEC&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82741-12080 |
ZGR2#..LHD..E HIGH PACKAGE&COLD AREA SPEC&CRUISE CONTROL-WITH&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82741-12080 |
ZGR2#..LHD..E COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-12080 |
ZGR2#..LHD COLD AREA SPEC |
1 | ||
| 82741-12080 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82741-12080 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82741-12080 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82741-12080 |
ZGR2#..LHD..E COLD AREA SPEC&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82741-12080 |
ZGR2#..LHD COLD AREA SPEC |
1 | ||
| 82741-12080 |
ZGR2#..LHD..E COLD AREA SPEC&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH |
1 | ||
| 82741-12080 |
ZGR2#..LHD..E COLD AREA SPEC&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82741-12080 |
ZGR2#..LHD..E HIGH PACKAGE&COLD AREA SPEC&CRUISE CONTROL-WITH&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82741-12080 |
ZGR2#..LHD..E COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-02450 |
AUR2#,ZGR2# |
1 | ||
| 82817-02450 |
AUR2#,ZGR2# |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
AUR2#,ZGR2# |
1 | ||
| 82824-20140 |
AUR2#,ZGR2# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87030 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 90080-87030 |
AUR2#,ZGR2# |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87031 |
AUR2#,ZGR2# |
1 | ||
| 90080-87031 |
ZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87019 |
AUR2#,ZGR2# |
1 | ||
| 90080-87021 |
AUR2#,ZGR2# |
1 | ||
| 90080-87019 |
AUR2#,ZGR2# |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90080-87019 |
AUR2#,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
3 | ||
| 90080-87019 |
ZGR2#..LHD COLD AREA SPEC |
3 | ||
| 90080-87021 |
AUR2#,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
3 | ||
| 90080-87019 |
ZGR2#..LHD COLD AREA SPEC |
3 | ||
| 90080-87021 |
ZGR2#..LHD COLD AREA SPEC |
3 | ||
| 90080-87019 |
AUR2#,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
3 | ||
| Common parts | ||||
| 82715-02A30 | ||||
| 82715-02A40 | ||||
| 90119-W0030 | ||||
| 90178-W0019 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8405 | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
