ZGR21L-GWXEPW (2010)

Toyota Verso

Production Jul 2010 - Nov 2012
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(0902- )CVT

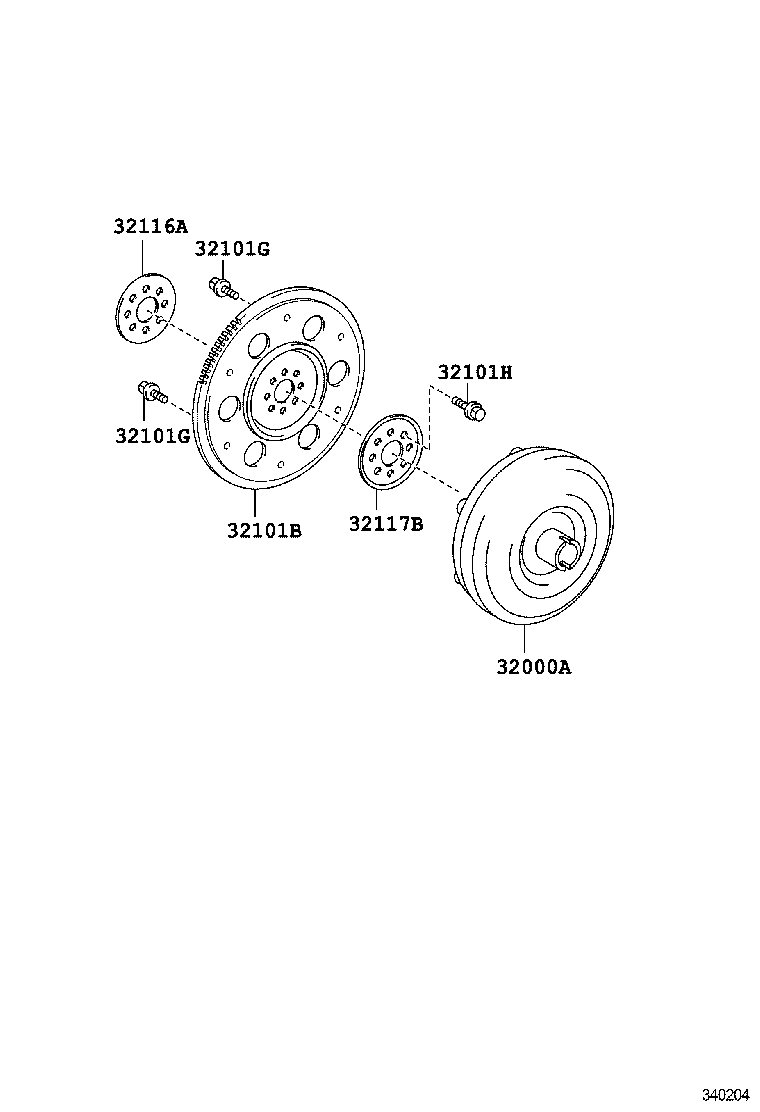

Click highlighted areas on diagram

K311

diagram 32000A 32101B 32101G 32101G 32101H 32116A 32117B
Part # Description Qty Price
32000A - CONVERTER ASSY, TORQUE
32000-12400

ZGR21..CVT

 1
32000-12400

ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY

 1
32101B - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-12100

ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY

 1
32101-12100

ZGR21..CVT

 1
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-08113

ZGR21..CVT

*8-1.25PX12-8.4,BLACK

 1
90109-08113

ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY

*8-1.25PX12-8.4,BLACK

 1
90119-08498

ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY

*8-1.25PX12-8,YELLOW

 5
90119-08498

ZGR21..CVT

*8-1.25PX12-8,YELLOW

 5
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-08113

ZGR21..CVT

*8-1.25PX12-8.4,BLACK

 1
90109-08113

ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY

*8-1.25PX12-8.4,BLACK

 1
90119-08498

ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY

*8-1.25PX12-8,YELLOW

 5
90119-08498

ZGR21..CVT

*8-1.25PX12-8,YELLOW

 5
32101H - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10048

ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY

 8
90105-A0022

ZGR21..CVT

(L)

 8
90105-10048

ZGR21..CVT

(J)

 8
32116A - SPACER, DRIVE PLATE, FRONT
32116-12030

ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY

 1
32116-12030

ZGR21..CVT

 1
32117B - SPACER, DRIVE PLATE, REAR
32117-12040

ZGR21..CVT

 1
32117-12040

ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY

 1
