ZGR21L-GWXEPW (2010)
Toyota Verso
ILLUST NO. 1 OF 2(0902-1503)CVT
K311
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE | ||||
| 30400-20020 |
ZGR21..CVT K311 |
1 | ||
| 30400-20020 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY K311,TOYOTA:REFER TO ILL. |
1 | ||
| 30400-20080 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY K311,AISIN AW:REF.ILLUST |
1 | ||
| 30400N - PLUG, REFILL(CVT) | ||||
| 90341-18061 |
ZGR21..CVT |
1 | ||
| 90341-18077 |
ZGR21..CVT |
1 | ||
| 90341-18061 |
ZGR21..CVT |
1 | ||
| 30400P - GASKET, REFILL PLUG(CVT) | ||||
| 90430-18008 |
ZGR21..CVT |
1 | ||
| 90430-18008 |
ZGR21..CVT |
1 | ||
| 35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT) | ||||
| 35106-20040 |
ZGR21..CVT |
1 | ||
| 35106-20040 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY TOYOTA:REFER TO ILL. |
1 | ||
| 35106-12160 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY AISIN AW:REF.ILLUST |
1 | ||
| 35106P - BOLT(FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
ZGR21..CVT |
16 | ||
| 90119-06173 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY |
16 | ||
| 35125E - TUBE, OVERFLOW(CVT) | ||||
| 35125-20490 |
ZGR21..CVT |
1 | ||
| 35125-20490 |
ZGR21..CVT TOYOTA:REFER TO ILL. |
1 | ||
| 35125-12420 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY AISIN AW:REF.ILLUST |
1 | ||
| 35125F - PLUG, OVERFLOW(CVT) | ||||
| 90341-12034 |
ZGR21..CVT |
1 | ||
| 90341-12034 |
ZGR21..CVT |
1 | ||
| 35125G - GASKET, OVERFLOW PLUG(CVT) | ||||
| 90430-12008 |
ZGR21..CVT |
1 | ||
| 90430-12008 |
ZGR21..CVT |
1 | ||
| 35150B - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-44010 |
ZGR21..CVT |
1 | ||
| 35150-44010 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY AISIN AW:REF.ILLUST |
1 | ||
| 35150-48010 |
ZGR21..CVT TOYOTA:REFER TO ILL. |
1 | ||
| 35150-48010 |
ZGR21..CVT |
1 | ||
| 35150-44010 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY TOYOTA:REFER TO ILL. |
1 | ||
| 35150C - RING, O (FOR TRANSMISSION CASE PLUG) | ||||
| 90301-09173 |
ZGR21..CVT |
1 | ||
| 35168C - GASKET, TRANSAXLE OIL PAN(CVT) | ||||
| 35168-12090 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 35168-12090 |
ZGR21..CVT |
1 | ||
| 35330D - STRAINER ASSY, OIL | ||||
| 35330-0W080 |
ZGR21..CVT |
1 | ||
| 35330-0W080 |
ZGR21..CVT |
1 | ||
| 35330E - RING, O (FOR OIL STRAINER) | ||||
| 90301-22014 |
ZGR21..CVT |
1 | ||
| 90301-22014 |
ZGR21..CVT |
1 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
ZGR21..CVT |
3 | ||
| 35394-30011 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY |
3 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
ZGR21..CVT |
3 | ||
| 35394-30011 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY |
3 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
ZGR21..CVT |
3 | ||
| 35394-30011 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY |
3 | ||
| 35518A - LABEL, AUTOMATIC TRANSAXLE INFORMATION, NO.2 | ||||
| 35518-63010 |
ZGR21..CVT |
1 | ||
| 35572C - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-12160 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY TOYOTA:REFER TO ILL. |
1 | ||
| 35572-12170 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY AISIN AW:REF.ILLUST |
1 | ||
| 35572-12160 |
ZGR21..CVT |
1 | ||
| Common parts | ||||
| 90341-12025 | ||||
| 90430-12221 | ||||
| 90464-00952 | ||||
| 91551-80616 | ||||
| 91551-80645 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 3402 | ||||
| 3414 | ||||
| 8202 | ||||
| 8401 | ||||
| 8410 | ||||

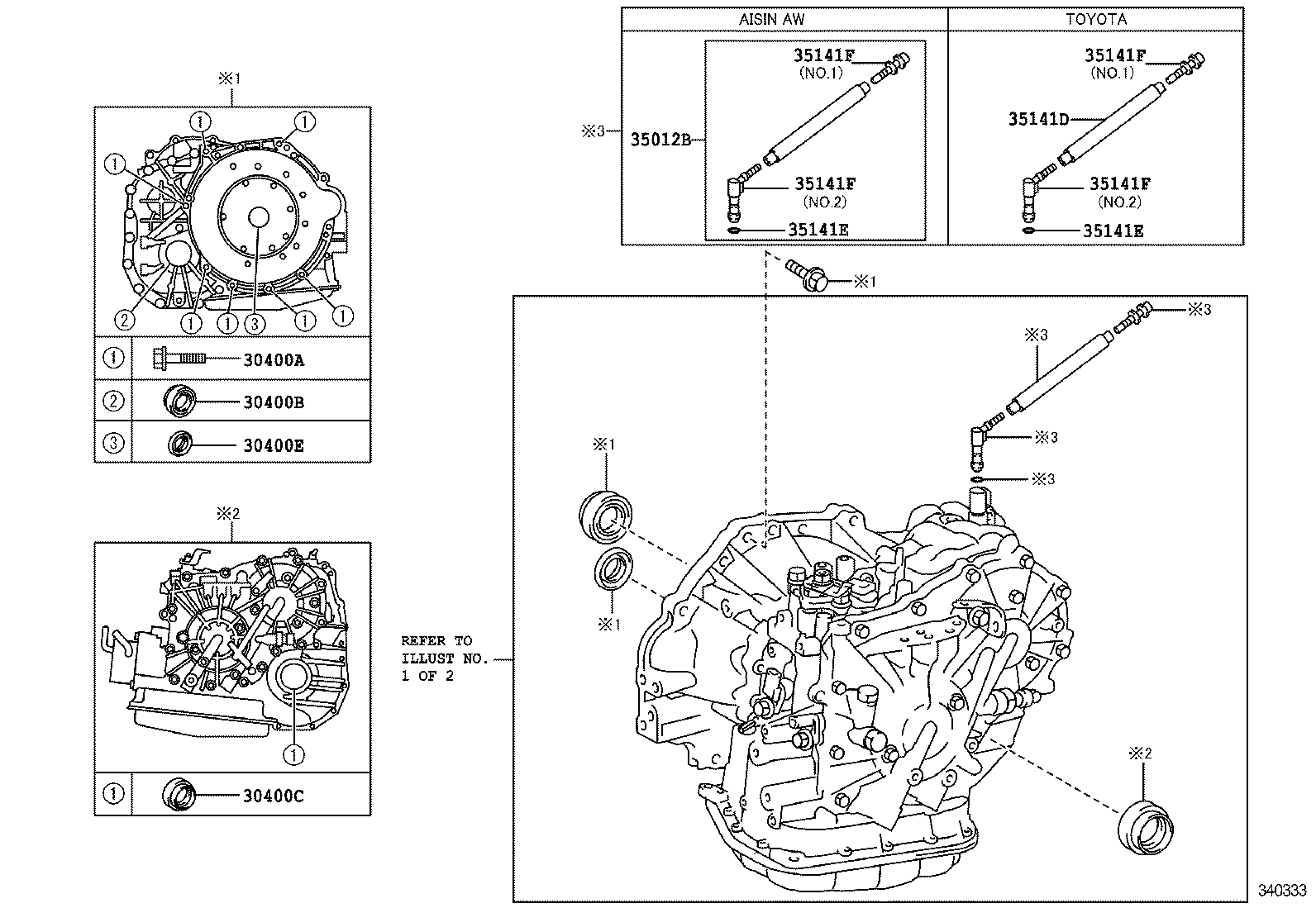

ILLUST NO. 2 OF 2(0902-1503)CVT
K311
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400A - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 91612-61045 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY |
7 | ||
| 90119-W0155 |
ZGR21..CVT (L) |
7 | ||
| 91612-61045 |
ZGR21..CVT (J) |
7 | ||
| 91612-61045 |
ZGR21..CVT |
7 | ||
| 30400B - SEAL, TYPE T OIL, NO.1(FOR CVT) | ||||
| 90311-35055 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 90311-35055 |
ZGR21..CVT |
1 | ||
| 30400C - SEAL, TYPE T OIL, NO.2(FOR CVT) | ||||
| 90311-35054 |
ZGR21..CVT |
1 | ||
| 90311-35068 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 90311-35054 |
ZGR21..CVT |
1 | ||
| 30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP) | ||||
| 90311-45025 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY |
1 | ||
| 90311-45027 |
ZGR21..CVT |
1 | ||
| 90311-45025 |
ZGR21..CVT |
1 | ||
| 35012B - HOSE SUB-ASSY, TRANSMISSION BREATHER | ||||
| 35012-12100 |
ZGR21..CVT AISIN AW:REF.ILLUST |
1 | ||
| 35012-12090 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY AISIN AW:REF.ILLUST |
1 | ||
| 35141D - HOSE(FOR BREATHER PLUG) | ||||
| 35121-12090 |
ZGR21..CVT |
1 | ||
| 35121-12090 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY TOYOTA:REFER TO ILL. |
1 | ||
| 35121-12100 |
ZGR21..CVT |
1 | ||
| 35121-12090 |
ZGR21..CVT TOYOTA:REFER TO ILL. |
1 | ||
| 35141E - RING, O(FOR BREATHER PLUG) | ||||
| 90301-06005 |
ZGR21..CVT |
1 | ||
| 90301-06005 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY TOYOTA:REFER TO ILL. |
1 | ||
| 90301-06005 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY AISIN AW:REF.ILLUST |
1 | ||
| 35141E - RING, O(FOR BREATHER PLUG) | ||||
| 90301-06005 |
ZGR21..CVT |
1 | ||
| 90301-06005 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY TOYOTA:REFER TO ILL. |
1 | ||
| 90301-06005 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY AISIN AW:REF.ILLUST |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90930-03191 |
ZGR21..CVT NO.2 |
1 | ||
| 90930-03191 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY NO.2,TOYOTA |
1 | ||
| 90930-03216 |
ZGR21..CVT NO.1,TOYOTA |
1 | ||
| 90930-03149 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY NO.1,TOYOTA |
1 | ||
| 90930-03216 |
ZGR21..CVT NO.1,AISIN |
1 | ||
| 90930-03191 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY NO.2,AISIN |
1 | ||
| 90930-03149 |
ZGR21..CVT NO.1 |
1 | ||
| 90930-03149 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY NO.1,AISIN |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90930-03191 |
ZGR21..CVT NO.2 |
1 | ||
| 90930-03191 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY NO.2,TOYOTA |
1 | ||
| 90930-03216 |
ZGR21..CVT NO.1,TOYOTA |
1 | ||
| 90930-03149 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY NO.1,TOYOTA |
1 | ||
| 90930-03216 |
ZGR21..CVT NO.1,AISIN |
1 | ||
| 90930-03191 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY NO.2,AISIN |
1 | ||
| 90930-03149 |
ZGR21..CVT NO.1 |
1 | ||
| 90930-03149 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY NO.1,AISIN |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90930-03191 |
ZGR21..CVT NO.2 |
1 | ||
| 90930-03191 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY NO.2,TOYOTA |
1 | ||
| 90930-03216 |
ZGR21..CVT NO.1,TOYOTA |
1 | ||
| 90930-03149 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY NO.1,TOYOTA |
1 | ||
| 90930-03216 |
ZGR21..CVT NO.1,AISIN |
1 | ||
| 90930-03191 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY NO.2,AISIN |
1 | ||
| 90930-03149 |
ZGR21..CVT NO.1 |
1 | ||
| 90930-03149 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY NO.1,AISIN |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90930-03191 |
ZGR21..CVT NO.2 |
1 | ||
| 90930-03191 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY NO.2,TOYOTA |
1 | ||
| 90930-03216 |
ZGR21..CVT NO.1,TOYOTA |
1 | ||
| 90930-03149 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY NO.1,TOYOTA |
1 | ||
| 90930-03216 |
ZGR21..CVT NO.1,AISIN |
1 | ||
| 90930-03191 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY NO.2,AISIN |
1 | ||
| 90930-03149 |
ZGR21..CVT NO.1 |
1 | ||
| 90930-03149 |
ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY NO.1,AISIN |
1 | ||
