ZGR21L-GWXEPW (2010)

Toyota Verso

Production Jul 2010 - Nov 2012
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

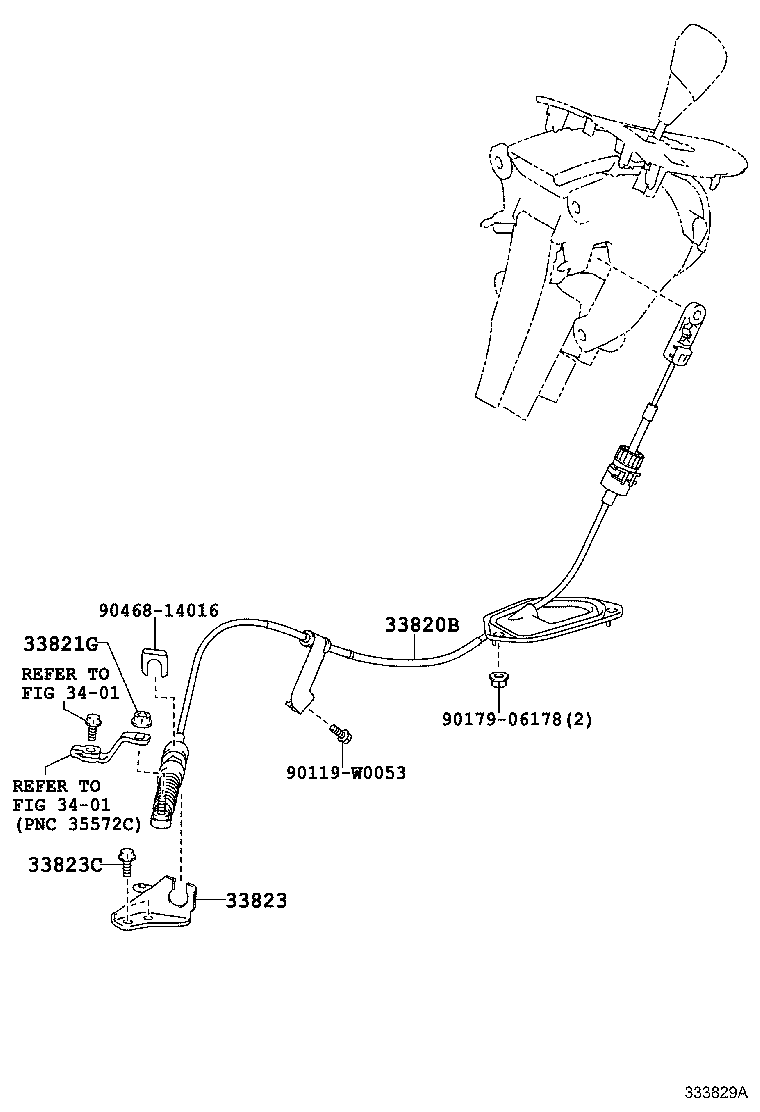

ILLUST NO. 2 OF 2(0902- )CVT

Click highlighted areas on diagram

diagram 33820B 33821G 33823 33823C 3401 3401 90119W0053 9017906178 9046814016
Part # Description Qty Price
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-12B40

ZGR21..CVT

 1
33820-12B40

ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90178-W0031

ZGR21..CVT

 1
90178-W0031

ZGR21..LHD..CVT..ENTRY;AUR21,ZGR21..(ATM,CVT)..E

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-12190

ZGR21..CVT

 1
33823-12190

ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-W0027

ZGR21..CVT

 2
90119-W0027

ZGR21..LHD..CVT..ENTRY;AUR21,ZGR21..(ATM,CVT)..E

 2
Common parts
90119-W0053
90179-06178
90468-14016
Linked diagrams
3401

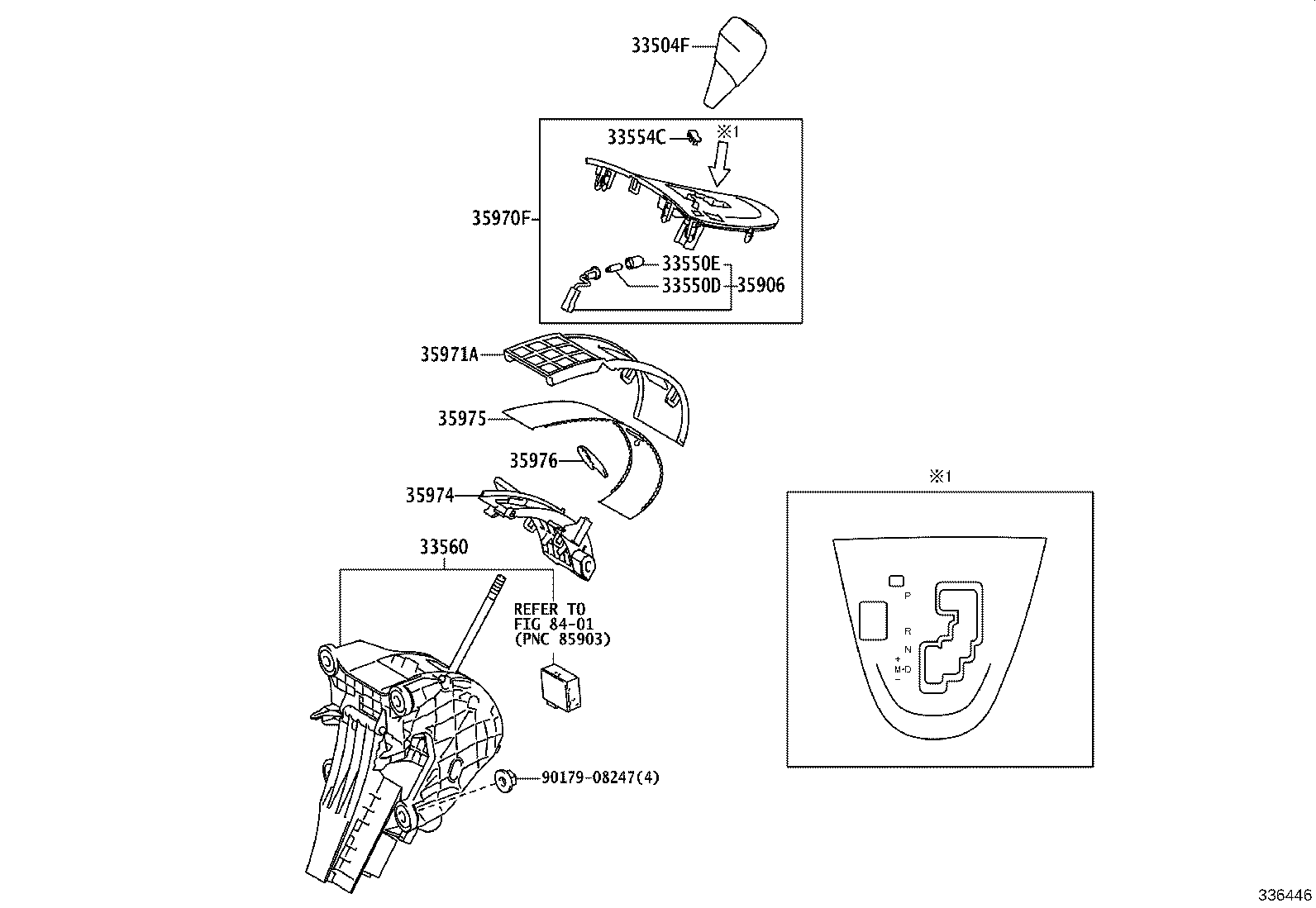

ILLUST NO. 1 OF 2(0902- )ATM,CVT

Click highlighted areas on diagram

diagram 33504F 33550D 33550E 33554C 33560 35906 35970F 35971A 35974 35975 35976 8401 9017908247
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-64010B0

AUR21,ZGR21..(ATM,CVT)..E

DK.GRAY,TRIM1#

 1
33504-12290B2

AUR21,ZGR21..(ATM,CVT)..E

DK.GRAY & ORNAMENT SILVER,TRIM1#

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11018

ZGR21..LHD..CVT..ENTRY;AUR21,ZGR21..(ATM,CVT)..E

12V 1.2W W/O SOCKET

 1
90981-11018

ZGR21..CVT

12V 1.2W W/O SOCKET

 1
33550E - CAP, POSITION INDICATOR LAMP
35956-64020

ZGR21..CVT

 1
35956-64020

ZGR21..LHD..CVT..ENTRY;AUR21,ZGR21..(ATM,CVT)..E

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-64030

ZGR21..LHD..CVT..E

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
33560-64050

ZGR21..LHD..CVT

 1
33560-64030

AUR21,ZGR21..LHD..(ATM,CVT)..E

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
33560-64050

AUR21,ZGR21..LHD..(ATM,CVT)

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-64020

ZGR21..CVT

 1
35906-64020

ZGR21..LHD..CVT..ENTRY;AUR21,ZGR21..(ATM,CVT)..E

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-64010

ZGR21..LHD..CVT

 1
35970-64010

AUR21,ZGR21..LHD..(ATM,CVT)

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-64010

ZGR21..LHD..CVT

 1
35971-64010

AUR21,ZGR21..LHD..(ATM,CVT)

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-64010

AUR21,ZGR21..LHD..(ATM,CVT)

 1
35974-64010

ZGR21..LHD..CVT

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-12380

ZGR21..LHD..CVT..ENTRY;AUR21,ZGR21..(ATM,CVT)..E

 1
35975-12380

ZGR21..CVT

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-28010

ZGR21..CVT

 1
35976-28010

ZGR21..LHD..CVT..ENTRY;AUR21,ZGR21..(ATM,CVT)..E

 1
Common parts
90179-08247
Linked diagrams
8401
