ZGR21L-GWFEPW (2012)
Toyota Verso

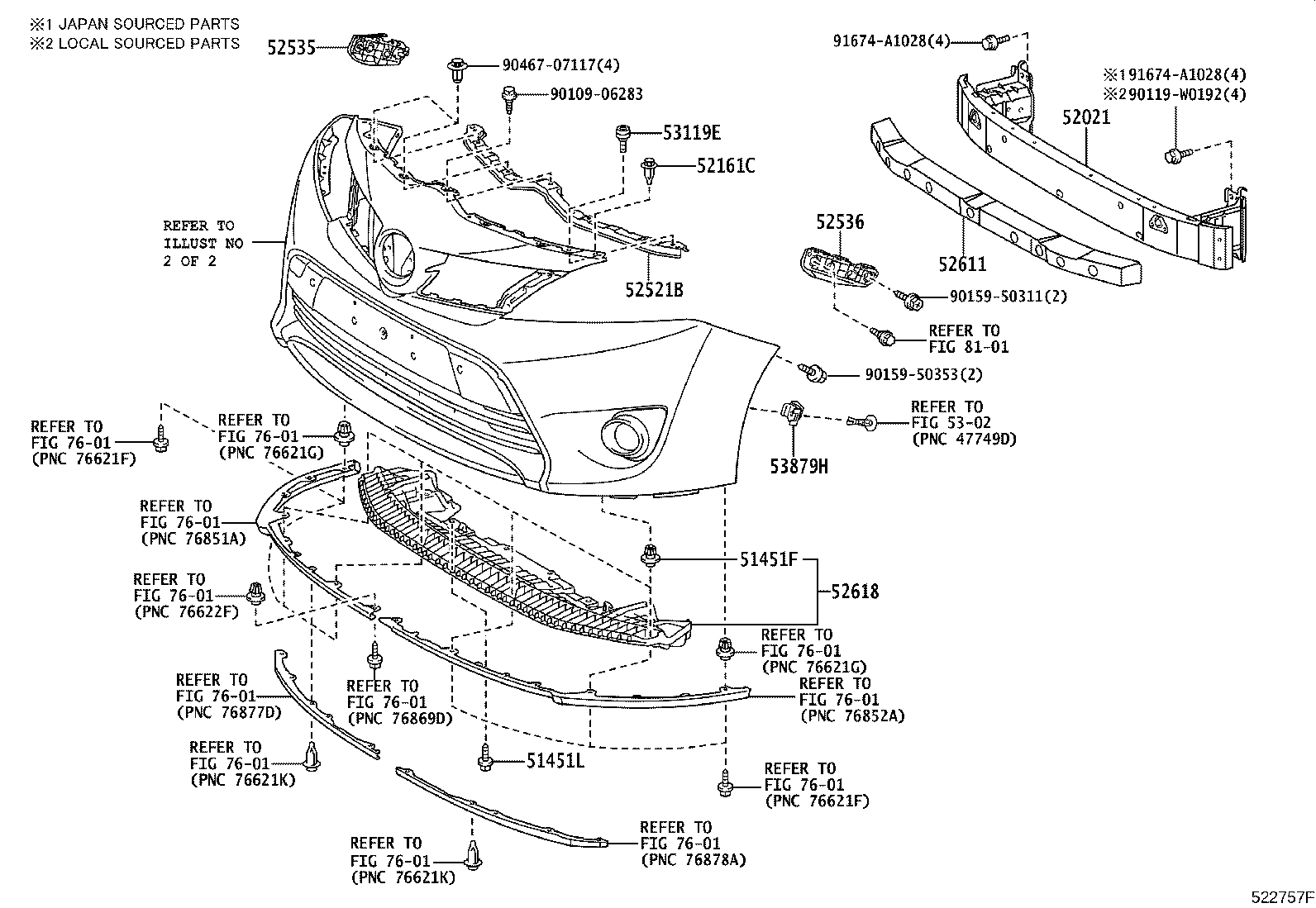

ILLUST NO. 1 OF 2(1211- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451F - GROMMET, NO.1 | ||||
| 90189-05144 |
AUR2#,ZGR2# |
4 | ||
| 90189-05144 |
AUR2#,WAR20,ZGR2# |
4 | ||
| 51451L - BOLT, NO.1 | ||||
| 90119-W0089 |
AUR2#,WAR20,ZGR2# |
8 | ||
| 90119-06767 |
AUR2#,ZGR2# |
8 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-0F021 |
AUR2#,ZGR2# |
1 | ||
| 52021-0F021 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AUR2#,ZGR2# (J) |
2 | ||
| 52161-02030 |
AUR2#,ZGR2# (L) |
2 | ||
| 52161-16010 |
AUR2#,WAR20,ZGR2# (J) |
2 | ||
| 52161-02030 |
AUR2#,WAR20,ZGR2# (L) |
2 | ||
| 52521B - RETAINER, FRONT BUMPER, UPPER | ||||
| 52521-0F010 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 52521-0F010 |
AUR2#,ZGR2# |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-0F020 |
AUR2#,ZGR2# |
1 | ||
| 52535-0F020 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-0F020 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 52536-0F020 |
AUR2#,ZGR2# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-0F010 |
AUR2#,ZGR2# |
1 | ||
| 52611-0F010 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-0F010 |
AUR2#,ZGR2# |
1 | ||
| 52618-0F010 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 53119E - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-20120 |
AUR2#,ZGR2# |
2 | ||
| 53119-20120 |
AUR2#,WAR20,ZGR2# |
2 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-50020 |
AUR2#,ZGR2# |
2 | ||
| 53879-50020 |
AUR2#,WAR20,ZGR2# |
2 | ||
| Common parts | ||||
| 90109-06283 | ||||
| 90119-W0192 | ||||
| 90159-50311 | ||||
| 90159-50353 | ||||
| 90467-07117 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 7601 | ||||
| 8101 | ||||

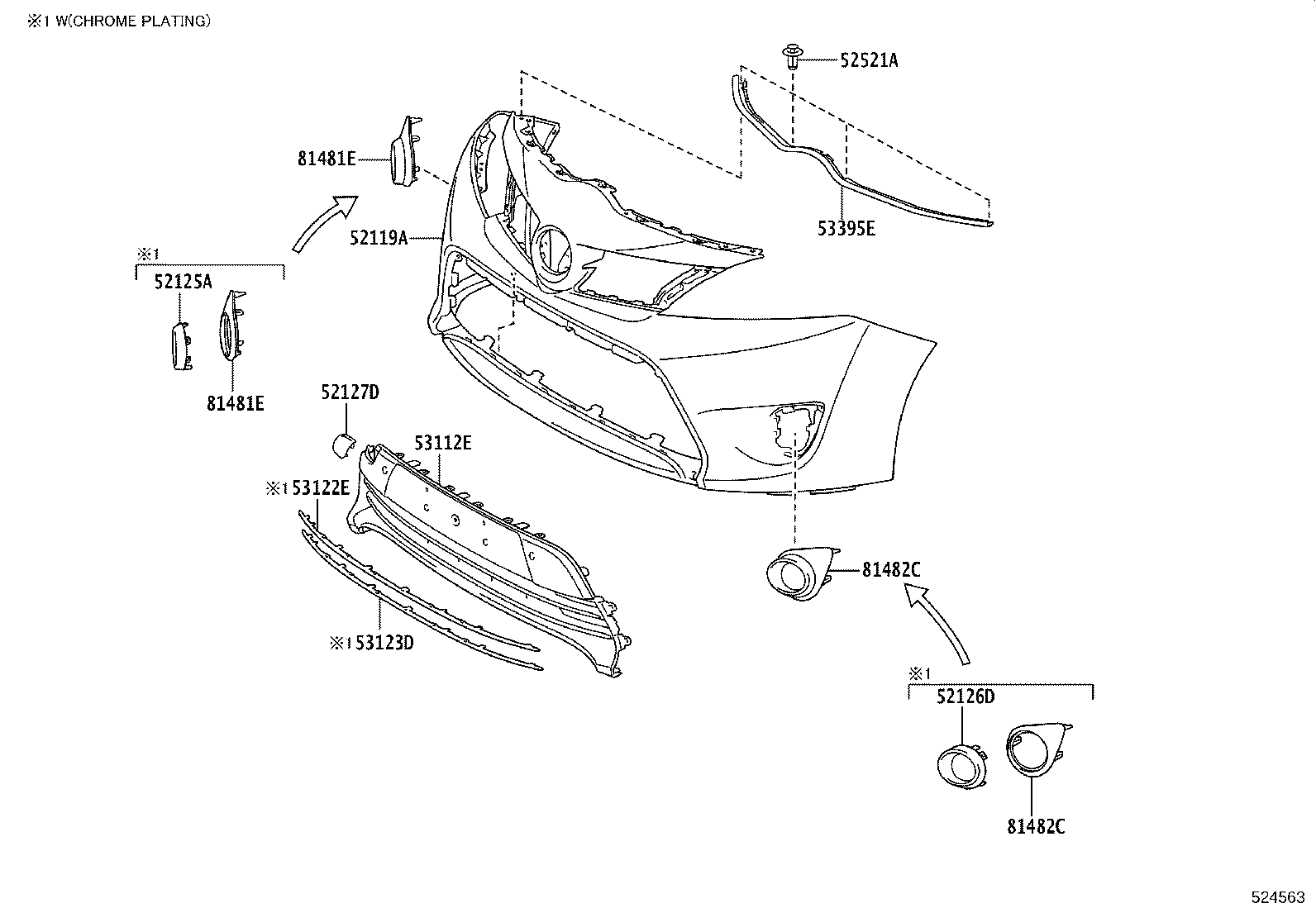

ILLUST NO. 2 OF 2(1211- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0F916 |
AUR2#,ZGR2# PAINT REQ |
1 | ||
| 52119-0F917 |
AUR2#,ZGR2# PAINT REQ,HEADLAMP CLEANER-WITH |
1 | ||
| 52119-0F917 |
ZGR20..LHD;ZGR21..LHD..E PAINT REQ,WEST RUSSIA SPEC&HEADLAMP CLEANER-WITH |
1 | ||
| 52119-0F924 |
ZGR2#..LHD..E PAINT REQ,WEST RUSSIA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-0F925 |
AUR2#,WAR20,ZGR2#..E PAINT REQ,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 52119-0F925 |
ZGR2#..LHD PAINT REQ,WEST RUSSIA SPEC&HEADLAMP CLEANER-WITH |
1 | ||
| 52119-0F926 |
ZGR2#..LHD..E PAINT REQ,WEST RUSSIA SPEC&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-0F926 |
ZGR2#..LHD..E PAINT REQ,WEST RUSSIA SPEC&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-0F924 |
AUR2#,WAR20,ZGR2#..LHD..E PAINT REQ,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-0F923 |
AUR2#,WAR20,ZGR2# PAINT REQ |
1 | ||
| 52119-0F924 |
ZGR2#..LHD..E PAINT REQ,WEST RUSSIA SPEC&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-0F925 |
AUR2#,WAR20,ZGR2# PAINT REQ,HEADLAMP CLEANER-WITH |
1 | ||
| 52119-0F925 |
ZGR2#..LHD..E PAINT REQ,WEST RUSSIA SPEC&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 52119-0F926 |
AUR2#,WAR20,ZGR2#..LHD..E PAINT REQ,HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-0F924 |
AUR2#,WAR20,ZGR2#..LHD..E PAINT REQ,FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-0F926 |
AUR2#,WAR20,ZGR2#..LHD..E PAINT REQ,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACKSONAR-WITH |
1 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-0F020 |
ZGR2#..LHD..E WEST RUSSIA SPEC&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 52125-0F020 |
ZGR2#..LHD..E WEST RUSSIA SPEC&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE& BACK SONAR-WITH |
1 | ||
| 52125-0F020 |
ZGR2#..LHD..E WEST RUSSIA SPEC&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 52125-0F020 |
AUR2#,WAR20,ZGR2#..LHD..E FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52125-0F020 |
AUR2#,WAR20,ZGR2#..E FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 52125-0F020 |
AUR2#,WAR20,ZGR2#..LHD..E HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52125-0F020 |
AUR2#,WAR20,ZGR2#..E HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 52125-0F020 |
ZGR2#..LHD..E WEST RUSSIA SPEC&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52126D - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-0F020 |
ZGR2#..LHD..E WEST RUSSIA SPEC&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 52126-0F020 |
AUR2#,WAR20,ZGR2#..E HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 52126-0F020 |
ZGR2#..LHD..E WEST RUSSIA SPEC&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 52126-0F020 |
AUR2#,WAR20,ZGR2#..LHD..E HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52126-0F020 |
ZGR2#..LHD..E WEST RUSSIA SPEC&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52126-0F020 |
AUR2#,WAR20,ZGR2#..E FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 52126-0F020 |
ZGR2#..LHD..E WEST RUSSIA SPEC&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE& BACK SONAR-WITH |
1 | ||
| 52126-0F020 |
AUR2#,WAR20,ZGR2#..LHD..E FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-0F060 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 52127-0F900 |
AUR2#,ZGR2# |
1 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 90467-05063C0 |
AUR2#,ZGR2# BLACK |
4 | ||
| 90467-05063C0 |
AUR2#,WAR20,ZGR2# BLACK |
4 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-0F080 |
ZGR2#..LHD..E NO PAINT REQ.,WEST RUSSIA SPEC&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53112-0F040 |
AUR2#,ZGR2# NO PAINT REQ. |
1 | ||
| 53112-0F080 |
ZGR2#..LHD..E NO PAINT REQ.,WEST RUSSIA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53112-0F080 |
AUR2#,WAR20,ZGR2#..LHD..E NO PAINT REQ.,HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53112-0F060 |
AUR2#,WAR20,ZGR2# NO PAINT REQ. |
1 | ||
| 53112-0F080 |
AUR2#,WAR20,ZGR2#..LHD..E NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53112-0F909 |
ZGR2#..LHD..E PAINT REQ.,WEST RUSSIA SPEC&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53112-0F909 |
AUR2#,WAR20,ZGR2#..LHD..E PAINT REQ.,FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53112-0F902 |
ZGR2#..LHD..E PAINT REQ.,WEST RUSSIA SPEC&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 53112-0F902 |
AUR2#,WAR20,ZGR2#..E PAINT REQ.,FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 53112-0F909 |
ZGR2#..LHD..E PAINT REQ.,WEST RUSSIA SPEC&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53112-0F902 |
ZGR2#..LHD..E PAINT REQ.,WEST RUSSIA SPEC&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 53112-0F902 |
AUR2#,WAR20,ZGR2#..E PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 53112-0F909 |
AUR2#,WAR20,ZGR2#..LHD..E PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53122E - MOULDING, RADIATOR GRILLE, LOWER | ||||
| 53121-0F020 |
ZGR2#..LHD..E WEST RUSSIA SPEC&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE& BACK SONAR-WITH |
1 | ||
| 53121-0F020 |
AUR2#,WAR20,ZGR2#..E FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 53121-0F020 |
ZGR2#..LHD..E WEST RUSSIA SPEC&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 53121-0F020 |
ZGR2#..LHD..E WEST RUSSIA SPEC&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53121-0F020 |
AUR2#,WAR20,ZGR2#..LHD..E HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53121-0F020 |
AUR2#,WAR20,ZGR2#..E HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 53121-0F020 |
ZGR2#..LHD..E WEST RUSSIA SPEC&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 53121-0F020 |
AUR2#,WAR20,ZGR2#..LHD..E FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53123D - MOULDING, RADIATOR GRILLE, LOWER | ||||
| 53122-0F020 |
AUR2#,WAR20,ZGR2#..LHD..E HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53122-0F020 |
AUR2#,WAR20,ZGR2#..E HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 53122-0F020 |
ZGR2#..LHD..E WEST RUSSIA SPEC&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 53122-0F020 |
ZGR2#..LHD..E WEST RUSSIA SPEC&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE& BACK SONAR-WITH |
1 | ||
| 53122-0F020 |
ZGR2#..LHD..E WEST RUSSIA SPEC&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 53122-0F020 |
AUR2#,WAR20,ZGR2#..E FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 53122-0F020 |
AUR2#,WAR20,ZGR2#..LHD..E FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53122-0F020 |
ZGR2#..LHD..E WEST RUSSIA SPEC&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53395E - SEAL, HOOD TO FRONT END PANEL | ||||
| 53395-0F010 |
AUR2#,ZGR2# |
1 | ||
| 53395-0F030 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-0F020 |
AUR2#,ZGR2#..E |
1 | ||
| 81481-0F060 |
ZGR2#..LHD..E WEST RUSSIA SPEC&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE& BACK SONAR-WITH |
1 | ||
| 81481-0F060 |
ZGR2#..LHD..E WEST RUSSIA SPEC&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 81481-0F060 |
ZGR2#..LHD..E WEST RUSSIA SPEC&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 81481-0F050 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 81481-0F060 |
AUR2#,WAR20,ZGR2#..LHD..E HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 81481-0F060 |
AUR2#,WAR20,ZGR2#..E HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 81481-0F060 |
ZGR2#..LHD..E WEST RUSSIA SPEC&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 81481-0F060 |
AUR2#,WAR20,ZGR2#..LHD..E FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 81481-0F060 |
AUR2#,WAR20,ZGR2#..E FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-0F020 |
AUR2#,ZGR2#..E |
1 | ||
| 81481-0F060 |
ZGR2#..LHD..E WEST RUSSIA SPEC&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE& BACK SONAR-WITH |
1 | ||
| 81481-0F060 |
ZGR2#..LHD..E WEST RUSSIA SPEC&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 81481-0F060 |
ZGR2#..LHD..E WEST RUSSIA SPEC&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 81481-0F050 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 81481-0F060 |
AUR2#,WAR20,ZGR2#..LHD..E HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 81481-0F060 |
AUR2#,WAR20,ZGR2#..E HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 81481-0F060 |
ZGR2#..LHD..E WEST RUSSIA SPEC&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 81481-0F060 |
AUR2#,WAR20,ZGR2#..LHD..E FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 81481-0F060 |
AUR2#,WAR20,ZGR2#..E FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-0F020 |
AUR2#,ZGR2#..E |
1 | ||
| 81482-0F060 |
ZGR2#..LHD..E WEST RUSSIA SPEC&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE& BACK SONAR-WITH |
1 | ||
| 81482-0F060 |
ZGR2#..LHD..E WEST RUSSIA SPEC&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 81482-0F030 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 81482-0F060 |
AUR2#,WAR20,ZGR2#..E HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 81482-0F060 |
ZGR2#..LHD..E WEST RUSSIA SPEC&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 81482-0F060 |
AUR2#,WAR20,ZGR2#..LHD..E HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 81482-0F060 |
AUR2#,WAR20,ZGR2#..E FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 81482-0F060 |
ZGR2#..LHD..E WEST RUSSIA SPEC&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 81482-0F060 |
AUR2#,WAR20,ZGR2#..LHD..E FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-0F020 |
AUR2#,ZGR2#..E |
1 | ||
| 81482-0F060 |
ZGR2#..LHD..E WEST RUSSIA SPEC&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE& BACK SONAR-WITH |
1 | ||
| 81482-0F060 |
ZGR2#..LHD..E WEST RUSSIA SPEC&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 81482-0F030 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 81482-0F060 |
AUR2#,WAR20,ZGR2#..E HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 81482-0F060 |
ZGR2#..LHD..E WEST RUSSIA SPEC&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 81482-0F060 |
AUR2#,WAR20,ZGR2#..LHD..E HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 81482-0F060 |
AUR2#,WAR20,ZGR2#..E FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 81482-0F060 |
ZGR2#..LHD..E WEST RUSSIA SPEC&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 81482-0F060 |
AUR2#,WAR20,ZGR2#..LHD..E FRONT FOG LAMP-WITH(FOG)+PLATING&CLEARANCE & BACK SONAR-WITH |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
