ZGR20R-GWFEPW (2012)

Toyota Verso

Production Nov 2012 - Mar 2015
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1211- )

Click highlighted areas on diagram

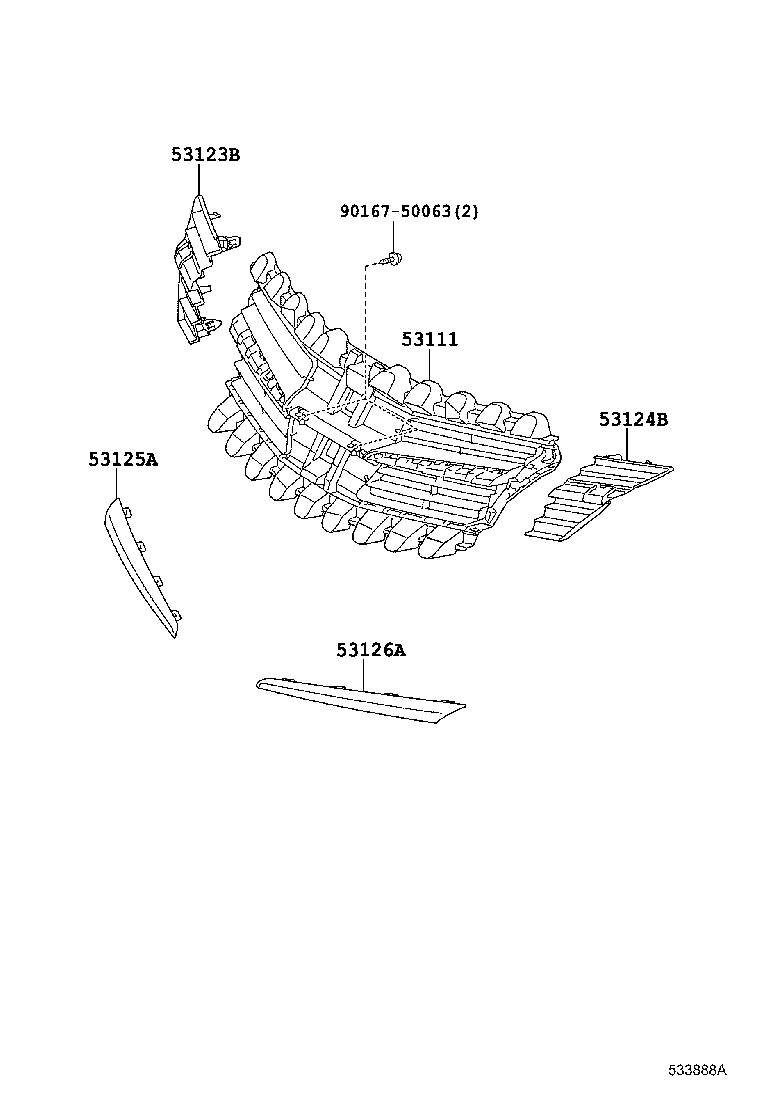

diagram 53111 53123B 53124B 53125A 53126A 9016750063
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-0F903

AUR2#,ZGR2#

PAINT REQ.

 1
53111-0F060

AUR2#,WAR20,ZGR2#

NO PAINT REQ.

 1
53123B - MOULDING, RADIATOR GRILLE SIDE, RH
53123-0F010

AUR2#,WAR20,ZGR2#

 1
53124B - MOULDING, RADIATOR GRILLE SIDE, LH
53124-0F010

AUR2#,WAR20,ZGR2#

 1
53125A - MOULDING, RADIATOR GRILLE, CENTER RH
53125-0F020

AUR2#,WAR20,ZGR2#

 1
53126A - MOULDING, RADIATOR GRILLE, CENTER LH
53126-0F020

AUR2#,WAR20,ZGR2#

 1
Common parts
90167-50063
