ZGR20R-GWFDPW (2012)

Toyota Verso

Production Nov 2012 - Mar 2015
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

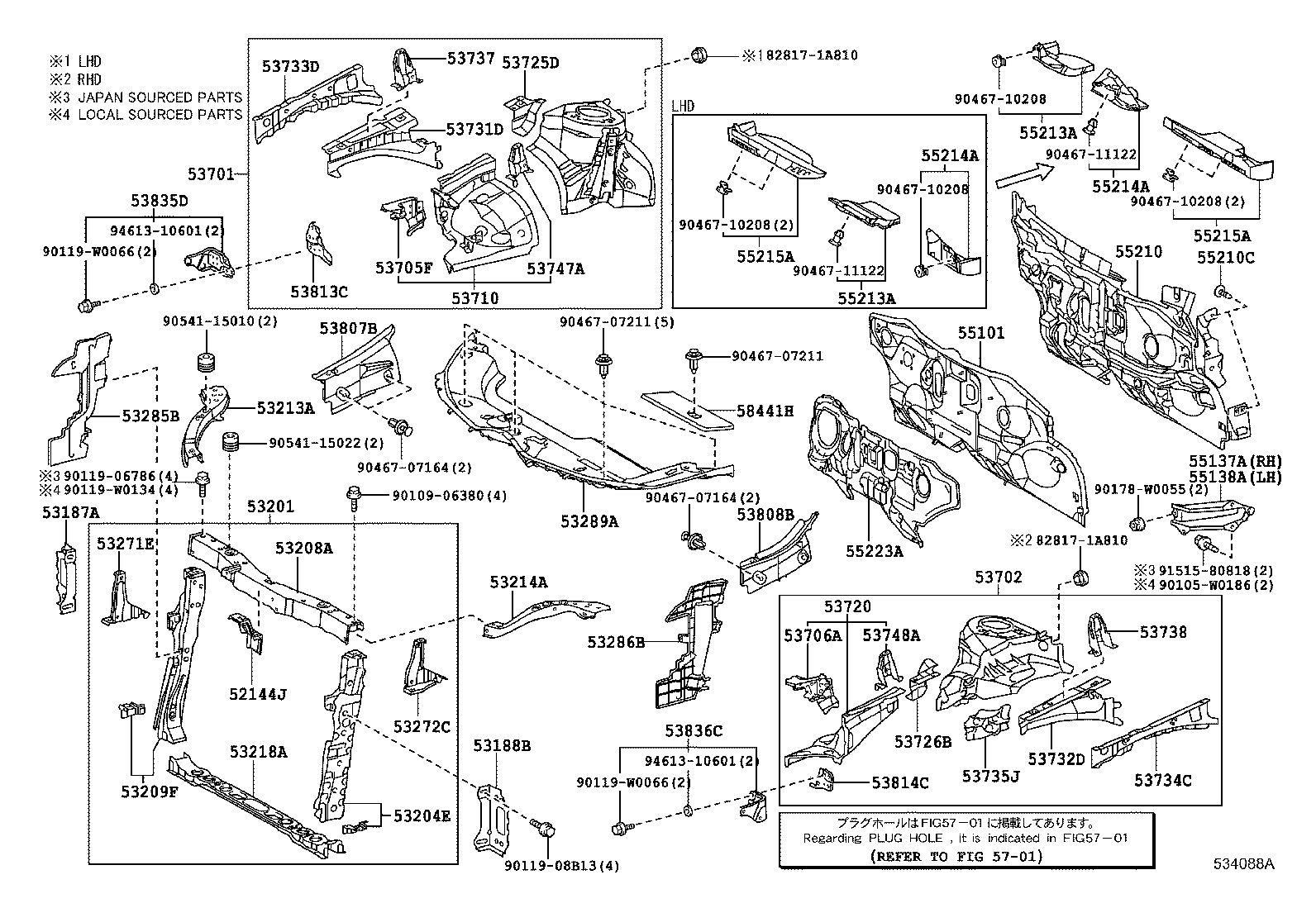

Click highlighted areas on diagram

diagram 52144J 53187A 53188B 53201 53204E 53208A 53209F 53213A 53214A 53218A 53271E 53272C 53285B 53286B 53289A 53701 53702 53705F 53706A 53710 53720 53725D 53726B 53731D 53732D 53733D 53734C 53735J 53737 53738 53747A 53748A 53807B 53808B 53813C 53814C 53835D 53836C 55101 55137A 55138A 55210 55210C 55213A 55213A 55214A 55214A 55215A 55215A 55223A 5701 58441H 828171A810 828171A810 90105W0186 9010906380 9011906786 9011908B13 90119W0066 90119W0066 90119W0134 90178W0055 9046707164 9046707164 9046707211 9046707211 9046710208 9046710208 9046710208 9046710208 9046711122 9046711122 9054115010 9054115022 9151580818 9461310601 9461310601
Part # Description Qty Price
52144J - STAY, FRONT BUMPER, CENTER
52085-0F010

AUR2#,ZGR2#

 1
52085-0F010

AUR2#,WAR20,ZGR2#

 1
53187A - STAY, RADIATOR SUPPORT, RH
53187-02010

AUR2#,ZGR2#

 1
53187-02010

AUR2#,WAR20,ZGR2#

 1
53188B - STAY, RADIATOR SUPPORT, LH
53188-02010

AUR2#,ZGR2#

 1
53188-02010

AUR2#,WAR20,ZGR2#

 1
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-0F912

AUR2#,ZGR2#

 1
53205-0F900

AUR2#,WAR20,ZGR2#

 1
53204E - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, LH
53204-02010

AUR2#,ZGR2#

 1
53204-02010

AUR2#,WAR20,ZGR2#

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-02140

AUR2#,ZGR2#

 1
53208-02140

AUR2#,WAR20,ZGR2#

 1
53209F - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, RH
53209-02040

AUR2#,ZGR2#

 1
53209-02040

AUR2#,WAR20,ZGR2#

 1
53213A - SUPPORT, RADIATOR, UPPER RH
53202-0F030

AUR2#,WAR20,ZGR2#

 1
53202-0F030

AUR2#,ZGR2#

 1
53214A - SUPPORT, RADIATOR, UPPER LH
53214-0F020

AUR2#,ZGR2#

 1
53214-0F020

AUR2#,WAR20,ZGR2#

 1
53218A - SUPPORT, RADIATOR, LOWER
53218-02901

AUR2#,WAR20,ZGR2#

 1
53218-02901

AUR2#,ZGR2#

 1
53271E - BRACKET, HEADLAMP MOUNTING, RH
53271-0F010

AUR2#,ZGR2#

 1
53271-0F040

AUR2#,WAR20,ZGR2#

 1
53272C - BRACKET, HEADLAMP MOUNTING, LH
53272-0F080

AUR2#,WAR20,ZGR2#

 1
53272-0F030

AUR2#,ZGR2#

 1
53285B - SEAL, RADIATOR SIDE AIR, NO.1
53285-0F050

AUR2#,ZGR2#

 1
53285-0F090

AUR2#,WAR20,ZGR2#

 1
53286B - SEAL, RADIATOR SIDE AIR, NO.2
53286-0F050

AUR2#,ZGR2#

 1
53286-0F090

AUR2#,WAR20,ZGR2#

 1
53289A - COVER, RADIATOR SUPPORT OPENING
53289-0F030

AUR2#,ZGR2#

 1
53289-0F051

AUR2#,WAR20,ZGR2#

 1
53289-0F050

AUR2#,ZGR2#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-0F030

AUR2#,ZGR2#

 1
53701-0F030

AUR2#,WAR20,ZGR2#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-0F020

AUR2#,ZGR2#

 1
53702-0F020

AUR2#,WAR20,ZGR2#

 1
53705F - BRACE SUB-ASSY, FENDER APRON, RH
53705-0F030

AUR2#,ZGR2#

 1
53705-0F030

AUR2#,WAR20,ZGR2#

 1
53706A - BRACE SUB-ASSY, FENDER APRON, LH
53706-0F020

AUR2#,ZGR2#

 1
53706-0F020

AUR2#,WAR20,ZGR2#

 1
53710 - APRON ASSY, W/FRONT SIDE MEMBER, RH
53710-0F900

AUR2#,ZGR2#

 1
53710-0F900

AUR2#,WAR20,ZGR2#

 1
53720 - APRON ASSY, W/FRONT SIDE MEMBER, LH
53720-0F900

AUR2#,WAR20,ZGR2#

 1
53720-0F900

AUR2#,ZGR2#

 1
53725D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH
53725-02010

AUR2#,ZGR2#

 1
53725-02010

AUR2#,WAR20,ZGR2#

 1
53726B - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH
53726-02010

AUR2#,ZGR2#

 1
53726-02010

AUR2#,WAR20,ZGR2#

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-02020

AUR2#,WAR20,ZGR2#

 1
53731-02020

AUR2#,ZGR2#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-02020

AUR2#,WAR20,ZGR2#

 1
53732-02020

AUR2#,ZGR2#

 1
53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53733-02010

AUR2#,ZGR2#

(L)

 1
53733-12070

AUR2#,ZGR2#

(J)

 1
53733-02010

AUR2#,WAR20,ZGR2#

(L)

 1
53733-12070

AUR2#,WAR20,ZGR2#

(J)

 1
53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53734-02010

AUR2#,WAR20,ZGR2#

(L)

 1
53734-02010

AUR2#,ZGR2#

(L)

 1
53734-12070

AUR2#,WAR20,ZGR2#

(J)

 1
53734-12070

AUR2#,ZGR2#

(J)

 1
53735J - PATCH, FRONT FENDER APRON, NO.5
53735-02010

AUR2#,ZGR2#

 1
53735-02010

AUR2#,WAR20,ZGR2#

 1
53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53737-0F030

AUR2#,WAR20,ZGR2#

 1
53737-0F030

AUR2#,ZGR2#

 1
53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53738-0F020

AUR2#,WAR20,ZGR2#

 1
53738-0F020

AUR2#,ZGR2#

 1
53747A - EXTENSION, APRON FENDER SIDE, RH
53747-0F020

AUR2#,ZGR2#

 1
53747-0F020

AUR2#,WAR20,ZGR2#

 1
53748A - EXTENSION, APRON FENDER SIDE, LH
53748-0F020

AUR2#,ZGR2#

 1
53748-0F020

AUR2#,WAR20,ZGR2#

 1
53807B - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH
53807-0F010

AUR2#,WAR20,ZGR2#

 1
53807-0F010

AUR2#,ZGR2#

 1
53808B - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH
53808-0F010

AUR2#,ZGR2#

 1
53808-0F010

AUR2#,WAR20,ZGR2#

 1
53813C - EXTENSION, FRONT FENDER, RH
53813-05020

AUR2#,WAR20,ZGR2#

 1
53813-05020

AUR2#,ZGR2#

 1
53814C - EXTENSION, FRONT FENDER, LH
53814-05020

AUR2#,ZGR2#

 1
53814-05020

AUR2#,WAR20,ZGR2#

 1
53835D - BRACKET, FRONT SIDE PANEL, RH
53835-0F010

AUR2#,ZGR2#

 1
53803-0F010

AUR2#,WAR20,ZGR2#

 1
53835-0F010

AUR2#,ZGR2#

 1
53836C - BRACKET, FRONT SIDE PANEL, LH
53836-0F010

AUR2#,ZGR2#

 1
53836-0F010

AUR2#,ZGR2#

 1
53804-0F010

AUR2#,WAR20,ZGR2#

 1
55101 - PANEL SUB-ASSY, DASH
55101-02680

AUR2#,ZGR2#..RHD..6F

 1
55101-02680

AUR20,WAR20,ZGR2#..RHD..6F

 1
55137A - BRACE, DASH TO FRAME, RH
55137-02010

AUR2#,ZGR2#

 1
55137-02010

AUR2#,ZGR2#

 1
55137-02011

AUR2#,WAR20,ZGR2#

 1
55138A - BRACE, DASH TO FRAME, LH
55138-02010

AUR2#,ZGR2#

 1
55138-02010

AUR2#,ZGR2#

 1
55138-02011

AUR2#,WAR20,ZGR2#

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-0F070

AUR2#,WAR20,ZGR2#..RHD

 1
55210-0F071

AUR2#,WAR20,ZGR2#..RHD

 1
55210-0F040

AUR2#,ZGR2#..RHD

 1
55210C - CLIP
90467-08186C0

AUR2#,WAR20,ZGR2#

BLACK

 4
90467-08186C0

AUR2#,ZGR2#

BLACK

 4
55213A - PAD, DASH PANEL SILENCER
55213-0F040

AUR2#,ZGR2#..RHD

 1
55213-0F040

AUR2#,WAR20,ZGR2#..RHD

 1
55213-02220

AUR2#,WAR20,ZGR2#..RHD

 1
55213A - PAD, DASH PANEL SILENCER
55213-0F040

AUR2#,ZGR2#..RHD

 1
55213-0F040

AUR2#,WAR20,ZGR2#..RHD

 1
55213-02220

AUR2#,WAR20,ZGR2#..RHD

 1
55214A - PAD, DASH PANEL INSULATOR, NO.2
55214-0F020

AUR2#,ZGR2#..RHD

 1
55214-0F020

AUR2#,WAR20,ZGR2#..RHD

 1
55214A - PAD, DASH PANEL INSULATOR, NO.2
55214-0F020

AUR2#,ZGR2#..RHD

 1
55214-0F020

AUR2#,WAR20,ZGR2#..RHD

 1
55215A - PAD, DASH PANEL INSULATOR, NO.3
55215-02020

AUR2#,ZGR2#..RHD

 1
55215-02020

AUR2#,WAR20,ZGR2#..RHD

 1
55215A - PAD, DASH PANEL INSULATOR, NO.3
55215-02020

AUR2#,ZGR2#..RHD

 1
55215-02020

AUR2#,WAR20,ZGR2#..RHD

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-02160

AUR2#,WAR20,ZGR2#..RHD

 1
55223-02160

AUR2#,ZGR2#..RHD

 1
58441H - COVER, BATTERY SERVICE HOLE
58441-02010

AUR2#,ZGR2#

 1
Common parts
82817-1A810
90105-W0186
90109-06380
90119-06786
90119-08B13
90119-W0066
90119-W0134
90178-W0055
90467-07164
90467-07211
90467-10208
90467-11122
90541-15010
90541-15022
91515-80818
94613-10601
Linked diagrams
5701

(1211-1312)

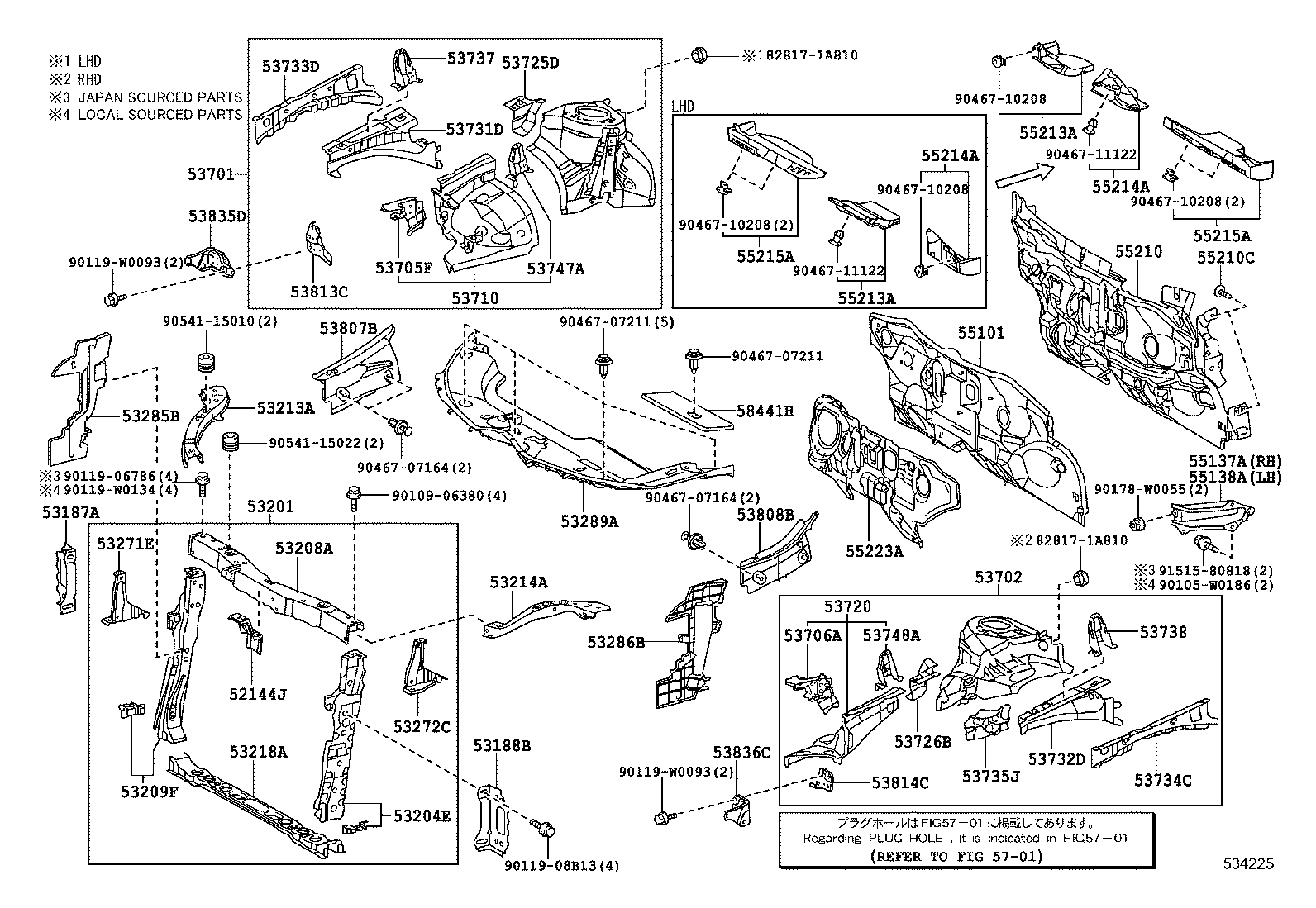

Click highlighted areas on diagram

diagram 52144J 53187A 53188B 53201 53204E 53208A 53209F 53213A 53214A 53218A 53271E 53272C 53285B 53286B 53289A 53701 53702 53705F 53706A 53710 53720 53725D 53726B 53731D 53732D 53733D 53734C 53735J 53737 53738 53747A 53748A 53807B 53808B 53813C 53814C 53835D 53836C 55101 55137A 55138A 55210 55210C 55213A 55213A 55214A 55214A 55215A 55215A 55223A 5701 58441H 828171A810 828171A810 90105W0186 9010906380 9011906786 9011908B13 90119W0093 90119W0093 90119W0134 90178W0055 9046707164 9046707164 9046707211 9046707211 9046710208 9046710208 9046710208 9046710208 9046711122 9046711122 9054115010 9054115022 9151580818
Part # Description Qty Price
52144J - STAY, FRONT BUMPER, CENTER
52085-0F010

AUR2#,ZGR2#

 1
52085-0F010

AUR2#,WAR20,ZGR2#

 1
53187A - STAY, RADIATOR SUPPORT, RH
53187-02010

AUR2#,ZGR2#

 1
53187-02010

AUR2#,WAR20,ZGR2#

 1
53188B - STAY, RADIATOR SUPPORT, LH
53188-02010

AUR2#,ZGR2#

 1
53188-02010

AUR2#,WAR20,ZGR2#

 1
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-0F912

AUR2#,ZGR2#

 1
53205-0F900

AUR2#,WAR20,ZGR2#

 1
53204E - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, LH
53204-02010

AUR2#,ZGR2#

 1
53204-02010

AUR2#,WAR20,ZGR2#

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-02140

AUR2#,ZGR2#

 1
53208-02140

AUR2#,WAR20,ZGR2#

 1
53209F - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, RH
53209-02040

AUR2#,ZGR2#

 1
53209-02040

AUR2#,WAR20,ZGR2#

 1
53213A - SUPPORT, RADIATOR, UPPER RH
53202-0F030

AUR2#,WAR20,ZGR2#

 1
53202-0F030

AUR2#,ZGR2#

 1
53214A - SUPPORT, RADIATOR, UPPER LH
53214-0F020

AUR2#,ZGR2#

 1
53214-0F020

AUR2#,WAR20,ZGR2#

 1
53218A - SUPPORT, RADIATOR, LOWER
53218-02901

AUR2#,WAR20,ZGR2#

 1
53218-02901

AUR2#,ZGR2#

 1
53271E - BRACKET, HEADLAMP MOUNTING, RH
53271-0F010

AUR2#,ZGR2#

 1
53271-0F040

AUR2#,WAR20,ZGR2#

 1
53272C - BRACKET, HEADLAMP MOUNTING, LH
53272-0F080

AUR2#,WAR20,ZGR2#

 1
53272-0F030

AUR2#,ZGR2#

 1
53285B - SEAL, RADIATOR SIDE AIR, NO.1
53285-0F050

AUR2#,ZGR2#

 1
53285-0F090

AUR2#,WAR20,ZGR2#

 1
53286B - SEAL, RADIATOR SIDE AIR, NO.2
53286-0F050

AUR2#,ZGR2#

 1
53286-0F090

AUR2#,WAR20,ZGR2#

 1
53289A - COVER, RADIATOR SUPPORT OPENING
53289-0F030

AUR2#,ZGR2#

 1
53289-0F051

AUR2#,WAR20,ZGR2#

 1
53289-0F050

AUR2#,ZGR2#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-0F030

AUR2#,ZGR2#

 1
53701-0F030

AUR2#,WAR20,ZGR2#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-0F020

AUR2#,ZGR2#

 1
53702-0F020

AUR2#,WAR20,ZGR2#

 1
53705F - BRACE SUB-ASSY, FENDER APRON, RH
53705-0F030

AUR2#,ZGR2#

 1
53705-0F030

AUR2#,WAR20,ZGR2#

 1
53706A - BRACE SUB-ASSY, FENDER APRON, LH
53706-0F020

AUR2#,ZGR2#

 1
53706-0F020

AUR2#,WAR20,ZGR2#

 1
53710 - APRON ASSY, W/FRONT SIDE MEMBER, RH
53710-0F900

AUR2#,ZGR2#

 1
53710-0F900

AUR2#,WAR20,ZGR2#

 1
53720 - APRON ASSY, W/FRONT SIDE MEMBER, LH
53720-0F900

AUR2#,WAR20,ZGR2#

 1
53720-0F900

AUR2#,ZGR2#

 1
53725D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH
53725-02010

AUR2#,ZGR2#

 1
53725-02010

AUR2#,WAR20,ZGR2#

 1
53726B - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH
53726-02010

AUR2#,ZGR2#

 1
53726-02010

AUR2#,WAR20,ZGR2#

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-02020

AUR2#,WAR20,ZGR2#

 1
53731-02020

AUR2#,ZGR2#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-02020

AUR2#,WAR20,ZGR2#

 1
53732-02020

AUR2#,ZGR2#

 1
53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53733-02010

AUR2#,ZGR2#

(L)

 1
53733-12070

AUR2#,ZGR2#

(J)

 1
53733-02010

AUR2#,WAR20,ZGR2#

(L)

 1
53733-12070

AUR2#,WAR20,ZGR2#

(J)

 1
53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53734-02010

AUR2#,WAR20,ZGR2#

(L)

 1
53734-02010

AUR2#,ZGR2#

(L)

 1
53734-12070

AUR2#,WAR20,ZGR2#

(J)

 1
53734-12070

AUR2#,ZGR2#

(J)

 1
53735J - PATCH, FRONT FENDER APRON, NO.5
53735-02010

AUR2#,ZGR2#

 1
53735-02010

AUR2#,WAR20,ZGR2#

 1
53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53737-0F030

AUR2#,WAR20,ZGR2#

 1
53737-0F030

AUR2#,ZGR2#

 1
53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53738-0F020

AUR2#,WAR20,ZGR2#

 1
53738-0F020

AUR2#,ZGR2#

 1
53747A - EXTENSION, APRON FENDER SIDE, RH
53747-0F020

AUR2#,ZGR2#

 1
53747-0F020

AUR2#,WAR20,ZGR2#

 1
53748A - EXTENSION, APRON FENDER SIDE, LH
53748-0F020

AUR2#,ZGR2#

 1
53748-0F020

AUR2#,WAR20,ZGR2#

 1
53807B - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH
53807-0F010

AUR2#,WAR20,ZGR2#

 1
53807-0F010

AUR2#,ZGR2#

 1
53808B - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH
53808-0F010

AUR2#,ZGR2#

 1
53808-0F010

AUR2#,WAR20,ZGR2#

 1
53813C - EXTENSION, FRONT FENDER, RH
53813-05020

AUR2#,WAR20,ZGR2#

 1
53813-05020

AUR2#,ZGR2#

 1
53814C - EXTENSION, FRONT FENDER, LH
53814-05020

AUR2#,ZGR2#

 1
53814-05020

AUR2#,WAR20,ZGR2#

 1
53835D - BRACKET, FRONT SIDE PANEL, RH
53835-0F010

AUR2#,ZGR2#

 1
53803-0F010

AUR2#,WAR20,ZGR2#

 1
53835-0F010

AUR2#,ZGR2#

 1
53836C - BRACKET, FRONT SIDE PANEL, LH
53836-0F010

AUR2#,ZGR2#

 1
53836-0F010

AUR2#,ZGR2#

 1
53804-0F010

AUR2#,WAR20,ZGR2#

 1
55101 - PANEL SUB-ASSY, DASH
55101-02680

AUR2#,ZGR2#..RHD..6F

 1
55101-02680

AUR20,WAR20,ZGR2#..RHD..6F

 1
55137A - BRACE, DASH TO FRAME, RH
55137-02010

AUR2#,ZGR2#

 1
55137-02010

AUR2#,ZGR2#

 1
55137-02011

AUR2#,WAR20,ZGR2#

 1
55138A - BRACE, DASH TO FRAME, LH
55138-02010

AUR2#,ZGR2#

 1
55138-02010

AUR2#,ZGR2#

 1
55138-02011

AUR2#,WAR20,ZGR2#

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-0F070

AUR2#,WAR20,ZGR2#..RHD

 1
55210-0F071

AUR2#,WAR20,ZGR2#..RHD

 1
55210-0F040

AUR2#,ZGR2#..RHD

 1
55210C - CLIP
90467-08186C0

AUR2#,WAR20,ZGR2#

BLACK

 4
90467-08186C0

AUR2#,ZGR2#

BLACK

 4
55213A - PAD, DASH PANEL SILENCER
55213-0F040

AUR2#,ZGR2#..RHD

 1
55213-0F040

AUR2#,WAR20,ZGR2#..RHD

 1
55213-02220

AUR2#,WAR20,ZGR2#..RHD

 1
55213A - PAD, DASH PANEL SILENCER
55213-0F040

AUR2#,ZGR2#..RHD

 1
55213-0F040

AUR2#,WAR20,ZGR2#..RHD

 1
55213-02220

AUR2#,WAR20,ZGR2#..RHD

 1
55214A - PAD, DASH PANEL INSULATOR, NO.2
55214-0F020

AUR2#,ZGR2#..RHD

 1
55214-0F020

AUR2#,WAR20,ZGR2#..RHD

 1
55214A - PAD, DASH PANEL INSULATOR, NO.2
55214-0F020

AUR2#,ZGR2#..RHD

 1
55214-0F020

AUR2#,WAR20,ZGR2#..RHD

 1
55215A - PAD, DASH PANEL INSULATOR, NO.3
55215-02020

AUR2#,ZGR2#..RHD

 1
55215-02020

AUR2#,WAR20,ZGR2#..RHD

 1
55215A - PAD, DASH PANEL INSULATOR, NO.3
55215-02020

AUR2#,ZGR2#..RHD

 1
55215-02020

AUR2#,WAR20,ZGR2#..RHD

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-02160

AUR2#,WAR20,ZGR2#..RHD

 1
55223-02160

AUR2#,ZGR2#..RHD

 1
58441H - COVER, BATTERY SERVICE HOLE
58441-02010

AUR2#,ZGR2#

 1
Common parts
82817-1A810
90105-W0186
90109-06380
90119-06786
90119-08B13
90119-W0093
90119-W0134
90178-W0055
90467-07164
90467-07211
90467-10208
90467-11122
90541-15010
90541-15022
91515-80818
Linked diagrams
5701
