AUR21L-GWTEXW (2012)
Toyota Verso

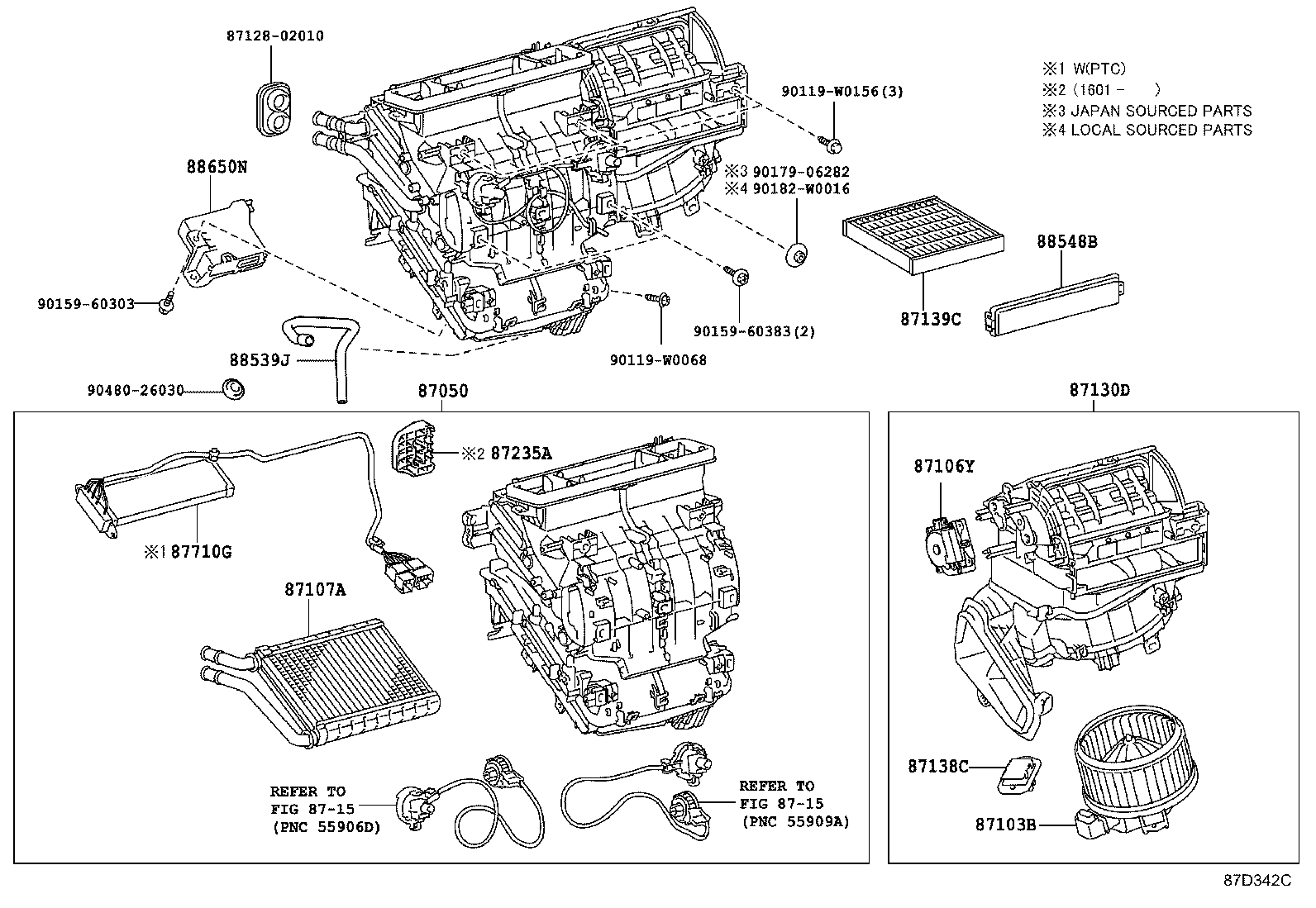

ILLUST NO. 1 OF 2(1211- )LHD
W/O(AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-02870 |
AUR2#..05S..E COLD AREA SPEC |
1 | ||
| 87050-02880 |
AUR2#..05S..E |
1 | ||
| 87050-02890 |
AUR2#..05S..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87050-02A00 |
AUR2#..05S..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87050-02870 |
AUR20..LHD..E;AUR21,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87050-02880 |
AUR21..LHD |
1 | ||
| 87050-02890 |
AUR2#,WAR20..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87050-02A00 |
AUR21..LHD AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87050-02A10 |
AUR20..LHD..E;AUR21,WAR20..LHD COLD AREA SPEC&AIR CONDITIONER-WITHOUT |
1 | ||
| 87050-02A20 |
AUR21..LHD AIR CONDITIONER-WITHOUT |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-02150 |
AUR2#,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87103-02150 |
AUR2#,ZGR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87103-02140 |
AUR2#,ZGR2#..LHD |
1 | ||
| 87103-02140 |
AUR2#,WAR20,ZGR2#..LHD |
1 | ||
| 87103-02150 |
AUR2#,WAR20,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87103-02150 |
AUR2#,WAR20,ZGR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87106Y - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION & FRESH) | ||||
| 87106-02180 |
AUR2#,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87106-02180 |
AUR2#,ZGR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87106-02170 |
AUR2#,ZGR2#..LHD |
1 | ||
| 87106-02180 |
AUR2#,WAR20,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87106-02170 |
AUR2#,ZGR2#..LHD |
1 | ||
| 87106-02260 |
AUR2#,WAR20,ZGR2#..LHD |
1 | ||
| 87106-02180 |
AUR2#,WAR20,ZGR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-02150 |
AUR2#,ZGR2# |
1 | ||
| 87107-02150 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-02291 |
AUR2#..05S COLD AREA SPEC |
1 | ||
| 87130-02321 |
AUR2#..05S..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87130-02311 |
AUR2#..05S..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87130-02301 |
AUR2#..05S |
1 | ||
| 87130-02291 |
AUR2#,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87130-02301 |
AUR2#,WAR20..LHD |
1 | ||
| 87130-02311 |
AUR2#,WAR20..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87130-02291 |
AUR20..LHD..E;AUR21,WAR20..LHD COLD AREA SPEC&AIR CONDITIONER-WITHOUT |
1 | ||
| 87130-02321 |
AUR2#,WAR20..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-02100 |
AUR2#,WAR20,ZGR2#..LHD |
1 | ||
| 87138-02100 |
AUR2#,ZGR2#..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-0D070 |
AUR2#,WAR20,ZGR2# POLLEN FILTER |
1 | ||
| 87139-50100 |
AUR2#,WAR20,ZGR2# *DPF |
1 | ||
| 87139-02020 |
AUR2#,ZGR2# |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-02020 |
AUR21..LHD |
1 | ||
| 87710-02020 |
AUR2#..05S..6F |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-02110 |
AUR2#,ZGR2#..LHD |
1 | ||
| 88539-02260 |
AUR2#,WAR20,ZGR2#..LHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-02070 |
AUR2#,ZGR2#..LHD |
1 | ||
| 88548-02070 |
AUR2#,WAR20,ZGR2#..LHD |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0F100 |
AUR2# |
1 | ||
| 88650-0F090 |
AUR2#..05S COLD AREA SPEC |
1 | ||
| 88650-0F111 |
AUR2#..05S..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 88650-0F150 |
AUR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 88650-0F121 |
AUR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 88650-0F100 |
AUR20..ENTRY;AUR2#..LHD..E |
1 | ||
| 88650-0F090 |
AUR2#..LHD COLD AREA SPEC |
1 | ||
| 88650-0F151 |
AUR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 88650-0F161 |
AUR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 88650-0F160 |
AUR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 87128-02010 | ||||
| 90119-W0068 | ||||
| 90119-W0156 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
| 90182-W0016 | ||||
| 90480-26030 | ||||
| Linked diagrams | ||||
| 8715 | ||||

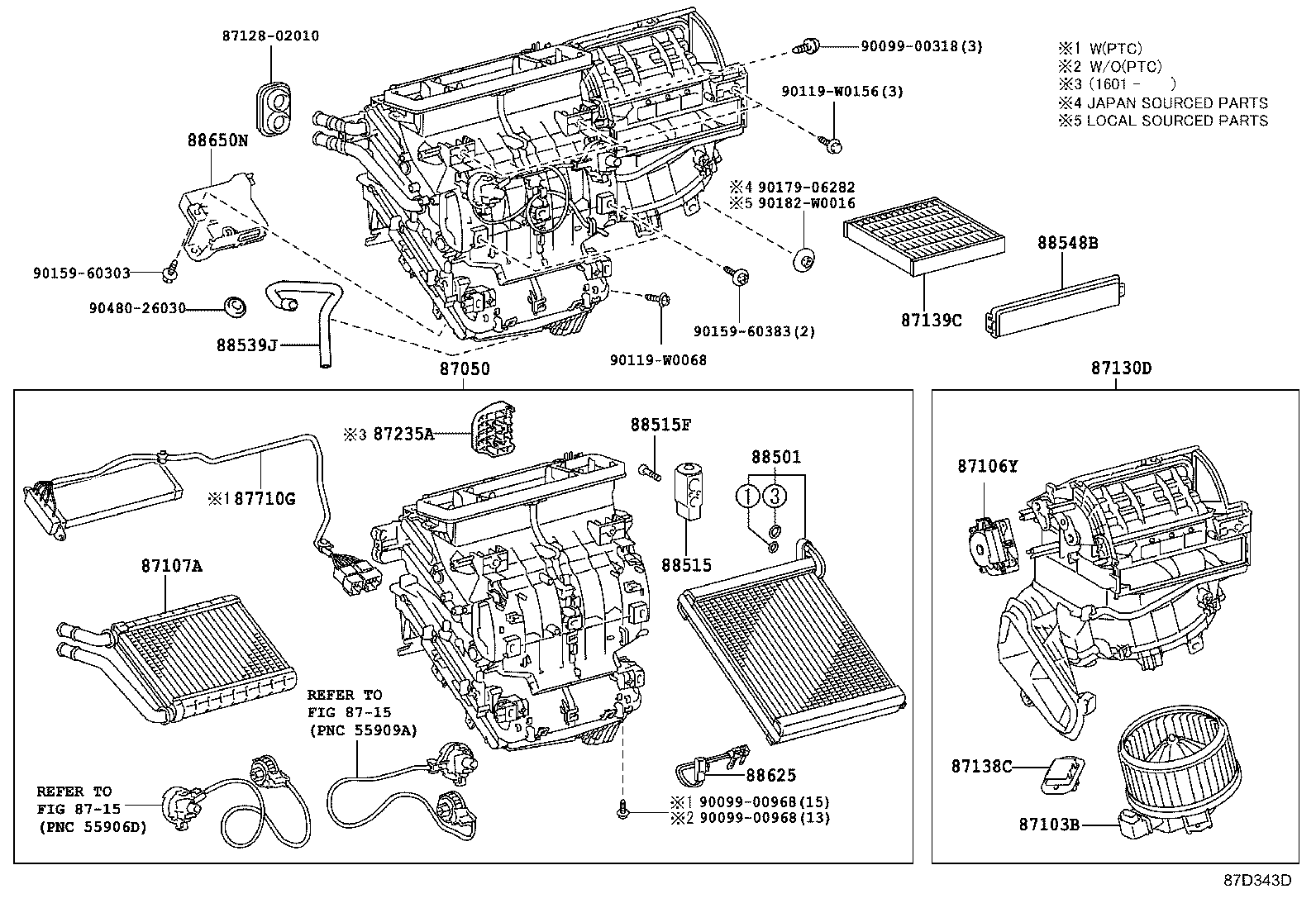

ILLUST NO. 1 OF 2(1211- )LHD
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-02870 |
AUR2#..05S..E COLD AREA SPEC |
1 | ||
| 87050-02880 |
AUR2#..05S..E |
1 | ||
| 87050-02890 |
AUR2#..05S..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87050-02A00 |
AUR2#..05S..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87050-02870 |
AUR20..LHD..E;AUR21,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87050-02880 |
AUR21..LHD |
1 | ||
| 87050-02890 |
AUR2#,WAR20..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87050-02A00 |
AUR21..LHD AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87050-02A10 |
AUR20..LHD..E;AUR21,WAR20..LHD COLD AREA SPEC&AIR CONDITIONER-WITHOUT |
1 | ||
| 87050-02A20 |
AUR21..LHD AIR CONDITIONER-WITHOUT |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-02150 |
AUR2#,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87103-02150 |
AUR2#,ZGR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87103-02140 |
AUR2#,ZGR2#..LHD |
1 | ||
| 87103-02140 |
AUR2#,WAR20,ZGR2#..LHD |
1 | ||
| 87103-02150 |
AUR2#,WAR20,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87103-02150 |
AUR2#,WAR20,ZGR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87106Y - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION & FRESH) | ||||
| 87106-02180 |
AUR2#,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87106-02180 |
AUR2#,ZGR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87106-02170 |
AUR2#,ZGR2#..LHD |
1 | ||
| 87106-02180 |
AUR2#,WAR20,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87106-02170 |
AUR2#,ZGR2#..LHD |
1 | ||
| 87106-02260 |
AUR2#,WAR20,ZGR2#..LHD |
1 | ||
| 87106-02180 |
AUR2#,WAR20,ZGR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-02150 |
AUR2#,ZGR2# |
1 | ||
| 87107-02150 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-02291 |
AUR2#..05S COLD AREA SPEC |
1 | ||
| 87130-02321 |
AUR2#..05S..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87130-02311 |
AUR2#..05S..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87130-02301 |
AUR2#..05S |
1 | ||
| 87130-02291 |
AUR2#,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87130-02301 |
AUR2#,WAR20..LHD |
1 | ||
| 87130-02311 |
AUR2#,WAR20..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87130-02291 |
AUR20..LHD..E;AUR21,WAR20..LHD COLD AREA SPEC&AIR CONDITIONER-WITHOUT |
1 | ||
| 87130-02321 |
AUR2#,WAR20..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-02100 |
AUR2#,WAR20,ZGR2#..LHD |
1 | ||
| 87138-02100 |
AUR2#,ZGR2#..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-0D070 |
AUR2#,WAR20,ZGR2# POLLEN FILTER |
1 | ||
| 87139-50100 |
AUR2#,WAR20,ZGR2# *DPF |
1 | ||
| 87139-02020 |
AUR2#,ZGR2# |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-02020 |
AUR21..LHD |
1 | ||
| 87710-02020 |
AUR2#..05S..6F |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-02202 |
WAR20;AUR2#,ZGR2#..E |
1 | ||
| 88501-02201 |
AUR2#,ZGR2#..E |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-02150 |
AUR2#,ZGR2#..E |
1 | ||
| 88515-02520 |
WAR20;AUR2#,ZGR2#..E |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
AUR2#,ZGR2#..E |
2 | ||
| 90099-04597 |
AUR2#,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
2 | ||
| 90099-04597 |
AUR2#,ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER |
2 | ||
| 90099-04542 |
WAR20;AUR20..E;AUR21,ZGR2#..LHD..E |
2 | ||
| 90099-04597 |
AUR2#,WAR20,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
2 | ||
| 90099-04597 |
AUR21,ZGR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-02110 |
AUR2#,ZGR2#..LHD |
1 | ||
| 88539-02260 |
AUR2#,WAR20,ZGR2#..LHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-02070 |
AUR2#,ZGR2#..LHD |
1 | ||
| 88548-02070 |
AUR2#,WAR20,ZGR2#..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-02110 |
AUR2#,ZGR2#..E |
1 | ||
| 88625-02110 |
WAR20;AUR2#,ZGR2#..E |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0F100 |
AUR2# |
1 | ||
| 88650-0F090 |
AUR2#..05S COLD AREA SPEC |
1 | ||
| 88650-0F111 |
AUR2#..05S..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 88650-0F150 |
AUR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 88650-0F121 |
AUR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 88650-0F100 |
AUR20..ENTRY;AUR2#..LHD..E |
1 | ||
| 88650-0F090 |
AUR2#..LHD COLD AREA SPEC |
1 | ||
| 88650-0F151 |
AUR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 88650-0F161 |
AUR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 88650-0F160 |
AUR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 87128-02010 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90119-W0068 | ||||
| 90119-W0156 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
| 90182-W0016 | ||||
| 90480-26030 | ||||
| Linked diagrams | ||||
| 8715 | ||||

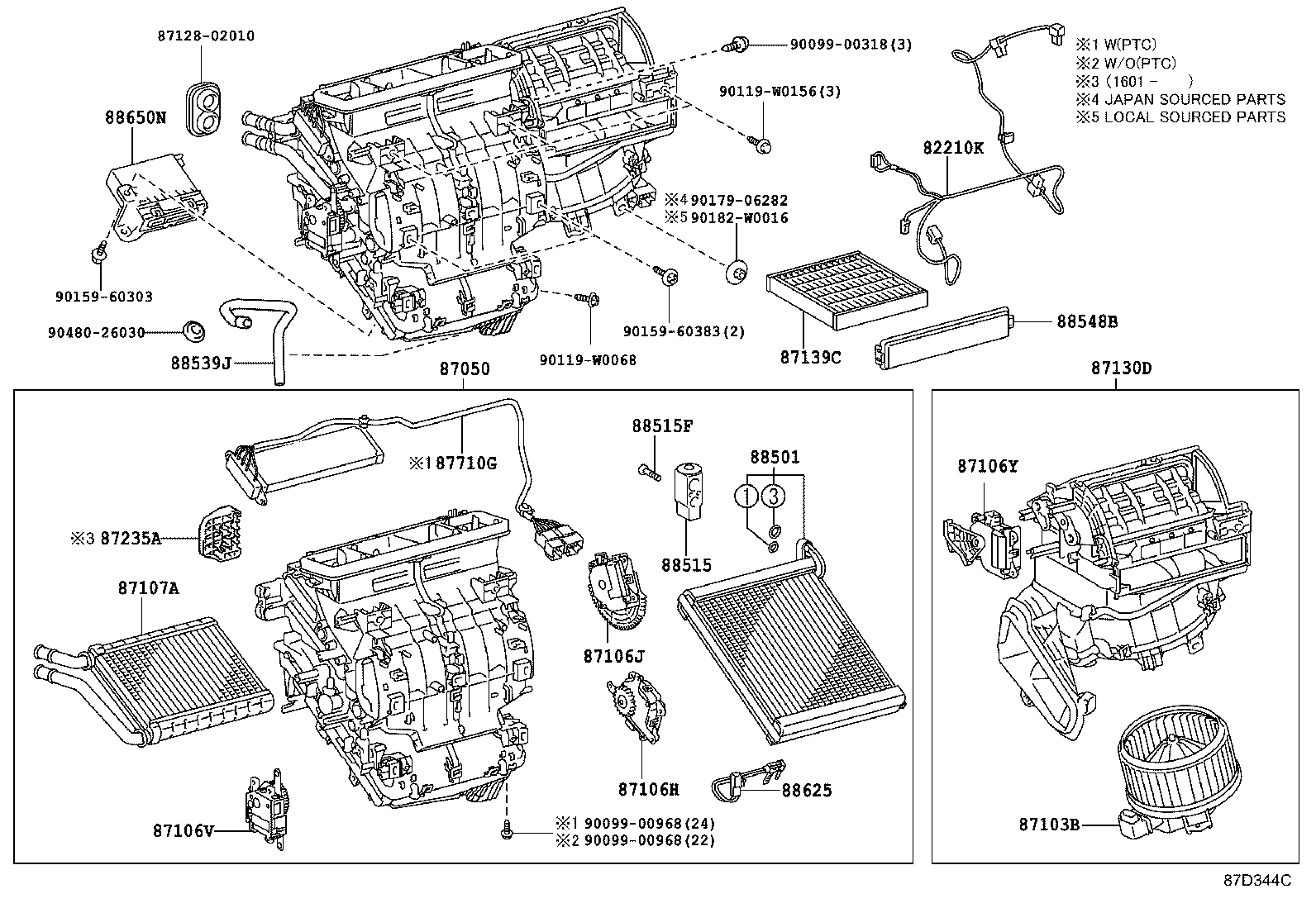

ILLUST NO. 1 OF 2(1211- )LHD..E
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-02010 |
AUR2#,WAR20,ZGR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82212-02010 |
AUR2#,ZGR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-02870 |
AUR2#..05S..E COLD AREA SPEC |
1 | ||
| 87050-02880 |
AUR2#..05S..E |
1 | ||
| 87050-02890 |
AUR2#..05S..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87050-02A00 |
AUR2#..05S..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87050-02870 |
AUR20..LHD..E;AUR21,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87050-02880 |
AUR21..LHD |
1 | ||
| 87050-02890 |
AUR2#,WAR20..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87050-02A00 |
AUR21..LHD AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87050-02A10 |
AUR20..LHD..E;AUR21,WAR20..LHD COLD AREA SPEC&AIR CONDITIONER-WITHOUT |
1 | ||
| 87050-02A20 |
AUR21..LHD AIR CONDITIONER-WITHOUT |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-02150 |
AUR2#,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87103-02150 |
AUR2#,ZGR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87103-02140 |
AUR2#,ZGR2#..LHD |
1 | ||
| 87103-02140 |
AUR2#,WAR20,ZGR2#..LHD |
1 | ||
| 87103-02150 |
AUR2#,WAR20,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87103-02150 |
AUR2#,WAR20,ZGR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-02120 |
AUR2#,ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87106-02120 |
AUR2#,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87106-02270 |
AUR2#,WAR20,ZGR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87106-02270 |
AUR2#,WAR20,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-02140 |
AUR2#,ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87106-02140 |
AUR2#,WAR20,ZGR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87106-02140 |
AUR2#,WAR20,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87106-02140 |
AUR2#,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87106V - SERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2) | ||||
| 87106-02130 |
AUR2#,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87106-02130 |
AUR2#,ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87106-02280 |
AUR2#,WAR20,ZGR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87106-02280 |
AUR2#,WAR20,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87106Y - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION & FRESH) | ||||
| 87106-02180 |
AUR2#,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87106-02180 |
AUR2#,ZGR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87106-02170 |
AUR2#,ZGR2#..LHD |
1 | ||
| 87106-02180 |
AUR2#,WAR20,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87106-02170 |
AUR2#,ZGR2#..LHD |
1 | ||
| 87106-02260 |
AUR2#,WAR20,ZGR2#..LHD |
1 | ||
| 87106-02180 |
AUR2#,WAR20,ZGR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-02150 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 87107-02150 |
AUR2#,ZGR2# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-02291 |
AUR2#..05S COLD AREA SPEC |
1 | ||
| 87130-02321 |
AUR2#..05S..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87130-02311 |
AUR2#..05S..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87130-02301 |
AUR2#..05S |
1 | ||
| 87130-02291 |
AUR2#,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87130-02301 |
AUR2#,WAR20..LHD |
1 | ||
| 87130-02311 |
AUR2#,WAR20..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87130-02291 |
AUR20..LHD..E;AUR21,WAR20..LHD COLD AREA SPEC&AIR CONDITIONER-WITHOUT |
1 | ||
| 87130-02321 |
AUR2#,WAR20..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-0D070 |
AUR2#,WAR20,ZGR2# POLLEN FILTER |
1 | ||
| 87139-50100 |
AUR2#,WAR20,ZGR2# *DPF |
1 | ||
| 87139-02020 |
AUR2#,ZGR2# |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-02020 |
AUR21..LHD |
1 | ||
| 87710-02020 |
AUR2#..05S..6F |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-02202 |
WAR20;AUR2#,ZGR2#..E |
1 | ||
| 88501-02201 |
AUR2#,ZGR2#..E |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-02150 |
AUR2#,ZGR2#..E |
1 | ||
| 88515-02520 |
WAR20;AUR2#,ZGR2#..E |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
AUR2#,ZGR2#..E |
2 | ||
| 90099-04597 |
AUR2#,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
2 | ||
| 90099-04597 |
AUR2#,ZGR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER |
2 | ||
| 90099-04542 |
WAR20;AUR20..E;AUR21,ZGR2#..LHD..E |
2 | ||
| 90099-04597 |
AUR2#,WAR20,ZGR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
2 | ||
| 90099-04597 |
AUR21,ZGR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-02110 |
AUR2#,ZGR2#..LHD |
1 | ||
| 88539-02260 |
AUR2#,WAR20,ZGR2#..LHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-02070 |
AUR2#,ZGR2#..LHD |
1 | ||
| 88548-02070 |
AUR2#,WAR20,ZGR2#..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-02110 |
AUR2#,ZGR2#..E |
1 | ||
| 88625-02110 |
WAR20;AUR2#,ZGR2#..E |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0F100 |
AUR2# |
1 | ||
| 88650-0F090 |
AUR2#..05S COLD AREA SPEC |
1 | ||
| 88650-0F111 |
AUR2#..05S..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 88650-0F150 |
AUR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 88650-0F121 |
AUR2#..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 88650-0F100 |
AUR20..ENTRY;AUR2#..LHD..E |
1 | ||
| 88650-0F090 |
AUR2#..LHD COLD AREA SPEC |
1 | ||
| 88650-0F151 |
AUR2#..LHD..E COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 88650-0F161 |
AUR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 88650-0F160 |
AUR2#..LHD..E AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 87128-02010 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90119-W0068 | ||||
| 90119-W0156 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
| 90182-W0016 | ||||
| 90480-26030 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
