AUR21L-GWFEXW (2012)
Toyota Verso
(1211- )AUR2#..LHD
COLD AREA SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

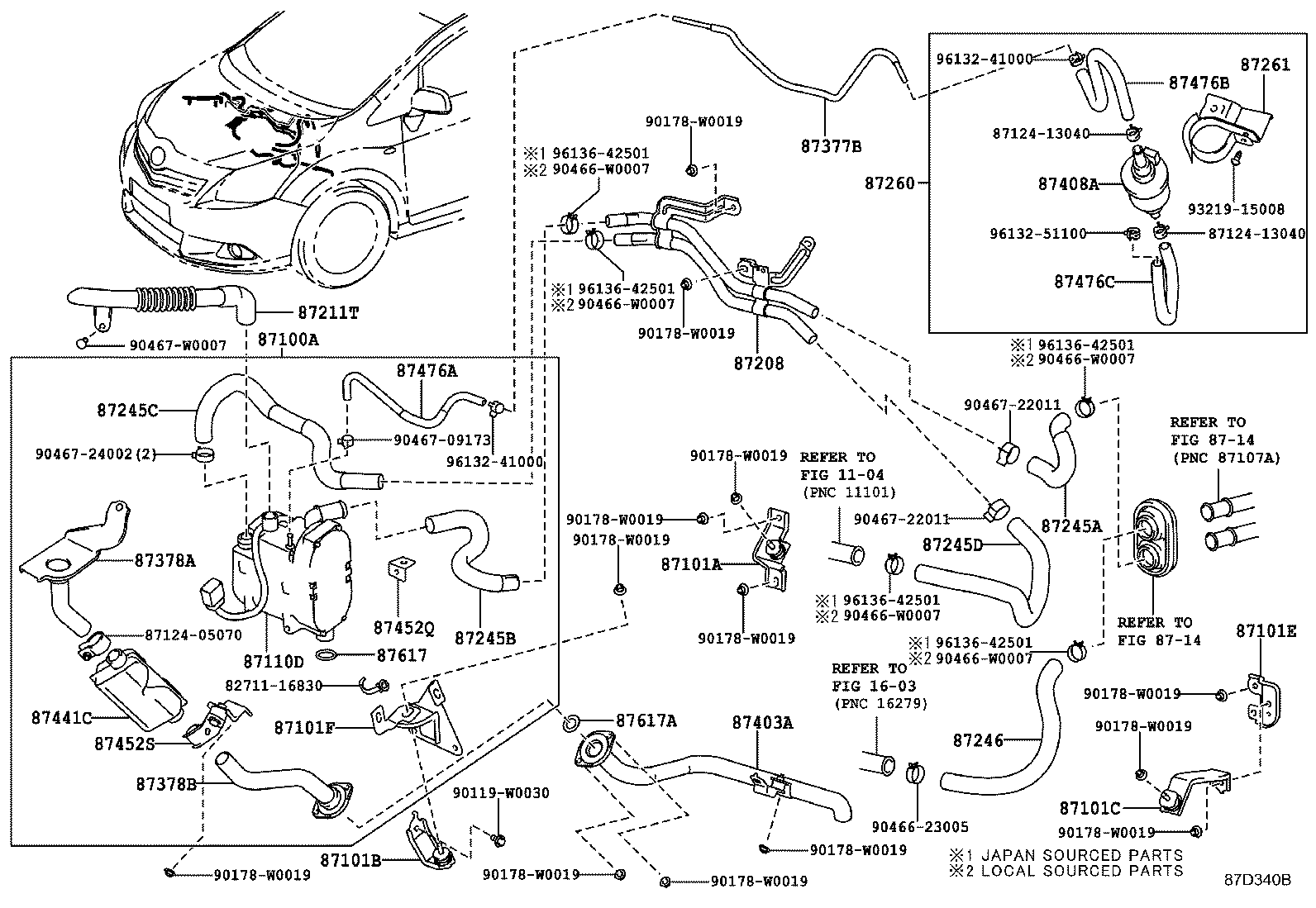

| 87100A - HEATER & ACCESSORY ASSY | ||||
| 87100-02040 |
AUR2#..05S..6F COLD AREA SPEC |
1 | ||
| 87100-02060 |
AUR2#,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87101A - BRACKET SUB-ASSY, HEATER NO.1 | ||||
| 87101-02060 |
AUR2#..05S..6F COLD AREA SPEC |
1 | ||
| 87101-02060 |
AUR2#,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87101B - BRACKET SUB-ASSY, HEATER NO.2 | ||||
| 87101-02070 |
AUR2#..05S..6F COLD AREA SPEC |
1 | ||
| 87101-02070 |
AUR2#,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87101C - BRACKET SUB-ASSY, HEATER NO.3 | ||||
| 87101-02081 |
AUR2#,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87101-02081 |
AUR2#..05S..6F COLD AREA SPEC |
1 | ||
| 87101E - BRACKET SUB-ASSY, HEATER NO.4 | ||||
| 87101-02100 |
AUR2#..05S..6F COLD AREA SPEC |
1 | ||
| 87101-02100 |
AUR2#,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87101F - BRACKET SUB-ASSY, HEATER NO.5 | ||||
| 87101-02120 |
AUR2#,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87101-02120 |
AUR2#..05S..6F COLD AREA SPEC |
1 | ||
| 87110D - HEATER ASSY | ||||
| 87110-02030 |
AUR2#..05S..6F COLD AREA SPEC |
1 | ||
| 87110-02020 |
AUR2#,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-02050 |
AUR2#..LHD COLD AREA SPEC |
1 | ||
| 87208-02020 |
AUR2#..05S COLD AREA SPEC |
1 | ||
| 87211T - DUCT, AIR | ||||
| 87211-02250 |
AUR2#,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87211-02250 |
AUR2#..05S..6F COLD AREA SPEC |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-02B20 |
AUR2#..05S COLD AREA SPEC |
1 | ||
| 87245-02N00 |
AUR2#..LHD COLD AREA SPEC |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-02F20 |
AUR2#,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87245-02F20 |
AUR2#..05S..6F COLD AREA SPEC |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-02B00 |
AUR2#..05S..6F COLD AREA SPEC |
1 | ||
| 87245-02B00 |
AUR2#,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87245D - HOSE, HEATER WATER, INLET D | ||||
| 87245-02M90 |
AUR2#..LHD COLD AREA SPEC |
1 | ||
| 87245-05720 |
AUR2#..05S COLD AREA SPEC |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-02A90 |
AUR2#..05S COLD AREA SPEC |
1 | ||
| 87245-02A90 |
AUR2# |
1 | ||
| 87245-02M50 |
AUR2#..LHD COLD AREA SPEC |
1 | ||
| 87245-02M50 |
AUR2# |
1 | ||
| 87260 - PUMP ASSY, HEATER | ||||
| 87260-02031 |
AUR2#..LHD COLD AREA SPEC |
1 | ||
| 87260-02031 |
AUR2#..05S COLD AREA SPEC |
1 | ||
| 87261 - BRACKET, HEATER PUMP | ||||
| 87261-02010 |
AUR2#..05S..6F COLD AREA SPEC |
1 | ||
| 87261-02010 |
AUR2#..LHD COLD AREA SPEC |
1 | ||
| 87377B - PIPE, FUEL | ||||
| 87377-02010 |
AUR2#,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87377-02010 |
AUR2#..05S COLD AREA SPEC |
1 | ||
| 87378A - PIPE, EXHAUST | ||||
| 87378-02050 |
AUR2#,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87378-02050 |
AUR2#..05S..6F COLD AREA SPEC |
1 | ||
| 87378B - PIPE, EXHAUST, NO.2 | ||||
| 87378-02060 |
AUR2#..05S..6F COLD AREA SPEC |
1 | ||
| 87378-02060 |
AUR2#,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87403A - PIPE SUB-ASSY, EXHAUST | ||||
| 87403-02050 |
AUR2#,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87403-02020 |
AUR2#..05S..6F COLD AREA SPEC |
1 | ||
| 87408A - PUMP SUB-ASSY, FUEL | ||||
| 87408-0D011 |
AUR2#..05S..6F COLD AREA SPEC |
1 | ||
| 87408-0D011 |
AUR2#,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87441C - MUFFLER | ||||
| 87441-05010 |
AUR2#..05S..6F COLD AREA SPEC |
1 | ||
| 87441-05010 |
AUR2#,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87452Q - BRACKET, HEATER, NO.1 | ||||
| 87452-02090 |
AUR2#..05S..6F COLD AREA SPEC |
1 | ||
| 87452-02090 |
AUR2#,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87452S - BRACKET, HEATER, NO.2 | ||||
| 87452-02100 |
AUR2#..05S..6F COLD AREA SPEC |
1 | ||
| 87452-02100 |
AUR2#,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87476A - HOSE, HEATER FUEL, NO.1 | ||||
| 87476-02060 |
AUR2#..05S..6F COLD AREA SPEC |
1 | ||
| 87476-02060 |
AUR2#,WAR20..LHD COLD AREA SPEC |
1 | ||
| 87476B - HOSE, HEATER FUEL, NO.2 | ||||
| 87476-02051 |
AUR2#..LHD COLD AREA SPEC |
1 | ||
| 87476-02051 |
AUR2#..05S..6F COLD AREA SPEC |
1 | ||
| 87476C - HOSE, HEATER FUEL, NO.3 | ||||
| 87476-02031 |
AUR2#..LHD COLD AREA SPEC |
1 | ||
| 87476-02031 |
AUR2#..05S..6F COLD AREA SPEC |
1 | ||
| 87617 - GASKET, HEAT EXCHANGER UNIT NO.1 | ||||
| 87617-02040 |
AUR2#,WAR20..LHD COLD AREA SPEC |
2 | ||
| 87617-02040 |
AUR2#..05S..6F COLD AREA SPEC |
2 | ||
| 87617A - GASKET, HEAT EXCHANGER UNIT NO.2 | ||||
| 87617-02020 |
AUR2#..05S..6F COLD AREA SPEC |
2 | ||
| 87617-02020 |
AUR2#,WAR20..LHD COLD AREA SPEC |
1 | ||
| Common parts | ||||
| 82711-16830 | ||||
| 87124-05070 | ||||
| 87124-13040 | ||||
| 90119-W0030 | ||||
| 90178-W0019 | ||||
| 90466-23005 | ||||
| 90466-W0007 | ||||
| 90467-09173 | ||||
| 90467-22011 | ||||
| 90467-24002 | ||||
| 90467-W0007 | ||||
| 93219-15008 | ||||
| 96132-41000 | ||||
| 96132-51100 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8714 | ||||
